1. Important Safety Information
Before operating your Bodywel A26 E-Bike, please read this manual thoroughly. Failure to follow instructions and safety warnings may result in serious injury or damage to the product.
- Always wear a helmet and appropriate safety gear when riding.
- Ensure all components are correctly assembled and tightened before each ride.
- Check tire pressure, brakes, and battery charge level before use.
- Do not ride in adverse weather conditions or on unsafe terrain.
- Adhere to local traffic laws and regulations.
- Keep hands and feet away from moving parts.
2. Package Contents
Your Bodywel A26 E-Bike package includes the following items:
- Bodywel A26 E-Bike (partially assembled)
- Removable 36V 13Ah Lithium Battery
- Battery Charger
- User Manual (this document)
- Assembly Tools
- Lucchetto (Lock)
3. Setup and Assembly
The Bodywel A26 E-Bike comes partially assembled. Follow these steps for final assembly and initial setup.
3.1 Unpacking and Initial Inspection
Carefully remove all components from the packaging. Inspect for any signs of damage during transit. Report any damage to your retailer immediately.
3.2 Handlebar Adjustment
The A26 E-Bike features an adjustable handlebar stem for personalized comfort. Adjust the height and angle to achieve an ergonomic riding position that reduces fatigue on shoulders and wrists.

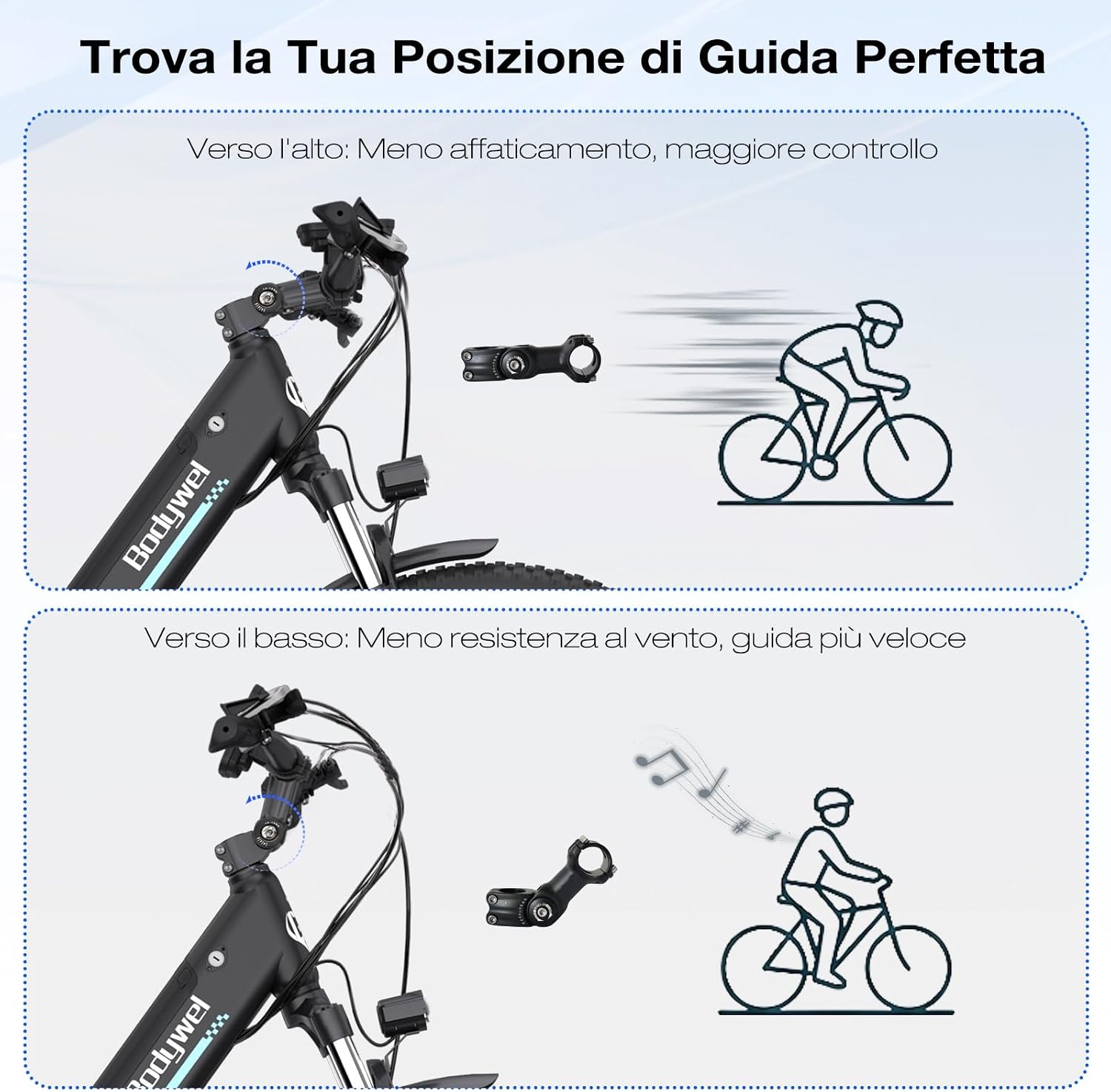

Image: Handlebar Adjustment. This diagram illustrates how to adjust the handlebar stem. Raising the handlebar can provide a more upright posture, reducing strain and offering better control. Lowering it can reduce wind resistance for a faster, more aerodynamic ride.
3.3 Battery Installation and Initial Charge
Locate the removable 36V 13Ah lithium battery. Insert it into the designated compartment and ensure it is securely locked. Before first use, fully charge the battery for 4-6 hours using the provided charger. The removable design allows for convenient charging at home or in the office.
Image: Battery Installation. A person is shown interacting with the removable battery of the Bodywel A26 E-Bike. The battery is a 36V 13Ah unit, providing 468Wh of power, and is designed for easy removal and charging.
4. Operating Instructions
4.1 Powering On/Off and Display Usage
To power on the e-bike, press and hold the power button on the intelligent LED display. The display will show speed, gear level, battery charge, and other riding data. To power off, press and hold the power button again.
Image: Intelligent LED Display. This image shows the e-bike's LED display, which provides real-time information such as speed, pedal assist level, battery status, and trip distance. It also indicates compatibility with the Tuya Smart app for additional features.
4.2 Pedal Assist System (PAS)
The A26 E-Bike features a 250W brushless motor with 3 levels of pedal assist. Select your desired assist level using the controls on the handlebar. The motor provides smooth acceleration and reliable performance, even on inclines up to 18 degrees. The rear-wheel drive system ensures stable and natural riding.
Image: Motor and Performance. A rider demonstrates the Bodywel A26 E-Bike's capabilities. The bike is equipped with a 250W brushless motor, offering 35Nm of torque, a maximum speed of 25 km/h, and the ability to climb gradients of 10-20 degrees. It also has an IP54 waterproof rating.
4.3 Gear Shifting
The bike is equipped with a 7-speed gear system. Use the shifter on the handlebar to change gears smoothly and precisely. This allows you to adapt to various riding conditions, from flat urban roads to slight inclines, improving pedaling efficiency and control.
Image: 7-Speed Gear System. This image provides a detailed view of the 7-speed drivetrain, including the rear derailleur and cassette. An inset shows the handlebar-mounted shifter, indicating the current gear for smooth and precise gear changes.
4.4 Braking System
The Bodywel A26 features mechanical disc brakes on both the front and rear wheels. Apply both brake levers gently and evenly to slow down or stop. Regularly check brake pads and cables for wear and proper function.
5. Maintenance
5.1 Battery Care
To maximize battery life, charge it regularly, even if not in frequent use. Avoid completely draining the battery. Store the battery in a cool, dry place when not in use. Do not expose the battery to extreme temperatures.
5.2 Tire Pressure
Maintain proper tire pressure for optimal performance and safety. The 26x2.1 inch tires are designed for urban mobility and mixed terrains. Refer to the tire sidewall for recommended pressure ranges. Regularly check for punctures or damage.
Image: Tires and Suspension. This image focuses on the 26x2.1 inch tires and the front suspension fork, designed to absorb road vibrations and provide comfort on various surfaces, including paved roads, bike paths, and light off-road trails.
5.3 Brake Inspection
Periodically inspect the mechanical disc brakes for wear on the pads and proper tension of the cables. Ensure the brake levers engage smoothly and provide effective stopping power. Adjust or replace components as needed.
5.4 General Cleaning
Clean your e-bike regularly with a damp cloth. Avoid using high-pressure water jets directly on electrical components. Lubricate the chain periodically to ensure smooth operation.
6. Troubleshooting
- Bike Not Powering On: Check if the battery is fully charged and correctly installed. Ensure all connections are secure.
- Motor Not Assisting: Verify that the pedal assist system is activated and a assist level is selected. Check for any error codes on the display.
- Brakes Not Effective: Inspect brake pads for wear. Check brake cable tension and adjust if necessary. Ensure disc rotors are clean and free from oil or grease.
- Unusual Noises: Identify the source of the noise. It could be loose components, a dry chain, or issues with the motor or gears. Consult a professional if the issue persists.
7. Specifications
Image: E-Bike Dimensions and Capacities. This image provides a detailed overview of the Bodywel A26 E-Bike's physical dimensions, weight (26.8kg / 59lbs), recommended rider heights (155-200cm / 5'1"-6'7"), and maximum payload capacity (120kg / 265lbs).
| Feature | Specification |
|---|---|
| Model Name | A26 |
| Brand | Bodywel |
| Bike Type | Electric City Bike |
| Age Range | Adults |
| Wheel Size | 26 Inches |
| Wheel Width | 2.1 Inches |
| Number of Speeds | 7 |
| Color | Black |
| Suspension Type | Dual Suspension |
| Braking System | Disc Brake |
| Motor Power | 250 Watts |
| Lithium Battery Energy | 468 Watt-hours (36V 13Ah) |
| Estimated Range | 35-60 km (Pedal Assist Mode) |
| Charging Time | 4-6 hours |
| Max Recommended Weight | 150 Kilograms |
| Item Weight | 32.5 Kilograms |
| Special Features | Odometer, Digital Display, Front Light, Rear Light, Dual Disc Brake |
| Included Components | Lock |
| Intended Riding Terrain | Paved Roads, Urban Areas |
8. Warranty and Support
8.1 Product Warranty
The Bodywel A26 E-Bike comes with a one-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact Bodywel customer support. Refer to the contact information provided with your purchase or visit the official Bodywel website.
