Godrej 1.5 Ton 3 Star Inverter Split AC

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Godrej 1.5 Ton 3 Star Inverter Split AC. Please read this manual thoroughly before using the appliance and retain it for future reference. This air conditioner is designed for efficient cooling in medium-sized rooms (111 to 150 sq. ft.).

2. Safety Information

Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury.

• Professional Installation: Installation and servicing must be performed by qualified personnel.
• Power Supply: Ensure the power supply matches the specifications of the unit. Do not use damaged power cords or plugs.
• Grounding: The unit must be properly grounded to prevent electric shock.
• Refrigerant: This unit uses R32 refrigerant, which is environmentally friendly. Do not attempt to handle refrigerant yourself.
• Clearance: Maintain adequate clearance around the indoor and outdoor units for proper airflow.
• Cleaning: Disconnect power before cleaning or performing maintenance.
• Children: Keep children away from the unit and remote control.

3. Product Components

The following items are typically included in the box:

• 1 Indoor Unit
• 1 Outdoor Unit
• Interconnecting cable (3.5 meters)
• Interconnecting copper pipe (3 meters)
• 1 Remote Control
• User Manual (this document)
• Warranty Card

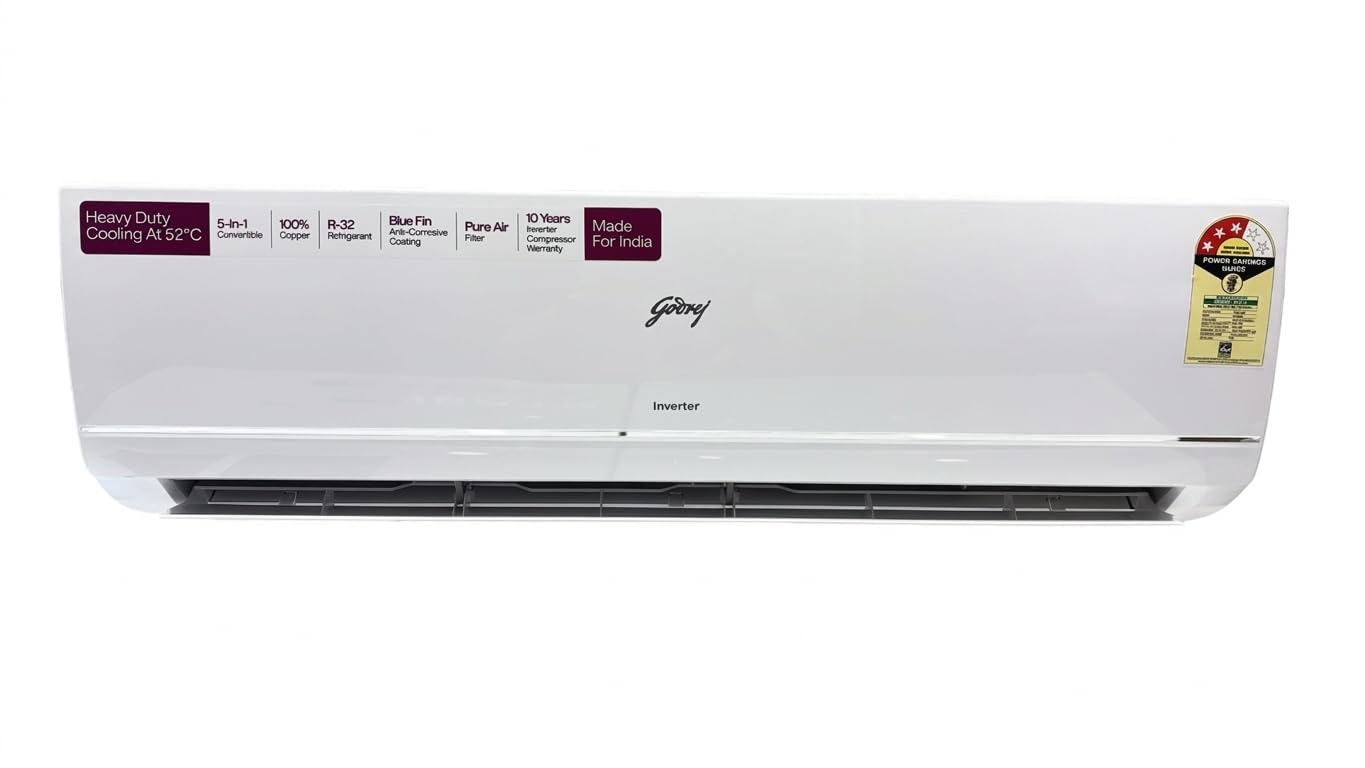

Figure 3.1: Godrej Inverter Split AC Indoor Unit. This image shows the sleek white indoor unit of the Godrej Inverter Split AC mounted on a wall.

4. Key Features

Your Godrej Inverter Split AC is equipped with advanced features for enhanced comfort and efficiency:

• 5-in-1 Convertible Technology: This inverter compressor adjusts power based on heat load, allowing you to operate the AC at cooling capacities ranging from 40% to 110%. This feature helps in energy saving and provides flexible cooling.
• I Sense Technology: The remote control features a sensor that detects the temperature around your location. The AC then adjusts its operation to match the set temperature at your precise location, ensuring optimal comfort.
• 100% Copper Condenser: The evaporator coil is made of 100% copper with hydrophilic blue fins, ensuring durability, efficient heat transfer, and heavy-duty performance.
• Anti-Microbial Self Clean Technology: This feature helps to prevent the growth of harmful microorganisms inside the indoor unit, ensuring cleaner and healthier air.
• Anti-Freeze Thermostat: Prevents the coil from freezing, enhancing the unit's longevity and performance.
• Heavy Duty Cooling: Designed to provide effective cooling even at ambient temperatures up to 52°C.
• Self-Diagnosis: The unit can detect and display certain operational issues, aiding in quicker troubleshooting.

Figure 4.1: 5-in-1 Convertible Cooling Levels. This image illustrates the five different adjustable cooling levels (40%, 60%, 80%, 100%, 110% capacity) available with the Godrej Inverter Split AC, showing how it adapts to different needs.

Figure 4.2: Self-Diagnosis and Self-Cleaning Technology. This image highlights the self-diagnosis feature (represented by an exclamation mark icon) and the self-cleaning technology (represented by a hand washing icon) of the Godrej AC.

Figure 4.3: Heavy Duty Cooling. This image emphasizes the AC's capability for heavy-duty cooling, chilling effectively even at 52°C, with a thermometer and snowflake icon.

5. Installation Guide (Setup)

Proper installation is crucial for the performance and longevity of your air conditioner. It is highly recommended that installation be carried out by a certified technician.

5.1 Pre-Installation Checks

• Ensure the installation site for both indoor and outdoor units is suitable and provides adequate space for maintenance.
• Verify that the electrical wiring meets local codes and the unit's power requirements.
• Confirm all components listed in Section 3 are present.

5.2 General Installation Steps (Overview)

1. Mount the indoor unit securely on a wall, ensuring it is level and has proper drainage.
2. Install the outdoor unit on a stable, level surface, ensuring sufficient airflow and vibration isolation.
3. Connect the copper refrigerant pipes between the indoor and outdoor units, ensuring proper flaring and tightening to prevent leaks.
4. Connect the electrical wiring between the units and to the main power supply, following the wiring diagram provided by the technician.
5. Perform vacuuming of the refrigerant lines to remove air and moisture.
6. Check for refrigerant leaks using appropriate detection methods.
7. Test the unit's operation in all modes to ensure proper functioning.

Note: Detailed installation instructions are provided to the certified technician. Do not attempt self-installation.

6. Operating Instructions

Familiarize yourself with the remote control and its functions to effectively operate your AC.

6.1 Remote Control Functions

The remote control allows you to adjust various settings:

• Power Button: Turns the AC On/Off.
• Mode Button: Cycles through operating modes (Cool, Fan, Dry, Auto).
• Temperature Buttons (▲/▼): Adjusts the desired temperature.
• Fan Speed Button: Selects fan speed (Auto, Low, Medium, High).
• Swing Button: Controls the vertical louver movement for air direction.
• Timer Button: Sets On/Off timers.
• I Sense Button: Activates/deactivates the I Sense feature for localized temperature control.
• Convertible Mode Button: Activates the 5-in-1 convertible cooling feature. Press repeatedly to cycle through capacity levels (40%, 60%, 80%, 100%, 110%).
• Sleep Mode: Adjusts temperature automatically for comfortable sleep.

6.2 Using 5-in-1 Convertible Cooling

To optimize energy consumption and cooling based on your needs:

1. Turn on the AC and select the 'Cool' mode.
2. Press the 'Convertible Mode' button on your remote control.
3. Each press will cycle through the available cooling capacities: 40%, 60%, 80%, 100%, and 110%. Select the capacity that best suits the room occupancy and ambient temperature.

6.3 Activating I Sense Technology

For personalized comfort:

1. Ensure the remote control is placed near you.
2. Press the 'I Sense' button on the remote. The AC will now use the temperature sensor in the remote to maintain the set temperature around your immediate vicinity.

7. Maintenance

Regular maintenance ensures optimal performance, energy efficiency, and extends the lifespan of your AC unit.

7.1 Air Filter Cleaning

Clean the air filters every two weeks, or more frequently if the environment is dusty.

1. Turn off the AC and disconnect it from the power supply.
2. Open the front panel of the indoor unit.
3. Remove the air filters.
4. Clean the filters with a vacuum cleaner or wash them with lukewarm water and a mild detergent.
5. Rinse thoroughly and allow them to dry completely in a shaded area before reinserting.
6. Close the front panel.

7.2 Anti-Microbial Self Clean Function

This feature helps to keep the indoor coil clean. Refer to your remote control's specific instructions for activating the self-clean cycle. Typically, it involves a specific button press or sequence.

7.3 Outdoor Unit Maintenance

Periodically check the outdoor unit for any obstructions (leaves, debris) and clear them. Ensure the condenser fins are clean. For detailed cleaning of the outdoor unit, it is recommended to contact a professional service technician.

7.4 Professional Servicing

It is advisable to have your AC unit professionally serviced at least once a year, preferably before the cooling season, to ensure all components are functioning correctly and to prevent potential issues.

8. Troubleshooting

Before contacting customer support, refer to the following common issues and their potential solutions:

If the problem persists after attempting these solutions, please contact Godrej customer support.

9. Technical Specifications

Detailed specifications for your Godrej 1.5 Ton 3 Star Inverter Split AC:

Figure 9.1: Energy Label. This image displays the Power Savings Guide and Energy Efficiency label for the Godrej AC, indicating a 3-star BEE rating and an ISEER value of 4.1.

10. Warranty and Support

Your Godrej Inverter Split AC comes with a comprehensive warranty and dedicated customer support.

10.1 Manufacturer Warranty

A 5-YEAR FREE COMPREHENSIVE WARRANTY is applicable on purchases made after September 1st, 2024. To avail the warranty, you must register on the Godrej brand website within 7 days of purchase.

Warranty Coverage includes:

• Labor and all functional parts: Gas charging, compressor, Inverter controller drive, Remote, Indoor PCB, Fan Motors, Heat Exchange coils.
• 5 years on PCB (Printed Circuit Board).
• 10 years on compressor.

The warranty can be availed using your Amazon invoice as proof of purchase.

Figure 10.1: 5 Years Comprehensive Warranty. This image highlights the 5-year comprehensive warranty offered with the Godrej AC, emphasizing no hidden costs for gas refill, labor, or remote replacement.

10.2 Customer Support

For any queries, service requests, or warranty claims, please contact Godrej customer support through their official website or helpline numbers. Refer to the warranty card for specific contact details.
