OUXI GT2000 Electric Dirt Bike Instruction Manual

1. Introduction

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your OUXI GT2000 Electric Dirt Bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience. The OUXI GT2000 is a high-performance electric dirt bike designed for adults, featuring a powerful 4000W peak motor, a 48V 30Ah battery, hydraulic brakes, and full suspension. It is UL2849 certified, ensuring electrical system safety and reliability.

2. Safety Information

Your safety is paramount. Always adhere to the following guidelines:

• Wear Appropriate Safety Gear: Always wear a helmet, eye protection, gloves, and protective clothing when riding.
• Understand Local Regulations: Familiarize yourself with and obey all local laws and regulations regarding electric bikes and off-road vehicles.
• Pre-Ride Inspection: Before each ride, check tire pressure, brake functionality, battery charge, and ensure all fasteners are secure.
• UL2849 Certification: The OUXI GT2000 is UL2849 certified, indicating compliance with rigorous electrical system safety standards. This certification helps ensure the safety of the battery, motor, and charging system.
• Avoid Overloading: Do not exceed the maximum load capacity of 330 lbs (150 kg).
• Weather Conditions: Exercise caution when riding in wet or adverse weather conditions. Hydraulic brakes perform well in wet conditions, but stopping distances may still increase.

Image: UL Certification document for the OUXI T2000 Electric Dirt Bike. This image displays a certificate of compliance from SGS laboratories, confirming the product meets UL2849 safety standards. A QR code is included for verification. For more details, visit the official certification page: SGS UL Certificate.

3. What's in the Box

Upon unpacking, ensure all the following components are present:

• OUXI GT2000 Electric Dirt Bike (main unit)
• 48V 30Ah Battery (pre-installed or separate)
• Battery Charger
• Front Mudguard
• Tool Kit

4. Setup and Assembly

The OUXI GT2000 Electric Dirt Bike arrives 85% pre-assembled. Follow these steps for final assembly:

1. Install the Front Wheel: Securely attach the front wheel using the provided tools.
2. Attach the Handlebars: Position and tighten the handlebars to your preferred riding angle.
3. Mount the Seat: Install the seat and adjust its height for comfort.
4. Inflate Tires: Inflate both front and rear tires to the recommended pressure (check tire sidewall for specifications).
5. Final Checks: Before riding, ensure all connections are secure, brakes are functional, and the battery is charged.

For a visual guide, refer to the assembly video below:

5. Operating Instructions

The OUXI GT2000 offers a robust riding experience. Understand its features for optimal performance.

5.1 Power and Performance

• Motor: Equipped with a motor capable of a peak 4000W output, providing strong acceleration and power for various terrains.
• Max Speed: Achieves a maximum speed of 37 MPH (approximately 60 km/h).

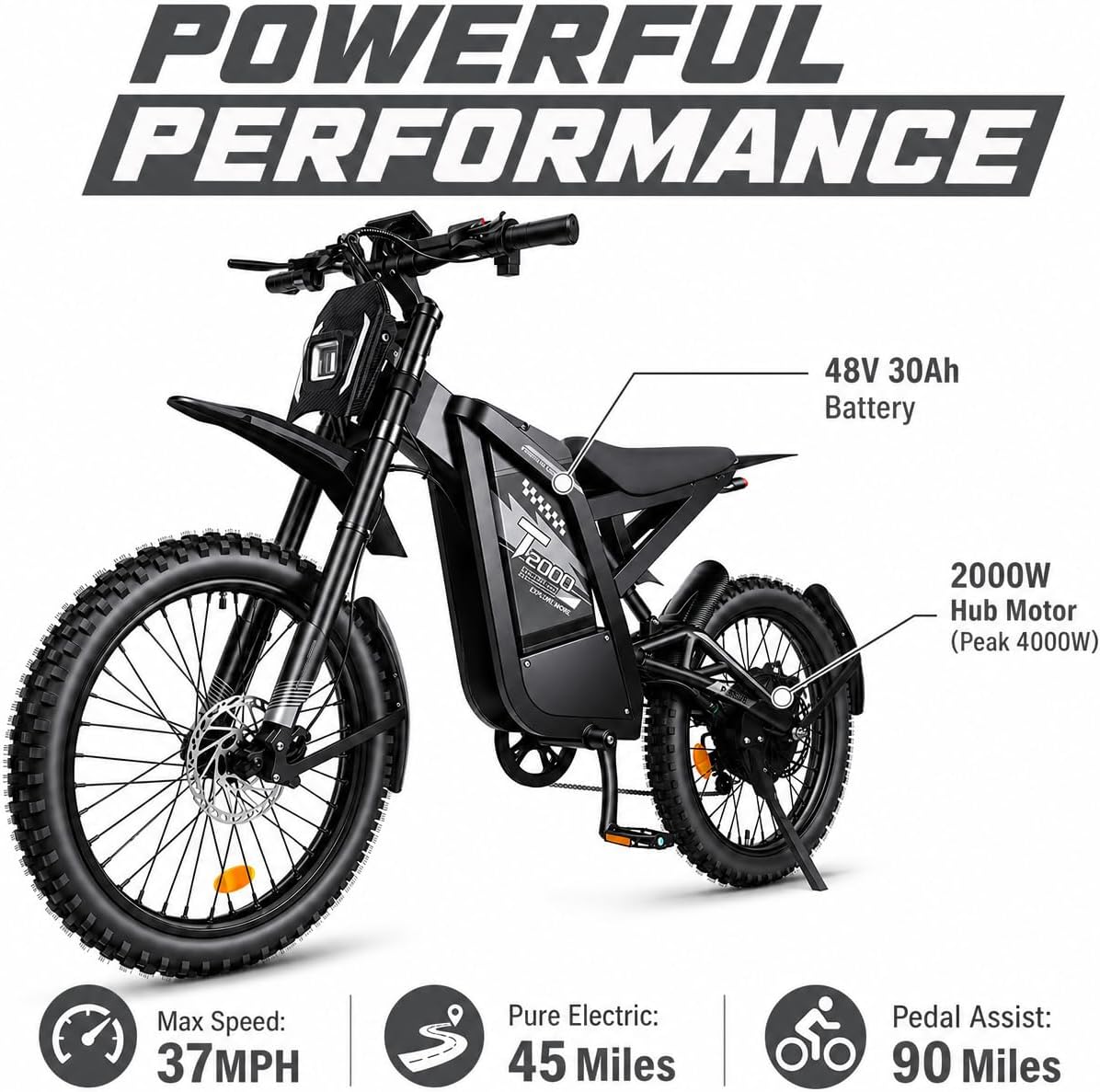

Image: OUXI GT2000 Electric Dirt Bike highlighting its powerful performance. The image shows the bike with labels for the 48V 30Ah battery and 2000W hub motor (Peak 4000W), along with icons indicating a max speed of 37 MPH, 45 miles pure electric range, and 90 miles pedal assist range.

5.2 Battery and Range

• Battery: Features a 48V 30Ah removable battery, UL2849 certified for safety.
• Range: Offers approximately 45 miles in pure electric mode and up to 90 miles with pedal assist, depending on terrain and rider weight.
• Charging: A full charge takes approximately 6-7 hours.

Image: Close-up view of the OUXI GT2000's upgraded larger removable battery. The image shows the battery compartment with the 48V 30Ah Lithium Battery, indicating BMS Intelligent Safety and 6-7H Fast Charging.

5.3 Braking System

• Hydraulic Disc Brakes: Equipped with front and rear hydraulic disc brakes for reliable and responsive stopping power, even in challenging conditions.

Image: OUXI GT2000 Electric Dirt Bike showcasing its dual hydraulic disc brakes. The image emphasizes the safety and precision benefits of the braking system, with a rider on a dirt path.

5.4 Suspension

• Full Suspension: Features air-spring suspension for both front and rear, providing a smooth and comfortable ride over rugged terrain and absorbing impacts effectively.

Image: OUXI GT2000 Electric Dirt Bike highlighting its air-spring suspension. The image shows the front and rear suspension components, emphasizing comfort and control over bumps and sharp descents.

5.5 Tires

• 24-inch Fat Tires: Equipped with 24x3.0 inch fat tires, designed for superior traction and stability on various surfaces including gravel, sand, and city roads.

Image: OUXI GT2000 Electric Dirt Bike showcasing its 24*3" all-terrain tires. The image displays the bike in various environments: mountain trail, sandy beach, and city road, demonstrating the versatility of the tires.

5.6 Additional Features

• Multifunctional LCD Display: Provides essential riding information such as speed, battery level, and mileage.
• Lighting: Includes a bright headlight for visibility and a safety taillight for rear awareness.
• Comfortable Seat: Designed for extended riding comfort.

Image: OUXI GT2000 Electric Dirt Bike highlighting its feature-rich components. The image shows close-ups of the multifunctional LCD display, bright headlight, safety taillight, and comfortable seat.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your OUXI GT2000.

• Cleaning: Regularly clean the bike with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Tire Pressure: Check tire pressure weekly and maintain it according to the recommended PSI on the tire sidewall.
• Brake Inspection: Periodically inspect brake pads for wear and ensure brake levers provide firm and responsive stopping power. Adjust or replace as needed.
• Battery Care: Charge the battery regularly, even if not in use, to maintain its health. Store the battery in a cool, dry place. Avoid fully discharging the battery frequently.
• Fastener Checks: Routinely check all bolts, nuts, and quick-release levers to ensure they are securely tightened.
• Chain Lubrication: Keep the chain clean and lubricated to ensure smooth operation and prevent wear.

7. Troubleshooting

This section addresses common issues you might encounter with your OUXI GT2000.

• Bike Not Turning On:
  • Check if the battery is properly inserted and locked.
  • Ensure the battery is charged.
  • Verify all electrical connections are secure.
• Motor Not Engaging:
  • Confirm the battery has sufficient charge.
  • Check if the display shows any error codes. Refer to the display manual for code interpretations.
  • Ensure the throttle or pedal assist sensor is not obstructed or damaged.
• Brakes Feel Spongy or Ineffective:
  • Inspect brake pads for wear; replace if necessary.
  • Check for air in the hydraulic lines or low fluid levels. This may require professional servicing.
• Unusual Noises During Operation:
  • Inspect the chain for proper tension and lubrication.
  • Check for loose components or debris caught in moving parts.
  • If the noise persists, contact customer support.

If you encounter issues not covered here or require further assistance, please contact OUXI customer support.

8. Specifications

Key technical specifications for the OUXI GT2000 Electric Dirt Bike:

Image: OUXI GT2000 Electric Dirt Bike with key dimensions and specifications. The image illustrates the bike's total length (70.86in), total height (44.09in), wheelbase (48.23in), seat height (34.45in), chain length (63in), tire diameter (24.8in), and handlebar length (25in), along with max load, bike weight, and recommended rider height.

9. Warranty and Support

9.1 Warranty Coverage

The OUXI GT2000 Electric Dirt Bike includes a comprehensive 1-year warranty covering parts and the battery. This warranty ensures a worry-free ownership experience.

9.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact OUXI customer support:

• Email: ouxisupport@163.com
• Phone: 2137569618
• WhatsApp: +8615836892011
