Bellemave Full Over Full Low Bunk Bed with Slide and Ladder

Introduction

Thank you for choosing the Bellemave Full Over Full Low Bunk Bed with Slide and Ladder. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

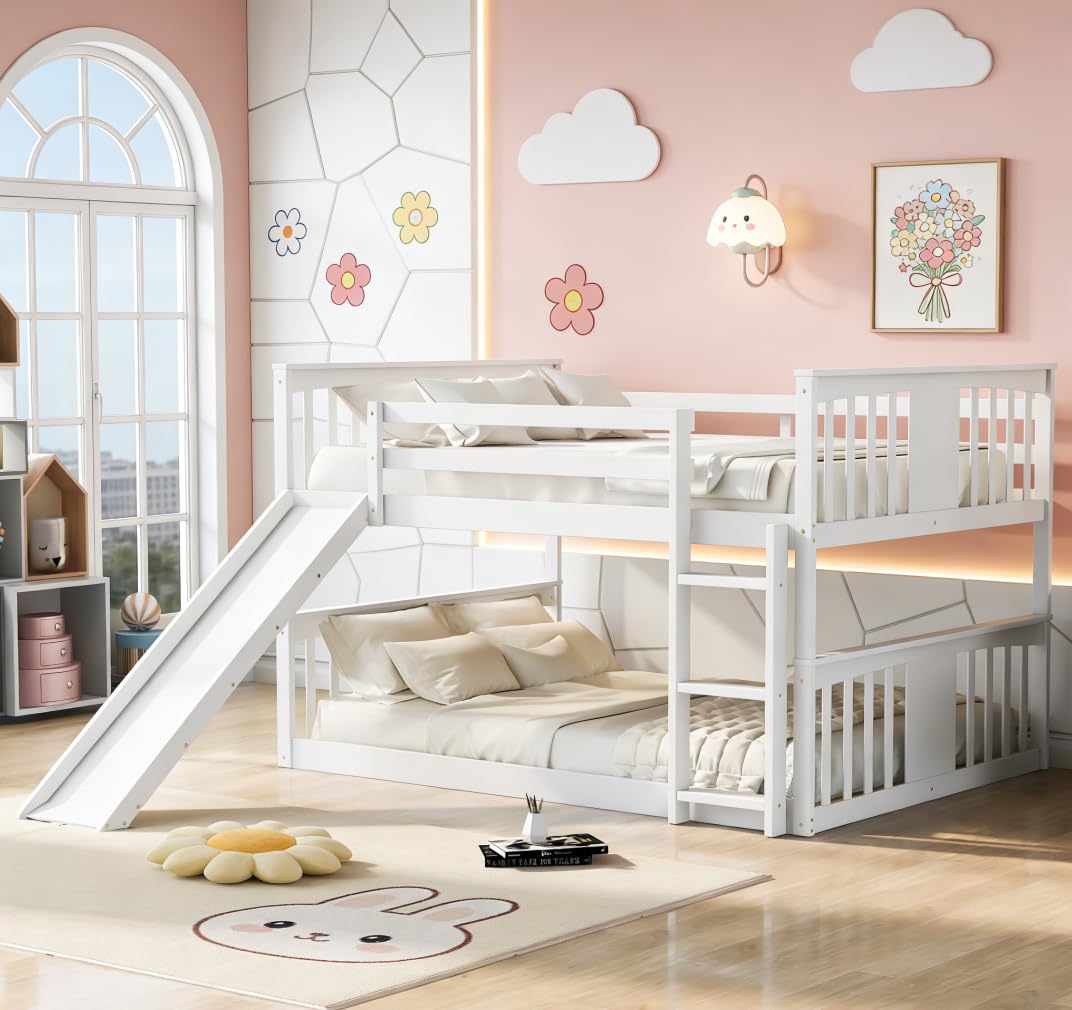

A complete view of the white Bellemave Full Over Full Low Bunk Bed, featuring the upper and lower full-size beds, integrated ladder, and attached slide.

Safety Warnings

To ensure the safety of all users, especially children, please adhere to the following warnings:

• Maximum Weight Capacity: The maximum weight capacity for both the upper and lower bunks is 250 pounds (113 kg). Do not exceed this limit.
• Guardrails: The upper bunk is equipped with full-length guardrails. Always ensure guardrails are properly installed and secured.
• Age Recommendation: The upper bunk is not suitable for children under 6 years of age.
• No Jumping: Do not allow jumping on the bed. This can lead to serious injury and damage to the bed structure.
• Ladder and Slide Use: Use the ladder for entry and exit from the upper bunk. Use the slide only as intended, one person at a time.
• Mattress Size: Use only mattresses that are appropriate for the bed size (Full Over Full). Ensure the mattress thickness on the upper bunk does not exceed the guardrail height, leaving at least 5 inches (12.7 cm) from the top of the guardrail to the top of the mattress.
• Regular Checks: Periodically check and tighten all fasteners to ensure the bed remains stable and secure.
• Ventilation: Ensure adequate ventilation around the bed.
• Assembly: This product requires assembly. Ensure all parts are correctly assembled according to the instructions before use.

Package Contents

Before beginning assembly, please unpack all components and verify that you have received all the listed parts. If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.

Included Components:

• Bed Frame Components (Headboards, Footboards, Side Rails)
• Guardrails
• Slats for both bunks
• Ladder
• Slide
• Hardware Pack (screws, bolts, nuts, washers, Allen wrench)

Note: Mattresses are not included with this bunk bed.

Assembly Instructions

Assembly typically requires two adults. Clear a spacious area for assembly and keep all hardware out of reach of small children. Do not use power tools for assembly as this may overtighten and damage the wood.

Recommended Tools (Not Included):

• Phillips Head Screwdriver
• Rubber Mallet (optional, for gentle tapping)

Step-by-Step Assembly:

1. Prepare Components: Lay out all bed frame components on a soft, clean surface to prevent scratching. Identify all parts using the provided parts list.
2. Assemble Lower Bunk: Attach the lower side rails to the headboard and footboard panels using the provided hardware. Ensure all connections are snug but do not fully tighten until the entire frame is assembled.
3. Assemble Upper Bunk: Repeat the process for the upper bunk, attaching the upper side rails to the corresponding headboard and footboard panels.
4. Connect Bunks: Carefully stack the upper bunk frame onto the lower bunk frame, aligning the pre-drilled holes. Secure the two frames together using the designated connecting hardware.
5. Install Slats: Place the wooden slats onto the support ledges of both the upper and lower bunks. Secure each slat with screws as indicated in the hardware diagram. Ensure even spacing.
6. Attach Guardrails: Install the full-length guardrails to the upper bunk, ensuring they are firmly attached to the bed frame.
7. Install Ladder: Attach the ladder to the designated side of the bunk bed. The ladder is convertible and can be installed on either the left or right side. Ensure it is securely fastened.
8. Install Slide: Attach the slide to the bunk bed. The slide is also convertible and can be installed on either the left or right side, opposite the ladder or on the same side if preferred. Ensure all connections are tight and stable.
9. Final Tightening: Once all components are in place, systematically go through and tighten all screws, bolts, and fasteners. Do not overtighten.

This image provides a perspective of the bunk bed, highlighting the design of the slide and the integrated ladder, both of which can be positioned on either side.

Operating Instructions

This bunk bed is designed for sleeping and recreational use of the slide. Follow these guidelines for safe operation:

• Bed Usage: The lower bunk is suitable for all ages, while the upper bunk is recommended for children aged 6 years and older.
• Ladder Usage: Always use the ladder to access and exit the upper bunk. Ensure hands and feet are clean and dry to prevent slipping.
• Slide Usage: Use the slide in a seated position, feet first. Ensure the landing area is clear before sliding. Only one person should use the slide at a time.
• Weight Distribution: Distribute weight evenly on both bunks. Avoid concentrating weight in one small area.
• Prohibited Activities: Do not hang from any part of the bed, including guardrails, ladder, or slide. Do not use the bed as a trampoline.

Maintenance

Proper maintenance will extend the life and ensure the safety of your bunk bed.

• Cleaning: Wipe the bed frame with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the finish.
• Fastener Checks: Regularly inspect all bolts, screws, and fasteners. Tighten any loose connections every 2-4 weeks, or as needed, to maintain structural integrity and prevent squeaking.
• Structural Integrity: Periodically check for any signs of wear, damage, or cracks in the wood. If any damage is found, discontinue use and contact customer support for replacement parts or advice.
• Environmental Conditions: Avoid placing the bed in direct sunlight or near heat sources, which can cause wood to dry out or warp. Maintain a stable room temperature and humidity.

Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common problems and solutions:

• Bed Feels Wobbly or Unstable:
  • Ensure all bolts and screws are fully tightened.
  • Verify that the bed is assembled on a flat, level surface.
  • Check that all connecting hardware between the upper and lower bunks is securely fastened.
• Squeaking Noises:
  • Tighten all fasteners, paying close attention to the joints where the side rails connect to the headboards/footboards.
  • Ensure slats are properly seated and secured.
  • Consider applying a small amount of paraffin wax or silicone spray to metal-on-metal or wood-on-wood contact points if squeaking persists after tightening.
• Slide or Ladder Feels Loose:
  • Check and tighten all bolts and screws connecting the slide and ladder to the main bed frame.
  • Ensure the components are correctly aligned and installed according to the assembly instructions.

If these steps do not resolve the issue, please contact customer support for further assistance.

Product Specifications

This diagram illustrates the overall dimensions of the bunk bed, including length, width, and height, along with the slide length.

Warranty Information

For specific warranty details regarding your Bellemave Full Over Full Low Bunk Bed, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly. Warranty terms typically cover manufacturing defects and material flaws under normal use.

Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Bellemave customer support. Have your model number (FST00062-FB-AK1) and purchase information ready when you call or email.

Contact Information: Please refer to your purchase receipt or the Bellemave official website for the most current customer service contact details.
