1. Safety Information
Before operating your Eleglide Mopride 2 electric mountain bike, please read this manual thoroughly. Failure to follow instructions can result in serious injury or product damage. Always wear a helmet and appropriate safety gear when riding.
- Always check brakes, tires, and battery charge before each ride.
- Do not ride under the influence of alcohol or drugs.
- Adhere to local traffic laws and regulations.
- Avoid riding in extreme weather conditions.
- Ensure all components are securely fastened before riding.
2. Product Overview
The Eleglide Mopride 2 is a versatile electric mountain bike designed for diverse terrains and long-distance travel. It features a powerful motor, long-lasting battery, and advanced suspension for a comfortable and efficient riding experience.
Figure 1: Eleglide Mopride 2 Electric Mountain Bike
3. Setup and Assembly
Your Eleglide Mopride 2 electric bike comes partially assembled. Follow these steps to complete the assembly:
- Unboxing: Carefully remove all components from the packaging. Check against the packing list to ensure all parts are present.
- Install the Steering Bar: Attach the handlebar to the stem, ensuring it is centered and tightened securely.
- Install the Front Wheel: Insert the front wheel into the fork, aligning the disc brake rotor with the caliper. Secure the quick-release skewer.
- Install the Pedals: Identify the left (L) and right (R) pedals. Thread the left pedal counter-clockwise and the right pedal clockwise into the crank arms. Tighten with a wrench.
- Install the Protective Frame (Rear Derailleur Guard): Attach the protective frame to the rear derailleur area using the provided tools.
- Install Front Light & Reflectors: Mount the front light and reflectors on the handlebars and wheels as per local regulations.
- Adjust Seat Post: Insert the seat post into the frame and adjust to a comfortable riding height. Secure with the quick-release lever.
- Connect Cables: Ensure all electrical cables (motor, display, lights) are securely connected.
Video 1: Unboxing and Assembly Guide for Eleglide M2 Electric Bike. This video demonstrates the step-by-step process of unpacking and assembling your new electric bike, including attaching the handlebars, front wheel, pedals, and lights.
Figure 2: Close-up of the hydraulic suspension fork, showing the lock/open mechanism for adjusting ride comfort.
4. Operating Instructions
4.1 Powering On/Off
To power on the bike, ensure the battery is securely installed and turned on (if it has a separate switch). Then, press and hold the power button on the LCD display until it illuminates. To power off, press and hold the power button again.
4.2 LCD Smart Display
The intelligent LCD display provides real-time information including speed, distance traveled, and remaining battery charge. Use the '+' and '-' buttons to navigate through assistance levels and settings.
Figure 3: Handlebar-mounted LCD display showing speed, battery level, and pedal assist settings.
4.3 Pedal Assist Levels
The bike offers 5 levels of pedal assistance, allowing you to choose the desired level of motor support:
- Level 1: 12 km/h
- Level 2: 15 km/h
- Level 3: 18 km/h
- Level 4: 21 km/h
- Level 5: 25 km/h
Adjust these levels using the '+' and '-' buttons on the LCD display.
4.4 Walk Mode
Activate the 4 km/h walk mode for easy maneuvering when not riding, such as pushing the bike up a steep incline or through pedestrian areas.
4.5 Gear Shifting
The Eleglide Mopride 2 is equipped with 21 speeds (3 front, 7 rear). Use the gear shifters on the handlebars to select the appropriate gear for your terrain and desired effort level.
Figure 4: Close-up of the rear wheel and drivetrain, highlighting the 21-speed gear system.
4.6 Braking System
The bike features hydraulic disc brakes for superior stopping power and control. Always apply both brakes simultaneously for effective and safe braking.

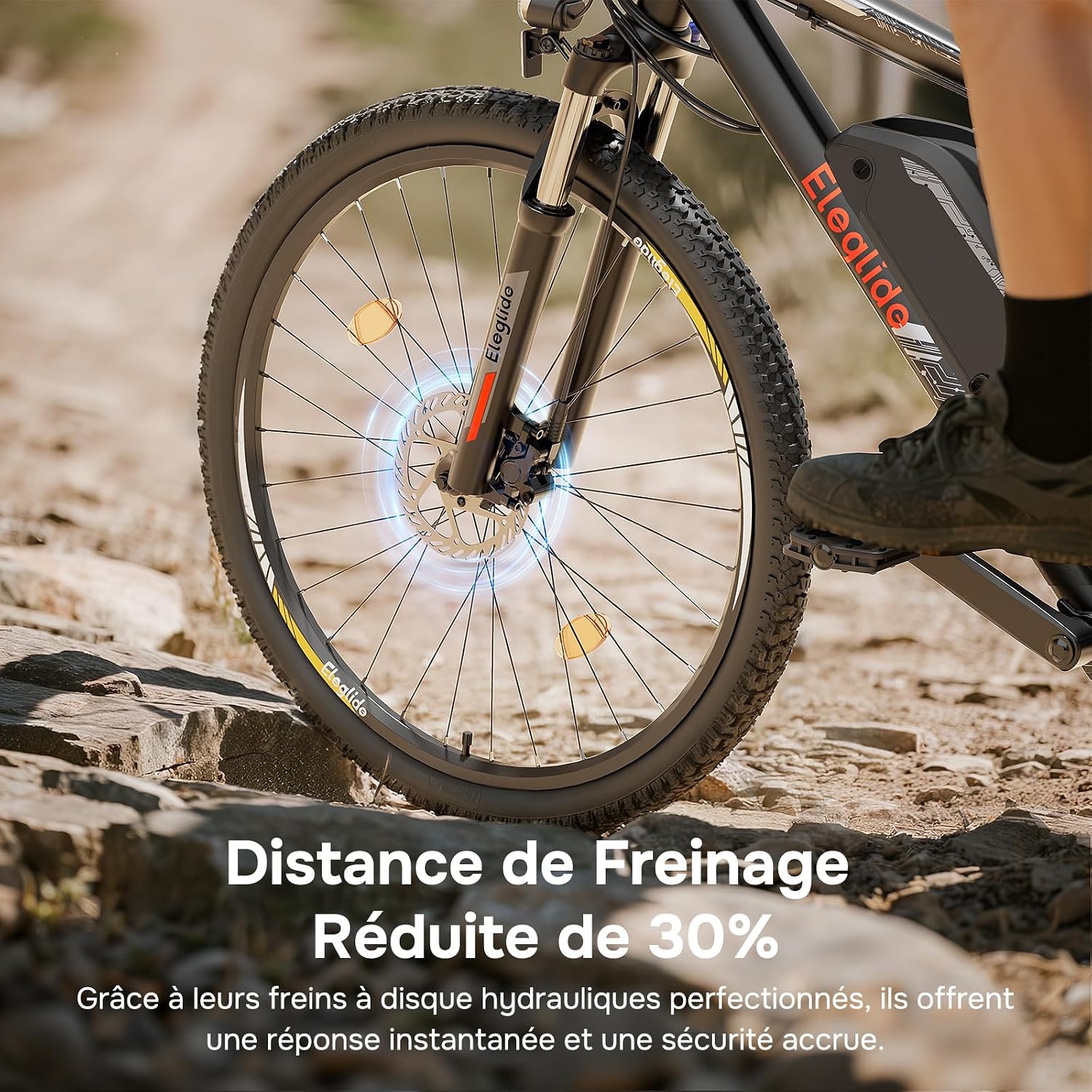

Figure 5: Detail of the front hydraulic disc brake system, providing responsive and increased braking power.
5. Battery and Charging
The Eleglide Mopride 2 is equipped with a removable 36V 18Ah lithium-ion battery, offering an assisted range of up to 150 km. Charging time is typically 4-6 hours.
5.1 Charging Procedure
- Ensure the bike is powered off.
- Locate the charging port on the battery.
- Connect the charger to the battery, then plug the charger into a power outlet.
- The charger indicator light will show charging status (usually red for charging, green for fully charged).
- Once fully charged, disconnect the charger from the outlet first, then from the battery.
Figure 6: Illustration of the removable battery being detached from the bike frame for convenient charging.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your Eleglide Mopride 2.
6.1 General Care
- Keep the bike clean, especially after riding in wet or muddy conditions. Use a damp cloth and mild soap.
- Store the bike in a dry place, away from direct sunlight and extreme temperatures.
- Check and tighten all bolts and fasteners periodically.
6.2 Tire Maintenance
The 29"x2.35" pneumatic rubber tires provide excellent traction. Maintain recommended tire pressure (check sidewall for specific PSI/Bar) for optimal performance and to prevent punctures.
Figure 7: Close-up of the wide 29"x2.35" tire, designed for conquering various terrains.
6.3 Brake System Maintenance
Regularly inspect brake pads for wear and replace them when necessary. Ensure brake levers are responsive and hydraulic lines are free from leaks.
6.4 Drivetrain Maintenance
Keep the chain clean and lubricated. Check the gears and derailleur for smooth operation and adjust if shifting becomes imprecise.
7. Troubleshooting
If you encounter issues with your Eleglide Mopride 2, refer to the following common problems and solutions:
- Bike not powering on: Check battery connection, ensure battery is charged, and verify the power button on the display is pressed correctly.
- Motor not assisting: Ensure pedal assist level is selected on the LCD. Check all motor cable connections.
- Brakes feel spongy: This may indicate air in the hydraulic lines or worn pads. Consult a professional bike mechanic.
- Gears not shifting smoothly: The derailleur may need adjustment. Refer to a bike repair guide or seek professional assistance.
For persistent issues, please contact Eleglide customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Bike Type | Mountain Bike |
| Age Range | Adult |
| Number of Speeds | 21 |
| Wheel Size | 29 Inches |
| Frame Material | Aluminum |
| Suspension Type | Front (Hydraulic) |
| Brake Type | Hydraulic Disc |
| Power Source | Battery |
| Wattage | 400 Watts |
| Lithium Battery Capacity | 648 Watt-hours (36V 18Ah) |
| Electric Assist Type | Pedal Assist |
| Max Recommended Load | 120 Kilograms |
| Item Weight | 26 Kilograms |
Figure 8: Detailed dimensions and geometry of the Eleglide Mopride 2 electric bike.
9. Warranty and Support
The Eleglide Mopride 2 comes with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact Eleglide customer service.
If you have any questions, require assistance, or need to register your bike with a French identification number, please contact the seller directly. Keep your original packaging in case of any issues with the delivery or product.
