1. Introduction
Thank you for choosing the Taskstar 20V Cordless Pole Hedge Trimmer. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference. This tool is designed for trimming hedges, shrubs, and bushes in residential outdoor environments.
Image: The Taskstar Pole Hedge Trimmer in action, highlighting its 16-inch cutting path and 5/8-inch cutting capacity.
2. Important Safety Instructions
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or property damage.
- Read All Instructions: Familiarize yourself with the controls and proper use of the tool.
- Wear Personal Protective Equipment (PPE): Always wear safety glasses or goggles, hearing protection, heavy-duty gloves, and non-slip footwear. Long pants and sleeves are recommended.
- Keep Work Area Clear: Ensure the area is free of debris, children, and bystanders. Operate the trimmer only in daylight or good artificial light.
- Avoid Dangerous Environments: Do not use the trimmer in damp or wet conditions. Do not expose to rain.
- Battery Safety: Use only the specified battery packs and charger. Do not charge batteries in wet or explosive atmospheres. Do not incinerate batteries.
- Secure Grip: Always hold the trimmer firmly with both hands during operation.
- Dual Safety Lock System: The trimmer is equipped with a dual safety lock system to prevent accidental start-ups. Ensure the safety switch is engaged before pressing the power button.
- Blade Cover: Always use the blade cover when the trimmer is not in use or during transport.
- Inspect Before Use: Check for damaged parts, loose fasteners, or any other condition that may affect safe operation.
Image: Illustration of the dual safety lock system and the blade cover for enhanced user protection.
3. Package Contents
Verify that all items are present and undamaged upon opening the package. If any parts are missing or damaged, contact customer service.
- 1x Trimmer Head (with 16-inch dual-action blade)
- 1x Extendable Telescopic Pole
- 1x Power Grip with Battery Slot
- 2x 4.0Ah Batteries
- 1x Fast Charger
- 1x Shoulder Strap
- 1x Blade Cover
- 1x User Manual (this document)
4. Assembly and Setup
Follow these steps to assemble your pole hedge trimmer and prepare it for use.
4.1 Assembling the Trimmer Pole
- Connect Power Grip to Trimmer Head: Slide the power grip into the trimmer head until it clicks into place.
- Secure Connection: Twist the collar on the power grip to lock it securely to the trimmer head.
- Insert Grip into Pole: Insert the assembled power grip and trimmer head into the extendable telescopic pole.
- Tighten Collar: Tighten the collar on the telescopic pole securely to ensure a stable connection.
Image: Easy 4-step installation guide for assembling the pole hedge trimmer.
4.2 Battery Installation and Charging
The trimmer uses 20V 4.0Ah batteries. Ensure batteries are fully charged before use.
- Charging: Insert the battery into the fast charger. The indicator light will show charging status. A full charge typically takes 1 hour per battery.
- Installation: Slide a charged battery into the battery slot on the power grip until it locks into place. Ensure it is firmly seated.
- Removal: Press the battery release button and slide the battery out.
Image: Dual 4.0Ah batteries provided with the trimmer, ensuring extended operation.
5. Operating Instructions
Understand how to safely operate your Taskstar pole hedge trimmer for effective trimming.
5.1 Powering On/Off
- To Start: Engage the safety switch (usually a button or lever that needs to be pressed simultaneously) and then press the power trigger.
- To Stop: Release the power trigger. The blade will stop moving.
5.2 Adjusting Telescopic Reach
The pole can be adjusted from 7ft to 8.5ft to reach various heights without a ladder.
- Loosen the locking mechanism on the telescopic pole.
- Extend or retract the pole to the desired length.
- Securely tighten the locking mechanism to prevent the pole from slipping during operation.
Image: The extendable pole allows reaching high hedges up to 8.5 feet.
5.3 Adjusting Rotating Head
The trimmer head can rotate 135 degrees and lock into 6 different positions for versatile trimming angles.
- Locate the head adjustment button or lever near the trimmer head.
- Press the button/lever and rotate the head to the desired angle.
- Release the button/lever to lock the head into one of the 6 available positions.
Image: The 6-position rotating head allows for trimming at various angles.
5.4 Trimming Techniques
- Shoulder Strap: Attach and adjust the ergonomic shoulder strap to distribute the trimmer's weight (7.6 lbs) evenly, reducing arm and shoulder strain during extended use.
- Cutting Motion: Use a smooth, sweeping motion. For best results, cut small amounts at a time.
- Blade Capacity: The 16-inch dual-action blade has a 5/8-inch cutting capacity. Do not force the blade through thicker branches.
- High Branches: Extend the pole and adjust the head angle to safely trim high branches from the ground.
- Side Hedges: Adjust the head for vertical cuts.
Image: The ergonomic shoulder strap helps manage the trimmer's weight for comfortable operation.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your trimmer.
6.1 Blade Care
- Cleaning: After each use, disconnect the battery and use a stiff brush to remove sap and debris from the blade.
- Lubrication: Apply a light machine oil or blade lubricant to the blade after cleaning to prevent rust and ensure smooth operation.
- Sharpening: If the blade becomes dull, have it professionally sharpened or replace it.
6.2 Battery Care
- Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.
- Do not store batteries in a discharged state for extended periods. Charge them periodically.
6.3 Storage
- Always attach the blade cover before storing.
- Store the trimmer in a dry, secure location out of reach of children.
- The detachable design allows for compact storage.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not start | Battery not charged or improperly installed; Safety switch not engaged; Power trigger not pressed correctly. | Ensure battery is fully charged and correctly inserted. Engage safety switch before pressing power trigger. |
| Poor cutting performance | Dull or dirty blade; Attempting to cut branches too thick. | Clean and lubricate the blade. Sharpen or replace if dull. Do not exceed 5/8-inch cutting capacity. |
| Trimmer stops during operation | Battery discharged; Overload protection activated. | Recharge battery. Reduce cutting load to prevent motor overload. |
| Pole connection is loose | Locking collar not tightened sufficiently. | Ensure all locking collars are securely tightened after adjustment. |
8. Specifications
Key technical details for your Taskstar Pole Hedge Trimmer.
- Model Number: CYCPHT01A-410
- Power Source: Battery Powered (20V)
- Blade Length: 16 inches
- Cutting Capacity: 5/8 inches
- Telescopic Reach: 7ft – 8.5ft
- Rotating Head: 135° (6 positions)
- Motor Power: 600W
- Strokes Per Minute (SPM): 2400 SPM
- Item Weight: 7.6 pounds
- Batteries: 2x 4.0Ah Lithium-ion (included)
- Charger: Fast Charger (included)

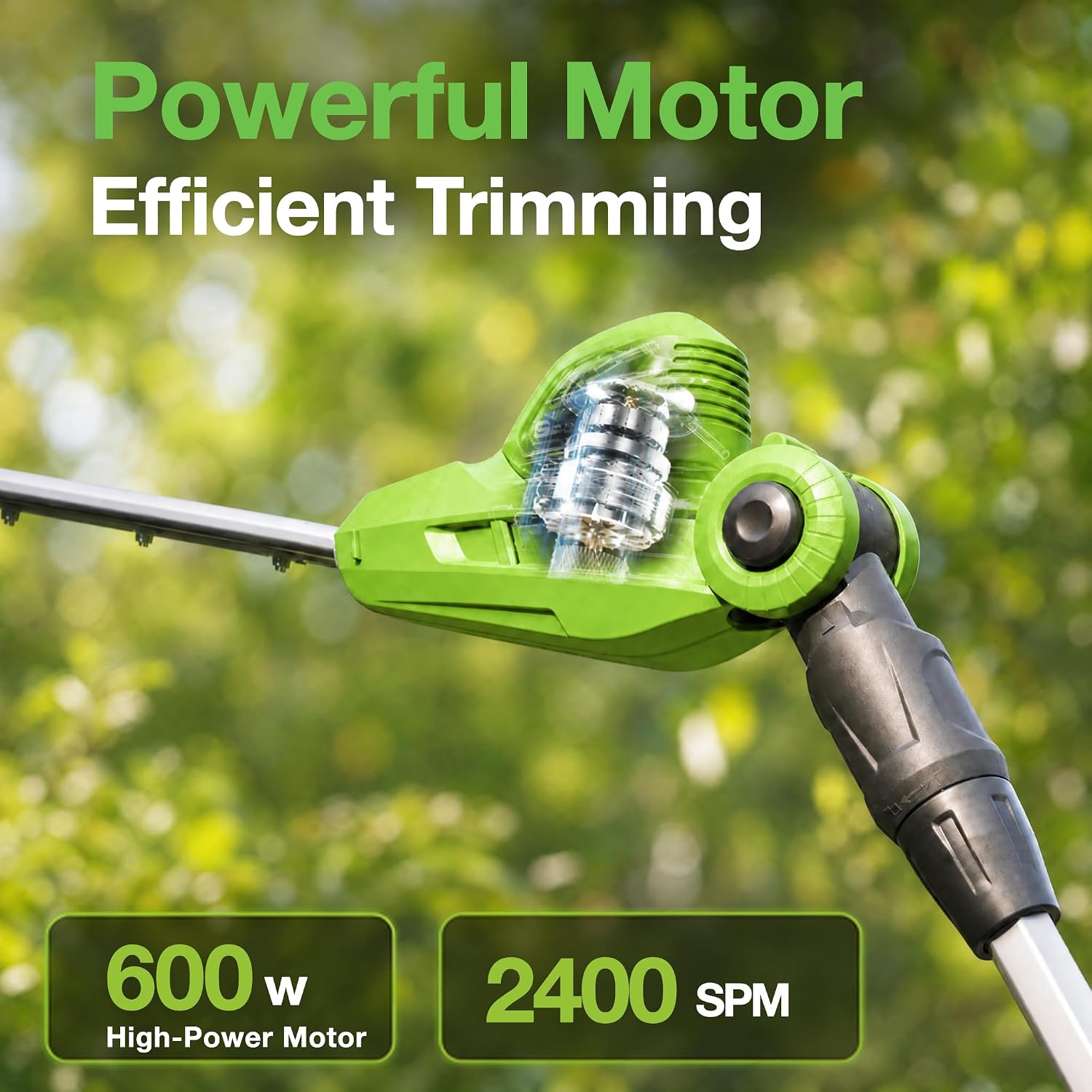

Image: Illustration of the powerful 600W motor and 2400 SPM for efficient trimming.
9. Warranty and Support
Taskstar products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your product or contact Taskstar customer service directly. Keep your purchase receipt as proof of purchase.
