Hisense WF1I7022BWJ Slim Washing Machine User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your new Hisense WF1I7022BWJ Slim Washing Machine. Please read these instructions carefully before installation and operation, and retain them for future reference. This appliance is designed for domestic use only.

2. Safety Information

General Safety

• Ensure the appliance is properly grounded.
• Do not allow children to play with or operate the washing machine.
• Keep packaging materials out of reach of children.
• Do not wash items that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances.
• Never force the door open during operation.
• Unplug the appliance before cleaning or maintenance.

Electrical Safety

• Connect the appliance to a power supply that matches the specifications on the rating plate.
• Do not use extension cords or multiple socket adapters.
• Do not operate the appliance with a damaged power cord or plug.

Water Connection Safety

• Ensure all water hoses are securely connected to prevent leaks.
• Do not use old hose sets; always use the new hose sets supplied with the appliance.

3. Product Overview and Features

The Hisense WF1I7022BWJ is a slim 7 kg washing machine designed for efficient and quiet operation. It features an Inverter Motor, Touch Display, and 15 washing programs.

Key Features:

• 7 kg Slim Capacity: Compact design ideal for smaller spaces, offering a 7 kg load capacity.
• 1200 rpm Spin Speed: Efficient water extraction for faster drying.
• Inverter Motor: Ensures quiet operation, reduced vibrations, and extended durability.
• AutoMix Dispenser: A unique roller design that thoroughly dissolves detergent, creating a dense foam for deep cleaning without residues.
• Pure Jet: Powerful water flow during rinsing to effectively remove detergent residues from gaskets and the door glass, promoting a clean washing environment and reducing mold and bacteria growth.
• Quick Wash Programs: Includes a 15-minute rapid program for lightly soiled items and a 49-minute program for half loads.
• Programma Quicker: Accelerates wash cycles, reducing washing time while maintaining cleaning quality.
• Delayed End Function: Allows you to set the desired end time for the wash cycle, offering flexible scheduling.
• Hygiene Care: Dedicated programs to keep the drum and gasket clean, reducing mold, odors, and dirt buildup.
• Steam Wash: Advanced pre-wash sterilization cycle using high-temperature steam to effectively remove microbes before the main wash, protecting against irritants and invisible allergens.
• Allergy Care: Sterilization and drying process using hot air to effectively eliminate up to 99.9% of harmful bacteria, including Escherichia coli and Staphylococcus aureus.
• Anti-Crease Function: Uses gentle steam and drum rotation to minimize creases, making garments softer and reducing the need for ironing.
• Energy Class A: High energy efficiency for reduced consumption.

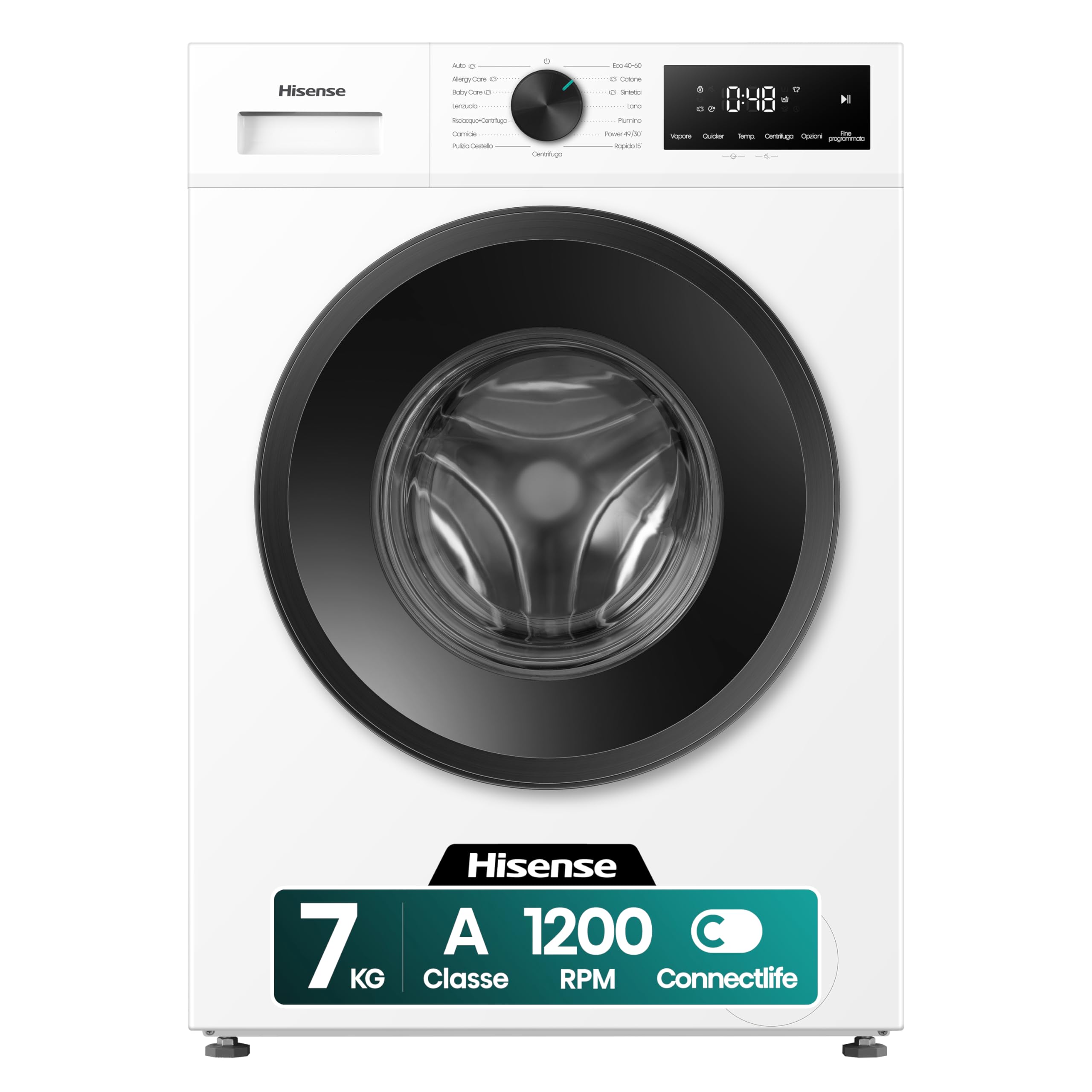

Product View

4. Setup and Installation

Before installation, ensure all transit bolts are removed from the rear of the machine. Refer to the separate installation instructions provided in the packaging for detailed steps.

Unpacking

Carefully remove all packaging materials. Check for any damage during transit. The package includes: Power cable, Fill hose, WF1I7022BWJ Washing machine x 1, User manual x 1, Energy label, PIS x 1, Installation instructions x 1, Warranty card x 1.

Positioning and Leveling

Place the washing machine on a firm, level surface. Adjust the four adjustable feet to ensure the appliance is stable and level. This minimizes vibration and noise during operation. Four anti-vibration sponges are also provided to be attached under the washing machine.

Water Connection

Connect the water inlet hose to a cold water tap with a 3/4-inch thread. Ensure the connection is tight to prevent leaks. Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent displacement during draining.

Electrical Connection

Plug the power cord into a grounded electrical outlet. Ensure the voltage and frequency match the specifications on the appliance's rating label.

5. Operating Instructions

Your Hisense WF1I7022BWJ washing machine features an intuitive touch display and a program selector knob for easy operation.

Control Panel

Loading Laundry

Open the door and load laundry into the drum. Do not overload the machine; refer to the program guide for maximum load capacities. Close the door firmly.

Adding Detergent and Softener

Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and fabric softener to its designated compartment. The AutoMix Dispenser feature ensures optimal dissolution of detergent.

Selecting a Program

Turn the program selector knob to choose one of the 15 available washing programs. The selected program will be displayed on the touch screen. Available programs include:

• Auto
• Allergy Care
• Baby Care
• Lingerie
• Rinse/Spin
• Shirts
• Drum Clean
• Spin
• Eco 40-60
• Cotton
• Synthetics
• Wool
• Duvet
• Power 49' / Quick 15'
• Rapid 15'

Adjusting Options

Use the touch display to select additional options such as temperature, spin speed, 'Quicker' function, 'Vapore' (Steam), or 'Fine Programmata' (Delayed End).

Starting the Wash

Press the Start/Pause button to begin the selected wash cycle.

Special Functions

• Quick Wash (15 min / 49 min): For small loads of lightly soiled items. The 15-minute program is for 1 kg, and the 49-minute program is for a half load.



• Steam Wash: Utilizes steam for enhanced hygiene and wrinkle reduction.



• Allergy Care: Specifically designed to remove allergens from fabrics.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your washing machine.

Cleaning the Detergent Dispenser

Periodically remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse it under running water and reinsert.

Drum Clean Function (Hygiene Care)

Use the dedicated 'Drum Clean' program to clean the washing machine drum and gasket. This helps prevent mold, odors, and dirt accumulation.

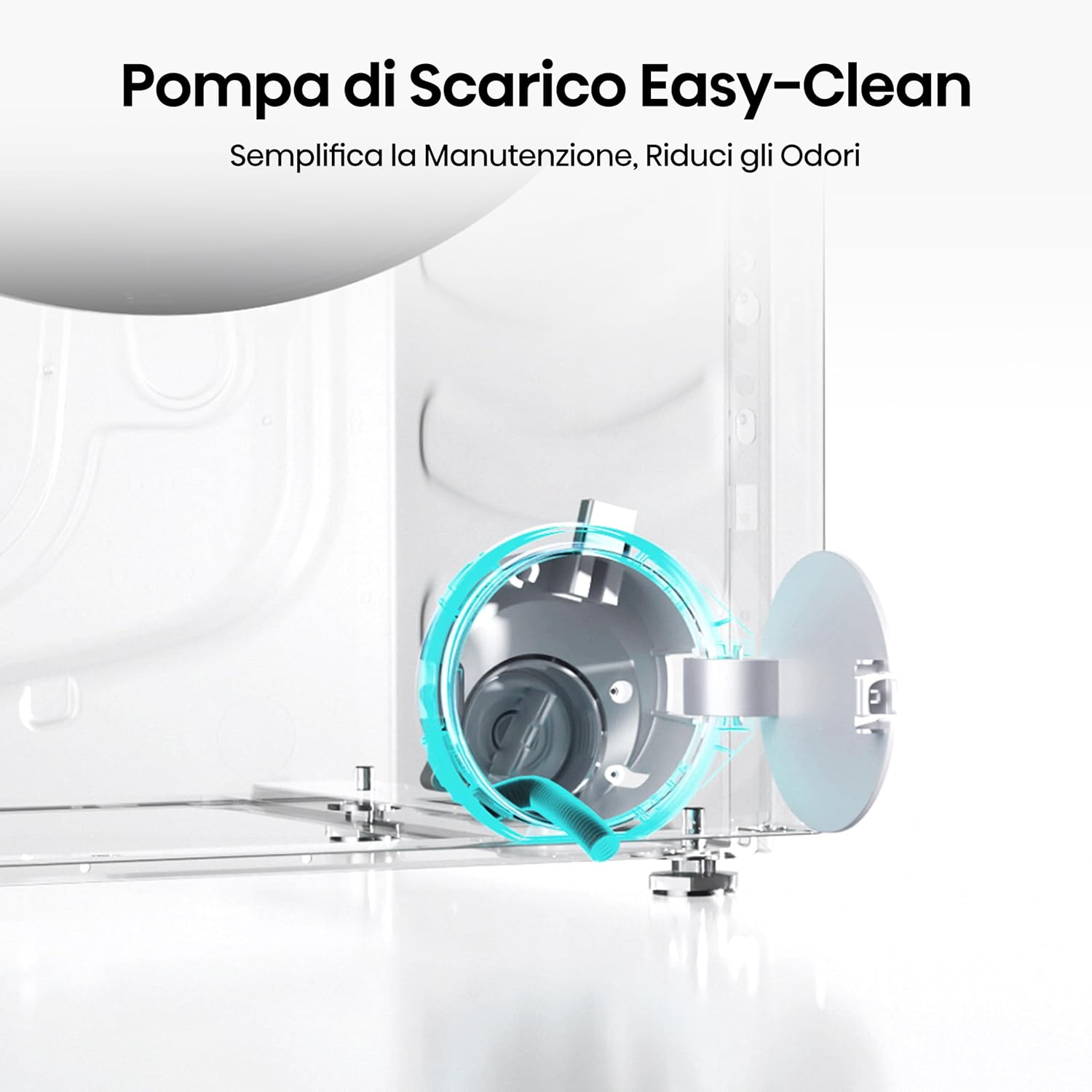

Easy-Clean Drain Pump

The washing machine is equipped with an Easy-Clean drain pump. Regularly check and clean the filter to prevent blockages and ensure proper drainage. This intuitive water collection tray and improved drainage system simplify cleaning and maintenance by simply opening the pump cover, preventing coins from getting stuck and water from overflowing onto the floor, further reducing mold formation and unpleasant odors.

Cleaning the Exterior

Wipe the exterior of the washing machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.

7. Troubleshooting

If you encounter any issues with your washing machine, refer to the following common problems and solutions before contacting customer service.

Common Issues:

• Machine does not start: Check if the power cord is plugged in, the door is closed properly, and the start button has been pressed. Ensure there is water supply.
• Water leakage: Check all hose connections for tightness. Ensure the drain hose is correctly positioned.
• Excessive vibration/noise: Ensure the machine is level and all transit bolts have been removed. Distribute laundry evenly in the drum.
• Detergent residue in dispenser: Clean the detergent dispenser regularly. Ensure sufficient water pressure.
• Clothes not clean: Check if the correct program and detergent amount were used. Do not overload the machine.
• Door cannot be opened: Wait for the wash cycle to complete and the door lock indicator to turn off. If the machine is still hot, it may remain locked for safety.

For persistent issues, consult the detailed troubleshooting section in the full user manual or contact Hisense customer support.

8. Specifications

Energy Label

9. Warranty and Support

Your Hisense WF1I7022BWJ washing machine comes with a 2-year manufacturer's warranty. Please refer to the warranty card included in the packaging for full terms and conditions.

For technical assistance, spare parts, or any inquiries, please contact Hisense customer support. Keep your model number (WF1I7022BWJ) and purchase details ready when contacting support.

A detailed user manual and installation instructions are included with your product for further reference.
