Introduction
Thank you for choosing the Powants Balcony Bar Table. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new balcony table. Please read these instructions carefully before use and retain them for future reference.
Safety Information
- Ensure all components are securely fastened before use.
- Do not exceed the maximum weight capacity of 80 lbs (36 kg). Overloading can cause damage or injury.
- Regularly check the stability of the table and the railing clamps.
- Keep children and pets away from the table during assembly.
- Avoid placing hot items directly on the wood surface without protection.
Package Contents
Please verify that all parts are present before beginning assembly:
- Balcony Bar Table (main wooden panel with backrest)
- Adjustable Metal Clamps (2 units)
- Mounting Hardware (screws, washers, etc.)
- Instruction Manual
Setup and Assembly
Follow these steps to assemble and install your balcony bar table:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the package contents list.
- Attach Clamps to Table: Secure the two adjustable metal clamps to the underside of the table using the provided screws and hardware. Ensure they are firmly attached.
- Position on Railing: Carefully lift the assembled table and position the clamps over your balcony railing. The clamps are designed to fit railings up to 4.4 inches (11.2 cm) thick.
- Adjust and Secure Clamps: Adjust the clamps to fit snugly over your railing. Tighten the adjustment screws on the clamps until the table is stable and does not wobble. The design allows for tool-free installation and protects your railing from scratches.
Operating Instructions
The Powants Balcony Bar Table features a space-saving foldable design and a guardrail edge for convenience.
- Folding Mechanism: When not in use, the table can be folded flat against the railing. Locate the folding hinges on the underside of the table. Gently lift the table surface slightly, then push it downwards to fold it against the railing. To deploy, reverse the action, lifting the table surface until it locks into the horizontal position.
- Guardrail Edge: The table is designed with a raised guardrail edge and a solid wooden backrest. This 'U-shape' barrier helps prevent items like laptops, drinks, or books from sliding off the table, especially in windy conditions.
Maintenance
To ensure the longevity and appearance of your balcony bar table, follow these maintenance guidelines:
- Cleaning: Wipe the table surface with a soft, damp cloth. For stubborn dirt, use a mild soap solution and rinse thoroughly. Avoid harsh chemicals or abrasive cleaners.
- Wood Care: The solid wood is carbonized for weather resistance. However, to maintain its rustic finish, you may periodically apply a wood sealant or outdoor furniture oil, especially if exposed to extreme weather conditions.
- Hardware Check: Periodically inspect all screws and clamp mechanisms to ensure they remain tight. Retighten if necessary.
- Storage: While designed for outdoor use, storing the table in a sheltered area during prolonged periods of harsh weather (heavy rain, snow, intense sun) can extend its lifespan. The foldable design makes storage convenient.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Table is wobbly. | Clamps are not tightened sufficiently or railing is uneven. | Ensure clamps are securely tightened. If railing is uneven, try adjusting clamp positions or adding shims (not included) for stability. |
| Table does not fold flat. | Hinges may be stiff or obstructed. | Check for any obstructions around the hinges. Apply a small amount of lubricant to the hinges if they are stiff. |
| Items slide off the table. | Excessive wind or table not level. | Ensure the table is level. The guardrail edge is designed to minimize this, but in strong winds, secure lighter items. |
Specifications
- Brand: Powants
- Model Name: Bar-Table

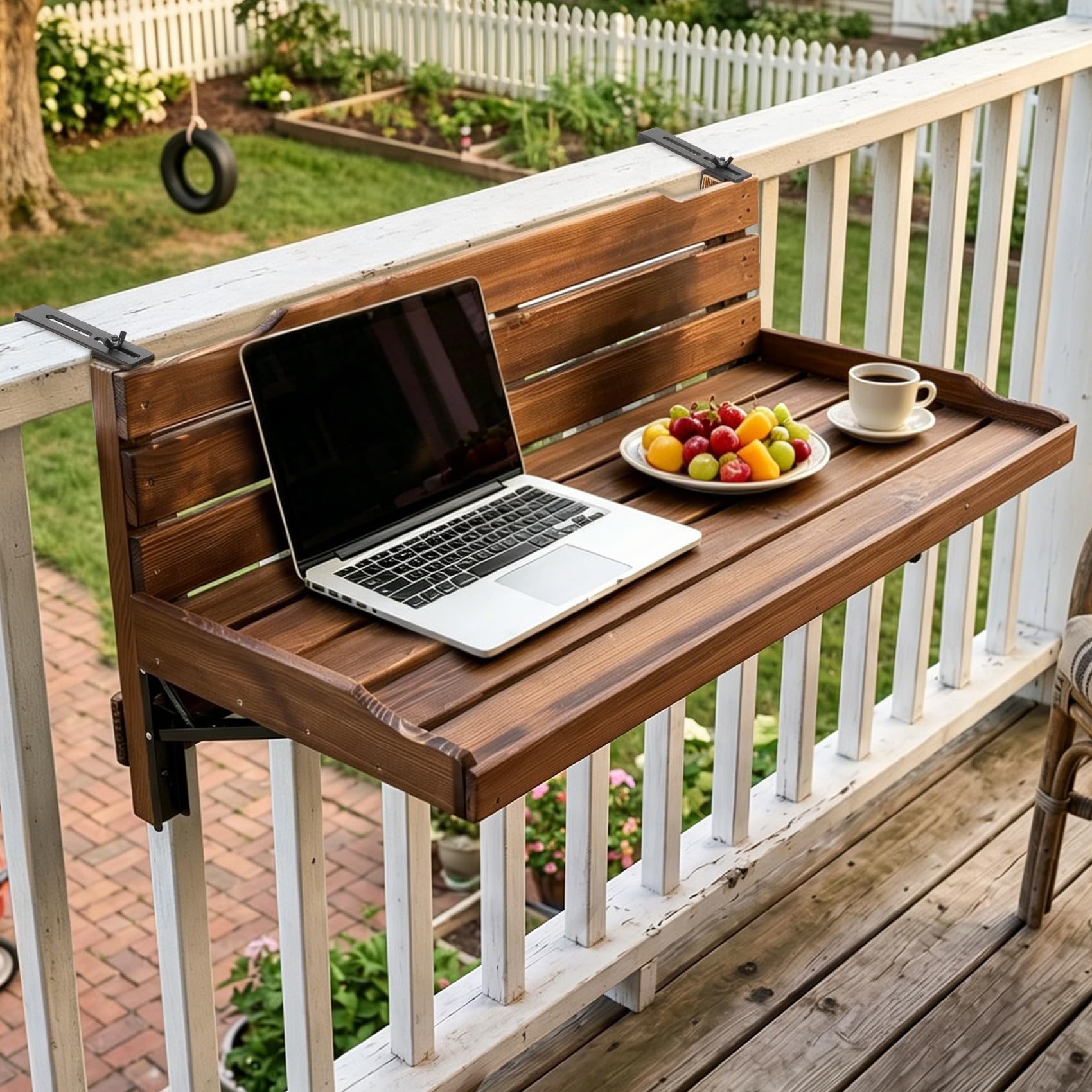

- Product Dimensions (L x W x H): 35.4" x 15.7" x 11.8" (90cm x 40cm x 30cm)
- Item Weight: 14 pounds (6.35 kg)
- Maximum Weight Recommendation: 80 pounds (36 kg)
- Frame Material: Cast Iron (for clamps/brackets)
- Top Material Type: Solid Wood (Pine)
- Furniture Finish: Carbonized
- Color: Wood-tone (Brown)
- Railing Compatibility: Fits railings 4.4 inches (11.2 cm) or less in thickness.
- Indoor/Outdoor Usage: Outdoor
Warranty and Support
For warranty information or technical support, please refer to the contact details provided at the point of purchase or visit the official Powants website. Please have your model number (Bar-Table) and purchase date ready when contacting support.
