Introduction
Thank you for choosing the Vinsetto Ergonomic High-Back Office Chair, Model 921-472V80BK. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new office chair. Please read these instructions carefully before use and retain them for future reference.
This chair is designed to provide a comfortable and supportive seating experience for extended periods, featuring an ergonomic high-back design, adjustable height, and a rocking function. Its modern aesthetic integrates seamlessly into various office and home environments.
Safety Information
- Maximum Load Capacity: Do not exceed the maximum weight capacity of 120 kg (265 lbs). Exceeding this limit may cause damage to the chair and potential injury.
- Assembly: Ensure all components are correctly assembled and all screws are securely tightened before using the chair. Periodically check and re-tighten screws as needed.
- Children: Keep children away from the assembly area. Small parts can be a choking hazard.
- Usage: Do not stand on the chair. Use the chair only for its intended purpose as an office or desk chair.
- Stability: Always sit centrally on the seat to maintain balance and prevent tipping.
- Movement: Be cautious when moving the chair, especially on uneven surfaces, to prevent accidents.
Package Contents
Before assembly, please verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact your retailer for assistance.
- Chair Base (with casters)
- Gas Lift Cylinder
- Seat Cushion
- Backrest
- Armrests (2 pieces)
- Hardware Pack (screws, washers, Allen key)
Image: A close-up view of the Vinsetto ergonomic office chair, highlighting its padded seat, high back, and armrests, indicating the main components.
Setup and Assembly
Follow these steps to assemble your Vinsetto office chair. It is recommended to assemble the chair on a soft, clean surface to prevent scratches.
- Assemble the Base and Casters: Insert the casters into the holes at the end of each leg of the chair base. Ensure they are firmly seated.
- Attach the Gas Lift: Place the gas lift cylinder into the central hole of the assembled chair base.
- Attach the Seat: Carefully align the seat mechanism with the top of the gas lift cylinder and press down firmly until it is securely attached.
- Assemble the Backrest and Armrests: Attach the backrest to the seat using the provided screws. Then, attach the armrests to both the seat and the backrest, ensuring proper alignment.
- Tighten All Screws: Once all components are in place, securely tighten all screws using the provided Allen key. Do not overtighten.
- Check Stability: Before sitting, gently test the chair's stability and ensure all parts are firm and secure.

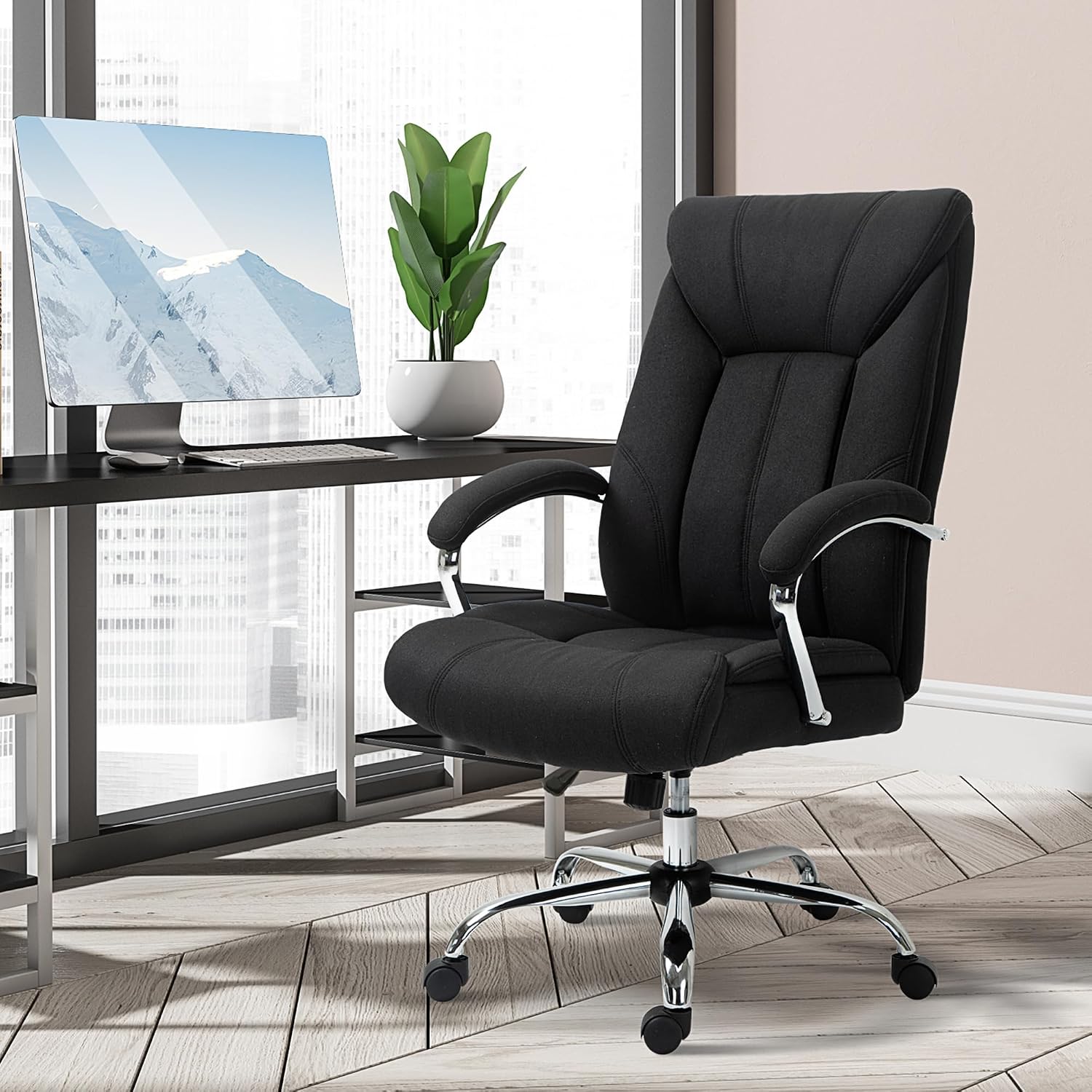

Image: The fully assembled Vinsetto ergonomic office chair in a modern office setting, demonstrating its complete structure.
Operating Instructions
1. Height Adjustment
To adjust the seat height, locate the lever on the right side beneath the seat.
- To Raise: While standing, pull the lever upwards. The seat will rise automatically. Release the lever at the desired height.
- To Lower: While seated, pull the lever upwards. The seat will lower. Release the lever at the desired height.
Image: A diagram illustrating the height adjustment lever and its function to raise or lower the chair seat.
2. Rocking/Tilt Function
The chair features a rocking function for added comfort. The tilt tension can also be adjusted.
- To Engage/Disengage Rocking: Pull the same lever (used for height adjustment) outwards to unlock the rocking function. Push it inwards to lock the chair in an upright position.
- To Adjust Tilt Tension: Rotate the round knob located underneath the seat, at the front. Turn clockwise to increase tension (making it harder to rock) and counter-clockwise to decrease tension (making it easier to rock).
Image: A visual guide showing the lever for locking/unlocking the tilt and the knob for adjusting tilt tension.
3. Swivel Function
The chair seat and casters allow for 360-degree rotation, providing flexibility and ease of movement within your workspace.

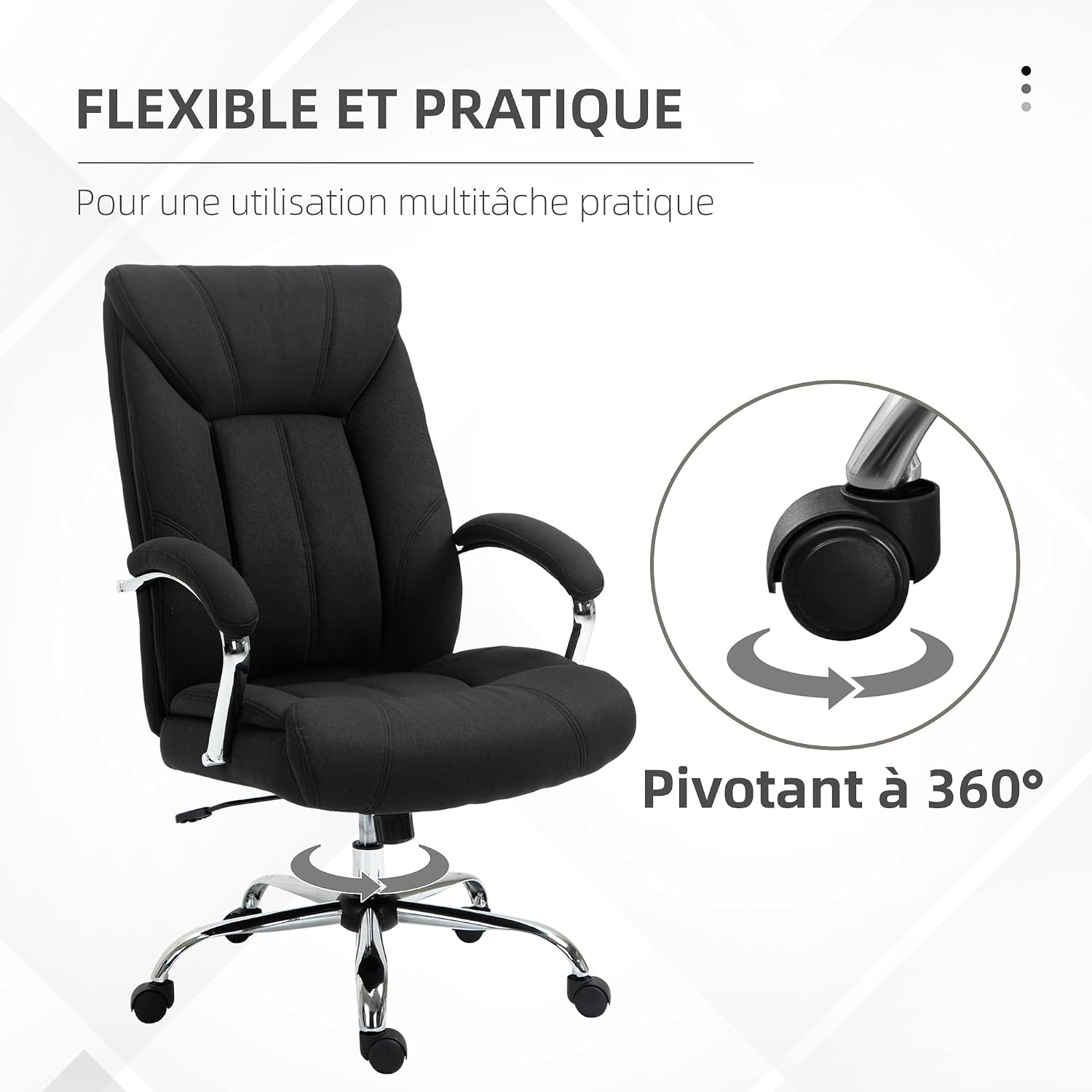

Image: An illustration demonstrating the 360-degree swivel capability of the chair and its rolling casters.
Maintenance
Proper maintenance will extend the life and performance of your office chair.
- Cleaning: For general cleaning, wipe the chair with a soft, damp cloth. For spot cleaning the fabric, use a mild upholstery cleaner and follow the product instructions. Avoid harsh chemicals or abrasive cleaners.
- Regular Inspection: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
- Caster Care: Keep casters clean from hair and debris to ensure smooth rolling.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the fabric to fade.
Troubleshooting
If you encounter any issues with your chair, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height | Gas lift malfunction or lever not engaged. | Ensure the height adjustment lever is fully engaged. If the issue persists, the gas lift may need replacement. |
| Chair is unstable or wobbly | Loose screws or improper assembly. | Check and re-tighten all assembly screws. Ensure the gas lift is properly seated in the base and seat mechanism. |
| Chair makes squeaking noises | Loose connections or friction between parts. | Tighten all screws. Apply a small amount of silicone lubricant to moving parts or joints if necessary. |
| Casters do not roll smoothly | Debris caught in casters. | Remove any hair, dust, or debris from the caster wheels. |
Specifications
Detailed specifications for the Vinsetto Ergonomic High-Back Office Chair, Model 921-472V80BK.
| Feature | Detail |
|---|---|
| Model Number | 921-472V80BK |
| Overall Dimensions (L x W x H) | 78 x 65 x 110-118 cm (30.7 x 25.6 x 43.3-46.5 inches) |
| Seat Dimensions (W x D x H) | 57 x 47 x 48-56 cm (22.4 x 18.5 x 18.9-22 inches) |
| Backrest Height | 65 cm (25.6 inches) |
| Armrest Height | 20 cm (7.9 inches) |
| Weight Capacity | 120 kg (265 lbs) |
| Product Weight | 17 kg (37.5 lbs) |
| Material | Polyester Linen Fabric, Foam Padding, Steel Alloy Frame |
| Color | Black |
| Special Features | High Back, Ergonomic Design, Adjustable Height, Rocking Function, 360° Swivel, Rolling Casters |
Image: A diagram showing the various dimensions of the Vinsetto office chair, including height, width, and depth of the seat and backrest.
Warranty and Support
Specific warranty information for the Vinsetto Ergonomic High-Back Office Chair, Model 921-472V80BK, is not provided in this manual. For details regarding warranty coverage, return policies, or technical support, please refer to the documentation provided at the time of purchase or contact your retailer directly.
For any questions or assistance, please reach out to the customer service department of the retailer where you purchased this product. Please have your model number (921-472V80BK) and proof of purchase ready.
