ALAULM 8x14 FT Greenhouse Instruction Manual

1. Safety Information

Please read and understand all safety instructions before assembly and use of the ALAULM 8x14 FT Greenhouse. Failure to follow these instructions may result in injury or damage to the product.

• Always use caution when handling sharp tools during assembly.
• Ensure the greenhouse is properly anchored to prevent it from tipping over in windy conditions.
• Avoid exposure to direct sunlight for extended periods to prevent excessive heat buildup inside the greenhouse.
• Keep the greenhouse clean and free of debris to prevent the growth of mold or mildew.
• Do not allow children or pets unsupervised access to the greenhouse.

2. Product Overview

The ALAULM 8x14 FT Greenhouse is designed for outdoor use, providing a protected environment for plants. It features a heavy-duty aluminum frame and polycarbonate panels, engineered for durability and plant growth optimization.

Key Features:

• Strong Aluminum Frame: Constructed from rust-resistant aluminum alloy, providing a lightweight yet sturdy structure.
• Polycarbonate Panels: Panels offer high impact resistance and over 80% light transmission, designed to withstand temperatures from -40°F to 120°F without yellowing.
• Adjustable Roof Vent: A sloped roof with an adjustable vent allows for effective release of trapped hot air and prevents snow accumulation.
• Integrated Gutter System: Built-in gutters channel rainwater away from the frame.
• Lockable Door: Provides security for plants and tools.
• Ground Anchoring: Includes ground nails for enhanced wind resistance and stability.

Figure 2.1: Exterior view of the ALAULM 8x14 FT Greenhouse.

Figure 2.2: Illustration of the greenhouse's year-round protection capabilities.

Figure 2.3: Detailed view of key components: polycarbonate panels, gutter system, door hinge, and security bolt.

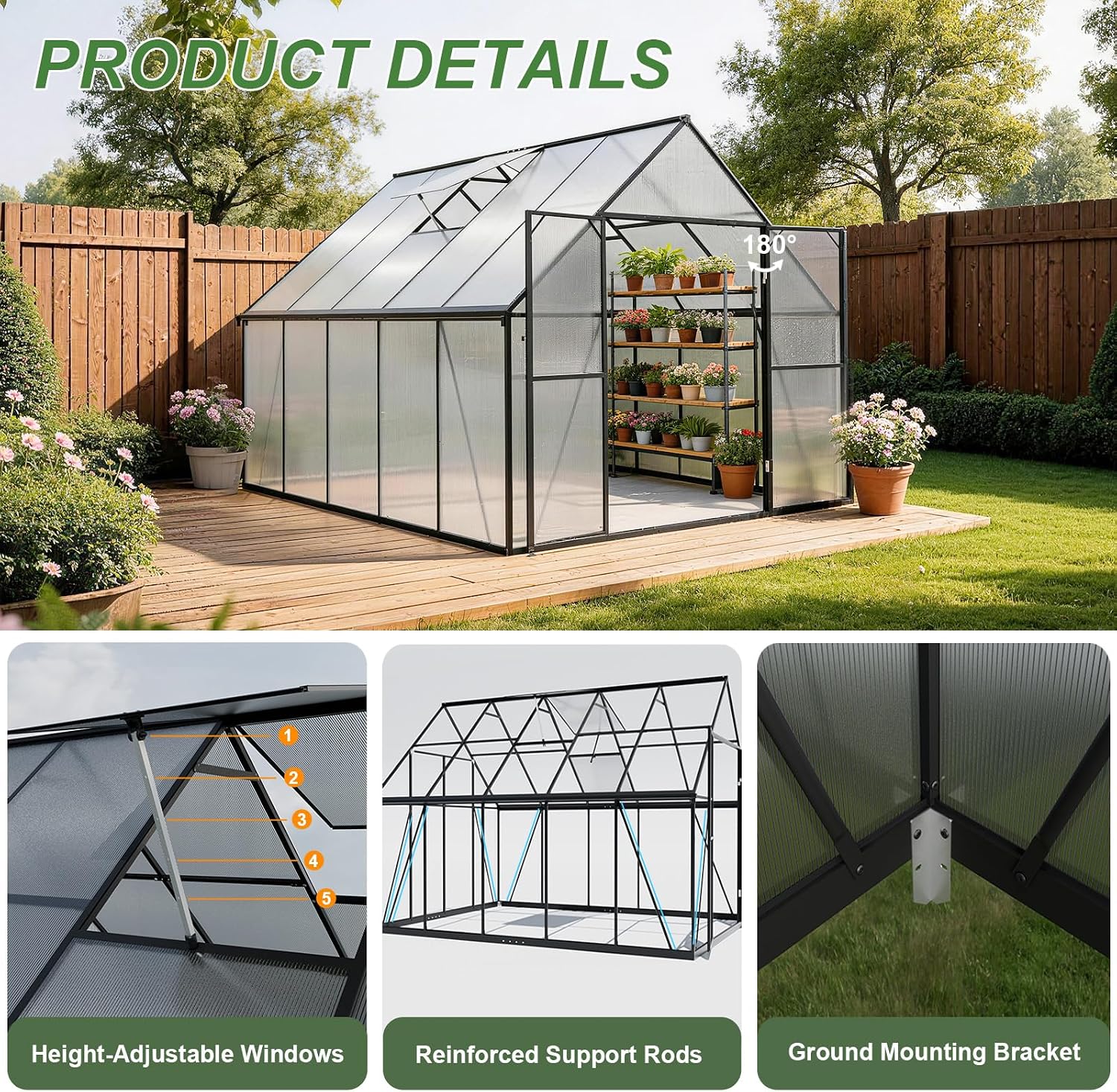

Figure 2.4: Additional features: adjustable roof windows, reinforced support rods, and ground mounting bracket.

3. Assembly Instructions

Assembly of the ALAULM 8x14 FT Greenhouse requires careful attention to detail and can be time-consuming. It is recommended to have at least two people for assembly. Refer to the included manual and hardware for specific step-by-step instructions.

General Assembly Steps:

1. Site Preparation: Choose a level, well-drained area for your greenhouse. Clear any debris and ensure the ground is stable.
2. Unpack and Organize: Carefully unpack all components and verify against the parts list in your manual. Organize parts by type to streamline the process.
3. Base Frame Assembly: Assemble the base frame according to the manual, ensuring all connections are secure and square.
4. Wall Frame Construction: Erect the vertical and horizontal frame members for the walls.
5. Roof Frame Assembly: Construct the roof frame, including the adjustable vent mechanism.
6. Panel Installation: Carefully slide or insert the polycarbonate panels into the designated frame channels. Ensure panels are correctly oriented and secured.
7. Door and Vent Installation: Install the door assembly and connect the adjustable roof vent mechanism.
8. Anchoring: Securely anchor the greenhouse to the ground using the provided ground nails or other suitable anchoring methods to prevent wind damage.

For detailed diagrams and specific fastener information, consult the printed assembly manual included with your product.

Figure 3.1: An assembled greenhouse interior, ready for use.

4. Operating Your Greenhouse

Proper operation ensures optimal growing conditions for your plants and extends the life of your greenhouse.

Ventilation:

The adjustable roof vent is crucial for temperature and humidity control. Open the vent during warm periods to release excess heat and reduce humidity, preventing overheating and fungal growth. Close the vent during cooler periods or at night to retain heat.

Figure 4.1: Detail of the adjustable roof vent mechanism.

Door Operation:

The lockable door provides access and security. Ensure the door is fully closed and locked when not in use, especially during strong winds or when securing contents.

Temperature Management:

Monitor the internal temperature regularly. Adjust ventilation as needed. In extreme cold, additional heating may be required, and in extreme heat, shading or increased ventilation is necessary.

5. Maintenance

Regular maintenance will ensure the longevity and performance of your greenhouse.

• Cleaning Panels: Clean polycarbonate panels periodically with mild soap and water to remove dirt, algae, or mineral deposits. Avoid abrasive cleaners or tools that could scratch the panels.
• Frame Inspection: Annually inspect the aluminum frame for any signs of damage, loose bolts, or corrosion. Tighten any loose fasteners.
• Gutter Maintenance: Keep the integrated gutters clear of leaves and debris to ensure proper water drainage.
• Door and Vent Mechanisms: Lubricate hinges and moving parts of the door and roof vent as needed to ensure smooth operation.
• Anchoring Check: Periodically check the ground anchors to ensure they remain secure, especially after strong winds or heavy rainfall.

6. Troubleshooting

7. Product Specifications

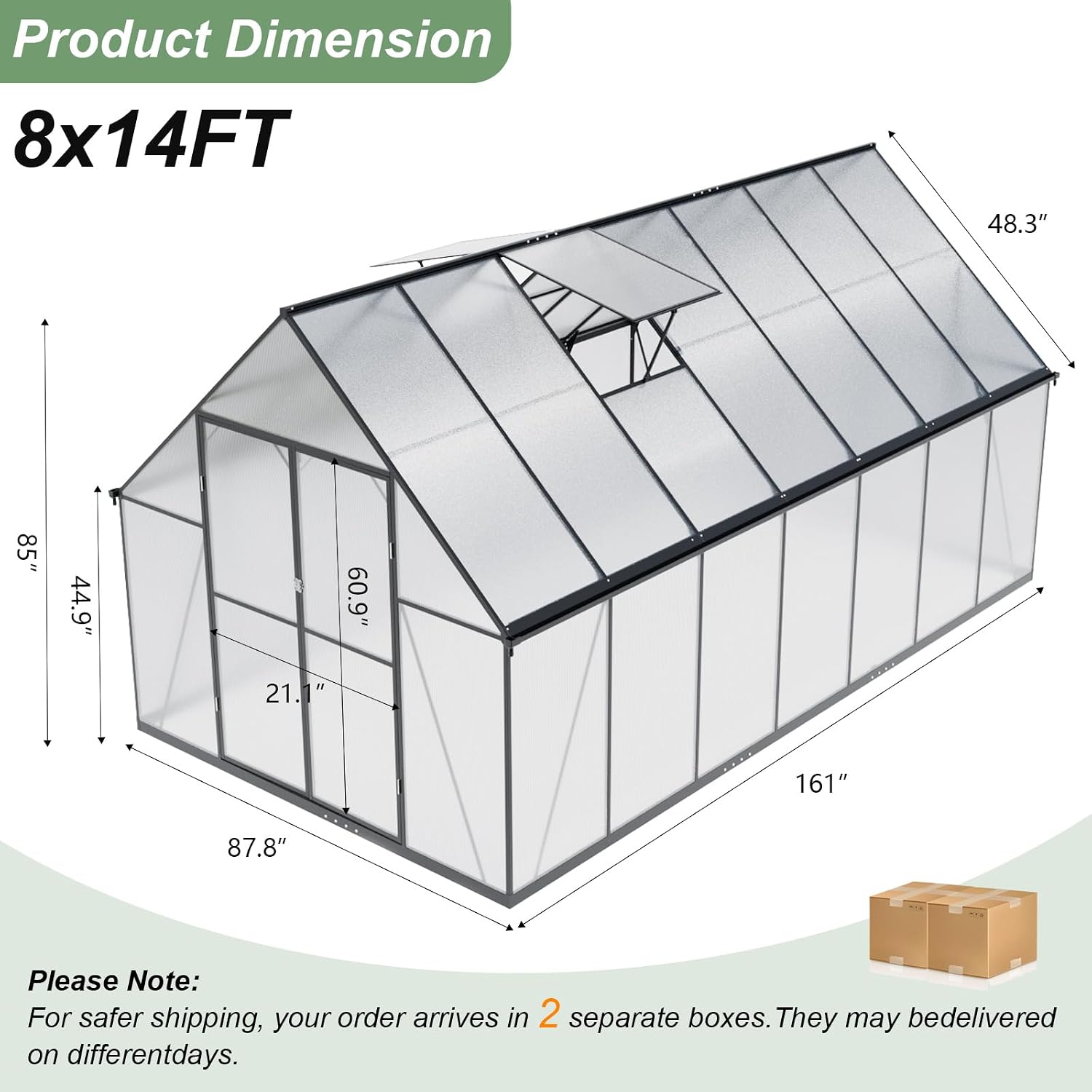

Figure 7.1: Product dimensions for the 8x14 FT greenhouse.

8. Warranty and Customer Support

For any missing parts, damaged components, or questions regarding the assembly or operation of your ALAULM greenhouse, please contact ALAULM customer support. Our team is available to assist you within 24 hours.

Please retain your purchase receipt for warranty claims. Specific warranty details may be provided with your product packaging.
