1. Safety Information
Before operating the BLAZEGO X1 Electric Scooter, please read this manual thoroughly to ensure safe usage and prevent injury. Always wear a helmet and appropriate safety gear. Adhere to local traffic laws and regulations.
- Always wear a helmet and protective gear (knee pads, elbow pads) when riding.
- Do not ride in heavy rain, snow, or icy conditions.
- Avoid riding on slippery surfaces, loose gravel, or excessively rough terrain at high speeds.
- Ensure all bolts and quick releases are securely tightened before each ride.
- Do not exceed the maximum weight limit of 330 lbs (150 kg).
- Maintain a safe distance from other vehicles and pedestrians.
- Familiarize yourself with the brake system before riding at higher speeds.
- Children under the age of 16 should not operate this scooter.
2. Setup and Assembly
The BLAZEGO X1 Electric Scooter comes 95% pre-assembled. Final assembly typically takes approximately 3 minutes.
Unfolding the Scooter
- Carefully remove the scooter from its packaging.
- Locate the folding mechanism on the stem.
- Release the latch and lift the handlebar stem until it locks into the upright position. Ensure it is securely latched.
- Tighten any visible screws or clamps on the handlebar and stem for stability.
Handlebar Installation
Attach the handlebars to the stem, ensuring they are aligned correctly and tightened with the provided wrench. Adjust the handlebar height to a comfortable position for your height (recommended for riders 5'5" - 6'6").
Image: The scooter in its folded state, highlighting its compact design for easy storage and transport.
Image: Demonstrates the folding process of the scooter, emphasizing its portability.
Installation Videos
Video: Official BLAZEGO Off Road Electric Scooter Installation Guide. This video provides step-by-step instructions for assembling your scooter.
Video: Detailed installation video for the 1000W adult foldable off-road electric scooter, demonstrating key assembly steps.
3. Operating Instructions
Powering On/Off
Press and hold the power button on the LED display to turn the scooter on or off.
Riding Modes
The X1 offers three riding modes to suit different preferences and conditions:
- ECO Mode: Approximately 10 mph. Ideal for conserving battery and longer rides.
- STD Mode: Approximately 18 mph. A balanced mode for reliable performance.
- TURBO Mode: Approximately 25 mph. For maximum speed and power.
Image: A rider demonstrating the scooter's performance on a dirt path, illustrating its capability in TURBO mode.
LED Smart Display
The integrated LED display provides real-time information:
- Current Speed
- Battery Level
- Riding Mode (ECO, STD, TURBO)
- Range (Odometer/Trip)
- Error Codes
Image: Close-up of the scooter's LED display, showing various metrics like speed, battery level, and riding mode.
Braking System
The X1 is equipped with front and rear dual disc brakes, complemented by an electronic braking system for responsive stopping power. Apply both brakes gently and evenly for controlled deceleration.
Image: Illustrates the dual disc brake system and the electronic brake lever for enhanced safety.
Lighting System
The scooter features bright headlights for visibility and turn-responsive taillights to signal your intentions to others, ensuring safety during night rides or in low-light conditions.
Image: The scooter's lighting system, including headlights and taillights, illuminated for night riding visibility.
Off-Road Performance

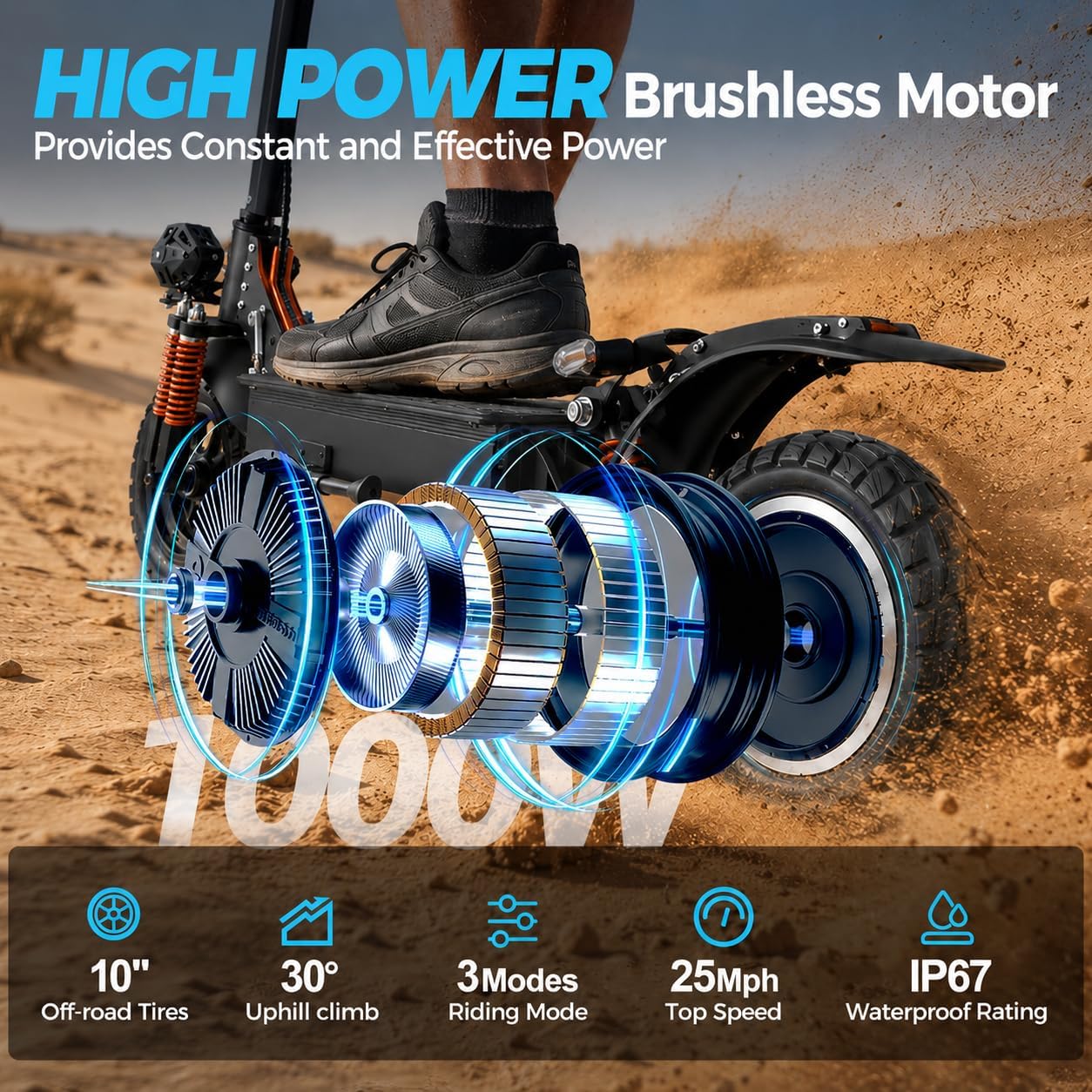

Equipped with a dual suspension system and 10-inch off-road pneumatic tires, the X1 provides a smooth ride over various terrains, including gravel, dirt, and grass. The powerful 1000W motor allows for climbing inclines up to 30 degrees.
Image: The BLAZEGO X1 electric scooter being ridden on a rugged dirt path, showcasing its off-road capabilities.
Image: The scooter navigating a muddy trail, demonstrating its all-terrain tires and suspension.
Video: A demonstration of the 1000W electric scooter in motion, highlighting its cycling performance.
4. Maintenance
Battery Charging
The scooter is equipped with a 48V 15.6Ah lithium battery. A full charge takes approximately 6-7 hours. The battery features overcharge protection. Always use the original charger provided.
Image: The scooter's battery specifications, including capacity, overcharge protection, and charging time.
Tire Care
The 10-inch pneumatic tires require regular pressure checks. Maintain recommended tire pressure for optimal performance and safety. Inspect tires for wear and tear periodically.
General Cleaning and Water Resistance
The scooter has an IP67 water resistance rating, meaning it is protected against dust and temporary immersion in water. However, avoid prolonged exposure to water or riding through deep puddles. Clean the scooter with a damp cloth; do not use high-pressure water jets.
Image: The scooter being ridden near water, illustrating its IP67 water resistance for various environments.
5. Troubleshooting
If you encounter issues with your BLAZEGO X1 scooter, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Low battery, loose connections, power button malfunction. | Charge the battery fully. Check all cable connections. If problem persists, contact support. |
| Battery not charging. | Charger not connected properly, faulty charger, battery issue. | Ensure charger is securely plugged into both scooter and wall outlet. Verify wall outlet is functional. If still not charging, contact support. |
| Error Code (e.g., Error 4). | Specific component malfunction (e.g., throttle, motor). | Refer to the specific error code in the full manual (if available) or contact customer support with the error code displayed. |
| Unstable or wobbly ride. | Loose handlebar, stem, or wheel components. | Check and tighten all bolts and quick releases on the handlebar, stem, and wheels. Ensure tires are properly inflated. |
For issues not listed here or if solutions do not resolve the problem, please contact BLAZEGO customer support.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | BLAZEGO |
| Model Name | X1 (M11 PRO / RS500) |
| Motor Power | 1000W |
| Battery | 48V 15.6Ah Lithium Battery |
| Max Speed | 28 MPH (45 km/h) |
| Max Range | 31 Miles (50 km) |
| Charging Time | 6-7 hours |
| Tire Type | 10-inch Off-Road Pneumatic Tires |
| Suspension | Dual Shock Absorbers (Front & Rear) |
| Brakes | Front & Rear Dual Disc Brakes + Electronic Braking System |
| Max Load | 330 lbs (150 kg) |
| Climbing Angle | Up to 30° |
| Water Resistance | IP67 |
| Frame Material | Aerospace-grade Aluminum Alloy |
| Product Dimensions (L x W x H) | 46.46" x 20.47" x 21.65" (folded) |
| Certifications | UL 2272 Certified |
7. Warranty Information
The BLAZEGO X1 Electric Scooter comes with a Limited Warranty. Please refer to the warranty card included in your packaging or contact customer support for detailed terms and conditions regarding coverage and duration.
This warranty typically covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
8. Customer Support
For any questions, technical assistance, or warranty claims, please contact BLAZEGO customer support:
- Call Center: +1 888-572-2381
- Email: service@blazego.net
Our support team is available to assist you with any inquiries.
