AUDIOCULAR Beast HiFi Wired IEM Earphones User Manual

Introduction

The AUDIOCULAR Beast HiFi Wired IEM Earphones are designed to deliver a high-fidelity audio experience. This model features a 10mm dual magnetic dynamic driver, an electronic crossover system for balanced sound, and a detachable 2-pin cable for durability and upgrade flexibility. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your earphones.

What's in the Box

• 1x AUDIOCULAR x KZ Beast IEM
• 1x Detachable Cable (3.5mm connector)
• 3x Pair Eartips (Small, Medium, Large)
• User Manual

Setup Instructions

1. Attaching the Detachable Cable

The AUDIOCULAR Beast IEMs feature a 0.75mm gold-plated 2-pin detachable system. This allows for easy cable replacement or upgrades.

Description: This image illustrates the secure connection point for the detachable 2-pin cable on the earphone unit. The gold-plated pins ensure stable signal transmission.

1. Identify the left (L) and right (R) earphone units and cable connectors. The cable connectors are typically marked.
2. Align the 2-pin connector on the cable with the corresponding receptacle on the earphone unit. Ensure the pins are correctly oriented.
3. Gently push the connector firmly into place until it is secure. Do not force the connection.
4. Repeat for the other earphone unit.

2. Selecting and Installing Eartips

Proper eartip selection is crucial for comfort, sound isolation, and optimal audio performance.

1. Experiment with the three included pairs of eartips (Small, Medium, Large) to find the best fit for your ears.
2. To install, gently push the eartip onto the nozzle of the earphone unit until it is securely seated.
3. To remove, gently twist and pull the eartip off the nozzle.

3. Wearing the Earphones

The AUDIOCULAR Beast IEMs are designed with an ergonomic ear-hook fit for secure and comfortable placement.

Description: This image demonstrates the correct way to wear the AUDIOCULAR Beast IEM, with the earphone unit seated in the ear canal and the cable looped over the ear for stability and comfort during extended use.

1. Insert the earphone unit into your ear canal.
2. Loop the cable over the top of your ear, allowing it to rest comfortably behind your ear. This helps secure the earphones and reduces microphonics (cable noise).
3. Adjust the fit until it feels snug and comfortable, creating a good seal in your ear canal.

4. Connecting to an Audio Source

Connect the 3.5mm jack of the cable to the audio output port of your device (e.g., smartphone, laptop, portable DAC).

Operating Instructions

Inline Controls (if applicable)

The AUDIOCULAR Beast cable may include inline controls for convenient operation.

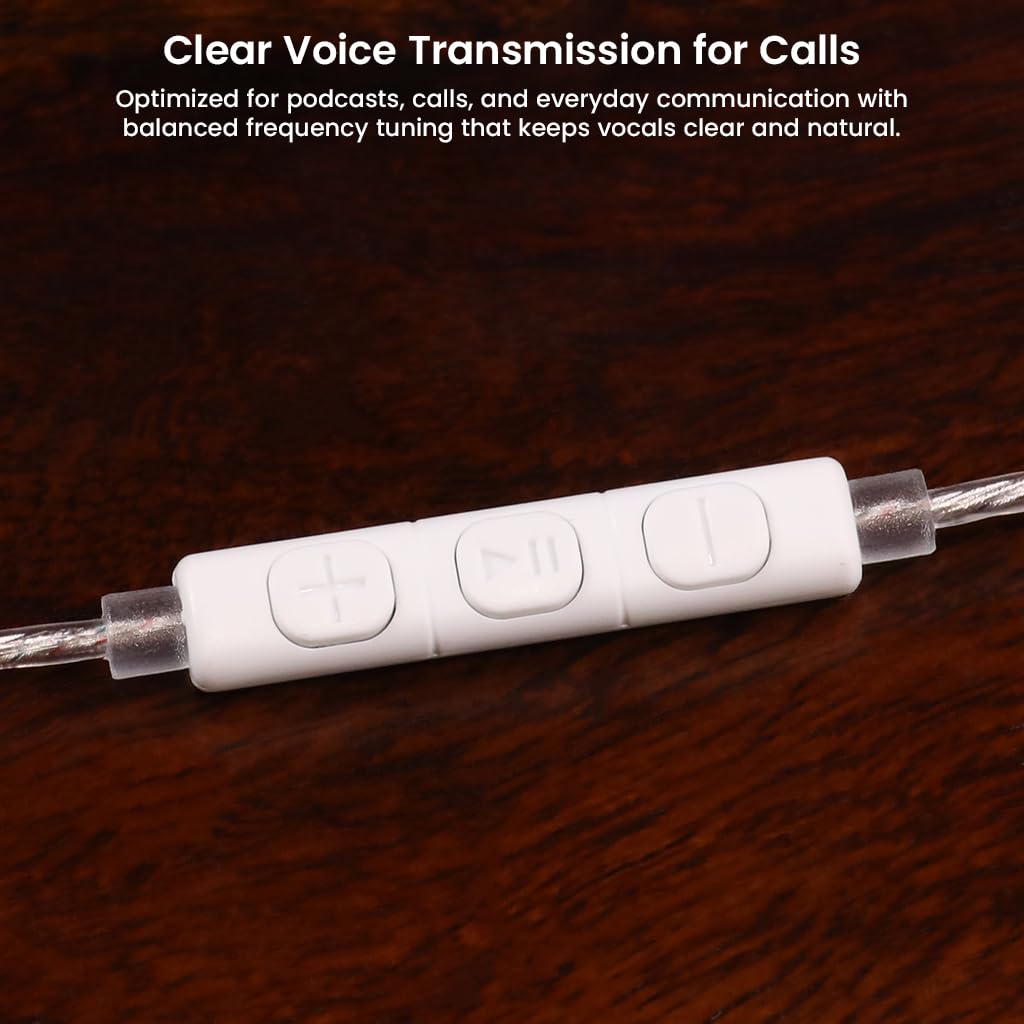

Description: This image displays the inline remote control unit on the earphone cable, featuring buttons for volume adjustment and playback control, optimized for clear voice transmission during calls.

• Play/Pause: Press the center button once to play or pause audio.
• Next Track: Press the center button twice quickly to skip to the next track.
• Previous Track: Press the center button three times quickly to go to the previous track.
• Volume Up: Press the '+' button to increase volume.
• Volume Down: Press the '-' button to decrease volume.
• Answer/End Call: Press the center button once to answer an incoming call or end an ongoing call.
• Reject Call: Press and hold the center button to reject an incoming call.

Sound Customization (Type-C Variant Only)

Please note that the My Audiocular App for sound customization is available only for the Type-C variant of the AUDIOCULAR Beast. This 3.5mm model does not support app-based EQ adjustments.

Description: This image shows the My AUDIOCULAR App interface on a smartphone, demonstrating multi-band parametric EQ controls for fine-tuning bass, mids, and treble. This feature is exclusive to the Type-C variant of the earphones.

Maintenance

Cable Care

The high-purity 5N oxygen-free copper flat cable is designed to be tangle-resistant and durable.

Description: A detailed view of the 5N OFC (Oxygen-Free Copper) flat cable, highlighting its transparent appearance and tangle-resistant design for stable signal transmission and daily reliability.

• Avoid sharp bends or excessive pulling on the cable.
• When storing, coil the cable loosely to prevent tangling and damage.
• Keep the 3.5mm jack clean and free of debris.

Cleaning the Earphones

• Regularly clean the eartips with a soft, damp cloth. Ensure they are completely dry before reattaching.
• Gently wipe the earphone units with a dry, soft cloth to remove any earwax or dirt.
• Do not use harsh chemicals or abrasive materials for cleaning.
• Ensure no moisture enters the driver units.

Storage

• Store your earphones in a clean, dry place, preferably in a protective case, when not in use.
• Avoid exposing them to extreme temperatures or direct sunlight.

Troubleshooting

Specifications

Description: This image provides a transparent view of the earphone's internal structure, highlighting the 10mm dual magnetic circuit dynamic driver, engineered for powerful and precise bass response.

Description: An exploded diagram of the AUDIOCULAR Beast IEM, illustrating the electronic crossover system and its components, which ensure balanced three-frequency equalization for clear audio.

Description: A close-up view of the earphone's premium resin-inlaid metal shell, showcasing its durable construction and refined aesthetic design.

Warranty and Support

Warranty Information

The AUDIOCULAR Beast IEMs come with a 1 Year warranty against manufacturing defects. Please note that eartips and the cable are not covered under this warranty.

Customer Support

For warranty support or any other inquiries, please contact:

• Email: customercare@conceptkart.com
• Importer/Packer: Concept Kart, 2nd Floor, A36, Block B, Naraina Industrial Area Phase 2, Naraina, New Delhi, Delhi, 110028
