1. Introduction
The EcoVolt OUKITEL P2001E Pro is a high-capacity portable power station designed to provide reliable electricity for various applications, including home backup, outdoor adventures, and professional use. Featuring a 2048Wh LiFePO₄ battery and a 3200W AC output (6400W peak), it can power a wide range of devices and appliances. This manual provides essential information for safe and efficient operation, setup, maintenance, and troubleshooting.
Image: The OUKITEL P2001E Pro providing power in an outdoor camping setting.
2. Safety Instructions
Please read and understand all safety instructions before operating the OUKITEL P2001E Pro. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Do not disassemble, repair, or modify the unit.
- Keep the unit away from heat sources, direct sunlight, and flammable materials.
- Do not expose the unit to water or other liquids.
- Ensure proper ventilation during use and charging.
- Keep out of reach of children and pets.
- Use only original or certified charging cables and accessories.
- In case of fire, use a dry powder fire extinguisher.
3. Package Contents
Verify that all items listed below are included in your package. If any items are missing or damaged, please contact customer support.
- OUKITEL P2001E Pro Portable Power Station
- 1 x AC Charging Cable
- 1 x Solar Charging Cable (MC4 to XT90)
- 1 x User Manual
Note: The solar panel (if purchased) and the power station are shipped separately. Please await the arrival of both packages.
Image: OUKITEL P2001E Pro and its accessories.
4. Product Overview
The OUKITEL P2001E Pro features a comprehensive array of input and output ports to meet diverse power needs. Familiarize yourself with the layout and functions of each component.
Image: Overview of the 13 output ports.
Front Panel
- LCD Display: Shows battery level, input/output power, and status indicators.
- Power Button: Turns the unit ON/OFF.
- DC Output Ports: 12V/10A car port, 12V/3A DC5521 ports.
- USB Output Ports: USB-A (QC3.0 18W), USB-C (PD 100W, PD 20W).
- AC Output Ports: 4 x 220-240V AC outlets (Pure Sine Wave).
Rear Panel
- AC Input Port: For charging via grid power.
- XT60 Input Port: For solar panel charging.
- Overload Protection Button: Resets the system in case of overload.
Video: An unboxing and initial demonstration of the OUKITEL P2001E Pro, showing its components and basic operation.
5. Setup
Before first use, ensure the power station is fully charged. Place the unit on a stable, flat surface with adequate ventilation.
- Unpack: Carefully remove the power station and all accessories from the packaging.
- Initial Charge: Connect the power station to an AC outlet using the provided AC charging cable. Allow it to charge completely before first use.
- Power On: Press and hold the main Power Button for a few seconds until the LCD display illuminates.
6. Charging the Power Station
The OUKITEL P2001E Pro offers multiple charging options for flexibility.
AC Charging
- Connect the AC charging cable to the AC input port on the rear of the unit and then to a wall outlet.
- The unit can charge to 80% in approximately 55 minutes and fully charge in about 2 hours.
- The charging speed can be adjusted via the knob on the front panel (400W/800W/1200W/1800W) or through the mobile app.
Image: Super-fast AC charging capability.
Solar Charging
- Connect compatible solar panels (up to 500W) to the XT60 input port using the provided solar charging cable.
- Charging time varies depending on sunlight intensity and solar panel wattage.
Car Charging
- Connect the car charging cable (not included, but compatible with the DC input) to your vehicle's 12V/24V outlet.
Dual Charging (AC + Solar)
- Combine AC (1800W) and solar (500W) inputs for the fastest charging, achieving a full charge in approximately 1.2 hours.
Image: Multiple fast charging options.
7. Operating the Power Station
The OUKITEL P2001E Pro can power up to 13 devices simultaneously through its various output ports.
Using AC Outputs
- Press the AC Power Button to activate the AC outlets.
- Plug your devices into the AC outlets. The unit provides a rated output of 3200W (6400W peak).
- The LCD display will show the current AC output wattage.
Image: High power output for various appliances.
Using DC and USB Outputs
- Press the DC Power Button to activate the DC and USB ports.
- Connect your USB-powered devices to the USB-A or USB-C ports.
- Connect 12V devices to the car port or DC5521 ports.
UPS Function (Uninterruptible Power Supply)
- When connected to AC power, the P2001E Pro can act as an UPS. In the event of a power outage, it automatically switches to battery power within 0.01 seconds.
- This feature ensures continuous operation for sensitive electronics like computers, preventing data loss.
Image: UPS protection for continuous power.
8. Smart App Control
Manage and monitor your OUKITEL P2001E Pro remotely using the dedicated mobile app.
- Download the App: Search for the "OUKITEL Power" app on your smartphone's app store.
- Connect: Enable Bluetooth or Wi-Fi on your phone and follow the in-app instructions to connect to your power station.
- Features: The app allows you to monitor battery status, adjust charging speed (AC and solar input), and control power output settings.
Image: Smart app for complete power control.
9. Maintenance
Proper maintenance ensures the longevity and optimal performance of your power station.
- Cleaning: Wipe the unit with a dry, soft cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures. For long-term storage, charge the battery to 50-80% every 3-6 months.
- Battery Care: The LiFePO₄ battery is designed for over 3500 charge cycles, offering a lifespan of over 15 years. An integrated BMS (Battery Management System) protects against overvoltage and overcurrent.
Image: Long-lasting LiFePO₄ battery with BMS protection.
10. Troubleshooting
If you encounter issues with your OUKITEL P2001E Pro, refer to the following common problems and solutions:
- Unit Not Turning On: Ensure the battery is charged. Press and hold the Power Button for a few seconds.
- No Output from AC/DC/USB Ports: Ensure the respective output buttons (AC/DC) are pressed to activate the ports. Check if the device connected is within the power station's output limits.
- Overload Indication: If an overload warning appears, disconnect some devices and press the Overload Protection Button on the rear panel to reset.
- Charging Slowly: Verify that the charging speed adjustment knob is set to the desired wattage. Ensure solar panels are clean and receiving direct sunlight.
- App Connectivity Issues: Ensure Bluetooth/Wi-Fi is enabled on your phone and the power station. Restart both devices and try reconnecting.
For persistent issues, please contact customer support.
11. Specifications
| Feature | Specification |
|---|---|
| Brand | EcoVolt |
| Model Name | P2001E Pro |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Capacity | 2048 Wh |
| AC Output Power | 3200 W (Rated), 6400 W (Peak) |
| Voltage | 230 Volts |
| AC Input Power | 1800 W (Max) |
| Solar Input (PV) | 12-60V, 1000W Max |
| Charging Time (AC) | Approx. 2 hours (full charge) |
| Charging Time (AC + Solar) | Approx. 1.2 hours (full charge) |
| Noise Level | 30 dB |
| Number of AC Outlets | 4 |
| USB-C Ports | 4 (PD 100W, PD 20W) |
| USB-A Ports | 2 (QC3.0 18W) |
| DC Output Ports | 2 x DC5521 (12V/3A), 1 x Car Port (12V/10A) |
| UPS Switching Time | < 0.01 seconds |
| Dimensions (L x W x H) | 39.9L x 28.6W x 32H cm |
| Weight | 22 Kilograms |
| Special Features | Extra-long autonomy, Digital display, Portable, Overload protection, Super quiet |

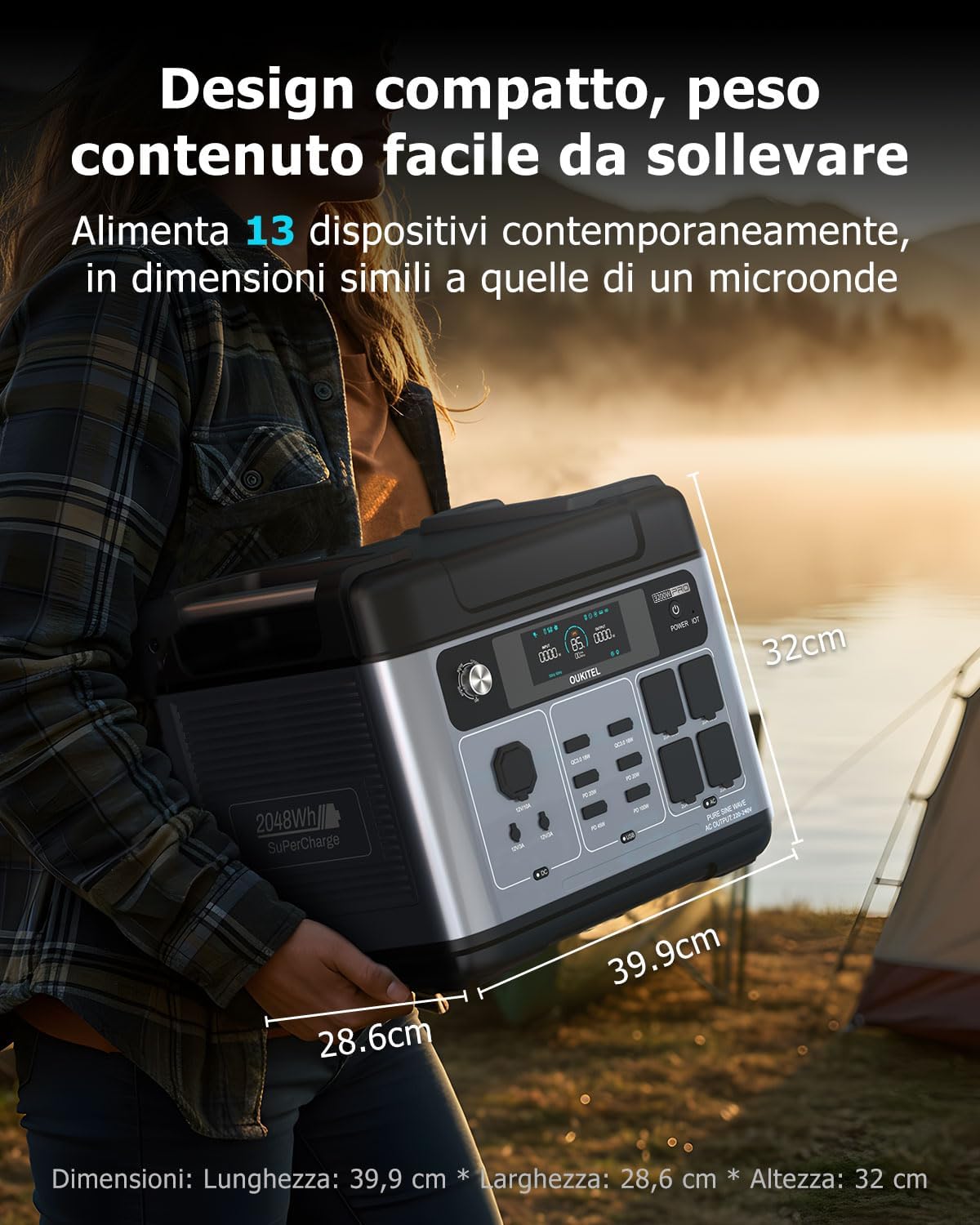

Image: Product dimensions.
12. Warranty and Support
The OUKITEL P2001E Pro is built for durability and comes with comprehensive support.
- Warranty: The product includes a 5-year manufacturer's warranty.
- Battery Lifespan: The integrated LiFePO₄ battery is designed for over 3500 charge cycles, providing an estimated lifespan of over 15 years.
- Customer Support: A local service center is available in Germany. Our support team aims to respond within 8 hours, offering fast, professional, and reliable assistance.
For warranty claims or technical assistance, please refer to the contact information provided in your warranty card or visit the official EcoVolt website.
