1. Product Overview
The Prestige ELECTRO DUO is an innovative combi cooktop designed for modern kitchens, offering both infrared and induction cooking capabilities. This appliance provides versatility, allowing use with all flat-base cookware on the infrared zone and ensuring fast, energy-efficient cooking with induction-compatible cookware on the induction zone. It features user-friendly feather touch controls, an Indian cooking menu, high-efficiency heating, and advanced safety features for effortless and precise cooking.

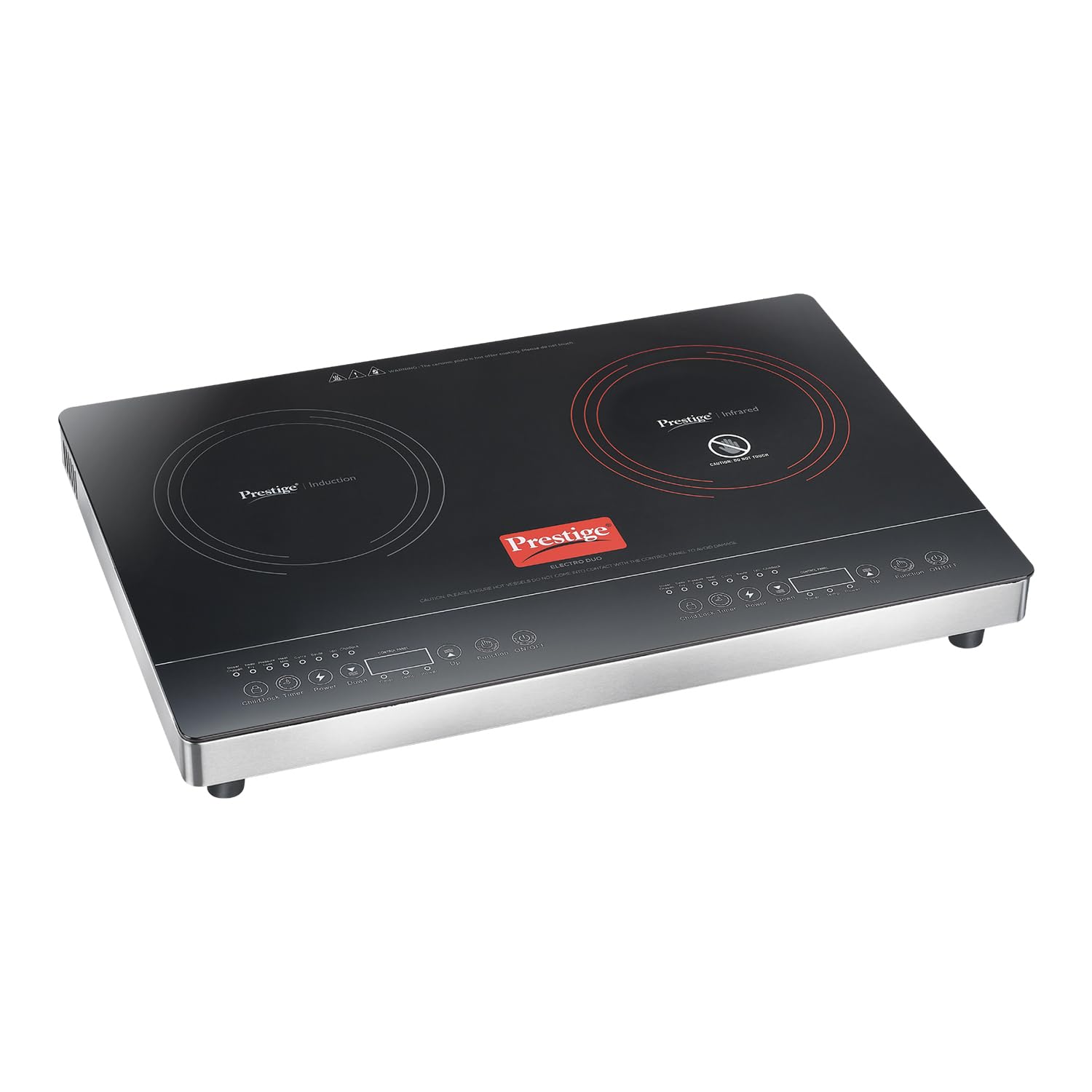

Image 1.1: The Prestige Electro Duo Infrared and Induction Combi Cooktop.
2. Important Safety Instructions
Please read all instructions carefully before using the appliance to ensure safe operation and prevent damage. Keep this manual for future reference.
- Electrical Safety: Ensure the appliance is connected to a grounded outlet with the correct voltage (230 Volts) and wattage (2000 Watts). Do not use extension cords unless absolutely necessary and ensure they are rated for the appliance's power.
- Surface Heat: The ceramic plate, especially the infrared zone, becomes very hot during and after cooking. Do not touch the hot surface. Use oven mitts or pot holders.
- Cookware: For the induction zone, use only induction-compatible cookware. For the infrared zone, all flat-base cookware is suitable.
- Placement: Place the cooktop on a stable, flat, heat-resistant surface. Ensure adequate ventilation around the appliance.
- Child Safety: Keep children away from the appliance during operation. Utilize the Child Lock Safety feature to prevent accidental operation.
- Overheating: Do not leave the appliance unattended while cooking. Ensure proper ventilation to prevent overheating.
- Cleaning: Always unplug the cooktop and allow it to cool completely before cleaning. Do not immerse the appliance in water or any other liquid.
- Damage: Do not operate the appliance if it is damaged. Contact customer support for assistance.
- Voltage Surge Protection: The cooktop includes high voltage surge protection up to 4kV, but it is still advisable to unplug during electrical storms or prolonged periods of non-use.

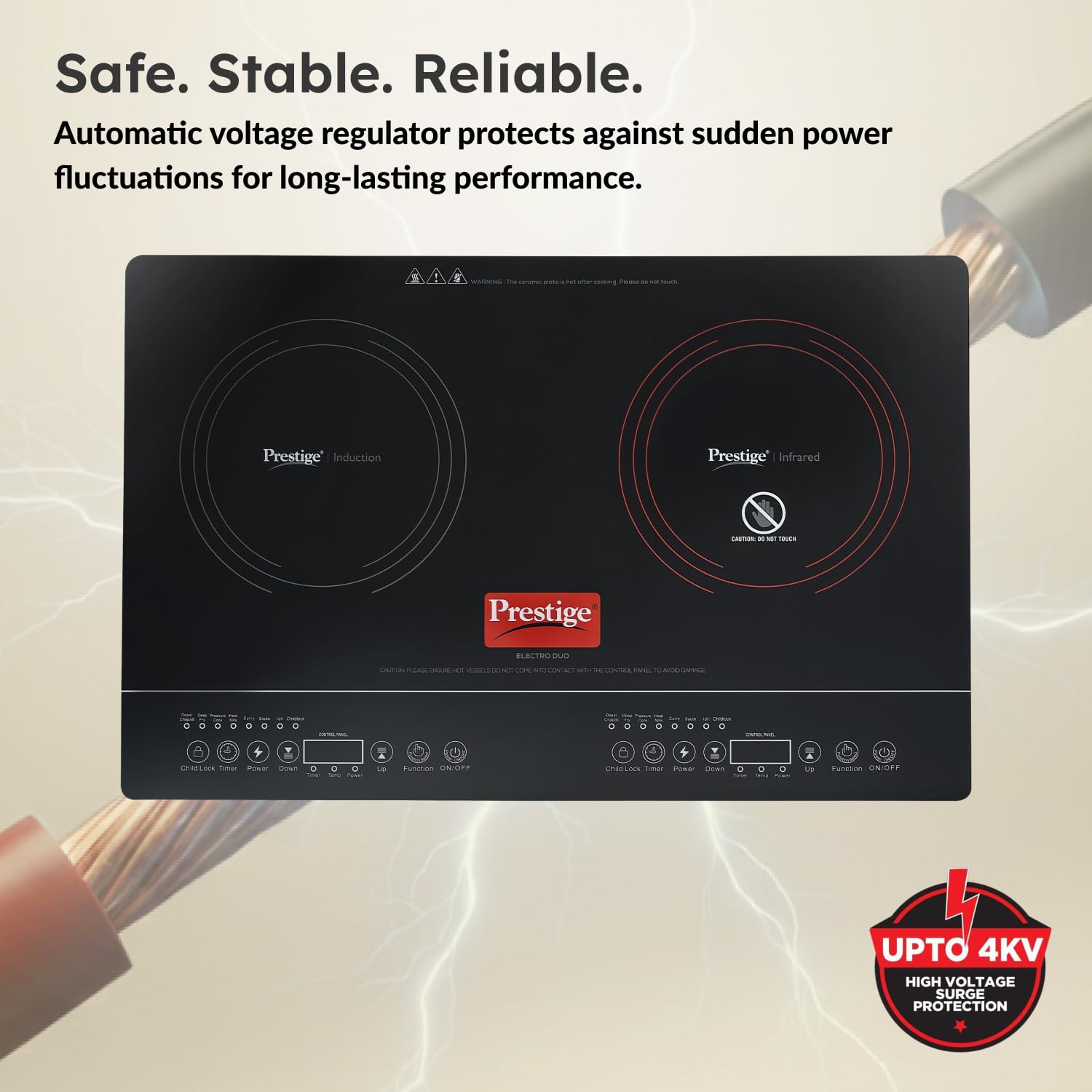

Image 2.1: The cooktop features high voltage surge protection up to 4kV for enhanced safety and reliability.
3. Key Features
- Dual Cooking Zones: Features both an Induction cooktop (1600W) and an Infrared cooktop (2000W) for versatile cooking options.
- Cookware Compatibility: The infrared cooktop works with all flat-base cookware. The induction cooktop requires induction-compatible cookware.
- Radiant Heating Technology: The infrared zone transfers heat directly to the vessel for quick and uniform heating.
- Intelligent Operation: Computer-controlled operation with automatic power and temperature adjustment for various foods.
- High Voltage Surge Protection: Prevents damage from voltage surges up to 4kV, ensuring device longevity.
- Indian Menu Option: Dedicated presets for authentic dishes like chapati, idli, dosa, curry, pressure cook, heat milk, and saute.
- Feather Touch Controls: User-friendly interface for easy operation.
- Power Saver Technology: Optimizes energy for efficient cooking.
- Built-in Timer Function: For precise, hands-free cooking.
- Child Lock Safety: Prevents accidental operation, enhancing household safety.
- Anti-magnetic Wall: Shields excess magnetic interference for safer, efficient cooking.
Image 3.1: Overview of the cooktop's design and key features including Power Saver Technology, Built-in Timer, and Child Lock Safety.
Image 3.2: The cooktop offers 7 smart preset modes for various Indian dishes and cooking methods.
Image 3.3: Diagram illustrating the 7 smart preset modes available on the cooktop.
Image 3.4: Dimensions of the cooktop (59D x 39W x 7.4H Centimeters) and highlights Intelligent Control and Anti-magnetic Wall features.
4. Setup Instructions
- Unpacking: Carefully remove the cooktop from its packaging. Retain the packaging materials for future transport or storage.
- Inspection: Inspect the appliance for any signs of damage. Do not use if damaged.
- Placement: Place the cooktop on a flat, stable, and heat-resistant surface. Ensure there is sufficient space around the cooktop for proper ventilation (at least 10-15 cm from walls or other appliances).
- Power Connection: Plug the power cord into a standard 230V AC, 50Hz grounded electrical outlet. Ensure the outlet is easily accessible.
5. Operating Instructions
5.1 General Operation
- Power On: Place appropriate cookware on the desired cooking zone (Induction or Infrared). Press the "On/Off" button on the control panel to power on the cooktop.
- Select Zone: The cooktop will automatically detect if cookware is present. Select the desired cooking zone if not automatically activated.
- Adjust Power/Temperature: Use the "Up" and "Down" buttons to adjust the power level or temperature setting. The intelligent control system will automatically adjust based on the food type.
- Preset Modes: For specific dishes, press the "Function" button to cycle through the 7 smart preset modes (e.g., Dosa/Chapati, Idli, Pressure Cook, Curry, Heat Milk, Saute, Deep Fry).
- Timer Function: Press the "Timer" button and use "Up" and "Down" to set the desired cooking time. The cooktop will automatically switch off once the timer expires.
- Child Lock: To activate the child lock, press and hold the "Child Lock" button for a few seconds. This will disable the control panel. Repeat the action to deactivate.
- Power Off: After cooking, press the "On/Off" button to switch off the cooktop. Unplug the appliance from the power outlet when not in use.
5.2 Cookware Compatibility
- Induction Zone: Use only cookware made of ferromagnetic materials (e.g., cast iron, magnetic stainless steel) with a flat bottom. A magnet should stick to the bottom of the pan.
- Infrared Zone: This zone is compatible with all types of flat-bottomed cookware, including ceramic, glass, aluminum, copper, and non-magnetic stainless steel.
6. Care and Maintenance
Regular cleaning and proper care will ensure the longevity and optimal performance of your Prestige Electro Duo cooktop.
- Before Cleaning: Always unplug the cooktop from the power outlet and allow it to cool completely before cleaning.
- Cleaning the Surface: Wipe the ceramic glass surface with a soft, damp cloth and a mild detergent. For stubborn stains, use a non-abrasive ceramic cooktop cleaner. Avoid abrasive pads, harsh chemicals, or scouring powders.
- Control Panel: Wipe the control panel with a soft, damp cloth. Ensure no liquid enters the control panel area.
- Ventilation Openings: Keep the ventilation openings clear of dust and debris to ensure proper airflow.
- Storage: If storing the cooktop for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging.
7. Troubleshooting Guide
If you encounter any issues with your cooktop, please refer to the following common problems and solutions before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not power on. | Not plugged in; power outage; faulty outlet; appliance fault. | Check power cord connection. Verify power supply. Try a different outlet. If problem persists, contact service. |
| Induction zone not heating. | Incorrect cookware; cookware not centered; small cookware base. | Use induction-compatible cookware. Center the cookware. Ensure cookware base is large enough for the zone. |
| Infrared zone not heating. | Cookware not flat-based; zone not selected. | Ensure cookware has a flat bottom. Select the infrared zone. |
| Cooktop beeps or displays error code. | Overheating; no cookware detected; internal fault. | Turn off and allow to cool. Ensure cookware is present and correct. Refer to specific error codes in a more detailed manual (if available) or contact service. |
| Child Lock is active. | Control panel is locked. | Press and hold the "Child Lock" button for a few seconds to deactivate. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Brand | Prestige |
| Model Number | 42327 |
| Heating Elements | 2 (Infrared and Induction) |
| Colour | Black |
| Power Source | Corded Electric |
| Fuel Type | Electric |
| Special Features | Cool Touch, High Voltage Surge Protection, Indian Menu Option, Power Saver Technology, Built-in Timer, Child Lock Safety, Anti-magnetic Wall |
| Burner Type | Induction (one zone), Infrared (one zone) |
| Ignition System Type | Electronic |
| Voltage | 230 Volts |
| Wattage | 2000 Watts (Infrared), 1600 Watts (Induction) |
| Item Dimensions (D x W x H) | 59D x 39W x 7.4H Centimeters |
| Item Weight | 5320 Grams |
| Heater Surface Material Type | Tempered Glass |
| Material Type | Glass |
| Manufacturer | TTK PRESTIGE LIMITED |
9. Warranty and Support
9.1 Warranty Information
The Prestige Electro Duo Infrared and Induction Combi Cooktop comes with a 1 Year Manufacturer Warranty from the date of purchase. Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal use conditions.
9.2 Customer Support
For any feedback, comments, complaints, or service requests, please contact Prestige customer support:
- Phone: 080-6000 4411
- Email: customercare@ttkprestige.com
- Website: shop.ttkprestige.com/customer_service
To find your nearest Prestige authorized service center, scan the QR code below:
Image 9.1: Contact details for Prestige customer support and a QR code to locate service centers.
Scan this QR code to find Prestige authorized service centers: https://qr1.be/BMT7QY
