1. Important Safety Instructions
Please read all instructions carefully before using the uwant M700 Anti-Mite Mattress Vacuum Cleaner. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Do not use outdoors or on wet surfaces. This appliance is designed for indoor use only.
- Always unplug the device from the electrical outlet when not in use and before performing any cleaning or maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.
- Use only as described in this manual. Use only manufacturer's recommended attachments and replacement parts.
- Do not use the appliance if the power cord or plug is damaged. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, contact customer support.
- Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.
- Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
- Do not handle the plug or appliance with wet hands.
- Do not put any objects into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce airflow.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs or elevated surfaces.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use the appliance without the dust cup and/or filters securely in place.
- UVC Light Safety: Avoid direct exposure to eyes and skin. The UVC light is designed to activate only when the device is in contact with a surface, ensuring safe operation.
2. Product Overview
The uwant M700 is an advanced anti-mite mattress vacuum cleaner designed for deep cleaning of various fabric surfaces. Familiarize yourself with its components before use.
Components:
- Main Unit with Handle
- Dual Dust Collection Cup
- Filter Assembly (inside dust cup)
- Beating Brush Roll
- UVC Lamp
- Hot Air Outlet
- LED MiteTrack Display
- Power Cord

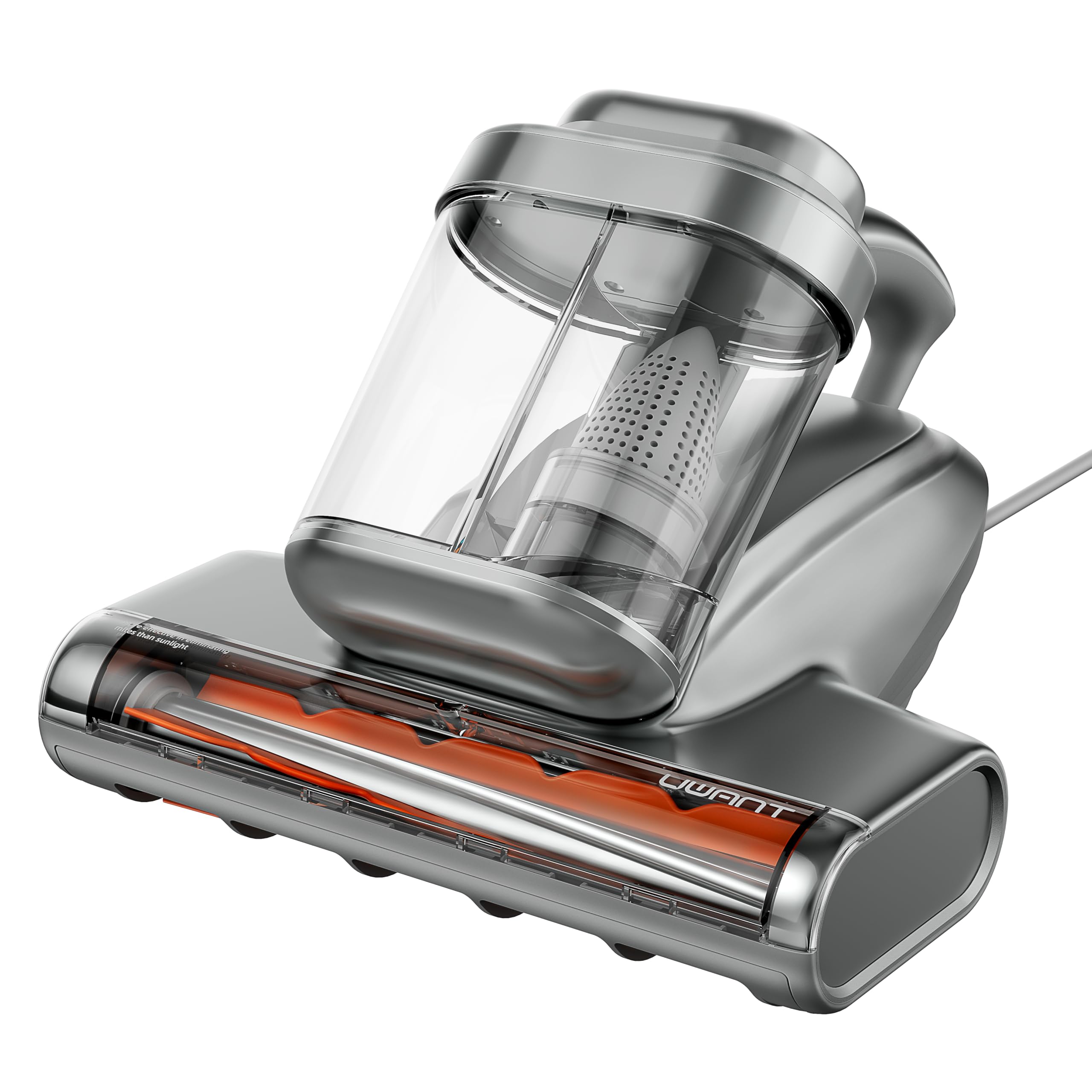

Image: The uwant M700 Anti-Mite Mattress Vacuum Cleaner, showcasing its sleek design and main components.
Image: Key features of the uwant M700, including 65°C hot air, 18,000Pa suction, and 60,000 BPM beating frequency.
3. Assembly and Setup
The uwant M700 is designed for easy setup. Follow these steps to prepare your device for first use:
- Unpack Components: Carefully remove all parts from the packaging. Ensure all components listed in the Product Overview section are present.
- Attach Dust Collection Cup: Ensure the Dual Dust Collection Cup is securely attached to the main unit. It should click into place.
- Connect Power: Plug the power cord into the designated port on the device, then plug the other end into a standard electrical outlet.
4. Operating Instructions
The uwant M700 offers powerful and efficient cleaning for various fabric surfaces. Follow these guidelines for optimal performance.
4.1 Power On/Off
Press the power button located on the handle to turn the device on or off. The LED MiteTrack display will illuminate when the device is powered on.
4.2 Mode Selection
The uwant M700 features integrated cleaning modes for different needs:
- Smart Cleaning Mode: This mode automatically adjusts suction power and beating frequency based on the detected dust and debris level on the surface.
- Warm Mode: Activates the 65°C hot air function, which helps to dry and sanitize fabrics, creating an unfavorable environment for mites.
- Anti-Mite Diffusion: While the device itself does not diffuse, its design and hot air function enhance the effectiveness of external anti-mite diffusion methods, promoting deeper penetration into fabrics.
4.3 Using the Device on Surfaces
The uwant M700 is suitable for mattresses, sofas, cushions, and carpets.
- Positioning: Place the cleaner head flat against the surface you intend to clean. Ensure full contact for effective operation of the beating, suction, and UVC functions.
- Cleaning Motion: Move the device slowly and steadily across the surface in overlapping passes. Avoid pressing down too hard; the device's weight and beating function are sufficient.
- MiteTrack Display: Observe the LED MiteTrack display. It provides real-time feedback on the cleaning level, helping you identify and focus on areas with higher concentrations of dust and mites.
- UVC Light Function: The integrated UVC light activates automatically when the device is in contact with a surface. For safety, it deactivates when lifted. Ensure continuous contact for optimal sterilization.
- Hot Air Function: The 65°C hot air outlet helps to reduce moisture in fabrics, which is crucial for inhibiting mite growth and improving overall hygiene.
Image: The uwant M700 in action, demonstrating its powerful suction and airflow for deep cleaning.
Image: A user operating the uwant M700 on a cushion, highlighting its ergonomic design for ease of use.
Image: Visual representation of the uwant M700's warm mode, applying heat to sanitize fabrics.
5. Maintenance and Cleaning
Regular maintenance ensures the longevity and optimal performance of your uwant M700. Always unplug the device before cleaning.
5.1 Emptying the Dual Dust Cup
- It is recommended to empty the dust cup after each use or when the 'MAX' fill line is reached.
- Press the dust cup release button and carefully detach the dust cup from the main unit.
- Open the dust cup lid and empty the collected dust and debris into a waste bin. The dual-cup design effectively separates fine dust from larger particles and prevents tangles.
- Close the dust cup lid securely and reattach the dust cup to the main unit until it clicks into place.
5.2 Cleaning Filters
- With the dust cup detached, remove the filter assembly.
- Gently tap the filter over a waste bin to remove loose dust.
- For a more thorough cleaning, rinse the filter under cool, running water. Do not use detergents or hot water.
- Allow the filter to air dry completely for at least 24 hours before reinserting it. Ensure it is bone dry to prevent damage to the motor.
5.3 Cleaning the Beating Brush Roll
- Periodically inspect the beating brush roll for tangled hair, threads, or fibers.
- To access the brush roll, locate the brush roll cover on the underside of the cleaner head and open it.
- Carefully remove any tangled material using scissors or a cleaning tool. Be cautious not to damage the bristles.
- Ensure the brush roll spins freely before closing the cover and resuming operation.
Image: The uwant M700's dust cup and filter assembly, illustrating the components for cleaning.
6. Troubleshooting
If you encounter any issues with your uwant M700, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | Power cord not securely plugged in. No power from outlet. | Check if the power cord is firmly connected to both the device and a functional electrical outlet. Test the outlet with another appliance. |
| Reduced suction power. | Full dust cup. Clogged filters. Blockage in cleaner head or hose. | Empty the dust cup. Clean or replace the filters as per maintenance instructions. Inspect the cleaner head and air inlets for any obstructions and remove them. |
| Unusual noise during operation. | Foreign object in brush roll or air path. Damaged component. | Turn off and unplug the device. Inspect the brush roll and air path for any foreign objects and remove them. If the noise persists, contact customer support. |
| UVC light not activating. | Device not in full contact with surface. | Ensure the cleaner head is placed flat and firmly against the surface to engage the safety sensor for the UVC lamp. |
7. Technical Specifications
Below are the technical specifications for the uwant M700 Anti-Mite Mattress Vacuum Cleaner:
| Feature | Specification |
|---|---|
| Brand | uwant |
| Model Number | M700 |
| Power | 700W |
| Suction Power | 18,000Pa |
| Beating Frequency | 60,000 BPM |
| Hot Air Temperature | 65°C |
| Special Features | 5-in-1 cleaning system, Dual-Cup anti-tangle, LED MiteTrack Display, UVC Light |
| Recommended Surfaces | Mattress, sofas, carpets, upholstery |
| Item Weight | 2.05 kg |
| Dimensions (L x W x H) | 29.8 x 25.2 x 20 cm |
| Color | Grey |
| Usage Environment | Indoor |
| Country of Origin | China |
8. Warranty and Support
The uwant M700 Anti-Mite Mattress Vacuum Cleaner comes with a manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official uwant website.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact uwant customer service. Contact information can typically be found on the product packaging, the official uwant website, or your purchase documentation.
