PURPLE LEAF 12' x 16' Hardtop Gazebo with LED Outdoor Screen Instruction Manual

Introduction

Thank you for choosing the PURPLE LEAF 12' x 16' Hardtop Gazebo with LED Outdoor Screen. This manual provides essential information for the safe assembly, operation, and maintenance of your gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This gazebo features a durable galvanized steel double roof, a robust wood-grain aluminum frame, 3-mode windows (screens and PC panels), dual magnetic sliding doors, and integrated LED outdoor screen capabilities. Proper assembly and care will ensure years of enjoyment.

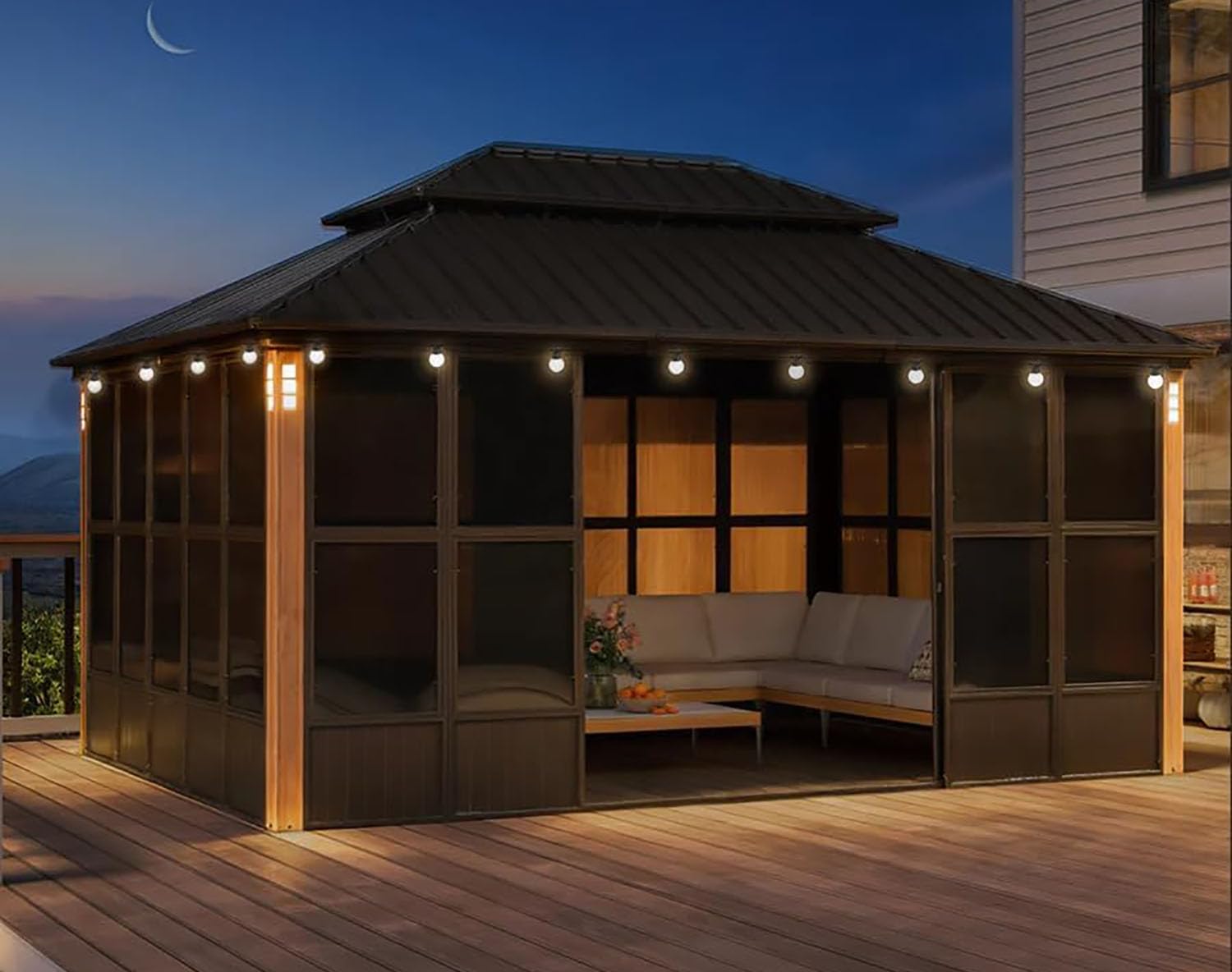

Image: The PURPLE LEAF 12' x 16' Hardtop Gazebo with LED Outdoor Screen, showcasing its overall design and features.

Safety Information

Always prioritize safety during assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Ensure all parts are present and undamaged before assembly. Do not proceed with assembly if any parts are missing or defective.
• Assembly requires at least two adults. Some steps, particularly roof installation, may require more.
• Wear appropriate safety gear, including gloves and eye protection, during assembly.
• Choose a level and stable surface for installation. Securely anchor the gazebo to the ground using appropriate hardware for your specific surface.
• Do not hang heavy objects from the gazebo frame or roof, except for designated ceiling hooks for lights/fans within specified weight limits.
• In case of extreme weather conditions (heavy snow, strong winds, hurricanes), it is recommended to remove screens and panels and take necessary precautions to prevent damage.
• Keep children and pets away from the assembly area.

Setup and Assembly

Assembly typically requires 1.5 to 2 days for two individuals. All parts are meticulously labeled, and the instructions are primarily illustrative. Review all diagrams carefully before starting each step.

Preparation

• Unpack all boxes and verify that all components listed in the parts list are present.
• Organize hardware by type to streamline the assembly process.
• Clear a sufficient, level area for assembly.

Frame Assembly

Begin by assembling the base frame and posts. Ensure all connections are secure but do not fully tighten bolts until the entire frame is upright and squared.

Image: Detailed dimension diagram for the 12' x 16' gazebo, showing height, length, and width measurements.

Roof Installation

The roof frame and panel installation is a critical step. It is highly recommended to have at least two people for this stage to safely lift and secure the roof sections. Secure each roofing panel as it is put into place rather than waiting until all panels are set, to prevent panels from sliding off.

Video: An official video demonstrating the features of the PURPLE LEAF Hardtop Gazebo, including its galvanized steel double roof construction.

Window and Door Installation

Install the 3-mode windows (screens and PC panels) and dual magnetic sliding doors according to the diagrams. Ensure the magnetic strips on the sliding doors align properly for secure closure.

Video: An official video highlighting the all-season features of the PURPLE LEAF Gazebo, including the detachable windows and overall structure.

Image: A dedicated storage shelf for PC window panels, designed for easy organization when not in use.

Final Anchoring

Once fully assembled, securely anchor the gazebo to your patio or deck. Use appropriate anchors for your specific surface type to ensure stability against wind and other environmental factors.

Operating Instructions

3-Mode Windows

Your gazebo is equipped with versatile 3-mode windows, allowing you to customize your outdoor experience:

• Screen Mode: Utilize the mesh screens for ventilation while keeping insects out.
• PC Panel Mode: Install the clear PC panels for protection against wind and light rain, creating a more enclosed space.
• Open Mode: Remove both screens and panels for an unobstructed view and maximum airflow.

Image: Close-up of the magnetic sliding door mechanism, showing the integrated magnetic strips for secure closure.

Dual Sliding Doors

The gazebo features dual sliding doors on both the front and back for convenient access. These doors are equipped with built-in magnetic strips to ensure they remain securely closed when desired.

LED Outdoor Screen

The gazebo is designed to integrate with an LED outdoor screen system (included). Refer to the separate instructions for the LED screen for specific installation and operation details. The roof also includes built-in ceiling hooks for hanging additional LED lights or fans.

Image: The gazebo illuminated at night with integrated LED lighting, demonstrating its ambiance.

Image: Diagram illustrating the dimensions and features of the included LED string lights, including bulb spacing and total length.

Maintenance

Regular maintenance will prolong the life and appearance of your PURPLE LEAF gazebo.

• Cleaning: Clean the aluminum frame and galvanized steel roof with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish. Rinse thoroughly with clean water.
• Screens and PC Panels: Clean screens with a soft brush or cloth and mild soap. PC panels can be wiped with a soft, damp cloth. Store PC panels in the provided storage shelf when not in use to prevent damage.
• Fasteners: Periodically check all bolts and screws to ensure they are tight. Re-tighten as necessary, especially after strong winds or heavy use.
• Winter Care: While the galvanized steel roof is built for heavy snow, it is advisable to clear excessive snow accumulation to prevent structural stress. Consider removing screens and PC panels during winter months for storage.

Image: Detail of the galvanized steel double roof, highlighting its robust construction and ventilation design.

Image: Close-up of the wood-grain aluminum frame, showcasing its aesthetic and material composition.

Troubleshooting

Common Issues and Solutions

• Water Leaks: If you notice minor leaks, inspect the roof panels and their seals. Ensure all screws are tight and panels are correctly overlapped and sealed. Small gaps can sometimes be sealed with outdoor-grade silicone sealant.
• Difficulty Sliding Doors: Check the tracks for debris or obstructions. Clean the tracks and apply a silicone-based lubricant if necessary. Ensure the doors are properly aligned within their tracks.
• Gazebo Instability: Verify that all frame bolts are securely tightened. Re-check the ground anchors to ensure they are firmly set and appropriate for your surface.
• Missing or Damaged Parts: If you discover missing or damaged parts during assembly, contact PURPLE LEAF customer service immediately for assistance.

Specifications

Warranty and Support

Warranty Information

Your PURPLE LEAF Hardtop Gazebo comes with the following protection plan:

• 1-year warranty on bolts, nuts, and frame components.
• 5-year warranty on roof panels.

Please retain your proof of purchase for warranty claims.

Customer Support

For any questions, concerns, or warranty claims, please contact PURPLE LEAF customer service. Contact information can typically be found on the product packaging or the official PURPLE LEAF website.

When contacting support, please have your model number (12' x 16' Hardtop Gazebo with LED Outdoor Screen) and purchase date readily available.
