JBL Stage3 Gen2 68CF 6.5-inch 2-Way Component Car Speakers User Manual

1. Product Overview

The JBL Stage3 Gen2 68CF 6.5-inch 2-Way Component Car Speakers are engineered to deliver high-quality audio performance in your vehicle. This component system includes woofers, tweeters, and external crossovers, designed for a balanced and dynamic sound experience.

Key Features

• Patented Plus One Woofer Cone: Features a larger cone surface area for higher sensitivity and deeper bass.
• Glass Fiber Reinforced Cone: Infused with 10% glass fiber and laser-etched for structural rigidity, producing powerful, resonant bass.
• Edge-Driven Silk Dome Tweeter: Provides a broader, smoother high-frequency response without distortion, even at high volumes.
• True 4-Ohm Impedance Design: Maximizes power output from your head unit or amplifier by compensating for system resistance.
• Complete Component Kit: Includes two woofers, two silk dome tweeters, and two inline crossovers for a comprehensive audio upgrade.

Environmental Responsibility

JBL is committed to environmental sustainability. The Stage3 Gen2 speakers incorporate post-consumer recycled plastic materials and PVC-free wiring. The packaging utilizes soy-based inks, reflecting a dedication to environmentally conscious innovation.

Figure 1: Front view of the JBL Stage3 Gen2 68CF 6.5-inch woofer, showcasing its carbon fiber camouflage cone design and JBL logo.

Figure 2: An illustrative image highlighting the JBL Stage3 Gen2 68CF speaker's key features, including powerful sound, upgrade potential, and separate tweeters for clearer audio.

2. What's in the Box

Carefully unpack the contents and ensure all items are present:

• 2x Speakers (Woofers)
• 2x 0.75-inch Tweeters
• 2x Threaded Flush-mount Adapters for tweeters
• 2x Plastic Locking Nuts for tweeters
• 2x Crossover Boxes
• 8x Screws for mounting
• 8x Spade Clips for connections
• 1x Mini Owner's Manual (OM)
• 2x Foam Gaskets
• 2x Logo Badges

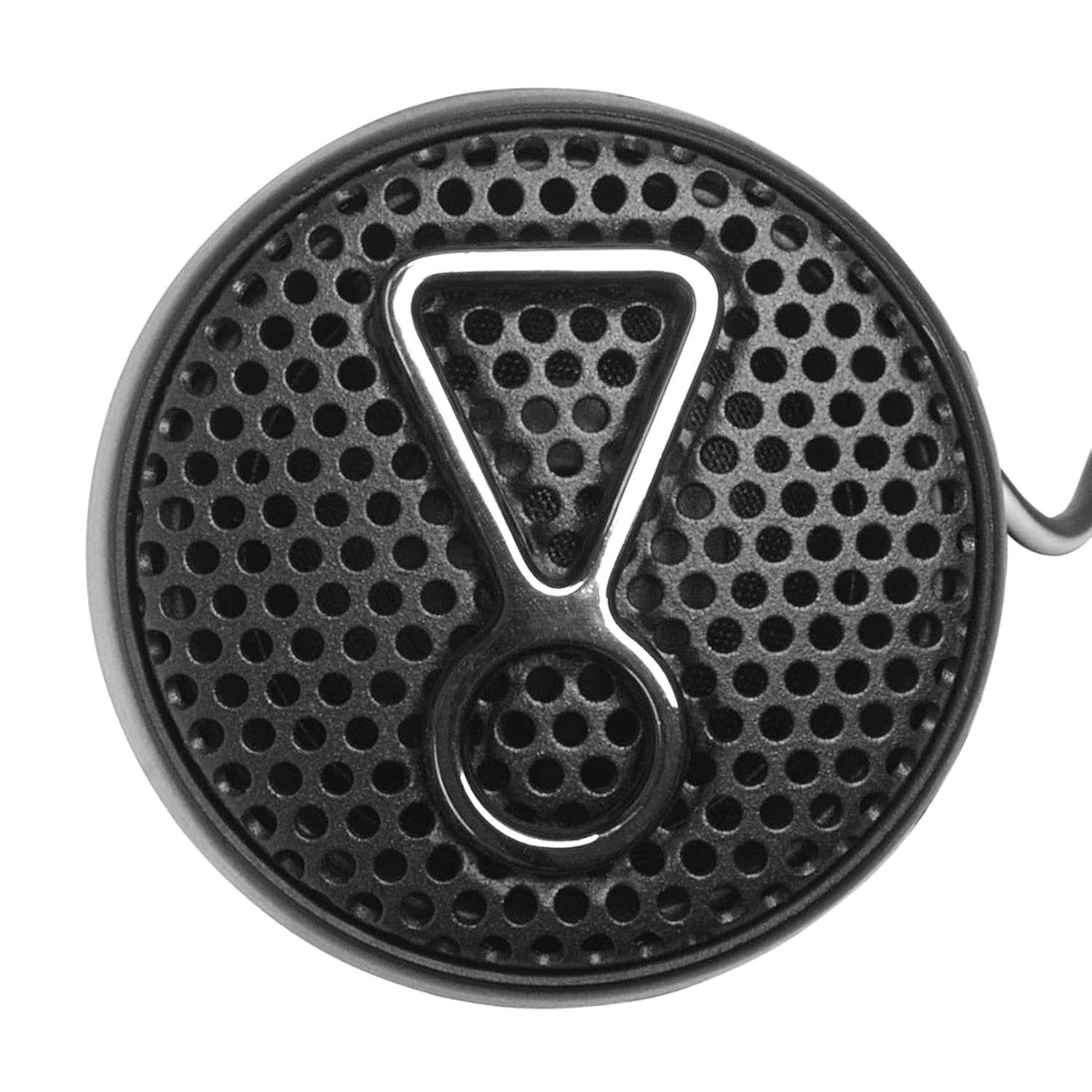

Figure 3: A close-up view of the JBL silk dome tweeter, featuring a protective grille and the JBL logo, designed for clear high-frequency sound reproduction.

Figure 4: The JBL crossover box, which separates audio frequencies for optimal delivery to the woofer and tweeter, ensuring clear and balanced sound.

3. Setup and Installation

Professional installation is recommended. If performing a DIY installation, follow these guidelines carefully.

3.1 Safety Information

• Always disconnect the vehicle's negative battery terminal before starting any electrical work to prevent short circuits and damage.
• Wear appropriate safety gear, including eye protection.
• Ensure all wiring is properly insulated and secured to prevent chafing or damage.

3.2 Tools Required

• Screwdrivers (Phillips and flathead)
• Wire strippers/crimpers
• Drill (if new mounting holes are needed)
• Measuring tape
• Panel removal tools
• Electrical tape or heat shrink tubing

3.3 Speaker Placement and Fitment

Before installation, measure your vehicle's speaker openings and mounting depth to ensure compatibility. The JBL Stage3 Gen2 68CF speakers are designed for 6.5-inch (165mm) cutouts.

Figure 5: A detailed guide on how to measure for car speaker fitment, including cone diameter, mounting depth, and outer diameter, to ensure proper installation.

Figure 6: Technical diagram showing the precise dimensions of the JBL Stage3 68CF woofer and tweeter, essential for accurate installation and fitment.

3.4 Mounting Instructions

1. Access Speaker Location: Carefully remove door panels or other trim to access the factory speaker locations.
2. Remove Old Speakers: Disconnect and remove any existing speakers.
3. Mount Woofers: Place the new JBL woofers into the speaker openings. Use the provided screws to secure them firmly. Ensure the foam gasket is used for a tight seal.
4. Mount Tweeters: The tweeters can be flush-mounted or surface-mounted. Choose the appropriate adapter and secure them in your desired location (e.g., dashboard, door pillar).
5. Install Crossovers: Find a secure, dry location for the crossover boxes, away from moisture and excessive heat.

Figure 7: The JBL Stage3 Gen2 6.5-inch woofer professionally installed within a car door panel, demonstrating proper fit and wiring connections.

Figure 8: A JBL tweeter seamlessly integrated into a car's door panel, illustrating a clean and functional installation.

3.5 Wiring Diagram

Connect the speakers to the crossovers, and then the crossovers to your head unit or amplifier. Refer to the diagram below for typical connections. Ensure correct polarity (+/-) for all connections.

1. Connect the INPUT terminals of the crossover to the speaker output of your head unit or amplifier.
2. Connect the WF (Woofer) terminals of the crossover to the JBL 6.5-inch woofer.
3. Connect the TW (Tweeter) terminals of the crossover to the JBL 0.75-inch tweeter.
4. Secure all connections using spade clips or by soldering and insulating with electrical tape or heat shrink tubing.

Note: Specific wiring colors may vary. Always match positive (+) to positive (+) and negative (-) to negative (-).

4. Operation

4.1 Initial Power-On

After installation, reconnect the car battery. Turn on your car's audio system. Start with the volume low and gradually increase it to ensure all speakers are functioning correctly and without distortion.

4.2 Audio Settings

• Balance and Fader: Adjust these settings on your head unit to ensure sound is evenly distributed throughout the vehicle.
• Equalizer (EQ): Use your head unit's equalizer to fine-tune the sound to your preference. Start with a flat EQ and make small adjustments.
• Gain Settings: If using an external amplifier, ensure the gain is set correctly to prevent clipping and speaker damage. Consult your amplifier's manual for proper gain adjustment procedures.

4.3 Break-in Period

Allow a break-in period of approximately 20-30 hours of normal listening at moderate volumes. This allows the speaker components to loosen up and achieve their optimal sound performance.

5. Maintenance

5.1 Cleaning

To maintain the appearance and performance of your speakers, periodically wipe them with a soft, dry cloth. Avoid using harsh chemicals, abrasives, or excessive moisture, which can damage the speaker cones or grilles.

5.2 Inspection

Occasionally inspect the speaker connections and mounting hardware to ensure they remain secure. Loose connections can lead to poor sound quality or intermittent audio.

6. Troubleshooting

If you encounter issues with your JBL Stage3 Gen2 68CF speakers, refer to the following common problems and solutions:

7. Specifications

Detailed technical specifications for the JBL Stage3 Gen2 68CF 6.5-inch 2-Way Component Car Speakers:

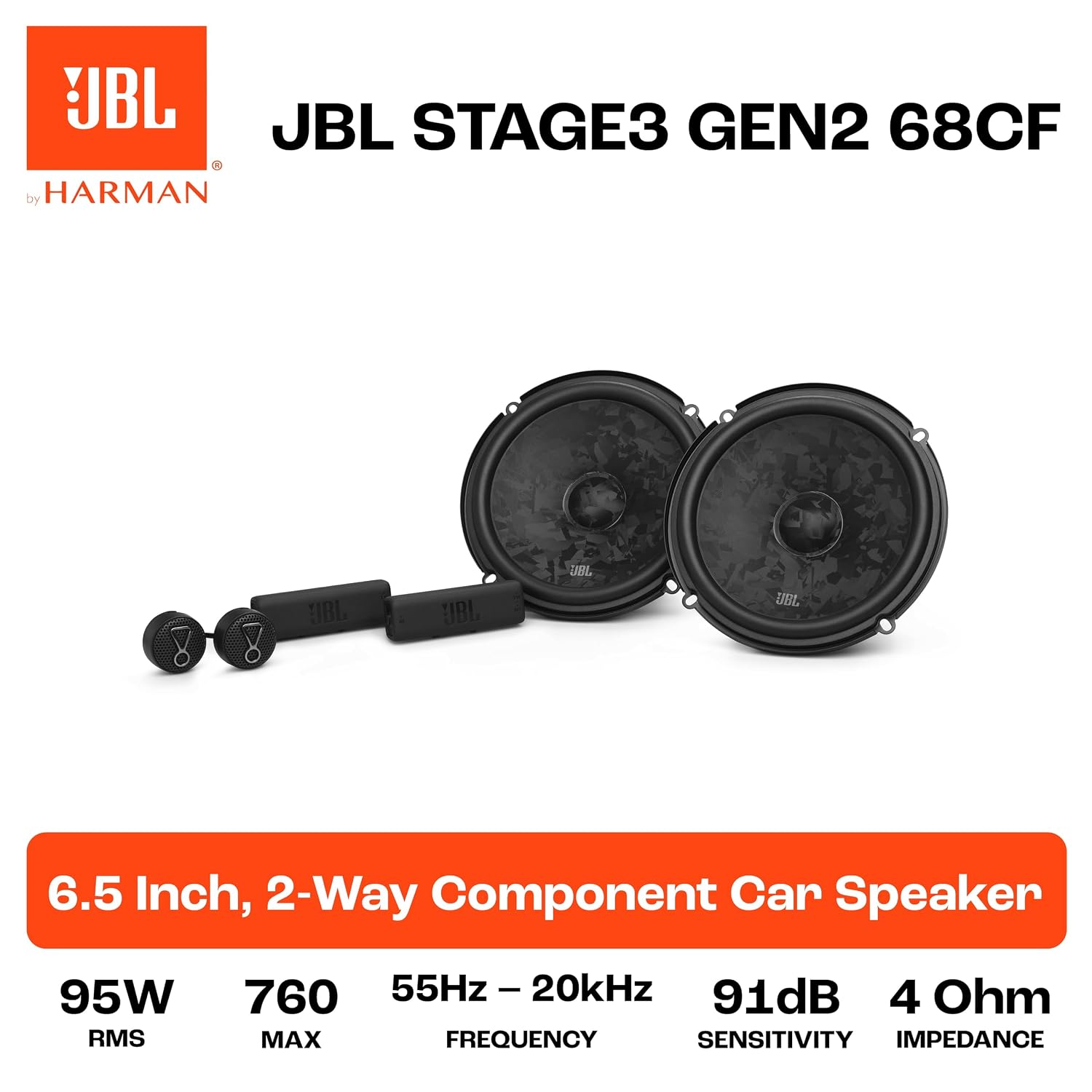

Figure 9: The JBL Stage3 Gen2 68CF speaker with key specifications such as RMS power, maximum power, frequency response, sensitivity, and impedance clearly displayed.

8. Warranty and Support

8.1 Warranty Information

JBL products are designed for durability and performance. This product typically comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included in your product packaging or visit the official JBL website. The EU Spare Part Availability Duration is 2 years.

8.2 Customer Support

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact JBL customer support. You can find contact information on the official JBL website or through your authorized dealer.
