ENGWE M20 3.0 Electric Bike User Manual

Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your ENGWE M20 3.0 Electric Bike. Please read this manual thoroughly before your first ride and keep it for future reference. Understanding your e-bike's features and functions will ensure a safe and enjoyable riding experience.

The ENGWE M20 3.0 is a high-performance, moped-style electric bike designed for adults, featuring a powerful 60V system and a 3300W peak motor. It is equipped with a 60V 20Ah single battery, dual suspension, and 4-piston hydraulic brakes for superior control and comfort across various terrains.

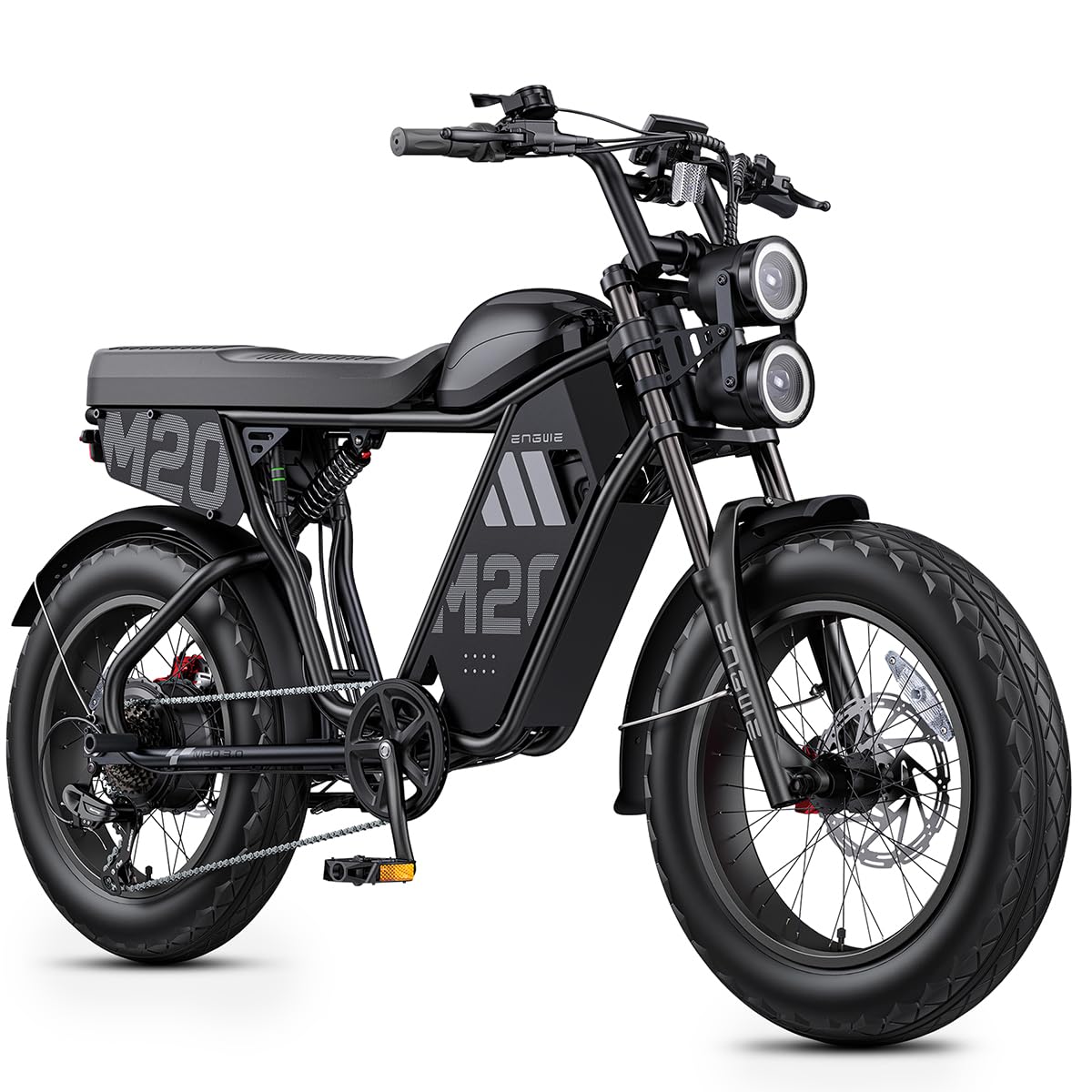

Image: The ENGWE M20 3.0 Electric Bike, showcasing its robust design and fat tires.

1. Setup and Initial Assembly

1.1 Unpacking and Included Components

Carefully remove all components from the packaging. Verify that all parts are present:

• M20 3.0 E-bike *1
• 60V 20Ah Lithium-Ion Battery *1
• 8A Fast Battery Charger *1
• Assembly Tools *1
• User Manual (this document)

1.2 Basic Assembly

Your ENGWE M20 3.0 E-bike comes partially assembled. Follow the detailed instructions in the separate assembly guide provided in the box. Key steps typically include:

• Attaching the front wheel.
• Installing the handlebars.
• Mounting the pedals.
• Connecting any loose cables (ensure waterproof sleeves are properly seated).
• Adjusting the seat height for comfortable riding.

Always ensure all bolts and quick releases are securely tightened before riding.

1.3 Battery Installation and Initial Charging

Install the 60V 20Ah Lithium-Ion battery into its designated compartment on the bike. Ensure it clicks securely into place. For the first use, fully charge the battery. The included 8A Fast Charger can achieve an 80% charge in approximately 2 hours. Connect the charger to the bike's charging port, then plug it into a standard wall outlet. The charger indicator light will change when charging is complete.

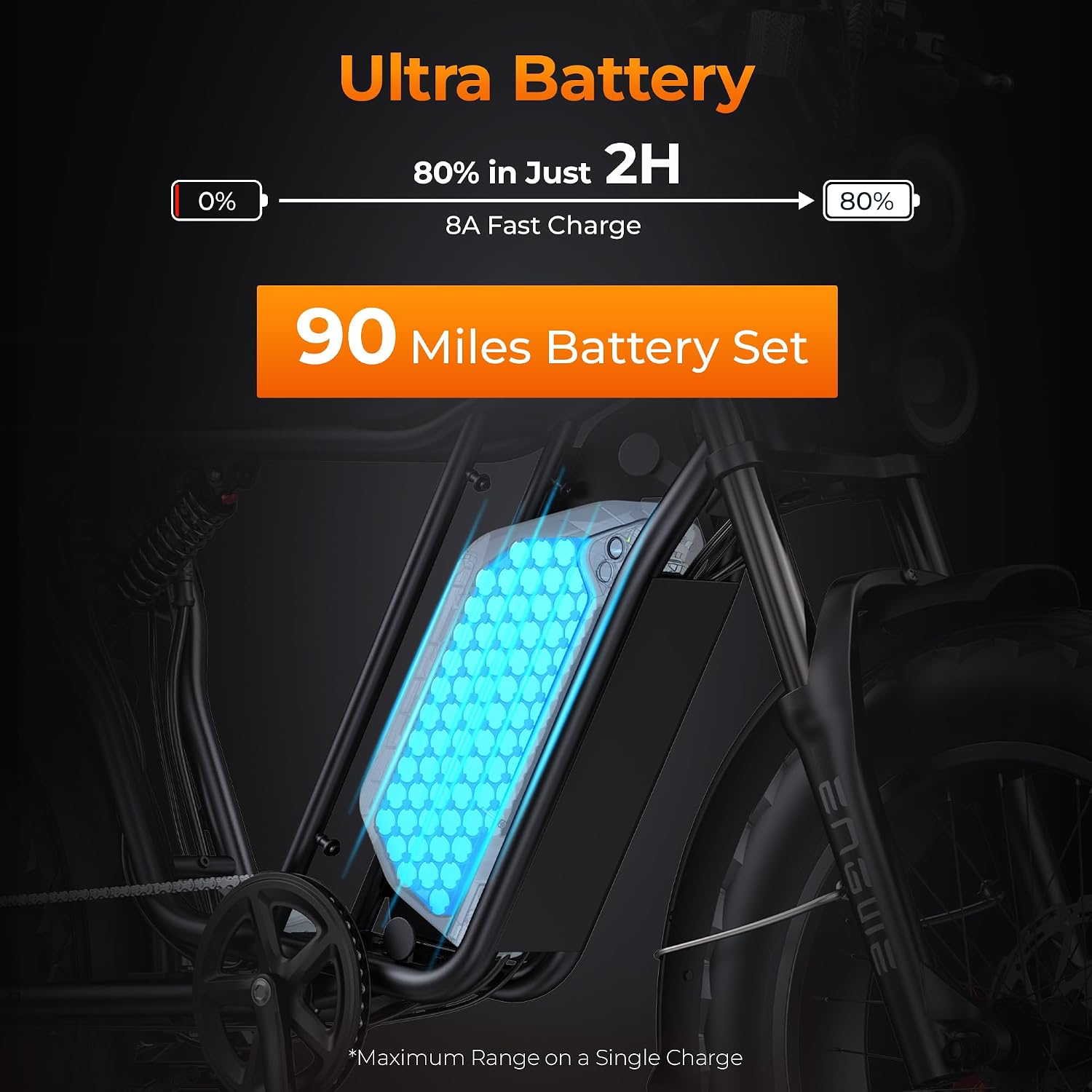

Image: Illustration of the ENGWE M20 3.0's battery compartment, highlighting the 60V 20Ah battery.

2. Operating Instructions

2.1 Power On/Off and Display Functions

To power on your e-bike, press and hold the power button on the handlebar-mounted display. The 3.5-inch HD color TFT display will illuminate, showing real-time telemetry such as speed, battery level, and pedal-assist mode. To power off, press and hold the power button again.

Image: The ENGWE M20 3.0's 3.5-inch HD color TFT display, showing speed and other riding data.

2.2 Riding Modes

The ENGWE M20 3.0 offers multiple riding modes:

• Pedal Assist Mode: The motor provides assistance as you pedal. You can adjust the level of assistance using the controls on the handlebar. This mode offers a range of up to 90 miles on a single charge.
• Throttle Only Mode: Engage the throttle for motor power without pedaling. This mode provides a range of up to 40 miles on a single charge.
• Manual Mode: Ride the bike like a traditional bicycle without motor assistance.

2.3 Cruise Control Setting

The ENGWE M20 3.0 features a smart cruise control function for effortless riding on open roads. Refer to the video below for instructions on how to activate and use this feature.

2.4 Braking System

Your e-bike is equipped with professional 4-piston hydraulic disc brakes for superior stopping power and control. Always apply both front and rear brakes smoothly and simultaneously for effective braking. Avoid sudden, hard braking, especially at high speeds or on loose surfaces.

Image: Close-up view of the ENGWE M20 3.0's 4-piston hydraulic disc brakes, emphasizing their robust design.

2.5 Suspension System

The M20 3.0 features a full suspension system, including a dual-crown front hydraulic fork and a direct-linkage rear shock. This system is designed to absorb impacts and provide a smooth ride over varied terrain. Ensure the suspension is properly adjusted for your weight and riding style.

Image: The ENGWE M20 3.0 navigating rough terrain, demonstrating the effectiveness of its dual suspension for stability.

2.6 Integrated Storage

The e-bike includes a unique built-in storage box in the 'tank' area, providing a secure and weatherproof space for small items like your lock, phone, or tools. The extended dual-person seat also allows for comfortable riding with a passenger, utilizing the pillion footpegs.

Image: The ENGWE M20 3.0's front tank bag, illustrating its 2.4L capacity for storing essentials.

3. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your ENGWE M20 3.0 Electric Bike.

3.1 Routine Checks

• Tires: Check tire pressure before each ride. The 20" x 4.0" fat tires require specific pressure for optimal performance and safety. Refer to the tire sidewall for recommended PSI.
• Brakes: Inspect brake levers, cables, and pads regularly. Ensure brakes engage smoothly and effectively. Replace worn brake pads promptly.
• Chain: Keep the chain clean and lubricated to ensure smooth gear changes and prevent wear.
• Fasteners: Periodically check all bolts, nuts, and quick releases for tightness.
• Lights: Verify that the front and rear lights, including turn signals and brake lights, are functioning correctly.

3.2 Battery Care

• Charge the battery regularly, even if not in use, to maintain its health.
• Avoid fully discharging the battery frequently.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• Use only the official ENGWE 8A Fast Charger provided with your e-bike.

3.3 Cleaning

Clean your e-bike with a damp cloth and mild soap. Avoid using high-pressure washers directly on electrical components or bearings.

4. Troubleshooting

This section addresses common issues you might encounter with your ENGWE M20 3.0 Electric Bike. For more complex problems, please contact customer support.

4.1 Power Issues

• Bike does not power on: Ensure the battery is fully charged and correctly installed. Check all electrical connections for looseness.
• Motor not assisting: Verify that the pedal-assist level is set above zero. Check if the throttle is engaged. Ensure brake levers are not partially depressed, as this can cut motor power.

4.2 Braking Issues

• Brakes feel spongy: This may indicate air in the hydraulic system or worn brake pads. Consult a professional bike mechanic for hydraulic brake bleeding or pad replacement.
• Brakes squeal: Clean brake rotors and pads. If the issue persists, brake pads may need replacement or professional adjustment.

4.3 Display Errors

If the display shows an error code, refer to the specific error code section in the comprehensive user manual (if provided separately) or contact customer support with the error code for assistance.

5. Technical Specifications

Image: Detailed dimensions and sizing chart for the ENGWE M20 3.0 Electric Bike, including handlebar height, total length, seat height, wheelbase, and standover height.

6. Warranty Information

The ENGWE M20 3.0 Electric Bike comes with a 1-year comprehensive warranty. This warranty covers manufacturing defects and component failures under normal use. Please retain your proof of purchase for warranty claims.

The M20 3.0 is TÜV and UL certified, meeting high international safety standards for high-performance e-bikes.

7. Customer Support

For any questions, technical assistance, or warranty claims, please contact ENGWE customer support. We offer lifetime technical support, and our team aims to respond to all inquiries within 24 hours to resolve any battery or component concerns.

You can find more information and contact details on the official ENGWE website or through the ENGWE Store on Amazon.
