Helidirect Yu Xiang F11H AH-64 RC Helicopter User Manual

1. Introduction

This manual provides instructions for the safe operation, setup, and maintenance of your Yu Xiang F11H AH-64 1:32 Scale Electric RC Helicopter. This model features advanced flight systems including GPS and LiDAR, dual brushless power, and an 8-channel remote controller. Please read this manual thoroughly before operating the helicopter to ensure safe and correct usage.

2. Safety Information

• The product is intended for users aged 15 years or older.
• Always operate in open, clear areas away from people, animals, and obstacles.
• Ensure the battery is fully charged and securely installed before each flight.
• Inspect rotor blades for damage before each flight. Replace any damaged blades immediately.
• Never touch moving parts during operation. Keep hands and face clear of propellers.
• Do not operate in strong winds or adverse weather conditions.
• Always turn on the transmitter first, then the helicopter. Turn off the helicopter first, then the transmitter.
• Maintain a safe distance from the helicopter during take-off and landing.

3. Package Contents

Verify that all items listed below are included in your package:

• 1 x F11H RC Helicopter
• 1 x Transmitter
• 1 x Battery 11.1V (1800MAH) 30C
• 1 x Tail Blade
• 4 x Main Blades
• 1 x User Manual (this document)
• 1 x Screwdriver
• 1 x Special Charger

4. Product Features

• 1:32 Scale AH-64 Apache Model: Highly detailed replica featuring authentic desert yellow paint, weapon racks, rocket launchers, missiles, Gatling gun, and LED lighting. Shock-absorbing landing gear enhances durability and realism.
• Flybarless Dual Brushless Power: Advanced rotor system with a powerful 4306 540KV main motor and 1204 5500KV tail motor. Aerodynamic nylon carbon-fiber blades provide efficient lift, reduced noise, and stable flight control.
• GPS + LiDAR Intelligent Flight System: Equipped with GPS positioning, laser radar (LiDAR), optical flow, electronic compass, and barometric altitude hold for precise hovering and stability. Smart features include one-key return, low battery return, fail-safe return, and electronic fence.
• 8-Channel 2.4GHz Transmitter: Professional RC controller with HD display provides real-time feedback including flight data and GPS status. Offers up to 350m control distance with precise handling.
• Long Flight Time with Modular LiPo Battery: High-performance 11.1V 1800mAh 30C modular LiPo battery delivers 10–12 minutes flight time with overcharge and low-voltage protection.
• Durable Construction: Features a CNC rotor head and swashplate optimized for reduced weight and damage risk. The fuselage uses impact-resistant hot runner injection molding.
• Dedicated Charging Dock: Includes a high-precision balance charger for efficient and safe battery charging.

5. Setup

5.1 Battery Charging

Connect the 11.1V 1800mAh LiPo battery to the dedicated balance charger. Plug the charger into a suitable power source. The charging time is approximately 90 minutes. Do not overcharge the battery, and always monitor it during charging.

5.2 Transmitter Preparation

Install the required batteries (not included, typically AA) into the 8-channel 2.4GHz transmitter. Ensure the batteries are inserted with correct polarity.

5.3 Helicopter Inspection

Before the first flight, carefully inspect all parts of the helicopter for any signs of damage. Ensure all rotor blades are securely attached and check for any loose connections or components.

5.4 Binding (Pairing)

If the helicopter and transmitter are not pre-bound, refer to the specific binding procedure detailed in the included quick start guide. Typically, this involves powering on the transmitter, then the helicopter, and pressing a designated bind button on either device within a short timeframe.

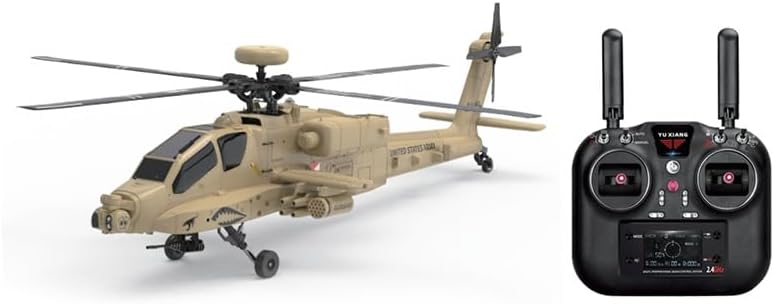

This image displays the Yu Xiang F11H AH-64 RC Helicopter alongside its dedicated 8-channel 2.4GHz remote controller, highlighting the product's main components.

6. Operating Instructions

6.1 Pre-Flight Check

• Ensure both the helicopter and transmitter batteries are fully charged.
• Verify that the flight area is clear of people, animals, and obstacles.
• Check weather conditions; avoid flying in strong winds or rain.

6.2 Power On Sequence

1. Turn on the transmitter.
2. Connect the helicopter battery. Place the helicopter on a flat, level surface.
3. Wait for the helicopter to initialize and acquire GPS lock (indicated by LED status lights).

6.3 Basic Controls (Mode 2)

• Left Stick Up/Down (Throttle): Controls the helicopter's altitude.
• Left Stick Left/Right (Yaw): Rotates the helicopter horizontally (left or right).
• Right Stick Up/Down (Elevator): Controls forward and backward movement.
• Right Stick Left/Right (Aileron): Controls left and right sideways movement.

6.4 Intelligent Flight Modes

• Altitude Hold: The helicopter automatically maintains a stable altitude using its barometric sensor.
• GPS Positioning: Utilizes GPS to provide precise hovering and position holding, even in light winds.
• One-Key Return: Initiates an automatic return to the take-off point. Ensure sufficient battery power before using this function.
• Electronic Fence: Sets a virtual boundary to prevent the helicopter from flying outside a user-defined safe area.

6.5 Take-off and Landing

• Take-off: Gently and smoothly increase the throttle until the helicopter lifts off the ground. Maintain a stable hover before proceeding with forward flight.
• Landing: Slowly decrease the throttle while maintaining control, allowing the helicopter to gently descend and touch down. Once landed, fully reduce throttle.

6.6 Power Off Sequence

1. Disconnect the helicopter battery.
2. Turn off the transmitter.

A side view of the Yu Xiang F11H AH-64 RC Helicopter, showcasing its detailed fuselage, tail rotor, and landing gear.

This image provides a three-quarter front view of the Yu Xiang F11H AH-64 RC Helicopter, emphasizing its main rotor, cockpit details, and weapon racks.

7. Maintenance

7.1 Battery Care

• Charge the battery fully before storage if not used for extended periods.
• Store batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
• Do not expose batteries to moisture or puncture them.
• Replace batteries if they show signs of damage, swelling, or reduced performance.

7.2 Rotor Blades

Regularly inspect all rotor blades (main and tail) for cracks, chips, bends, or any other damage. Damaged blades can affect flight stability and safety. Replace damaged blades immediately with genuine spare parts.

7.3 Cleaning

Use a soft, dry cloth to clean the helicopter body and components. Avoid using water, solvents, or harsh chemicals, as these can damage electronic components or paintwork.

7.4 Motor Inspection

Periodically check the main and tail motors for any debris, dust, or obstructions that could impede their operation. Ensure they spin freely.

7.5 Fasteners

Periodically check all screws and fasteners on the helicopter for tightness. Vibrations during flight can sometimes loosen components.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For warranty information regarding your Yu Xiang F11H AH-64 RC Helicopter, please refer to the documentation provided at the point of purchase or contact the retailer/manufacturer directly. Warranty terms and conditions may vary.

For technical support, spare parts, or further assistance, please contact your authorized dealer or the manufacturer, Yu Xiang. Keep your purchase receipt and model number (YX-F11H) handy when seeking support.
