1. Introduction
Thank you for choosing the Generic L2 Electric Scooter. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your scooter. The L2 is designed for urban commuting, offering a blend of portability, performance, and safety features. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
Image 1.1: The L2 Electric Scooter, showcasing its sleek design and suitability for urban environments.
2. Safety Information
Riding an electric scooter carries inherent risks. To minimize these risks, always follow these safety guidelines:
- Always wear a helmet and other protective gear (knee pads, elbow pads) when riding.
- Familiarize yourself with local laws and regulations regarding electric scooter use.
- The scooter is designed for riders aged 16 and above.
- Do not exceed the maximum weight limit of 120 kg (264 lbs).
- Avoid riding in heavy rain or through deep puddles, despite the IP54 water-resistance rating.
- Maintain a safe distance from other vehicles and pedestrians.
- Perform a pre-ride check: ensure brakes are functional, tires are properly inflated, and all parts are secure.
The L2 features an ultra-bright 1.1W headlight with a 6-meter range and a red rear light that flashes during braking to enhance visibility. The dual-braking system, including a front E-ABS anti-lock system and a rear mechanical disc brake, provides responsive stopping power. An Intelligent Battery Management System (BMS) offers protection against short-circuit and over-current.

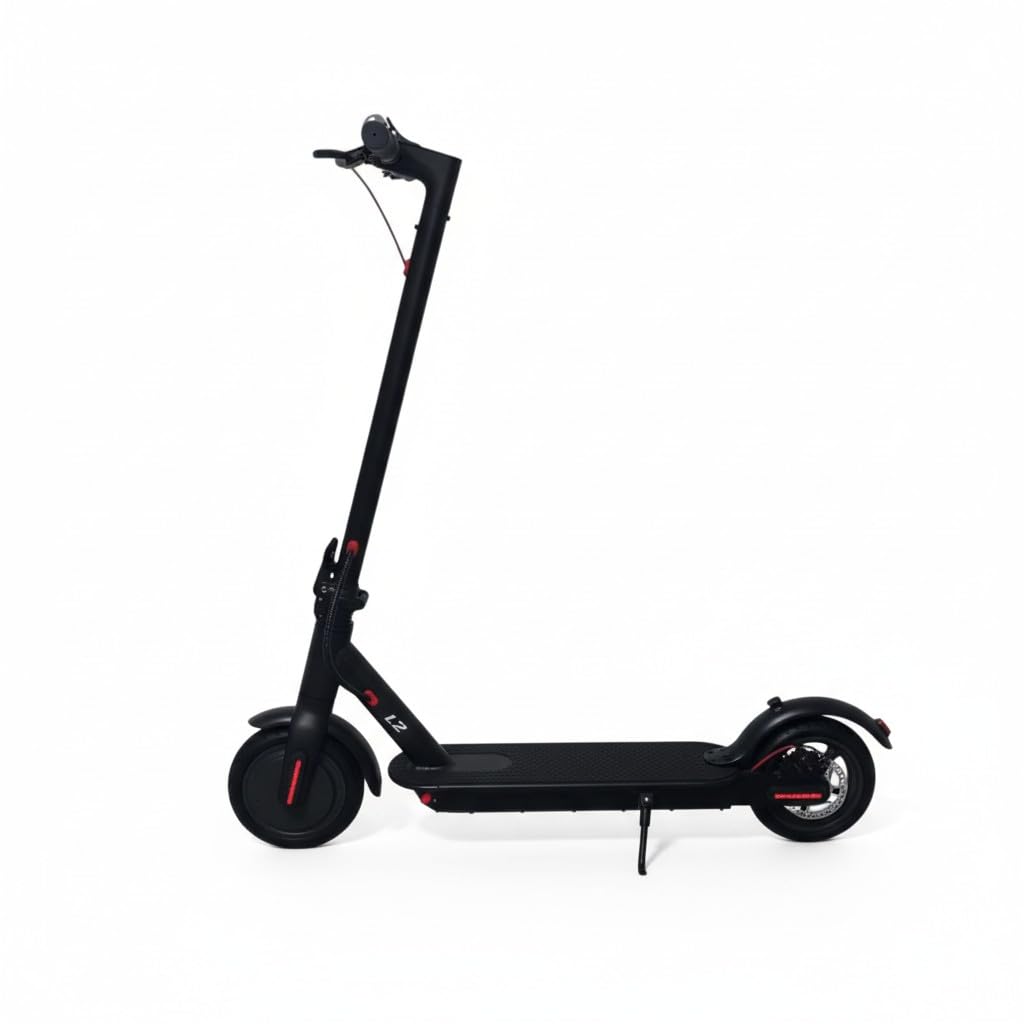

Image 2.1: The L2 Electric Scooter demonstrating its IP54 water resistance, suitable for light rain conditions.
Image 2.2: Detail of the L2's rear disc brake system and high-brightness taillight, highlighting safety features.
3. Product Overview
The L2 Electric Scooter is constructed from aerospace-grade aluminum, ensuring durability while maintaining a lightweight design. Key components include:
Image 3.1: Labeled diagram showing the main components of the L2 Electric Scooter, including the brake handle, headlight, folding mechanism, charging port, and hex wrench location.
- Handlebar: Features ergonomic rubber grips and an adjustable height.
- Brake Handle: Controls the dual braking system.
- Headlight: 1.1W ultra-bright LED for night visibility.
- Folding Mechanism: Allows for quick 3-second folding for portability.
- Charging Port: Located on the frame for convenient battery charging.
- Deck: Provides a stable platform for the rider.
- Wheels: 8.5-inch pneumatic tires for shock absorption and a comfortable ride.
- Rear Brake: Mechanical disc brake for effective stopping.
4. Setup
4.1 Unfolding the Scooter
- Place the scooter on a flat surface.
- Release the folding mechanism latch.
- Lift the handlebar stem until it locks securely into place. Ensure the locking pin is fully engaged.
- Adjust the handlebar height to your preference and secure it.
4.2 Initial Charging
Before your first ride, fully charge the scooter's battery.
- Locate the charging port on the scooter frame.
- Connect the charger to the charging port, then plug the charger into a power outlet.
- The charging indicator light on the charger will typically turn red during charging and green when fully charged.
- A full charge takes approximately 6.5 hours. Do not overcharge.
5. Operating Instructions
5.1 Powering On/Off
- To power on: Press and hold the power button on the handlebar until the display illuminates.
- To power off: Press and hold the power button until the display turns off.
5.2 Riding the Scooter
- Place one foot on the scooter deck and push off with the other foot to gain initial momentum.
- Once moving, gently press the accelerator lever to engage the motor.
- To brake, release the accelerator and gently squeeze the brake handle. The scooter features a dual-braking system for effective stopping.
- The L2 can reach a top speed of 15.5 mph (25 km/h) and has a range of approximately 12 miles (20 km) on a full charge.
Image 5.1: A rider demonstrating proper posture and use of the L2 Electric Scooter on a clear path.
5.3 Folding for Portability
- Ensure the scooter is powered off.
- Locate and disengage the folding mechanism latch.
- Carefully fold the handlebar stem downwards until it clicks into its folded position.
- The scooter weighs 26 lbs (12 kg) and is designed for easy carrying and storage.
5.4 App Control
Connect your L2 Electric Scooter to your smartphone via Bluetooth to access additional features:
- View real-time riding statistics (speed, distance).
- Monitor battery status.
- Customize settings such as Cruise Control activation.
- Adjust Kinetic Energy Recovery System (KERS) intensity to maximize battery efficiency during braking.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your L2 Electric Scooter.
- Battery Care: Charge the battery regularly, even if not in use, to maintain its health. Store the scooter in a cool, dry place.
- Tire Pressure: Check the pressure of the 8.5-inch pneumatic tires periodically. Proper inflation improves ride quality and range.
- Brake Inspection: Regularly inspect the front E-ABS and rear mechanical disc brakes for wear and proper function. Adjust if necessary.
- Cleaning: Wipe down the scooter with a damp cloth. Avoid using high-pressure water jets directly on electronic components.
- General Check: Periodically check all screws, bolts, and the folding mechanism for tightness and security.
7. Troubleshooting
If you encounter issues with your L2 Electric Scooter, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Low battery; loose battery connection; power button malfunction. | Charge the battery fully. Check battery connections. If problem persists, contact support. |
| Reduced range or speed. | Low tire pressure; heavy load; riding uphill frequently; cold weather; battery degradation. | Check and inflate tires. Reduce load. Ride on flatter terrain. Ensure battery is fully charged. |
| Brakes feel weak or unresponsive. | Brake pads worn; brake cable loose; disc brake misalignment. | Inspect brake pads and cables. Adjust brake tension. If unsure, seek professional assistance. |
| Unusual noises during operation. | Loose components; foreign object in wheel; motor issue. | Inspect all visible parts for looseness. Check wheels for obstructions. If motor noise, contact support. |
For issues not listed here, or if solutions do not resolve the problem, please contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | L2 Electric Scooter for Adults & Teens |
| Motor Power | 250W Brushless Motor |
| Max Speed | 15.5 MPH (25 km/h) |
| Max Range | 12 Miles (20 km) |
| Battery Type | 18650 Lithium-ion |
| Battery Charge Time | 6.5 hours |
| Tires | 8.5-inch Pneumatic Tires |
| Braking System | Front E-ABS Anti-lock, Rear Mechanical Disc Brake |
| Frame Material | Aerospace-grade Aluminum (Powder-coated Steel) |
| Item Weight | 26 lbs (12 kg) |
| Max Weight Limit | 120 kg (264 lbs) |
| Dimensions (L x W x H) | 108L x 43W x 114H cm |
| Water Resistance | IP54 |
| Special Features | Foldable Design, App Control, KERS (Kinetic Energy Recovery System) |
9. Warranty and Support
9.1 Warranty Information
The Generic L2 Electric Scooter comes with a Limited Manufacturer Warranty for a period of 2 Months from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
9.2 Customer Support
For technical assistance, warranty claims, or any questions regarding your L2 Electric Scooter, please contact the retailer where you purchased the product. They will be able to provide guidance or direct you to the appropriate service channels.
