1. Safety Information
Before operating your FREESKY Swift Horse Pro X-6E electric bike, please read this manual thoroughly. Adhere to all local traffic laws and regulations. Always wear a helmet and appropriate safety gear. Perform a pre-ride inspection before each use.
UL Certifications
The FREESKY Swift Horse Pro X-6E electric bike and its battery are dual-certified for safety:
- UL 2849 Certified (Certificate No. U14 128702 0006) for the electric bike system.
- UL 2271 Certified (Certificate No. U10 128702 0001) for the Samsung cells battery.
Image: BAFANG motor with UL 2849 certification, indicating safety compliance for the electric bike system.
Image: 48V 30Ah Samsung cell battery with UL 2271 certification, ensuring battery safety and reliability.
2. Product Overview
The FREESKY Swift Horse Pro X-6E is a full-suspension electric fat tire bike designed for versatile riding. It features a powerful BAFANG motor, a long-range Samsung cell battery, and robust components for various terrains and conditions.

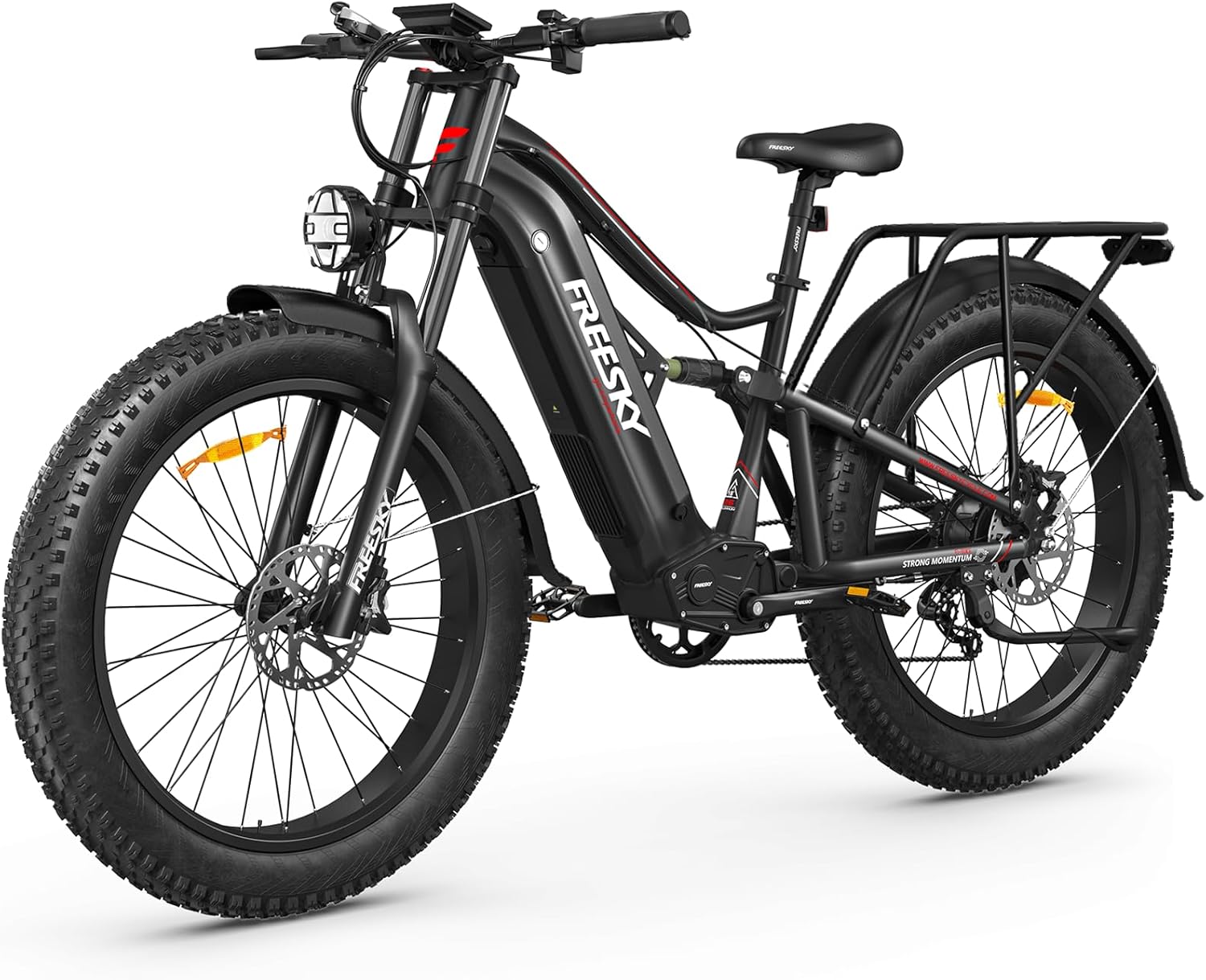

Image: The FREESKY Swift Horse Pro X-6E electric bike, showcasing its full-suspension design and fat tires.
Video: An overview of the FREESKY Swift Horse Pro Electric Mountain Bike, highlighting its features and capabilities in various outdoor settings.
3. Setup and Assembly
Your FREESKY Swift Horse Pro X-6E arrives approximately 85% pre-assembled. The remaining assembly typically takes 15-30 minutes. Please refer to the included manual for detailed step-by-step instructions.
Included Components:
- Electric Bike (partially assembled)
- Charger
- Tool Kit
- User Manual
Image: A visual representation of the main components and tools included for the quick assembly of the electric bike.
4. Operating Instructions
Power System
The Swift Horse Pro is equipped with a 1000W BAFANG motor (peak 3500W) providing 140Nm of torque, capable of conquering 40° slopes. The removable 48V 30Ah Samsung cell battery offers a range of 75-120 miles in pedal-assist mode and charges in 6-8 hours.
Image: Detailed view of the 3500W BAFANG motor, highlighting its power, torque, and climbing ability.
Image: Visual of the 48V 30Ah Samsung battery, emphasizing its capacity and extended range capabilities.
Riding Modes
The bike offers 5 riding modes to suit various preferences and terrains:
- Electric Mode: Full throttle, no pedaling required.
- Pedal-Assist Mode: Motor assists your pedaling effort (5 levels).
- Cruise Mode: Maintains a set speed without continuous throttle or pedaling.
- Manual Mode: Ride like a traditional bicycle without motor assistance.
- Walk Mode: Provides low-speed assistance for walking the bike.
Image: Illustration of the 26"x4" fat tires and the five riding modes, demonstrating versatility across mountain, city, and snow roads.
HD Colorful Display & Smart Key System
The high-definition colorful display provides clear visibility even in direct sunlight. It shows speed, battery status, PAS level, and error codes. The bike can be activated by swiping the Smart Key Card or entering a password. A Type-C charging port is available for mobile devices.
Image: The intelligent colorful display and smart key system, showing touch-to-ride functionality and a Type-C charging port.
Video: Demonstrates the smart key card system and other hidden features of the Swift Horse Pro, enhancing convenience and security.
Gearing
The bike is equipped with a Shimano 7-speed gearing system, allowing for smooth transitions and efficient riding across varied inclines and speeds.
Image: Close-up of the Shimano 7-speed gearing, illustrating its function for different riding conditions.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your electric bike. Always turn off the bike and remove the battery before performing any maintenance.
Brakes
The bike features dual 180mm hydraulic disc brakes with 4-piston calipers for reliable stopping power. Regularly check brake pads for wear and ensure brake levers operate smoothly.
Image: Close-up of the dual 180mm hydraulic disc brakes, highlighting the 4-piston calipers for enhanced braking performance.
Suspension
The full suspension system includes a lockable hydraulic double crown fork and a rear shock absorber. Keep suspension components clean and check for proper function. Adjust settings as needed for your riding style and terrain.
Image: Illustration of the front double crown hydraulic fork and rear air shock absorber, providing unmatched comfort and stability.
Tires
The 26"x4" CST fat tires provide excellent grip and comfort. Regularly check tire pressure and inspect for wear or damage.
Lights
The bike is equipped with an 800-lumen headlight, turn signals, and brake lights for enhanced visibility and safety, especially during night rides. Ensure all lights are functioning correctly before riding.
Image: Features for safe night riding, including the integrated 800-lumen headlight, turn signals, and brake lights.
6. Troubleshooting
If you encounter issues with your electric bike, consider the following general troubleshooting steps:
- No Power: Check if the battery is fully charged and properly seated. Ensure the smart key system has activated the bike.
- Motor Not Assisting: Verify the pedal-assist level on the display. Check for any error codes displayed.
- Brake Issues: Inspect brake pads for wear. Ensure brake cables/hoses are not damaged or loose.
- Unusual Noises: Stop riding immediately and inspect the bike for loose components, chain issues, or tire problems.
For persistent issues, please refer to the detailed troubleshooting section in your included user manual or contact FREESKY customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Model Name | Swift Horse Pro |
| Model Number | X-6E |
| Brand | FREESKY |
| Bike Type | Electric Bike |
| Motor | 1000W BAFANG (Peak 3500W) |
| Battery | 48V 30Ah Samsung Cells |
| Max Range | Up to 120 Miles (Pedal-Assist) |
| Max Speed | 38+ MPH (Pedal-Assist) / 20 MPH (Throttle-Only) |
| Wheel Size | 26 Inches |
| Tires | 26"x4" CST Fat Tires |
| Frame Material | 6061 Aluminum Alloy |
| Suspension Type | Dual (Double Crown Fork & Rear Shock) |
| Brake Style | Hydraulic Disc (4-Piston) |
| Number of Speeds | 7 (Shimano) |
| Max Load Capacity | 300 lbs |
| Recommended Height | 5'3" to 6'8" |
| Weight | 80 lbs |
Image: Detailed size chart and dimensions of the Swift Horse Pro, including recommended rider height and load capacity.
Image: A comprehensive table outlining the key specifications and measurements of the electric bike.
8. Warranty and Support
Warranty Information
FREESKY provides a professional warranty for every electric bike:
- 24-month warranty: Motor, Battery, and Controller.
- 12-month warranty: Other parts.
Image: UL2849 certification document for the FREESKY Swift Horse Pro (Model X-6E), confirming product safety standards.
Customer Support
For any questions or support, please contact FREESKY customer service:
- Text/Video Support: 1-877-779-0747
- Email Support: support@freeskycycle.com
- Operating Hours: Monday to Friday, EST 9:00 AM - 6:00 PM
- Facebook: Join our Facebook community
Image: Customer support details including phone, email, and a QR code to join the Facebook community.
