Introduction
Thank you for choosing the Garvee Outdoor Porch Swing. This manual provides essential information for the safe assembly, operation, and maintenance of your new porch swing. Please read all instructions carefully before assembly and use to ensure proper function and longevity of the product.
Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Ensure all parts are securely fastened before use. Regularly check all bolts and connections for tightness.
- Do not exceed the maximum weight capacity of 400 lbs (181 kg). This swing is designed for 2 persons.
- Keep children and pets away from the swing during assembly and ensure they are supervised when using the swing.
- Place the swing on a level, stable surface to prevent tipping.
- Do not stand on the swing or use it for purposes other than its intended use.
- In strong winds or severe weather conditions, remove the canopy and secure the swing to prevent damage or injury.
- Avoid prolonged exposure to harsh weather conditions to extend the product's lifespan.
Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.
- Main Frame Components (Legs, Crossbars, Top Bar)
- Swing Seat Frame
- Canopy Frame and Fabric
- Seat Cushions
- Hanging Chains/Springs
- Hardware Pack (Bolts, Nuts, Washers, Wrenches)
- Instruction Manual
Setup and Assembly
Assembly typically requires two adults and approximately 2-4 hours. An additional wrench or drill may be helpful. Ensure you have ample space to work.
- Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out and compare them against the parts list in your manual to ensure everything is accounted for. Note that there are no spare screws/nuts, so keep track of all hardware.
- Assemble the Main Frame: Begin by connecting the leg sections and crossbars to form the base and upright supports. Ensure all connections are finger-tightened initially.
- Attach the Top Bar: Secure the top bar to the upright supports. This step may require careful alignment and support from a second person.
- Assemble the Swing Seat: Construct the swing seat frame according to the diagrams.
- Hang the Swing Seat: Attach the swing seat to the main frame using the provided chains and heavy-duty spring suspension system. Ensure the springs are correctly installed for smooth motion.
- Install the Canopy Frame: Assemble the canopy frame and attach it to the top bar of the main frame.
- Attach the Canopy Fabric: Drape and secure the canopy fabric over the canopy frame.
- Final Tightening: Once all components are in place, systematically tighten all bolts and nuts using the provided tools. Do not overtighten, but ensure all connections are firm and secure.
- Place Cushions: Position the seat cushions on the swing seat.
Image: Fully assembled Garvee Outdoor Porch Swing with adjustable canopy.
Video: Garvee Direct provides an overview of the porch swing, demonstrating its features and general appearance. This video is from the seller and offers a visual guide to the product.
Operating Instructions
Using the Swing
Once assembled and placed on a stable surface, the porch swing is ready for use. Sit gently on the cushions and enjoy the smooth, controlled swinging motion provided by the heavy-duty spring suspension system.

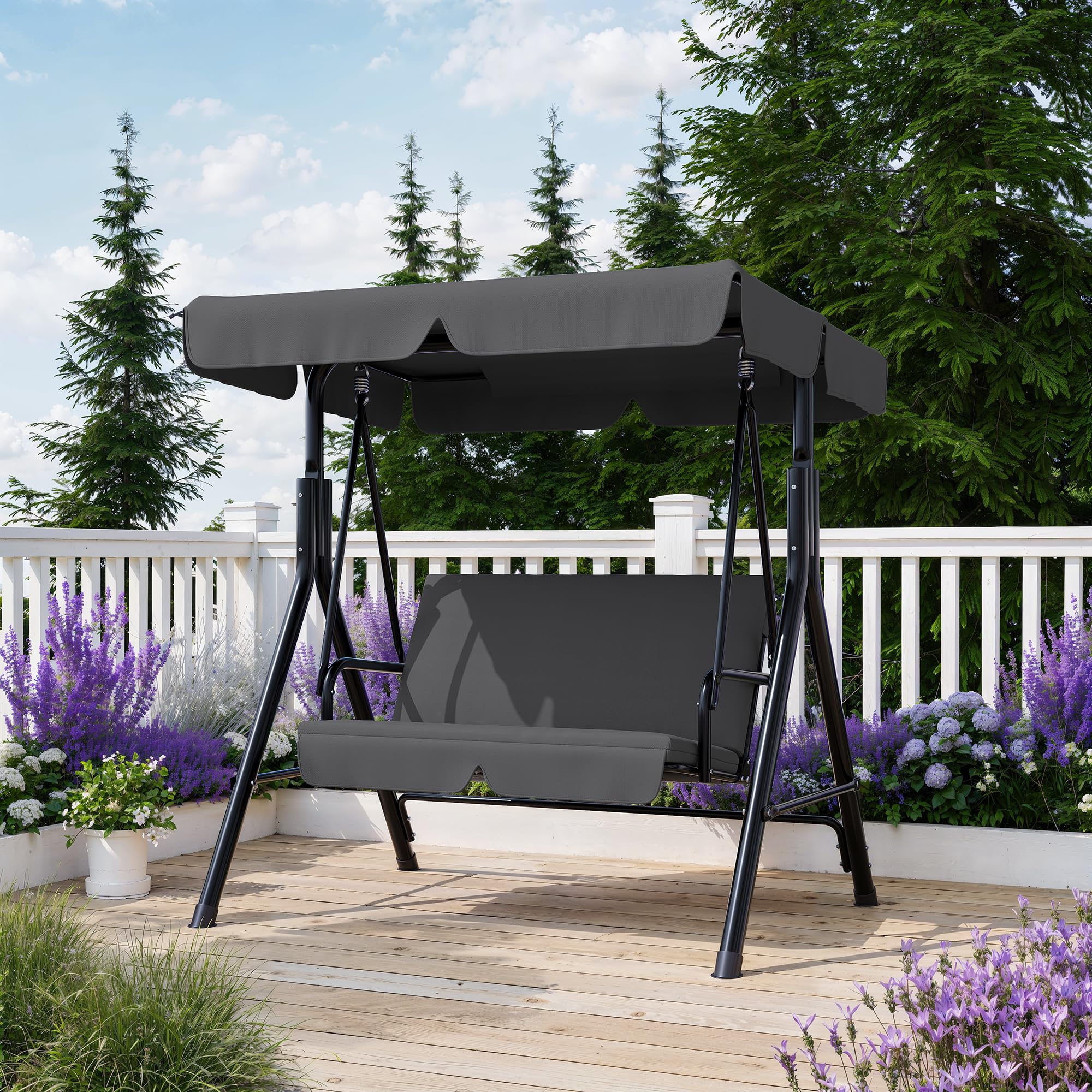

Image: The Garvee porch swing positioned on a wooden deck, surrounded by potted plants and flowers, showcasing its aesthetic appeal in an outdoor environment.
Adjusting the Canopy
The swing features an adjustable canopy to provide optimal shade throughout the day. Locate the smooth knob adjustment system on the sides of the canopy frame. Loosen the knobs, adjust the canopy to your desired angle (up to 40 degrees), and then tighten the knobs to secure it in place. This allows you to block sunlight effectively as the sun's position changes.
Image: A detailed view of the stepless adjustable canopy, highlighting the knob and mechanism used to change the canopy's angle for sun protection.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your Garvee porch swing.
- Cleaning: The upgraded polyester fabric of the seat and canopy is water- and UV-resistant. Clean with a mild soap solution and a soft cloth. Rinse thoroughly with clean water and allow to air dry completely. Do not use harsh chemicals or abrasive cleaners.
- Frame Care: The powder-coated metal frame is rust-resistant. Wipe down with a damp cloth as needed. For stubborn dirt, use a mild soap solution.
- Weather Protection: While designed for outdoor use, it is recommended not to leave the swing exposed to harsh weather conditions (heavy rain, snow, strong winds) for extended periods. Consider using a protective cover or storing the cushions indoors during inclement weather or off-season.
- Hardware Check: Periodically inspect all bolts, nuts, and connections to ensure they remain tight. Tighten as necessary to maintain stability and safety.
Image: A close-up demonstrating the superior fabric's properties, including breathability, wind-resistance, water-resistance, and UV-resistance, indicated by water droplets and arrows.
Troubleshooting
If you encounter any issues with your Garvee porch swing, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Swing feels unstable or wobbly. | Loose hardware; uneven ground. | Check and tighten all bolts and nuts. Ensure the swing is placed on a flat, level surface. |
| Squeaking noise during swinging. | Friction in hanging chains or springs. | Apply a small amount of silicone-based lubricant to the spring connections and chain links. |
| Canopy does not stay in position. | Adjustment knobs are not tight enough. | Ensure the canopy adjustment knobs are fully tightened after setting the desired angle. |
| Parts do not align during assembly. | Incorrect orientation of parts; bolts not fully loosened. | Review the assembly diagrams carefully. Loosen all connections slightly to allow for adjustment, then tighten once aligned. |
Specifications
- Brand: Garvee
- Model Number: ZYGV-34NQ-GY-B2wlSwGwjC71
- Color: Gray
- Material: Metal (Powder Coated Frame), Polyester (Fabric)
- Product Dimensions (D x W x H): 55.21" x 43.31" x 60.24" (140.23 cm x 109.99 cm x 153.01 cm)
- Item Weight: 44.09 Pounds (20 kg)
- Maximum Weight Recommendation: 400 Pounds (181 kg)
- Seating Capacity: 2 Persons
- UPC: 840547439952
Image: A detailed product size diagram illustrating the key dimensions of the porch swing, including width, depth, and height, along with seating capacity and maximum load.
Warranty and Support
For warranty information, missing parts, or technical support, please refer to the contact information provided with your purchase documentation or visit the official Garvee website. Keep your purchase receipt as proof of purchase.
