1. Product Overview
The PURPLE LEAF 10' x 12' Louvered Pergola with LED Strip is designed to enhance your outdoor living space. This structure features an adjustable hardtop louvered roof, allowing for customizable shading and protection from the elements. Its robust frame is constructed from durable, powder-coated aluminum, ensuring resistance to rust, peeling, and fading for long-lasting performance. Integrated LED lighting provides ambient illumination, perfect for evening gatherings. A concealed drainage system efficiently manages rainwater, directing it through the pergola's grooves and out via four hidden channels within the posts.

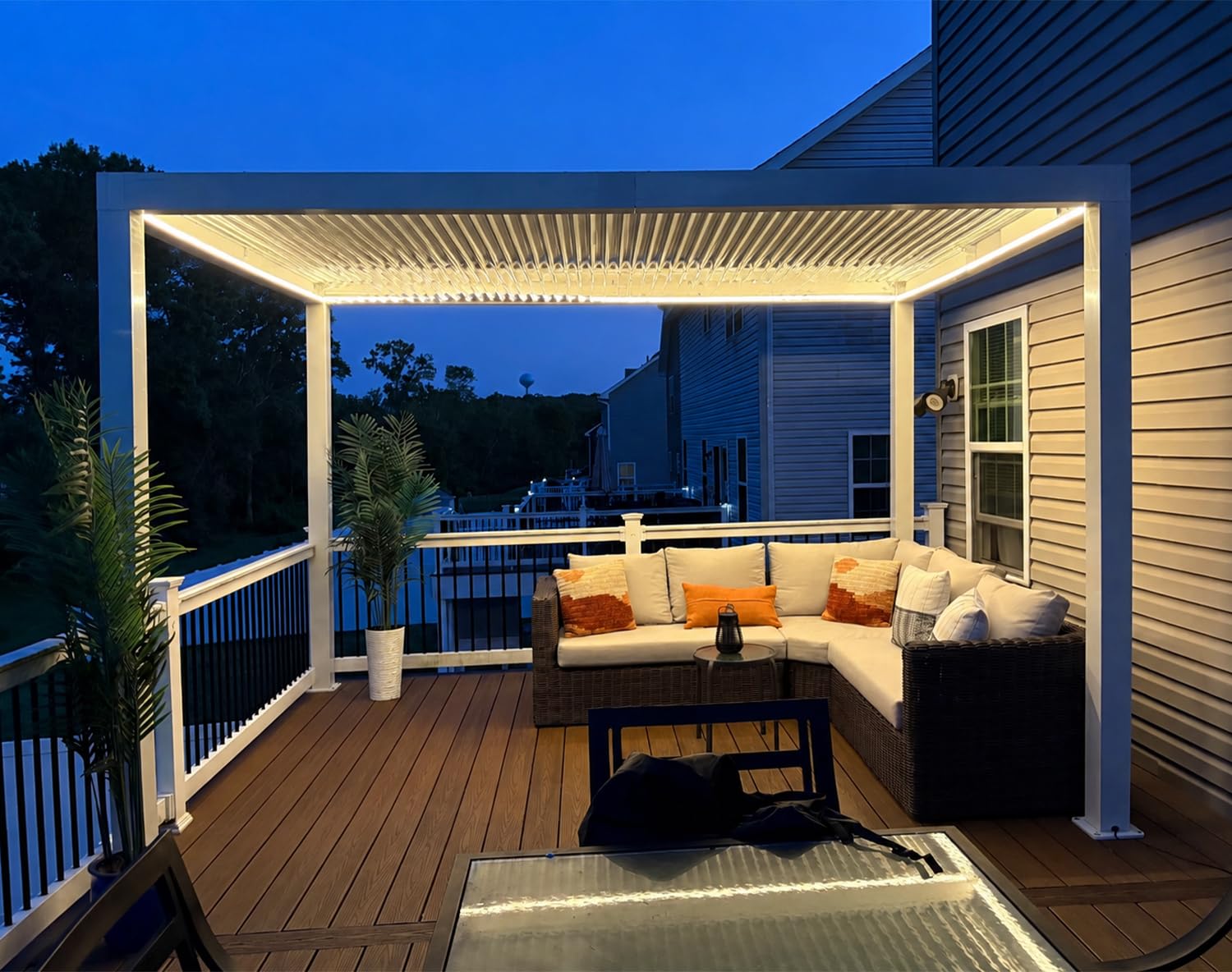

Image 1.1: The PURPLE LEAF Louvered Pergola providing illuminated outdoor living space.
Key Features:
- Adjustable Louvered Roof: Two independently adjustable roof sections allow for precise control of sun, wind, and rain protection (0° to 90° adjustment).
- All-Aluminum Frame: Durable, powder-coated aluminum construction provides resistance against rust, peeling, and fading. Engineered to withstand wind speeds up to 60 mph.
- Integrated LED Lighting: Built-in LED strips offer a warm 3000K glow, controllable via remote for evening ambiance.
- Concealed Drainage System: Rainwater is channeled through an integrated gutter system within the posts, preventing water accumulation on the roof.
- Versatile Use: Suitable for various outdoor spaces including decks, gardens, backyards, and commercial settings.
2. Safety Information
Please read and understand all safety warnings and instructions before assembling, installing, or operating this pergola. Failure to follow these instructions may result in injury or property damage.
- Professional Installation Recommended: Due to the size and weight of the components, professional installation or assembly by multiple adults is highly recommended.
- Secure Anchoring: Ensure the pergola is securely anchored to a stable, level surface to prevent tipping or movement, especially in windy conditions.
- Weight Limit: Do not hang heavy objects from the pergola frame or louvers. Do not climb on the pergola.
- Weather Conditions: While designed for durability, avoid using the pergola in extreme weather conditions such as heavy snow loads or winds exceeding 60 mph. In snowy conditions, keep louvers open to prevent accumulation.
- Electrical Safety: Ensure all electrical connections for the LED lighting are installed according to local codes and protected from moisture.
- Local Regulations: Consult local building codes and homeowner association rules regarding outdoor structures before installation.
3. Package Contents
Verify that all components listed below are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer service immediately.
- Aluminum Frame Components (posts, beams, crossbeams)
- Louvered Roof Panels
- LED Strip Lights
- LED Remote Control
- Hardware Kit (bolts, screws, washers, caps)
- Assembly Tools (basic wrenches, hex keys may be included)
- Detailed Assembly Manual
4. Setup and Assembly
Assembly of the PURPLE LEAF Louvered Pergola requires careful attention to detail and multiple individuals. Refer to the separate, comprehensive assembly guide included in your package for step-by-step instructions and diagrams.
4.1 Tools Required (Not Included):
- Ladder
- Measuring Tape
- Level
- Drill (for anchoring)
- Socket Wrench Set
4.2 Site Preparation:
- Choose a flat, level surface for installation.
- Ensure adequate clearance around the pergola for assembly and future use.
- Clear the area of any debris or obstructions.
4.3 Assembly Steps:
- Unpack and Identify Parts: Carefully unpack all boxes and lay out components. Cross-reference with the parts list in the assembly guide.
- Assemble Frame: Follow the guide to connect the posts, beams, and crossbeams. Ensure all connections are secure but do not fully tighten bolts until the frame is squared.
- Install Louvered Roof: Attach the louvered panels and their adjustment mechanisms as per the instructions.
- Install LED Lighting: Integrate the LED strips into the designated channels and connect the wiring.
- Final Tightening and Anchoring: Once the entire structure is assembled and squared, fully tighten all bolts. Securely anchor the pergola to the ground using appropriate hardware for your surface type.
Image 4.1: Pergola dimensions for planning and installation.
Image 4.2: Illustration of the integrated drainage system.
Video 4.3: Overview of the PURPLE LEAF White Louvered Pergola, demonstrating its structure and features.
5. Operating Instructions
5.1 Adjusting Louvers:
The louvered roof can be adjusted to control sunlight and provide shelter from rain. Use the integrated crank mechanism (or similar manual control) to rotate the louvers. They can be set anywhere from 0° (fully open) to 90° (fully closed).
- To open the louvers, rotate the crank handle in the indicated direction until the desired angle is achieved.
- To close the louvers, rotate the crank handle in the opposite direction until they are fully closed for maximum shade or rain protection.

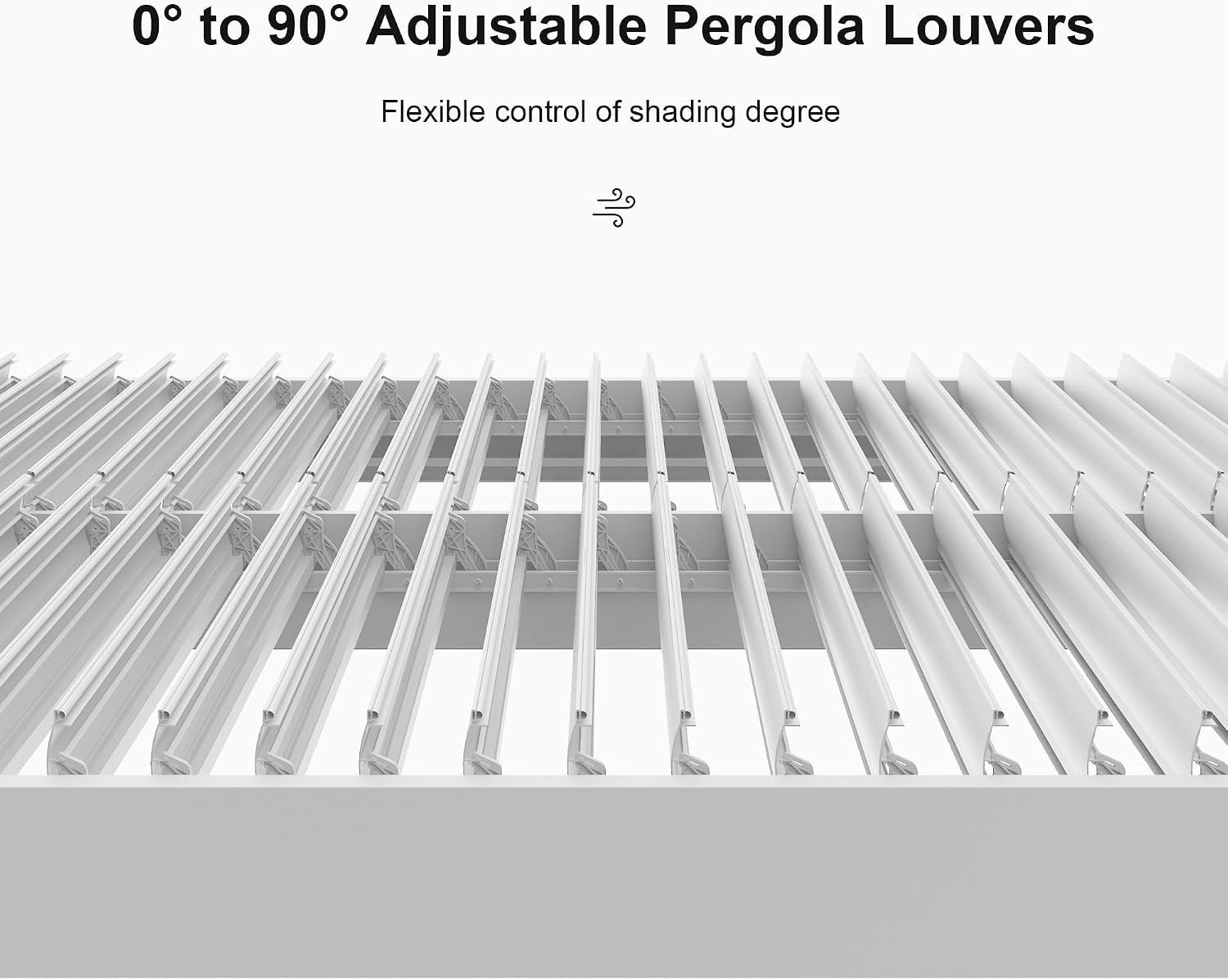

Image 5.1: Adjustable louvers providing flexible shading.
5.2 LED Lighting:
The pergola is equipped with built-in LED strip lights for nighttime illumination. These lights are operated using the provided remote control.
- Power On/Off: Press the 'ON' button on the remote to turn the LED lights on. Press 'OFF' to turn them off.
- Brightness/Mode: Refer to the remote control's specific buttons for adjusting brightness or cycling through any available lighting modes.
Image 5.2: Features of the LED lighting system.
Image 5.3: The pergola's LED lights illuminated at night.
Video 5.4: Customer demonstration of the upgraded louvered pergola with light belt.
6. Maintenance
Regular maintenance will help prolong the life and appearance of your PURPLE LEAF Louvered Pergola.
- Cleaning the Frame and Louvers: Clean the aluminum frame and louvered panels periodically with a soft cloth, mild soap, and water. Rinse thoroughly with clean water. Avoid using abrasive cleaners, harsh chemicals, or pressure washers, as these can damage the finish.
- Drainage System: Regularly inspect and clear any leaves, debris, or blockages from the louvered roof and the internal drainage channels within the posts to ensure proper water runoff.
- Hardware Inspection: Periodically check all bolts, screws, and connections for tightness. Re-tighten any loose hardware to maintain structural integrity.
- Winter Care: In regions with heavy snowfall, it is advisable to keep the louvers in an open position to prevent excessive snow accumulation, which could potentially damage the structure.
- LED Lights: Ensure the LED strips and their connections remain clean and free of debris. If the remote control stops working, replace its batteries.
7. Troubleshooting
This section addresses common issues you might encounter with your pergola.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leakage from roof | Louvers not fully closed; debris in drainage channels; damaged seals. | Ensure louvers are completely closed. Clear any debris from the roof and drainage system. Inspect seals for damage and contact support if necessary. |
| LED lights not working | Remote control battery low/dead; loose electrical connection; power supply issue. | Replace remote control batteries. Check all LED wiring connections for security. Verify the power source is active. |
| Louver adjustment mechanism is stiff or stuck | Debris in tracks; lack of lubrication; misaligned components. | Clean any debris from the louver tracks. Apply a silicone-based lubricant to moving parts. Check for proper alignment of components as per the assembly manual. |
| Pergola feels unstable or wobbly | Loose anchoring; loose frame bolts; uneven installation surface. | Ensure the pergola is securely anchored to the ground. Re-tighten all frame bolts. Verify the installation surface is level. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | PURPLE LEAF |
| Model | 10' x 12' White & LED Strip |
| Material | Aluminum |
| Product Dimensions (L x W x H) | 148.11" x 120.55" x 94.5" |
| Frame Material | Aluminum |
| Water Resistance Level | Water Resistant |
| Shape | Rectangular |
| Ultraviolet Light Protection | 50 |
| Floor Area | 120 square feet |
| LED Lighting | 3000K Warm Glow, Remote Controlled |
9. Warranty and Support
PURPLE LEAF stands behind the quality of its products. For specific warranty details, including coverage period and terms, please refer to the warranty card or documentation included with your purchase.
If you require technical assistance, have questions about assembly, or need to report missing/damaged parts, please contact PURPLE LEAF customer service:
- Email: pergola@purpleleafgarden.com
- Online Support: Visit the official PURPLE LEAF website for FAQs and additional support resources.
Please have your model number and purchase date available when contacting support.
