Pipishell Electric Power Recliner Chair

1. Introduction

This manual provides instructions for the assembly, operation, and maintenance of your Pipishell Electric Power Recliner Chair, Model MSSS10GN-US. Please read this manual thoroughly before use to ensure proper function and longevity of your product.

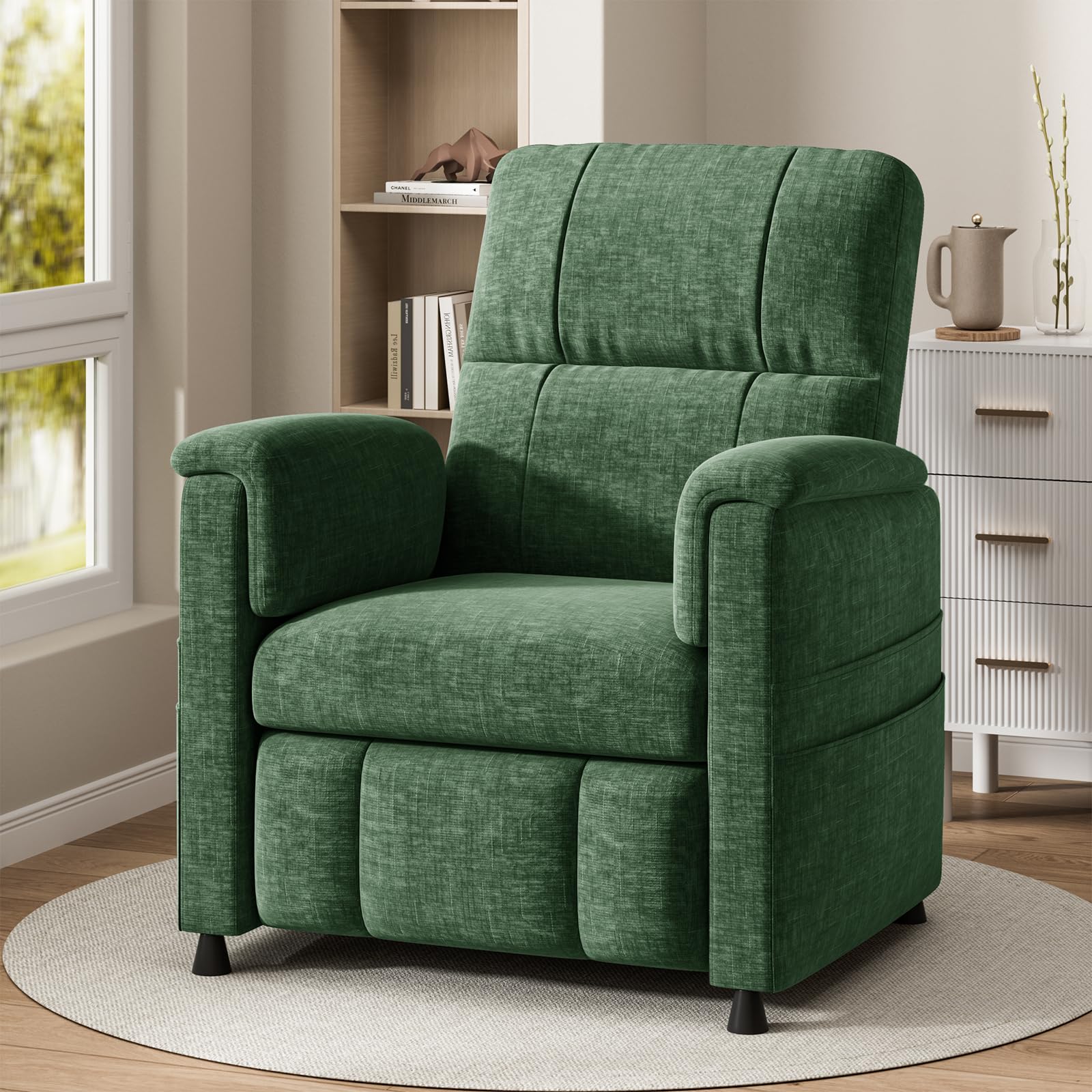

Figure 1: Pipishell Electric Power Recliner Chair (Green)

2. Product Features

• Infinite Reclining System: The backrest adjusts smoothly from 105° to 150°, and the footrest from 0° to 90°, allowing for continuous, personalized positioning.
• Comfort Materials: Constructed with high-density foam, plush cotton padding, and independent springs for support and durability. The chair is upholstered in soft chenille fabric.
• Spacious Seating: Features a 19.7-inch wide seat and extends to 62.6 inches when fully reclined, accommodating various body types.
• Remote Control Operation: An electric remote control provides easy adjustment of the recline and footrest. The remote includes a retractable cord and can be stored in a side pocket.
• Stable Construction: Built with a solid steel frame, reinforced seat, and independent springs for long-term stability and support.

Figure 2: Internal Cushion Structure

Figure 3: Seating and Footrest Comparison

3. Package Contents

Verify that all components are present before beginning assembly:

• Backrest
• Arm Pads (Left and Right)
• Seat Base
• Remote Control
• Power Adapter
• Hardware Pack (screws, tools)

4. Assembly Instructions

Assembly of the Pipishell Electric Power Recliner Chair typically takes approximately 15 minutes and requires minimal tools. Follow the steps below:

1. Unpack all components and lay them out on a clean, soft surface to prevent damage.
2. Attach the backrest to the seat base by aligning the metal brackets and sliding them into place until they lock securely.
3. Connect the power cable from the backrest to the corresponding cable on the seat base.
4. Attach the arm pads to the sides of the chair, ensuring they are firmly secured.
5. Connect the remote control cable to the designated port on the chair.
6. Plug the power adapter into the chair and then into a wall outlet.

For a visual guide, please refer to the assembly portion of the product video:

5. Operating Instructions

The recliner chair is operated using the wired remote control. The remote allows for smooth, stepless adjustment of the backrest and footrest.

• Recline Backrest / Extend Footrest: Press and hold the 'Recline' button (usually indicated by an upward arrow or a reclining figure) to smoothly recline the backrest and extend the footrest. Release the button at your desired position.
• Return to Upright Position / Retract Footrest: Press and hold the 'Upright' button (usually indicated by a downward arrow or an upright figure) to return the chair to its original upright position and retract the footrest. Release the button at your desired position.
• Stopping at Any Position: The stepless mechanism allows you to stop the recline or return motion at any point by releasing the button.

Figure 4: Remote Control for Reclining

Figure 5: Seamless Recline for Comfort

The remote control can be conveniently stored in the side pockets of the chair when not in use.

6. Maintenance

To maintain the appearance and functionality of your recliner chair, follow these care instructions:

• Cleaning: Spot clean any spills or stains immediately with a damp cloth and mild detergent. Avoid harsh chemicals.
• General Care: Wipe clean the fabric regularly to remove dust and debris.
• Mechanism: Periodically check all connections and moving parts to ensure they are secure and free from obstruction. Do not lubricate the reclining mechanism unless specifically instructed by customer support.

7. Troubleshooting

If you encounter any issues with your recliner chair, please refer to the following common troubleshooting steps:

• Chair Not Reclining:
  • Ensure the power adapter is securely plugged into both the chair and a working wall outlet.
  • Check the remote control cable connection to the chair.
  • Verify that there are no obstructions preventing the mechanism from moving.
• Unusual Noises:
  • Check for loose hardware and tighten if necessary.
  • Ensure no objects are caught in the reclining mechanism.
• Remote Control Not Responding:
  • Confirm the power supply is active.
  • Inspect the remote control cable for any damage.

If these steps do not resolve the issue, please contact customer support for further assistance.

8. Specifications

Figure 6: Product Dimensions and Weight Capacity

9. Warranty and Support

For warranty information or technical support, please contact Pipishell customer service. Keep your purchase receipt and model number (MSSS10GN-US) handy for faster service.

Contact information can typically be found on the manufacturer's website or through your retailer.
