FUNYET 2026 14.1-inch Laptop User Manual

Introduction

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your FUNYET 2026 14.1-inch Laptop. Please read this manual thoroughly before using your device to ensure proper function and longevity.

What's in the Box

Verify that all items are present in the package:

• FUNYET 2026 14.1-inch Laptop
• Power Adapter (12V2A DC)
• Instruction Manual (this document)
• Warranty Card

Product Overview

The FUNYET 2026 laptop is designed for productivity and entertainment, featuring a powerful processor and versatile connectivity.

Key Features

• Operating System: Pre-installed Windows 11 Pro for enhanced multitasking and security.
• Processor: Intel Celeron N5095 (4 cores, 4 threads, up to 2.9 GHz) for smooth performance.
• Memory & Storage: 16GB LPDDR4 RAM and 512GB M.2 SSD, with support for up to 1TB TF Card expansion.
• Display: 14.1-inch IPS Full HD (1920x1080) screen, offering clear and vibrant visuals, with a 180° foldable hinge for flexible viewing.
• Connectivity: Dual-band 5G Wi-Fi and Bluetooth 5.0 for fast and stable wireless connections.
• Ports: Includes 2x USB 3.0, 1x 3.5mm Headphone Jack, 1x 3.5mm DC Adapter port, 1x Mini-HDMI, and 1x TF Card slot.
• Battery: Integrated 5000mAh battery providing 4-5 hours of normal use and over 50 hours of standby time.
• Camera & Audio: Built-in 0.3-megapixel front camera and dual microphones for video calls and online meetings.

Component Identification

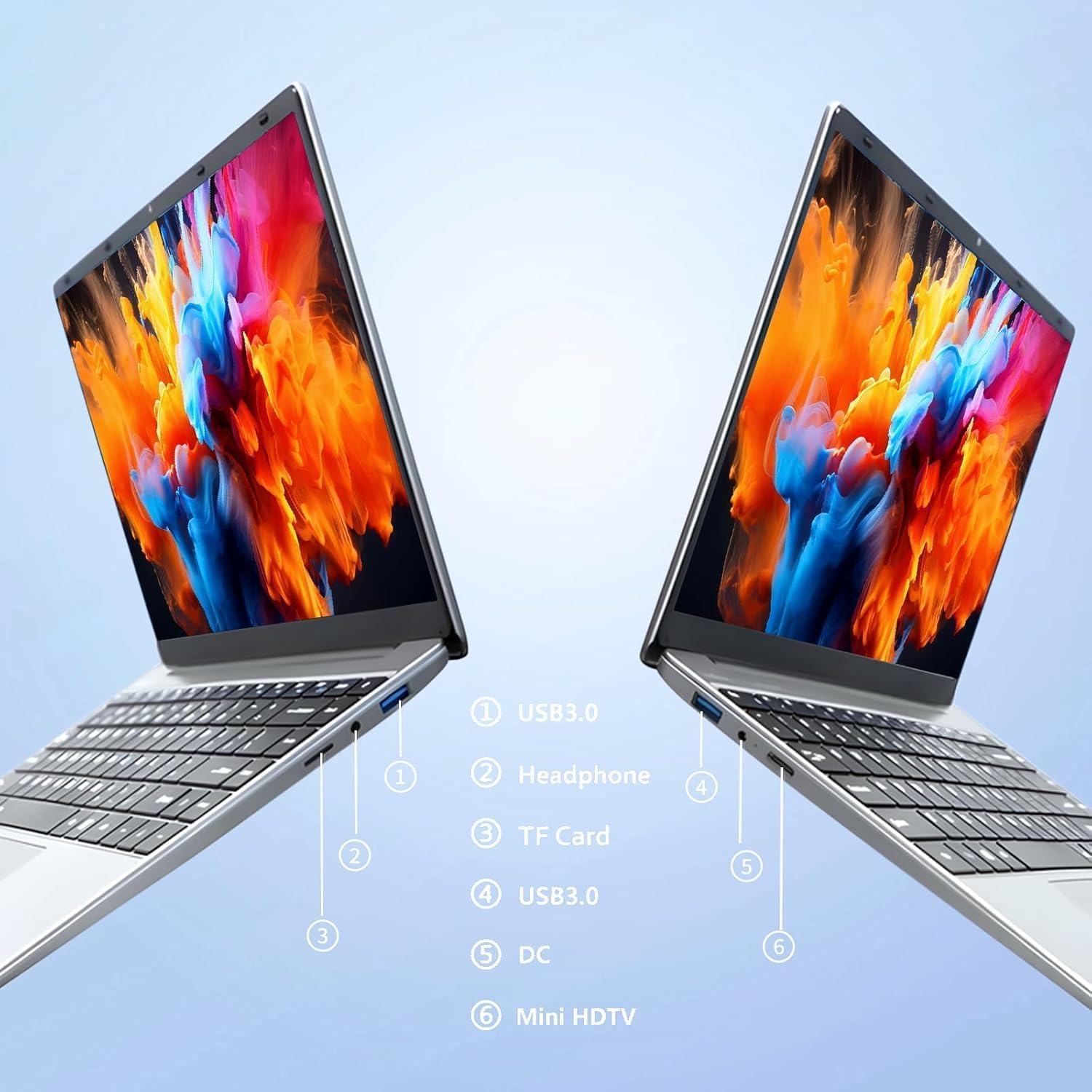

Image: Side view of the laptop highlighting port locations.

This image illustrates the various ports available on the FUNYET 2026 laptop. On one side, you will find a USB 3.0 port, a 3.5mm headphone jack, and a TF Card slot. On the opposite side, there is another USB 3.0 port, the DC power input, and a Mini-HDMI port.

Image: Laptop screen displaying its 14-inch Full HD IPS features.

The laptop features a 14-inch Full HD (1920x1080) IPS display with a 16:9 aspect ratio and ultra-narrow bezels, providing a wide perspective and vivid images.

Image: Laptop demonstrating its 180-degree foldable hinge.

The laptop's hinge allows the screen to fold back 180 degrees, offering versatile viewing angles and usage modes.

Setup Guide

1. Initial Charging

1. Unpack the laptop and power adapter from the box.
2. Connect the power adapter to the DC input port on the side of the laptop.
3. Plug the power adapter into a wall outlet.
4. Allow the laptop to charge for at least 30 minutes before first use, or until the battery indicator shows a sufficient charge.

2. First Power On

1. Open the laptop lid.
2. Press the power button, usually located on the keyboard deck or side.
3. Follow the on-screen instructions to complete the Windows 11 Pro setup process, including language selection, network connection, and user account creation.

3. Connecting to Wi-Fi

1. During the initial Windows setup, you will be prompted to connect to a Wi-Fi network. Select your network from the list and enter the password.
2. If setting up later, click the Wi-Fi icon in the taskbar, select your network, and click "Connect".

Operating Instructions

Power Management

• Power On: Press the power button.
• Sleep Mode: Close the lid or press the power button briefly.
• Shut Down: Click the Start button, then Power, then Shut down.
• Restart: Click the Start button, then Power, then Restart.

Using the Touchpad and Touchscreen

• Touchpad: Use gestures for navigation. Single tap for left-click, two-finger tap for right-click, two-finger scroll for scrolling.
• Touchscreen: Tap to select, pinch to zoom, swipe to scroll.

External Display Connection

To connect an external monitor or projector:

1. Connect a Mini-HDMI cable from the laptop's Mini-HDMI port to the external display's HDMI input.
2. If necessary, use a Mini-HDMI to HDMI adapter (not included).
3. Press Windows key + P to open the Project menu and select your desired display mode (Duplicate, Extend, Second screen only).

Using TF Card Expansion

Insert a TF card into the designated slot for additional storage. The laptop supports up to 1TB TF card expansion.

Care and Maintenance

• Cleaning: Use a soft, lint-free cloth to clean the screen and chassis. For stubborn marks, slightly dampen the cloth with water or a screen cleaner. Avoid harsh chemicals.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Store the laptop in a cool, dry place if not used for extended periods.
• Temperature: Operate the laptop within a temperature range of 5°C to 35°C (41°F to 95°F). Avoid direct sunlight or extreme heat/cold.
• Ventilation: Ensure the ventilation openings are not blocked to prevent overheating. Do not place the laptop on soft surfaces like beds or sofas during operation.
• Software Updates: Regularly update Windows and drivers to ensure optimal performance and security.

Troubleshooting

Common Issues and Solutions

Technical Specifications

Warranty and Support

Warranty Information

Your FUNYET 2026 laptop comes with a 2-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.

Additionally, a 6-month free exchange/return policy may apply, subject to the terms and conditions of your purchase platform.

Customer Support

For any issues, questions, or technical assistance, please contact FUNYET customer support:

• Online Support: Available 24/7. You can typically find support by logging into your Amazon account, navigating to "Your Account" -> "Your orders", and selecting "Ask Product Question" for your FUNYET laptop.
• Email: funyestore@outlook.com
• Telephone: +49 800-000-7147 (Please note operating hours may vary)

Image: Customer service contact details and warranty information.

This image provides a visual summary of the support options, including the 2-year warranty, 6-month exchange/return policy, and contact information for phone and email support.
