X-PRO Maui 50cc Gas Moped Scooter Instruction Manual

1. Introduction

This manual provides essential information for the safe operation, maintenance, and assembly of your X-PRO Maui 50cc Gas Moped Scooter. Please read this manual thoroughly before operating the scooter to ensure proper use and to prevent injury or damage. Keep this manual for future reference.

Important Safety Notice:

• Always wear a helmet and appropriate safety gear when operating the scooter.
• Familiarize yourself with local traffic laws and regulations.
• Perform pre-ride inspections as outlined in this manual.
• The Manufacturer Statement of Origin (MSO) and Bill of Sale paperwork will be sent separately. These documents are required for vehicle registration.

2. Unpacking and Initial Assembly

Your X-PRO Maui 50cc Gas Moped Scooter requires some assembly upon arrival. Carefully unpack all components and verify against the packing list. If any parts are missing or damaged, contact customer support immediately.

2.1 Assembly Steps

1. Handlebar Installation: Securely attach the handlebar to the steering column. Ensure all bolts are tightened to the manufacturer's specifications.
2. Wheel Attachment: Install the front wheel, ensuring the brake system is correctly aligned and functional.
3. Brake System Connection: Connect and adjust the brake cables or hydraulic lines. Test brake functionality before proceeding.
4. Hub Odometer Counter: Connect the odometer cable to the front wheel hub.
5. Trunk Installation (if included): Attach the rear storage trunk to the designated mounting points.
6. Battery Installation: Install the battery in its compartment and connect the terminals. Ensure correct polarity.

Refer to the detailed assembly diagrams included in your separate assembly guide for visual instructions. Professional assembly is recommended if you are unsure about any step.

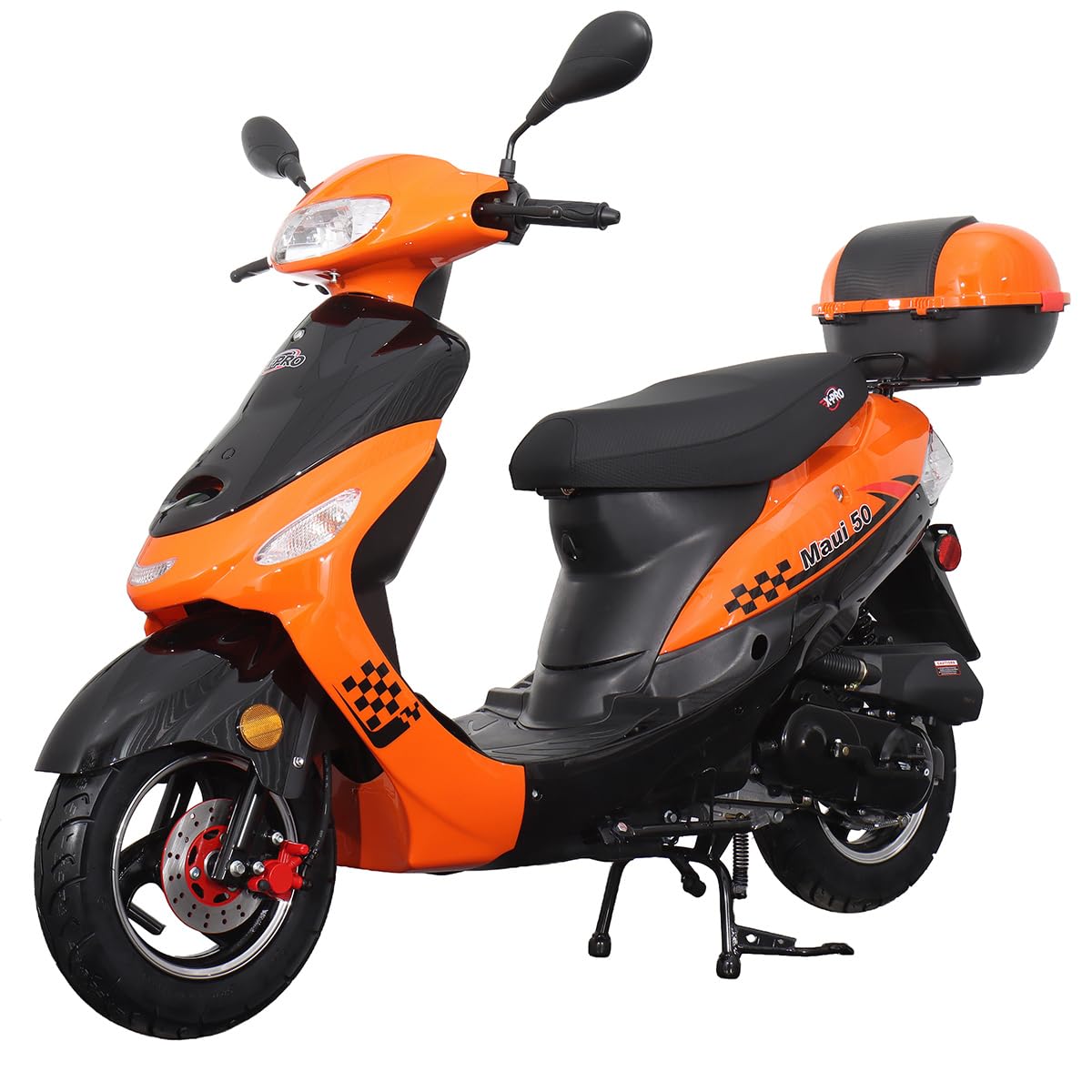

Image: Side view of the X-PRO Maui 50cc Scooter, showing the installed rear trunk and overall structure.

3. Pre-Operation Checks

Before each ride, perform the following checks to ensure safe operation:

• Tires: Check tire pressure and inspect for any cuts, bulges, or excessive wear. The X-PRO Maui features 10-inch DOT-approved tires for public road use.
• Brakes: Test both front (disc) and rear (drum) brakes for proper function and responsiveness. Ensure brake levers have adequate free play.
• Lights: Verify that the headlight, taillight, brake light, and turn signals are all working correctly.
• Fluids: Check engine oil level and fuel level. Ensure there are no leaks.
• Controls: Confirm that the throttle operates smoothly and returns to the idle position when released. Check horn and mirrors.
• Suspension: Inspect the front and rear suspension for any visible damage or leaks. The scooter features dual suspension for a smooth ride.

Image: Close-up view of the 10-inch DOT-approved front tire, highlighting the tread pattern and wheel.

4. Operation

The X-PRO Maui 50cc Gas Moped Scooter is designed for urban commuting, featuring an automatic transmission and a reliable 4-stroke engine.

4.1 Starting the Engine

1. Ensure the scooter is on its center stand or side stand.
2. Turn the ignition key to the 'ON' position.
3. Apply the rear brake lever.
4. Press the electric start button. If the engine does not start, try using the kick-start lever.
5. Allow the engine to warm up for a short period before riding.

Image: Detailed view of the 50cc 4-stroke engine, emphasizing its compact design.

4.2 Riding

• Once the engine is running, gently twist the throttle to accelerate. The automatic transmission simplifies operation.
• Maintain a safe speed and distance from other vehicles.
• Use turn signals when changing lanes or turning.
• Be aware of your surroundings and road conditions.

4.3 Stopping

• Gradually release the throttle and apply both front and rear brakes smoothly.
• Come to a complete stop and place your feet on the ground.
• Turn the ignition key to the 'OFF' position when parking.

Image: Full side view of the X-PRO Maui 50cc Gas Moped Scooter in orange, showcasing its design.

5. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your scooter. The X-PRO Maui is designed for low maintenance, but routine checks are still necessary.

5.1 Routine Checks

• Engine Oil: Check oil level regularly and change according to the maintenance schedule in your separate service manual.
• Brake Fluid: For disc brakes, check fluid level and condition. Replace as recommended.
• Tire Wear: Monitor tire tread depth and replace tires when they reach the wear indicators.
• Battery: Check battery terminals for corrosion and ensure proper charge.
• Lights and Electrical: Periodically check all lights, horn, and electrical connections.
• Fasteners: Inspect all nuts, bolts, and fasteners for tightness.

Image: A composite image detailing the scooter's features: a convenient charging port, a widened pedal for rider comfort, and a comfortable, textured seat.

5.2 Parts and Service

X-PRO maintains a stock of over 100,000 replacement parts with typical delivery times of 2-4 days. For specific parts or service, refer to the customer support section.

6. Troubleshooting

This section addresses common issues you might encounter with your X-PRO Maui 50cc Gas Moped Scooter.

6.1 Engine Does Not Start

• Check Fuel Level: Ensure there is sufficient fuel in the tank.
• Ignition Key: Verify the ignition key is in the 'ON' position.
• Kill Switch: Ensure the engine kill switch is in the 'RUN' position.
• Battery: Check battery charge. A weak battery may prevent electric start. Try the kick-start.
• Spark Plug: Inspect the spark plug for fouling or damage.

6.2 Poor Performance

• Tire Pressure: Incorrect tire pressure can affect handling and fuel economy.
• Air Filter: A clogged air filter can restrict airflow and reduce engine power.
• Fuel Quality: Use recommended fuel type. Poor quality fuel can lead to performance issues.

6.3 Brake Issues

• Spongy Brakes: May indicate air in the hydraulic system (disc brake) or worn brake pads/shoes.
• Squealing Brakes: Often caused by worn brake pads or contamination.

For issues not covered here or if troubleshooting steps do not resolve the problem, contact X-PRO customer support.

7. Specifications

Image: Diagram highlighting the robust, high-strength iron frame structure of the scooter.

8. Warranty Information

The X-PRO Maui 50cc Gas Moped Scooter comes with a standard limited warranty. The warranty period is 1 month from the date of purchase. This warranty is dealer-backed and covers manufacturing defects.

For warranty claims or inquiries, please retain your proof of purchase and contact X-PRO customer support. The Manufacturer Statement of Origin (MSO) and Bill of Sale paperwork, sent separately, are essential for any warranty service and vehicle registration.

9. Customer Support

X-PRO is committed to providing excellent after-sales service. Our dedicated team offers in-house warranty and technical support to ensure a hassle-free experience.

• Technical Support: For assembly assistance, operational questions, or troubleshooting guidance.
• Parts Support: For ordering replacement parts. X-PRO stocks a wide range of parts for quick delivery.
• Warranty Service: For claims related to manufacturing defects.

Please visit the official X-PRO website or refer to your purchase documentation for contact details and further support options.
