ONEVAN Cordless Earth Auger Instruction Manual

1. Introduction

The ONEVAN Cordless Earth Auger is a high-performance tool designed for efficient soil drilling. Equipped with an 850W brushless motor, it delivers a maximum torque of 65N.m and a rotation speed ranging from 120 to 680 revolutions per minute. This allows for smooth drilling in various soil conditions, including hard, dry, or stubborn ground. Its cordless design offers freedom of movement, making it suitable for a wide range of applications from home gardening to professional agricultural tasks.

2. Product Features

• High Efficiency Drilling: The 850W brushless motor and adjustable speed (120-680 r/min) ensure rapid and effective drilling in diverse soil types.
• Versatile Applications: Ideal for planting fruit trees, cultivating flowers, installing fences and posts, creating flower beds, and general agricultural work.
• Cordless Operation: Battery-powered design eliminates the need for power outlets, providing unrestricted use in any location.
• Enhanced Safety: Features an automatic lock function to prevent accidental activation and a safety lock switch for secure operation, reducing the risk of accidents during use.

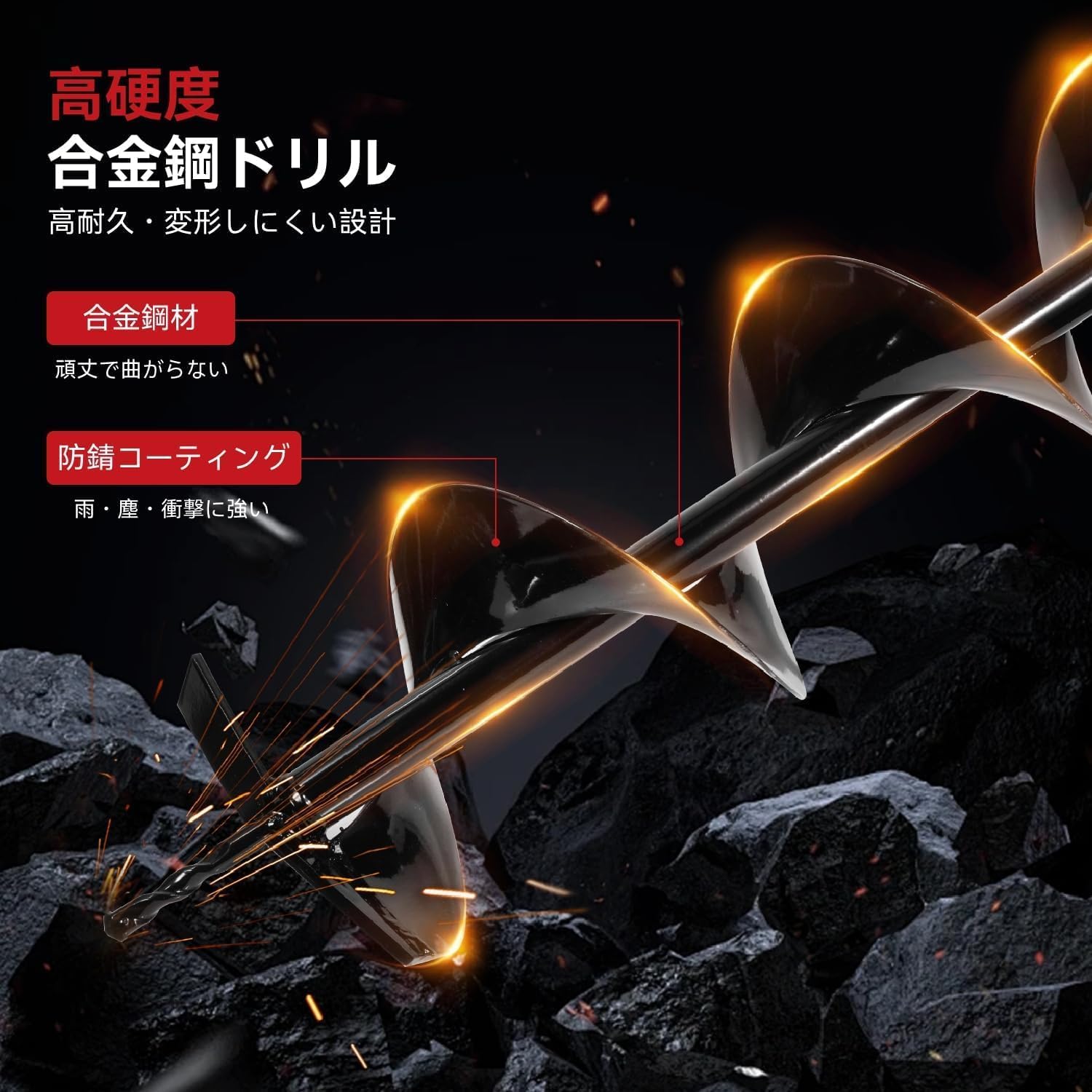

• Durable Construction: The included drill bit is crafted from 65Mn steel with an alloy tip and Q235 steel wings, ensuring superior durability and cutting performance even in harsh outdoor environments. Powder coating enhances longevity and reduces maintenance.

3. Package Contents

Please verify that all items are present upon unboxing:

• ONEVAN Cordless Earth Auger Main Unit
• φ15×18cm Ground Drill Bit
• 1500mAh Lithium Battery (x2)
• Fast Charger
• Instruction Manual
• Small Screwdriver (for adjustments)

4. Safety Instructions

Always prioritize safety when operating power tools. Read and understand all safety warnings and instructions before use.

• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
• Ensure the work area is clear of obstacles, debris, and bystanders.
• Do not operate the auger in wet conditions or near flammable liquids or gases.
• Keep hands and feet away from the rotating drill bit.
• Securely attach the drill bit before operation.
• Always hold the auger firmly with both hands during operation.
• If the auger jams, release the trigger immediately and disconnect the battery before attempting to clear the obstruction.
• Store the auger and batteries in a dry, secure location, out of reach of children.

5. Setup

Follow these steps to assemble your ONEVAN Cordless Earth Auger:

1. Unpack all components from the box.
2. Align the hole on the auger shaft with the hole on the drill bit.
3. Insert the coupling pin through the aligned holes.
4. Secure the coupling pin with the split pin to prevent it from coming loose.
5. Ensure the drill bit is firmly attached and does not wobble.

6. Operating Instructions

6.1 Engine Start-up (for gasoline models)

For gasoline-powered models, follow these steps to start the engine:

1. Fill the fuel tank with a 25:1 mixture of gasoline and 2-stroke engine oil.
2. Press the priming pump several times to supply fuel to the engine's starting system.
3. Close the choke lever.
4. Use the included screwdriver to slightly tighten the idling screw. This helps the engine start more easily.
5. Ensure the power switch is in the "ON" position (indicated by "I-").
6. Pull the recoil starter several times until you hear the first ignition sound.
7. Open the choke lever.
8. Pull the recoil starter again to fully start the engine.

6.2 General Operation

1. Once the engine is running, pull the trigger to engage the drill bit.
2. Position the auger vertically over the desired drilling spot.
3. Apply steady, downward pressure while the drill rotates. Avoid excessive force.
4. The auger features a 6-stage stepless speed control. Adjust the speed as needed for different soil densities.
5. To reverse the drill, use the automatic lock/reverse lock switch. This is useful for clearing jammed bits or extracting the auger from the ground.
6. After drilling, release the trigger and allow the drill bit to stop completely before moving the auger.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your earth auger.

• Cleaning: After each use, clean the drill bit and main unit to remove soil, debris, and moisture. Use a damp cloth and mild detergent if necessary.
• Lubrication: Periodically check and lubricate moving parts as recommended in the detailed product manual (if provided separately).
• Battery Care: For cordless models, ensure batteries are charged and stored in a cool, dry place. Avoid overcharging or completely draining the batteries.
• Inspection: Regularly inspect the drill bit for wear or damage. Replace worn or damaged bits immediately to maintain efficiency and safety. Check all fasteners for tightness.
• Storage: Store the earth auger in a dry, protected area when not in use.

8. Troubleshooting

If you encounter issues with your ONEVAN Cordless Earth Auger, refer to the following common troubleshooting tips:

• Auger not starting: Check if the battery is fully charged and properly inserted. Ensure the power switch is in the "ON" position. For gasoline models, verify fuel levels and choke settings.
• Drill bit not rotating: Ensure the trigger is fully engaged. Check for any obstructions around the drill bit.
• Reduced drilling performance: The drill bit may be dull or damaged and require replacement. Ensure the correct speed setting is selected for the soil type.
• Excessive vibration or noise: Stop operation immediately. Inspect the drill bit and connections for looseness or damage.

If problems persist after following these steps, please contact customer support.

9. Specifications

10. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase documentation or visit the official ONEVAN website. Keep your proof of purchase for warranty claims.
