ONBRILL Twin Over Twin Metal Bunk Bed with Power Outlets & Desk

1. Important Safety Information

Please read all instructions carefully before assembly and use. Keep this manual for future reference.

• Weight Capacity: Do not exceed 400 lbs (181 kg) per bed.
• Assembly: Step-by-step assembly is required with included hardware and tools. Two-person assembly is recommended for safety and convenience.
• Anti-Tipping Device: Always install the anti-tip wall anchors (hardware included) to prevent accidental tipping.
• Guardrails: Ensure all guardrails are securely in place on the upper bunk.
• Mattress Size: Use only twin-size mattresses. Recommended mattress thickness is 4-6 inches.
• Ladder/Stairs: Use the provided stairs for climbing to and from the upper bunk. Ensure non-slip EVA strips are properly installed.
• Power Outlets: Do not overload the built-in charging station. Ensure devices are compatible with 125V/12A AC outlets and USB/Type-C ports.

2. Product Overview

The ONBRILL Twin Over Twin Metal Bunk Bed is designed for space-saving and functionality, featuring a built-in charging station, a sturdy desk, and an overhead storage shelf. Its heavy-duty steel frame ensures durability and safety.

Figure 1: Fully assembled ONBRILL Twin Over Twin Metal Bunk Bed.

Dimensions

Figure 2: Detailed product dimensions.

• Overall Dimensions (L x W x H): 90.75" x 41.34" x 72.05"
• Upper Bed Weight Capacity: 200 lbs
• Lower Bed Weight Capacity: 400 lbs
• Ground to Item Distance: 8.46 inches

3. Parts List

Before beginning assembly, ensure all parts and hardware are present and undamaged. Refer to the included physical instruction manual for a detailed visual parts list. All components are numbered for easy identification.

4. Assembly Instructions

Follow these steps carefully. Two people are recommended for assembly. Do not fully tighten screws until instructed in the final step.

Step-by-Step Guide:

1. Unpacking and Preparation: Carefully unpack all components. Lay them out on a clean, soft surface to prevent scratches. Verify all parts against the parts list in your physical manual.
2. Assemble Base Frame: Begin by connecting the main horizontal and vertical frame pieces for the lower bed. Refer to the manual for specific screw sizes (e.g., M8x55mm, M8x70mm) and ensure correct orientation of holes. Do not fully tighten screws yet.
3. Attach Side Rails: Secure the side rails to the assembled base frame. Ensure all connections are aligned before partially tightening.
4. Install Upper Bunk Frame: Carefully lift and attach the upper bunk frame to the vertical supports. This step is best performed with two people.
5. Secure Bed Slats: Insert the metal bed slats into both the upper and lower bunk frames. The embedded slat design allows for easy, snap-on installation. Ensure all 16 densely spaced slats are properly seated.
6. Attach Desk and Storage Shelf: Mount the desk and overhead storage shelf to the designated frame sections. Use the specified hardware (e.g., M6x12mm for desk, M8x40mm for shelf supports).
7. Install Charging Station: Carefully place the built-in charging station into the desk cutout and secure it with the provided screws (e.g., Ø4x10mm). Connect the power cord.
8. Install Ladder: Attach the ladder to the bunk bed frame. Ensure the non-slip soft EVA strips are on the ladder rungs for safe climbing.
9. Final Tightening: Once all components are in place and aligned, fully tighten all screws using the provided tools. Double-check every connection for stability.
10. Install Anti-Tipping Device: Securely attach the anti-tip wall anchors to the bunk bed frame and the wall as instructed in your manual. This is a critical safety step.

5. Features & Usage

Built-in Charging Desk

Figure 3: Close-up of the desk with integrated charging station.

The lower bunk features a built-in desk with a charging station. This station includes AC outlets (125V/12A), USB ports, and a Type-C port, allowing convenient charging for laptops, tablets, and other electronic devices. The desk can be adjusted for height or folded down when not in use.

Overhead Storage Shelf

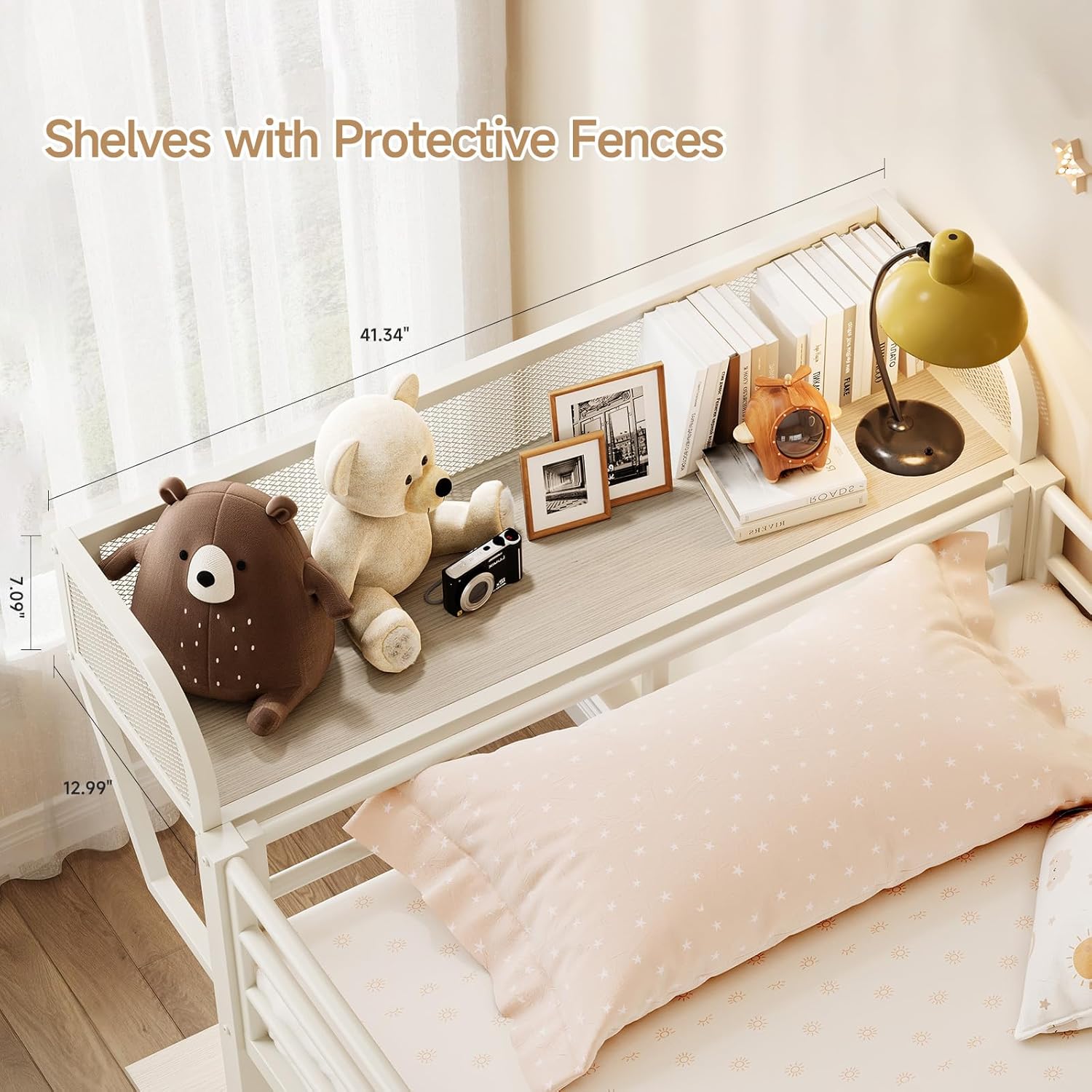

Figure 4: The 13-inch overhead storage shelf on the upper bunk.

The upper bunk is equipped with a 13-inch overhead shelf, complete with protective fences. This provides convenient storage for books, alarms, water bottles, or decorative items, keeping essentials within easy reach.

Safety Features

Figure 5: Details of the safety guardrails and wall anchor.

• Guardrails: 13-inch high guardrails with rounded corner protectors are installed on the upper bunk for enhanced safety.
• Stairs: The stairs feature non-slip soft EVA strips for secure climbing.
• Slats: 16 densely spaced metal slats provide robust mattress support.
• Anti-Tip Anchors: Wall anchors are included to secure the bed to the wall, preventing accidental tipping.

6. Care & Maintenance

• Cleaning: Wipe clean with a damp cloth. Avoid harsh chemicals that may damage the finish.
• Regular Checks: Periodically check all bolts and screws to ensure they remain tight. Re-tighten as necessary.
• Structural Integrity: Do not modify the bed structure. Any alterations may compromise safety and void the warranty.

7. Troubleshooting

• Wobbling/Instability: Ensure all screws are fully tightened. Verify that the anti-tip wall anchors are correctly installed.
• Squeaking Noises: Check and tighten all connections. Lubricate metal-on-metal contact points if necessary.
• Charging Station Not Working: Ensure the power cord is securely plugged into a functional wall outlet. Check for any loose connections within the charging station unit.

8. Specifications

9. Warranty & Support

For warranty information, missing parts, or any questions regarding your ONBRILL bunk bed, please contact ONBRILL customer support directly. Refer to your purchase documentation or the ONBRILL official website for contact details.
