Vileda Steam Plus Pro XXL Steam Mop User Manual

1. Introduction

Thank you for choosing the Vileda Steam Plus Pro XXL Steam Mop. This appliance is designed to provide hygienic cleaning for various floor types using steam, eliminating up to 99.9% of bacteria and viruses without the need for harsh chemicals. Please read this manual carefully before first use to ensure safe and optimal operation of your device.

Image: The Vileda Steam Plus Pro XXL in action, demonstrating its ability to kill bacteria and viruses with steam.

2. Safety Information

Always observe the following safety precautions:

• Read all instructions before using the appliance.
• Keep the appliance out of reach of children and pets.
• Do not use the steam mop on unsealed wooden floors or floors that are sensitive to heat and moisture. Always test on a small, inconspicuous area first.
• Unplug the appliance from the power outlet before filling the water tank, attaching or removing accessories, or performing any maintenance.
• Do not direct steam at people, animals, or electrical appliances.
• Use only tap water in the water tank. Do not add cleaning solutions, perfumes, or other chemicals, as this may damage the appliance and void the warranty.
• Ensure the power cord is not damaged and avoid tripping hazards.

3. Package Contents

Carefully unpack your Vileda Steam Plus Pro XXL Steam Mop and check that all components are present:

• Vileda Steam Plus Pro XXL Main Unit
• Handle (consisting of multiple sections for assembly)
• Mop Head
• 1 x Sensitive Pad (for delicate floors)
• 1 x Standard Pad (for everyday use)
• 1 x Power Pad (for stubborn dirt)
• Storage Tray
• User Manual

If any parts are missing or damaged, please contact Vileda customer service.

Image: The Vileda Steam Plus Pro XXL steam mop with its practical storage tray.

4. Setup

Follow these steps to assemble and prepare your steam mop for first use:

1. Assemble the Handle: Connect the handle sections by pushing them firmly together until they click into place. Ensure the electrical cable inside is properly aligned.
2. Attach the Handle to the Main Unit: Insert the assembled handle into the designated opening on the main unit until it locks securely.
3. Attach the Mop Head: Connect the mop head to the bottom of the main unit.
4. Attach a Cleaning Pad: Place your chosen cleaning pad (Sensitive, Standard, or Power) onto the mop head. The pad attaches easily with hook-and-loop fasteners.
5. Fill the Water Tank: Open the water tank cap. Fill the tank with clean tap water. Do not overfill. Close the cap securely.

Watch the unboxing and assembly video for a visual guide:

5. Operating Instructions

Your Vileda Steam Plus Pro XXL Steam Mop is designed for efficient and easy cleaning:

1. Power On: Plug the appliance into a suitable power outlet. The indicator light will illuminate.
2. Heating Time: The steam mop heats up quickly, typically within 15 seconds. The indicator light will change or stop flashing when ready.
3. Select Steam Setting: Use the buttons on the handle to select the appropriate steam level for your floor type. There are 4 settings available, including a low setting specifically for delicate floors.
4. Begin Cleaning: Once steam is ready, move the mop across the floor in a steady motion. The steam will be released automatically.
5. Pad Usage:
   • Sensitive Pad: Use with the lowest steam setting for delicate surfaces like sealed hardwood or laminate.
   • Standard Pad: Ideal for everyday cleaning on most hard floor types.
   • Power Pad: Designed for tackling stubborn dirt and grime.
6. Cleaning Large Areas: The XXL mop head is designed to cover large areas efficiently, reducing cleaning time.

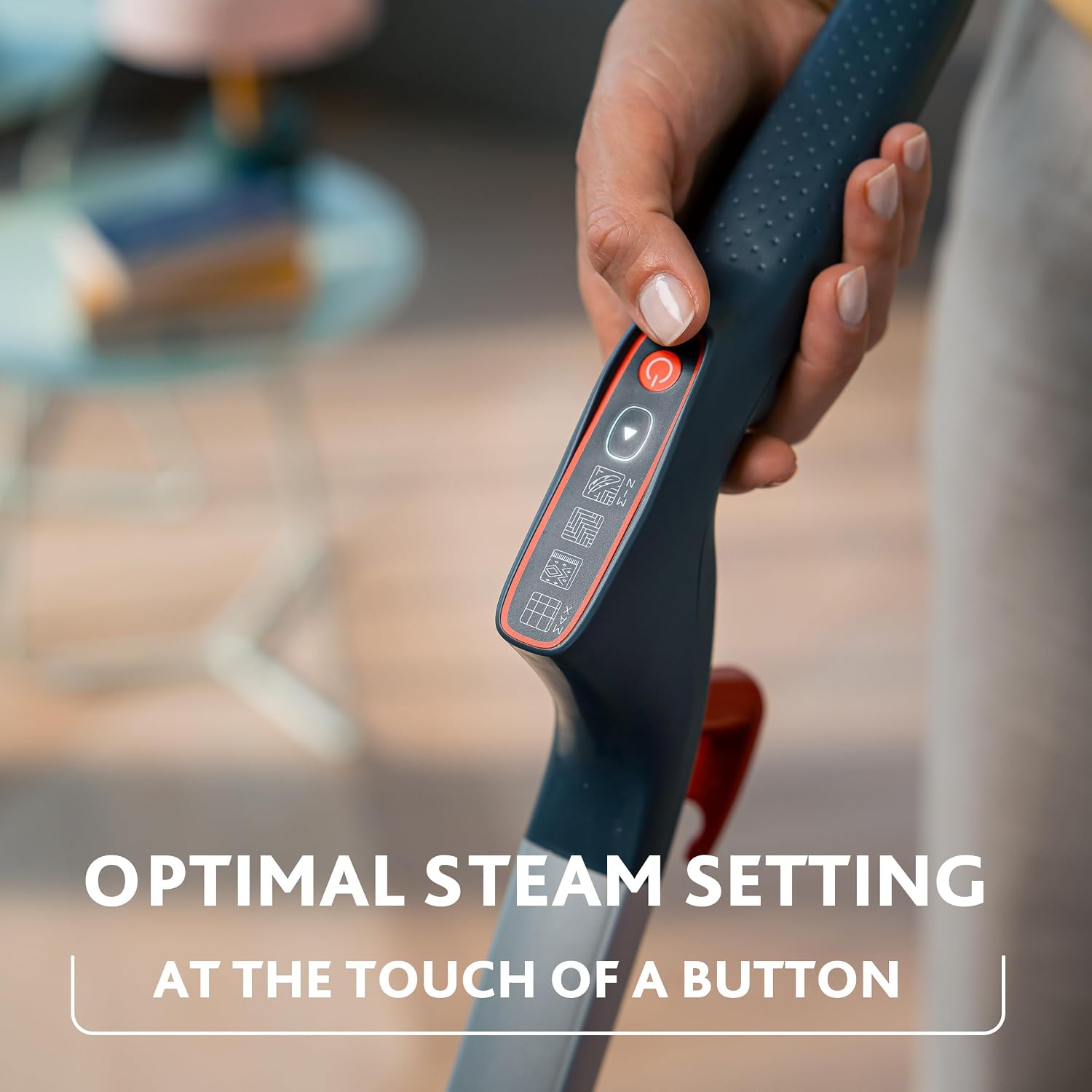

Image: Selecting the optimal steam setting with a button on the handle.

Image: The Sensitive Pad, designed to be gentle on delicate floors.

Image: The steam mop is suitable for all floor types, including delicate ones with the new sensitive pad.

6. Maintenance

Regular maintenance ensures the longevity and performance of your Vileda Steam Plus Pro XXL Steam Mop:

• Empty Water Tank: After each use, unplug the appliance and allow it to cool. Empty any remaining water from the tank.
• Clean Pads: The cleaning pads are machine washable at 60°C. Do not use bleach or fabric softener. Allow them to air dry completely before storing or reusing.
• Descaling: The appliance features a descaling reminder. Follow the instructions in the full manual for descaling procedures to prevent mineral buildup and maintain steam performance.
• Pad Replacement: For optimal cleaning results, it is recommended to replace the cleaning pads every 6 months, or sooner if they show signs of wear.
• Storage: Store the steam mop in its practical storage tray in a dry, safe place.

Image: Cleaning pads are washable and reusable. Replace pads every 6 months for best results.

7. Troubleshooting

If you encounter issues with your Vileda Steam Plus Pro XXL Steam Mop, refer to the following common problems and solutions:

• No Steam:
  • Check if the appliance is properly plugged in and powered on.
  • Ensure the water tank is filled.
  • Allow sufficient time for the mop to heat up (approx. 15 seconds).
  • The appliance may require descaling if mineral buildup is present.
• Poor Cleaning Performance:
  • Ensure the cleaning pad is clean and properly attached.
  • Select a higher steam setting for tougher dirt.
  • Replace worn-out cleaning pads.
• Water Leaking:
  • Ensure the water tank cap is securely closed.
  • Do not overfill the water tank.

For more detailed troubleshooting or persistent issues, please contact Vileda customer support.

8. Specifications

9. Warranty and Support

Your Vileda Steam Plus Pro XXL Steam Mop comes with a manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Vileda website for detailed information regarding warranty terms and conditions.

For technical support, spare parts, or any other inquiries, please contact Vileda customer service through their official website or the contact information provided in your product packaging.
