1. Product Overview
The Mirightone King Storage Bed Frame combines a modern farmhouse design with practical features for an enhanced bedroom experience. This platform bed includes a tall paneled headboard, integrated USB and Type-C charging ports, adjustable LED lighting, and two spacious under-bed storage drawers. Constructed from solid pine wood, plywood, and MDF, it offers robust support without the need for a box spring.

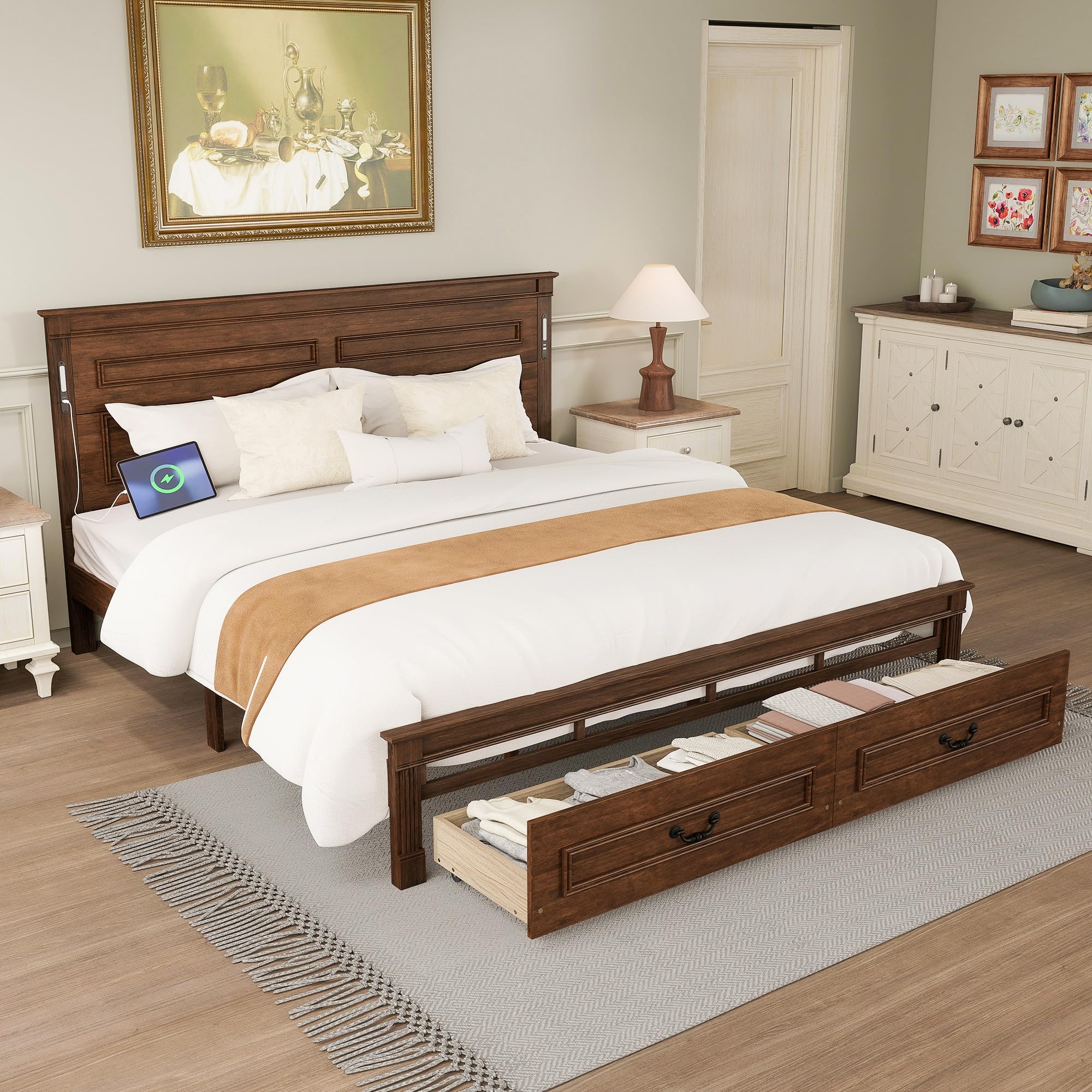

Image 1.1: Overview of the Mirightone King Storage Bed Frame with drawers and headboard features.
Key Features:
- Tall Farmhouse Panel Headboard: Provides aesthetic appeal and comfortable back support.
- Integrated Charging Station: Dual USB and Type-C ports on both sides of the headboard.
- Adjustable LED Lighting: Built into the headboard for convenient illumination.
- Two Extra-Large Storage Drawers: Located at the footboard for organized storage.
- Heavy-Duty Solid Wood Structure: Supports up to 500 lbs with 10 sturdy slats and reinforced legs.
- No Box Spring Required: Platform design directly supports the mattress.
2. Safety Information
Please read and understand all safety warnings before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Do not load more than 500 pounds onto the bed frame.
- Exercise caution around sharp edges during assembly and use.
- Always follow the assembly instructions carefully to prevent instability or collapse.
- Ensure all connections are securely tightened before use.
- Keep small parts away from children during assembly.
3. Package Contents
Your Mirightone King Storage Bed Frame is delivered in two separate packages. Please ensure all components are present before beginning assembly. Refer to the included parts list in your physical manual for detailed identification.
Included Components:
- Bed Frame components (Headboard, Footboard, Side Rails)
- Slats and support legs
- Two Storage Drawers
- Hardware pack (screws, bolts, tools)
- USB/Type-C charging unit and LED light strips
- Assembly Instructions Guide
4. Setup and Assembly
Assembly is required for this bed frame. It is recommended to have two people for assembly. Follow the step-by-step instructions provided in the physical assembly guide included in your package. All parts are labeled, and hardware is provided.
General Assembly Steps:
- Unpack all components and verify against the parts list.
- Assemble the headboard and footboard sections.
- Attach the side rails to the headboard and footboard using the bolt-on rail system.
- Install the center support beam and legs.
- Place the wooden slats evenly across the frame and secure them.
- Assemble the two storage drawers and insert them into the footboard.
- Connect the USB charging station and LED lighting power supply.
Image 4.1: Product dimensions for assembly planning. Overall dimensions: L 84.12" x W 79.12" x H 46".
Image 4.2: Detail of the 10 strong slats and bolt-on rail support system.
Image 4.3: View of the assembled bed frame structure, showing slats and integrated drawers.
5. Operating Instructions
5.1. USB and Type-C Charging Station
The headboard features dual USB and Type-C charging ports on both sides. To use, ensure the bed frame's power cord is plugged into a wall outlet. Connect your devices to the appropriate USB or Type-C port for charging.
Image 5.1: Close-up of the integrated USB and Type-C charging ports on the headboard.
5.2. Smart LED Lighting
The headboard includes integrated LED lights. The control button is located on the headboard. Ensure the bed frame's power cord is connected.
- Short Press: Press the button briefly to turn the LED lights ON or OFF.
- Long Press: Press and hold the button to adjust the brightness level of the LED lights.
Image 5.2: Illustration of the Smart LED light control button and its functions.
Image 5.3: Visual comparison of the bedroom ambiance with LED lights off (Day) and on (Night).
5.3. Storage Drawers
The two large storage drawers are located at the footboard. They are designed to roll out smoothly for easy access. Pull the handles to open and push to close. Ensure items stored within do not obstruct the drawer mechanism.
Image 5.4: The bed frame with one storage drawer partially pulled out, showing internal capacity.
5.4. Product Video Overview
Video 5.1: An official product video demonstrating the features of the Mirightone Storage Bed Frame, including the charging station and storage drawers.
6. Maintenance
Proper care and maintenance will extend the life and appearance of your bed frame.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners. For the antique walnut finish, use furniture polish suitable for wood.
- Tightening Hardware: Periodically check all bolts and screws and tighten them as needed to ensure stability.
- Drawer Maintenance: Keep drawer tracks free of debris to ensure smooth operation.
- LED Lights: If LED lights malfunction, check the power connection. Do not attempt to replace individual LED components; contact customer support if issues persist.
- USB Ports: Keep ports clean and free of dust. Avoid inserting foreign objects.
Image 6.1: The bed frame features an easy-to-clean antique walnut headboard and a wear-resistant finish.
7. Troubleshooting
If you encounter any issues with your bed frame, refer to the following common troubleshooting steps.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or squeaks. | Loose hardware; uneven floor. | Tighten all bolts and screws. Ensure the bed is on a level surface. |
| LED lights not working. | Power cord disconnected; faulty connection. | Check if the power cord is securely plugged into the wall and the bed frame. Ensure all internal connections for the LED strip are firm. |
| USB/Type-C ports not charging. | Power cord disconnected; device compatibility; faulty port. | Verify the bed frame is powered. Try a different device or cable. Ensure the device is compatible with USB charging. |
| Storage drawers are difficult to open/close. | Obstruction in track; uneven floor; overloaded drawer. | Check for any objects blocking the drawer tracks. Ensure the bed frame is level. Reduce the weight or volume of items in the drawer. |
8. Specifications
| Feature | Detail |
|---|---|
| Product Type | Farmhouse Style Platform Bed |
| Size | King |
| Color | Walnut With Storage |
| Material | Solid Pine Wood, Plywood, MDF (Engineered Wood) |
| Overall Dimensions (L x W x H) | 84.4" x 79.1" x 46" |
| Weight Capacity | 500 lbs |
| Number of Slats | 10 pcs |
| Box Spring Required | No |
| Suggested Mattress Thickness | ≤10 inches |
| Assembly Required | Yes |
| Included Components | Bed Frame, Headboard, Drawers, Slats |
| Special Features | Built-in LED Lights, Storage Drawers, Tall-Panel Headboard, USB/Type-C Ports |
| Item Weight | 123.5 Pounds |
9. Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact Mirightone customer service directly. Keep your purchase receipt for warranty claims.
Contact Information:
- Refer to your purchase documentation for specific contact details.
- Visit the official Mirightone website for support resources.
