Jocisland Queen Canopy Bed Frame with Velvet Upholstered Headboard - Instruction Manual

Introduction

Thank you for choosing the Jocisland Queen Canopy Bed Frame. This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new bed frame. Please read this manual thoroughly before beginning assembly and retain it for future reference.

This canopy bed frame features a velvet upholstered headboard, a sturdy four-poster design, and a built-in USB charging station for convenience.

Safety Information

• Keep all small parts and packaging materials away from children and pets to prevent choking hazards.
• Assemble the bed frame on a soft, clean surface (e.g., carpet) to prevent scratches.
• It is highly recommended that two adults assemble this bed frame for safety and ease.
• Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten all connections.
• Do not exceed the maximum weight capacity of 1300 lbs.
• Do not stand or jump on the bed frame.

Package Contents

Please verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.

• Canopy frame components
• Charging Station (USB-A, USB-C, Power Outlets)
• Headboard (Velvet Upholstered)
• Installation Manual (this document)
• Slat system components
• All necessary tools (Allen wrench, etc.)

Setup and Assembly

Follow these steps for a smooth and efficient assembly process:

1. Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the parts list in your separate assembly diagram to identify each piece.
2. Prepare Tools: For easier and faster assembly, a cordless drill with Phillips and Allen wrench bits is recommended, in addition to the provided tools.
3. Initial Assembly (Loose Fit): Begin assembling the main frame components. Install all bolts loosely first. This allows for flexibility and easier alignment of parts.
4. Assemble Base Frame: Connect the side rails to the headboard and footboard. Ensure the anti-noise EVA pads are correctly positioned on the slat system to prevent creaking.
5. Install Slats: Securely attach the reinforced slat system to the bed frame.
6. Attach Canopy Posts: Connect the four canopy posts to the bed frame.
7. Install Crossbeams: Attach the top crossbeams to complete the canopy structure.
8. Install Charging Station: Integrate the built-in USB-A, USB-C, and power outlets into the designated slot on the headboard. Ensure the power cord is routed safely.
9. Final Tightening: Once all components are properly positioned and aligned, fully tighten all bolts and screws. Do not overtighten.

Figure 1: Overall dimensions and specifications of the Jocisland Queen Canopy Bed Frame.

Figure 2: Side profile illustrating the 74.8-inch tall canopy and 51.2-inch headboard height.

Figure 3: Demonstration of the stable crossbeam structure, capable of supporting light decor.

Operating the Charging Station

Your Jocisland bed frame includes a convenient built-in charging station in the headboard.

• Power Connection: Ensure the bed frame's power cord is securely plugged into a functional wall outlet.
• USB Ports: Use the USB-A and USB-C ports to charge compatible electronic devices such as smartphones and tablets.
• Power Outlets: The two standard power outlets can be used for small electronics or lamps. Do not overload the outlets.

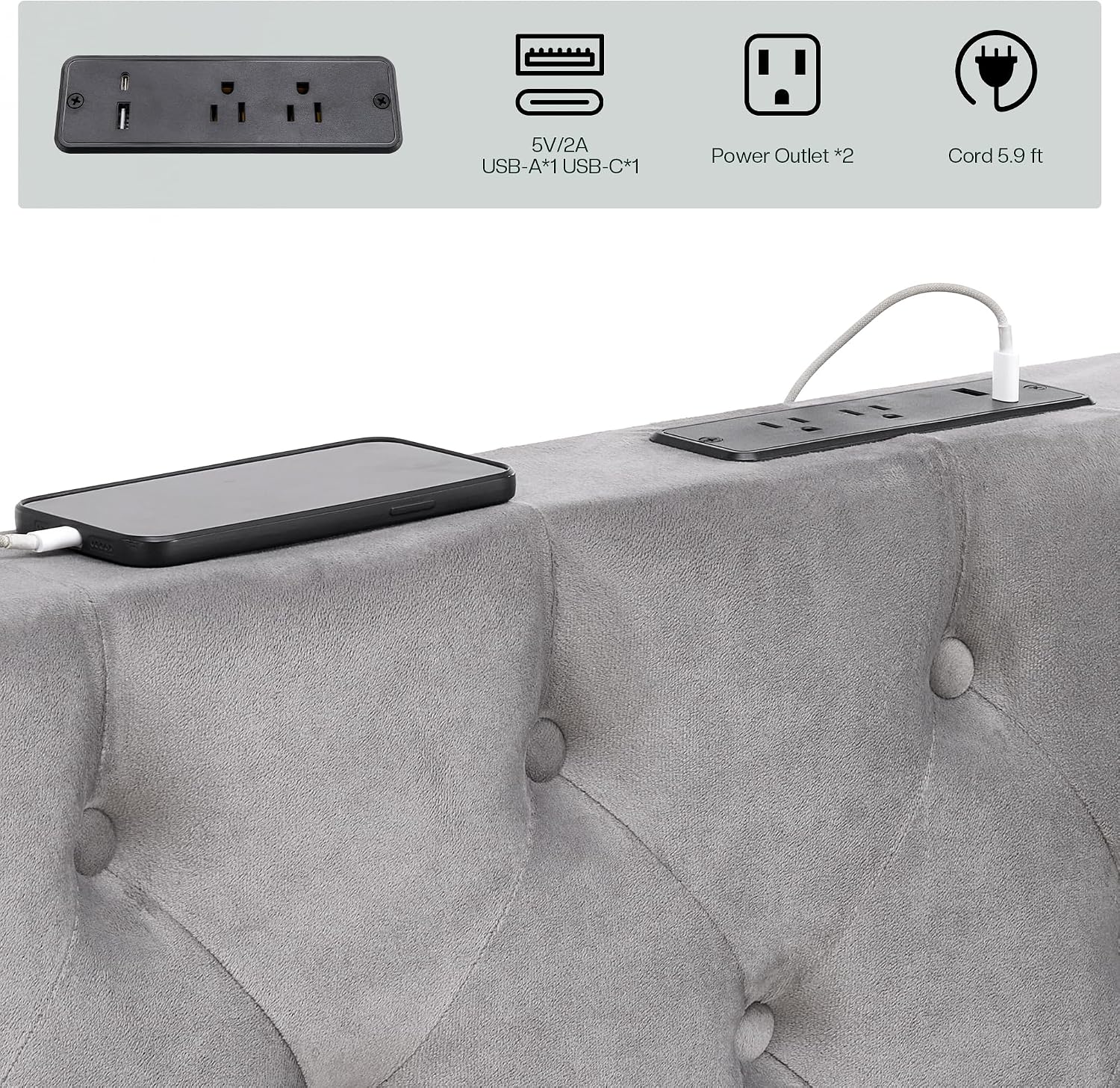

Figure 4: Close-up of the integrated USB-A, USB-C, and power outlets in the headboard.

Maintenance

Proper care will ensure the longevity and appearance of your bed frame.

• Cleaning the Velvet Upholstery: For general cleaning, wipe the velvet with a dry cloth. For spills or stains, gently wipe with a damp cloth and mild soap, then blot dry immediately. Avoid harsh chemicals.
• Frame Cleaning: Wipe the engineered wood frame components with a damp cloth, then dry thoroughly.
• Bolt Check: Periodically (every 3-6 months) check all bolts and connections and re-tighten as necessary to maintain structural integrity and prevent wobbling or creaking.
• Slat System: Ensure the anti-noise EVA pads on the slats remain in place to prevent friction and noise.

Troubleshooting

If you encounter any issues with your bed frame, refer to the following common solutions:

• Wobbling or Instability:
  Solution: Ensure all bolts and screws are fully tightened. Re-check the assembly steps to confirm all components are correctly installed. The reinforced cross beams and thickened posts are designed for stability, so proper assembly is key.
• Squeaking Noises:
  Solution: Squeaking is often caused by loose connections or friction. Re-tighten all bolts. Verify that the anti-noise EVA pads on the slat system are properly positioned and intact.
• USB Charging Station Not Working:
  Solution: Check if the bed frame's main power cord is securely plugged into a live wall outlet. Ensure your device's charging cable is fully inserted into the USB port or power outlet. Test with a different device or cable to rule out device-specific issues.
• Missing Parts:
  Solution: If you discover missing parts during assembly, please contact Jocisland customer support immediately with your purchase details.

Specifications

Warranty and Support

Jocisland stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or contact the retailer where the product was purchased.

If you require further assistance, have questions about assembly, or need to report missing/damaged parts, please contact Jocisland customer support through the retailer's platform or the official Jocisland website. Please have your model number (BUB137) and purchase information ready when contacting support.
