PURPLE LEAF 8' x 14' Louvered Pergola with Lights Instruction Manual

Introduction

Thank you for choosing the PURPLE LEAF 8' x 14' Louvered Pergola with Lights. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. This pergola is designed to enhance your outdoor living space with its adjustable louvered roof, integrated lighting, and robust aluminum construction.

Key features include:

• Aluminum Louvered Roof: Thick, reinforced aluminum louvers rotate from 0° to 85° to adjust shade and airflow. Designed to handle snow loads up to 8.2 psf.
• Efficient Drainage System: Integrated gutters and downspouts channel rainwater through the posts, preventing pooling.
• Strong All-Aluminum Frame: High-strength, powder-coated aluminum frame resists rust and corrosion, engineered to withstand winds up to 70 mph.
• Reinforced 4.53" Support Poles: Oversized aluminum poles provide superior strength and structural balance.
• Integrated Lighting: Includes lights for enhanced ambiance.

Safety Information

Please read and understand all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Assembly Safety: Always assemble with at least three people. Wear appropriate safety gear, such as gloves and eye protection. Ensure all parts are correctly aligned and securely fastened.
• Level Surface: Install the pergola on a completely level surface to ensure stability and proper drainage. Uneven surfaces can compromise the structure's integrity and lead to water accumulation.
• Anchoring: Securely anchor the pergola to the ground or deck using appropriate hardware for your specific surface type. This is crucial for wind resistance.
• Weather Conditions: While designed for durability, extreme weather conditions (e.g., severe storms, heavy snowfall beyond specified limits) may require additional precautions or temporary disassembly. Monitor weather forecasts.
• Electrical Safety: For models with integrated lighting, ensure all electrical connections are made according to local codes and by a qualified professional if necessary. Keep electrical components dry.
• Children and Pets: Keep children and pets away from the assembly area. Do not allow climbing on the pergola structure.

Package Contents

Refer to the detailed packing list included with your product for a complete inventory of all components, hardware, and tools required for assembly. Verify all parts are present and undamaged before beginning assembly.

Setup

The PURPLE LEAF Louvered Pergola is designed for straightforward assembly. Detailed, step-by-step instructions are provided in the separate assembly manual included with your purchase. Please follow those instructions carefully.

Key Assembly Considerations:

• Site Preparation: Ensure the installation area is level and clear of obstructions. A level surface is critical for the pergola's stability and the proper function of its drainage system.
• Team Assembly: Due to the size and weight of components, assembly requires a minimum of three people for safety and efficiency.
• Component Inspection: Before starting, inspect all parts for any damage. If a post is dented, consider its placement to minimize visual impact.
• Anchoring: Once assembled, securely anchor the pergola to your chosen surface (concrete, wood deck, etc.) using appropriate anchors.

Image: The PURPLE LEAF 8' x 14' Louvered Pergola with Lights, showcasing its design and integrated lighting in an outdoor setting.

Image: A visual comparison illustrating the robust 4.53" x 4.53" upgraded support poles, designed for enhanced stability and wind resistance.

Image: Detail of the upgraded support beam, measuring 5.28 inches, which contributes to greater load-bearing strength.

Operating Instructions

Your PURPLE LEAF Louvered Pergola offers adjustable features for optimal comfort and protection.

• Louvered Roof Adjustment: The aluminum louvers can be rotated from 0° (fully open) to 85° (nearly closed) using the integrated crank mechanism. Adjust the angle to control sunlight exposure and airflow. For full rain protection, close the louvers completely.
• Drainage System: The pergola features an internal drainage system. Rainwater collected on the closed louvers is channeled into integrated gutters and then down through the hollow support posts, exiting at the base. Ensure the pergola is installed on a level surface for efficient water runoff.
• Integrated Lights: The pergola includes integrated lights. Refer to the specific electrical connection and operation instructions provided in your assembly manual for details on how to power and control these lights.

Image: An aerial view demonstrating the two independent adjustable roof sections, allowing for customized shade and weather protection.

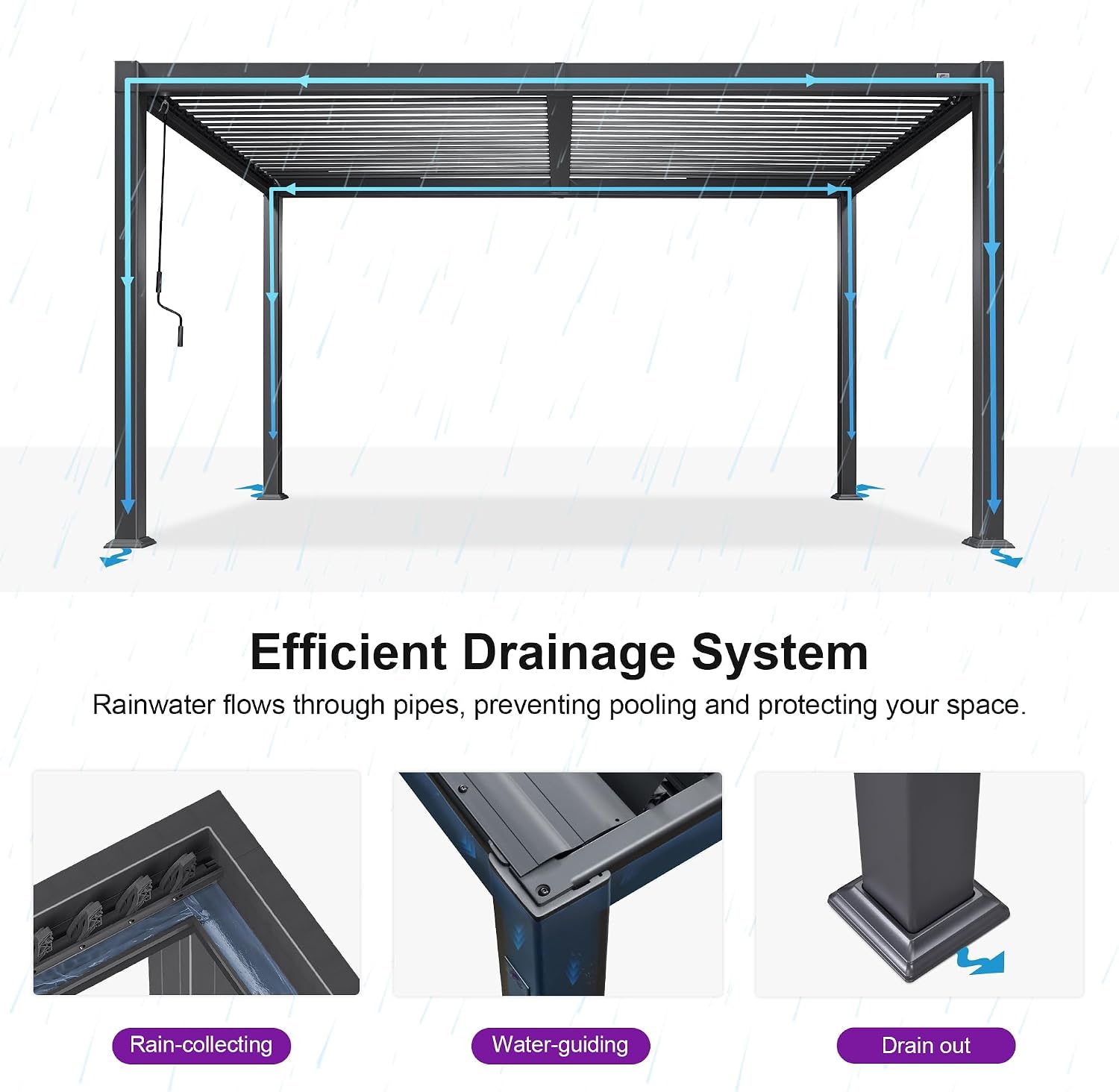

Image: A diagram detailing the efficient drainage system, where rainwater is collected and guided through the pergola's structure and out the base of the posts.

Image: The pergola's high wind-resistant design, capable of withstanding winds up to 70 mph when properly installed.

Maintenance

Regular maintenance will ensure the longevity and optimal performance of your pergola.

• Cleaning: Clean the aluminum frame and louvers periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating. Rinse thoroughly with clean water.
• Drainage System: Periodically check the internal gutters and post drainage channels for debris (leaves, dirt) and clear them to ensure efficient water flow.
• Hardware Inspection: Annually, inspect all bolts, screws, and anchoring points to ensure they remain tight and secure. Tighten any loose fasteners.
• Louver Mechanism: Keep the louver adjustment mechanism clean and free of debris. Lubricate moving parts if necessary, using a silicone-based lubricant.
• Winter Care: While the louvers are designed to handle snow loads, it is recommended to clear excessive snow accumulation to prevent potential damage. Ensure louvers are fully open or closed as per manufacturer recommendations for winter conditions.

Troubleshooting

This section addresses common issues you might encounter with your pergola.

• Water Pooling on Roof: Ensure the pergola is installed on a level surface. Check if the louvers are fully closed during rain. Inspect drainage channels within the posts and gutters for blockages and clear any debris.
• Louvers Not Adjusting Smoothly: Check for any obstructions in the louver mechanism. Clean the tracks and moving parts. If the issue persists, lubricate with a silicone spray. If a specific part is damaged, contact customer support.
• Pergola Feels Unstable: Verify that all assembly bolts are tightened. Re-check the anchoring to the ground or deck. Ensure the installation surface is level. High winds can cause movement; ensure the pergola is rated for your local wind conditions and properly anchored.
• Lights Not Working: Check power connections and ensure the power source is active. Inspect wiring for any visible damage. Refer to the electrical section of your assembly manual for specific troubleshooting steps for the lighting system.

For issues not covered here, or if troubleshooting steps do not resolve the problem, please refer to the comprehensive assembly manual or contact PURPLE LEAF customer support.

Specifications

Image: Technical drawing showing the overall dimensions and key measurements of the pergola, including column and anchor sizes.

Warranty & Support

Warranty Information: Your PURPLE LEAF Louvered Pergola includes a 1-year frame warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship of the frame. Please retain your proof of purchase for warranty claims.

Customer Support: For any questions regarding assembly, operation, maintenance, or warranty claims, please contact PURPLE LEAF customer service. Refer to the contact information provided in your product packaging or on the official PURPLE LEAF website. When contacting support, please have your model number (8' x 14' Louvered Pergola with Lights) and ASIN (B0GMPW8C4L) ready.
