AECOJOY 8' x 5' Hardtop Grill Gazebo Instruction Manual

Introduction

This manual provides essential instructions for the safe assembly, operation, maintenance, and troubleshooting of your AECOJOY 8' x 5' Hardtop Grill Gazebo. Please read this manual thoroughly before beginning assembly or use to ensure proper function and longevity of your product. Keep this manual for future reference.

Safety Information

WARNING: Failure to follow these safety instructions may result in injury or property damage.

• Ensure the gazebo is securely anchored to a stable foundation. Proper anchoring is critical to prevent the gazebo from overturning in windy conditions.
• Do not exceed the recommended occupancy of 5 persons under the gazebo at any time.
• Follow the assembly instructions carefully to avoid injury. Two people are recommended for safe and efficient assembly.
• Regularly inspect all bolts and connections to ensure they remain tight and secure.
• In conditions of extreme weather, such as very high winds (exceeding 80 MPH) or heavy snowfall (exceeding 20 inches), it is advisable to take additional precautions or temporarily disassemble the roof panels if possible, to prevent structural damage.
• Keep open flames and heat sources at a safe distance from the gazebo structure, especially when grilling.

Product Overview

The AECOJOY 8' x 5' Hardtop Grill Gazebo is designed to provide a durable and protective outdoor shelter. Constructed with a galvanized steel hardtop roof and an aluminum frame, it offers robust protection against various weather conditions.

Key Features:

• Durable Construction: Features a heavy-duty frame made from aluminum and alloy steel, with a galvanized steel hardtop roof.
• Weather Resistance: Engineered to withstand winds up to 80 MPH and support up to 20 inches of heavy snow. The roof is waterproof and fire-resistant.
• UV Protection: Provides 100% UV blockage, creating a fully shaded area for comfort.
• Integrated Drainage: Designed with smooth drainage to prevent water accumulation on the roof.

Image: Roof features including sun-block, waterproof, and wind resistance.

Image: Visual representation of UV protection, hail resistance, and snow load capacity.

Assembly Instructions

Assembly of the AECOJOY Hardtop Grill Gazebo requires careful attention to detail. It is highly recommended that two people perform the assembly to ensure safety and ease of installation.

Before You Begin:

1. Unpack and Identify Parts: Carefully unpack all components and lay them out. Compare them against the parts list provided in your separate user-friendly guide to ensure all pieces are present and undamaged.
2. Review Instructions: Read through the entire assembly guide and any detailed manuals provided. Familiarize yourself with the steps and diagrams before starting.
3. Gather Tools: Ensure you have all necessary tools as specified in the assembly guide.
4. Site Preparation: Choose a level and stable location for your gazebo. Ensure adequate clearance around the structure.

General Assembly Steps:

• Assemble the main frame structure according to the numbered steps in your guide.
• Attach the roof support beams and then the galvanized steel roof panels. Pay close attention to the orientation of the panels and ensure all seals are properly seated.
• Securely fasten the gazebo to your chosen foundation using appropriate anchoring hardware. For wall-mounted models, ensure the wall provides sufficient support.

Note: If you encounter any issues with missing or incorrect parts, or if you require assistance with assembly, please contact AECOJOY customer support immediately. Refer to the 'Warranty and Support' section for contact information.

Image: Dimensions diagram for the 8' x 5' Hardtop Gazebo.

Operating Instructions

Your AECOJOY Hardtop Grill Gazebo is designed for outdoor use, providing a shaded and protected area for grilling, dining, or relaxation.

• Grilling Area: Position your grill or outdoor cooking equipment centrally within the gazebo to allow for proper ventilation and to prevent heat damage to the structure.
• Sun Protection: Enjoy the full UV protection provided by the hardtop roof, which creates a comfortable shaded environment.
• Weather Protection: The waterproof roof and sturdy frame offer protection from rain and moderate winds. Ensure the gazebo is properly anchored for stability during windy conditions.
• Snow Load: The galvanized hardtop is designed to handle significant snow loads. However, in regions with extremely heavy or prolonged snowfall, it is recommended to periodically clear accumulated snow to prevent excessive stress on the structure.

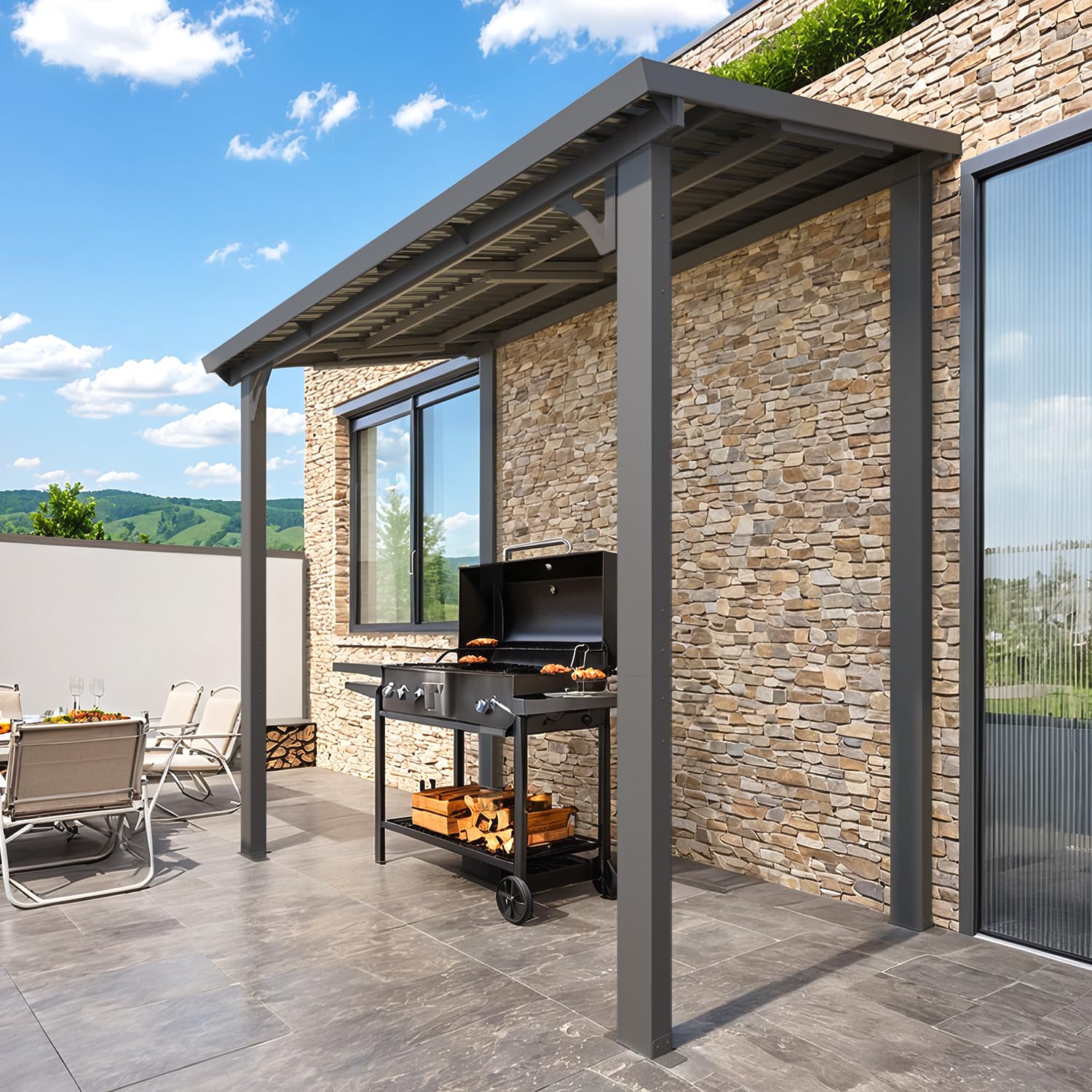

Image: AECOJOY Hardtop Grill Gazebo in use with a grill.

Image: Gazebo demonstrating its ability to withstand snow.

Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

• Cleaning: Clean the frame and roof panels periodically with a mild soap and water solution. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners or scrub brushes that could damage the finish.
• Hardware Check: Annually, or more frequently if exposed to harsh weather, inspect all bolts, screws, and connections. Tighten any loose hardware to maintain structural integrity.
• Roof Inspection: Check roof panels for any signs of damage, corrosion, or loose fasteners. Ensure proper drainage is maintained by clearing any debris from the roof and gutters.
• Winter Care: While the gazebo is designed for snow loads, it is advisable to remove heavy accumulations of snow to prevent potential damage, especially during prolonged periods of freezing temperatures.

Troubleshooting

This section addresses common issues you might encounter.

• Gazebo feels wobbly after assembly:
  Solution: Ensure all bolts and fasteners are fully tightened. Verify that the gazebo is anchored securely to a level and stable surface. Recheck the assembly steps to confirm all components are correctly installed.
• Water leakage from the roof:
  Solution: Inspect the roof panels and their seals. Ensure all panels are correctly seated and that the waterproof washers are properly installed and not deformed. If necessary, apply a suitable outdoor sealant to seams.
• Missing or incorrect parts:
  Solution: Immediately contact AECOJOY customer support with your model number and a detailed description of the missing or incorrect parts. Do not attempt to force incompatible parts together.
• Difficulty inserting roof panels:
  Solution: Ensure you are using the correct panels for the designated slots. Sometimes, slight adjustments to the frame's alignment may be necessary. If a felt seal comes out, carefully reinsert it. If issues persist, contact customer support.

Specifications

Warranty and Support

AECOJOY is committed to providing quality products and customer satisfaction. Your gazebo is backed by our commitment to maintenance and replacements for eligible issues.

For any questions regarding installation, usage, missing parts, or warranty claims, please contact our professional support team. Our team is available 24/7 to assist you.

Contact Information:
Please refer to the contact details provided with your purchase documentation or visit the AECOJOY official website for the most current support information.
