U-MAX 14' x 8' Hardtop Gazebo Outdoor Pergola Instruction Manual

1. Product Overview

This manual provides essential information for the assembly, operation, and maintenance of your U-MAX 14' x 8' Hardtop Gazebo Outdoor Pergola. Designed for outdoor use, this structure offers a durable and shaded area for your garden or patio.

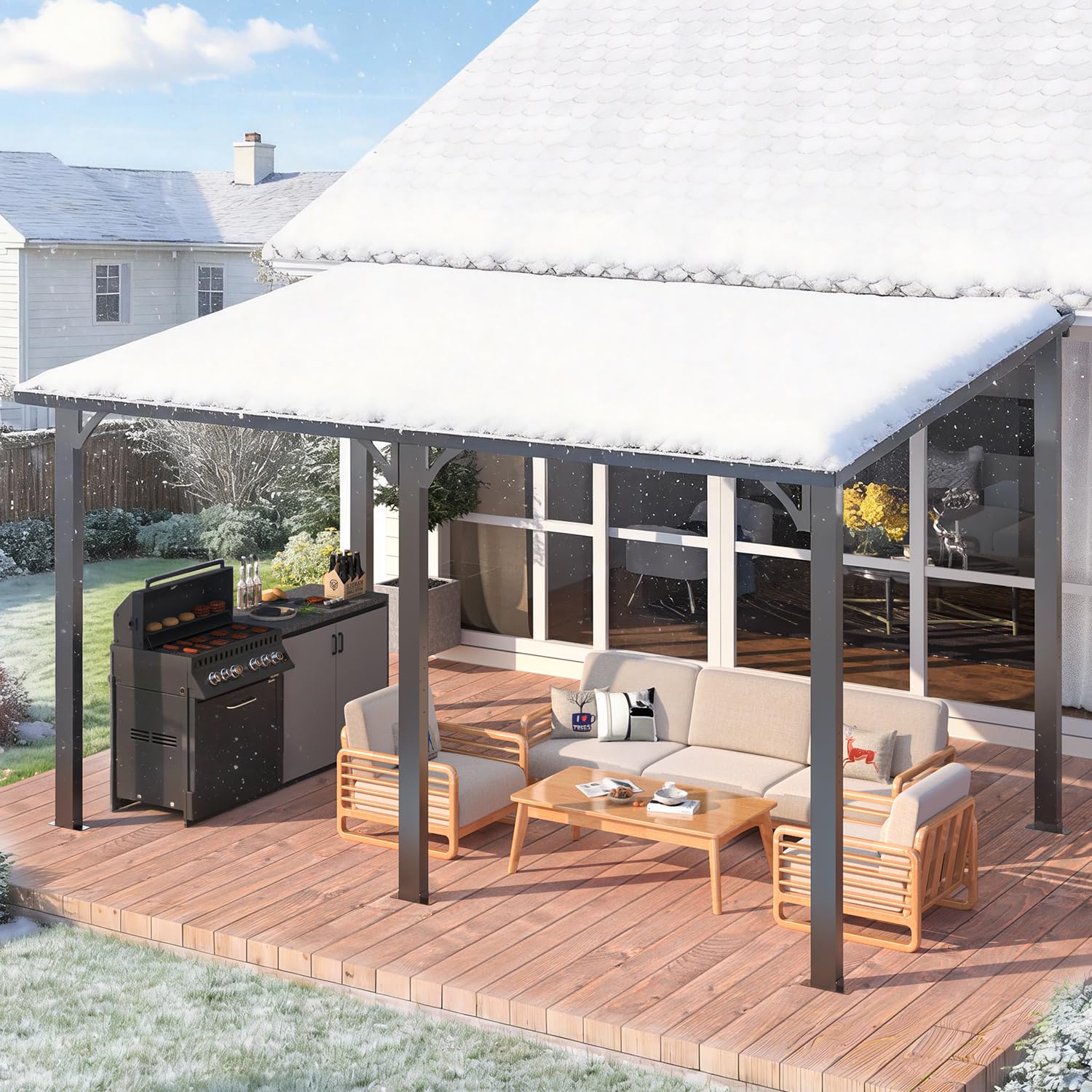

Figure 1: U-MAX 14' x 8' Hardtop Gazebo Outdoor Pergola in a patio setting.

Key Features:

• Durable Construction: Crafted from galvanized steel and aluminum, designed to withstand winds exceeding 80 MPH.
• Weather Resistance: Hardtop roof handles up to 20 inches of heavy snow and offers complete UV protection.
• Wall-Mounted Design: Combines features of canopy awnings and freestanding gazebos for versatile placement.
• Easy Assembly: Supported by a user-friendly guide, detailed manuals, and video tutorials.

2. Safety Information

Please read and understand all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Ensure all components are securely fastened before use.
• Do not climb on the gazebo structure.
• Regularly inspect the gazebo for any loose parts or damage.
• In extreme weather conditions (e.g., severe storms, heavy snowfall beyond specified limits), take necessary precautions to secure or clear the structure.
• Keep children and pets away from the assembly area during installation.
• Always use appropriate safety gear during assembly.

3. Package Contents

Before beginning assembly, verify that all parts listed in the packing list are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

Figure 2: Gazebo dimensions and structural overview.

The gazebo typically comes in multiple boxes. Do not be alarmed if not all boxes arrive simultaneously. Refer to the detailed parts list provided in your physical manual for a complete inventory.

4. Setup and Assembly

Assembly requires at least two people. Follow the step-by-step instructions provided in the included user manual. Video tutorials are also available for visual guidance.

4.1 Site Preparation

• Choose a level surface for installation.
• Ensure adequate clearance around the gazebo for safe use and maintenance.
• For wall-mounted installation, ensure the wall is structurally sound and capable of supporting the gazebo's weight and wind loads.

4.2 Assembly Steps (General Guidelines)

1. Unpack all components and lay them out, verifying against the parts list.
2. Assemble the main frame structure according to the diagrams.
3. Attach the wall-mounting brackets to the designated wall, ensuring proper alignment and secure fastening.
4. Install the roof panels, ensuring they are correctly seated and sealed for weather protection.
5. Secure the gazebo to the ground using appropriate anchors (not always included, check manual).

Figure 3: Example of wall-mounted installation.

5. Operation and Use

Your U-MAX gazebo provides a comfortable and protected outdoor space. Enjoy its features while adhering to safety guidelines.

• The galvanized steel roof offers 100% UV protection, creating a shaded area for relaxation and gatherings.
• The hardtop design is built to withstand various weather conditions, including rain and snow.
• Ensure proper drainage around the base to prevent water accumulation.

6. Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

6.1 Cleaning

• Clean the frame and roof panels with mild soap and water. Rinse thoroughly.
• Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Periodically clear debris from the roof to maintain proper drainage.

6.2 Seasonal Care

• Snow Load: The hardtop is designed to handle up to 20 inches of snow. In regions with heavier snowfall, it is recommended to clear excessive snow from the roof to prevent structural stress.
• Wind Resistance: The gazebo is engineered for winds exceeding 80 MPH. Ensure all anchors are secure, especially before anticipated high winds.
• Inspect all bolts and connections annually and tighten as needed.

Figure 4: Weather resistance features of the gazebo.

Figure 5: Detailed view of the roof construction and its protective properties.

7. Troubleshooting

This section addresses common issues you might encounter.

8. Specifications

9. Warranty and Customer Support

U-MAX provides a 1-year warranty on this product. For any questions, missing parts, or technical assistance, please contact U-MAX customer support. Our expert tech team is available for lifetime 24/7 remote support.

Refer to your purchase documentation for specific contact details or visit the official U-MAX website.
