1. Introduction
Thank you for choosing the Mova S70 Roller Robot Vacuum Mop. This advanced cleaning device is designed to provide efficient and thorough cleaning of your home's floors, combining powerful vacuuming with fresh water mopping. Featuring HydroForce washing, 28,000 Pa suction, MaxiReach edge cleaning, and a slim 90mm profile, the S70 Roller ensures comprehensive coverage. Its intelligent base station offers automatic hot water self-cleaning and hot air drying for the roller brush, simplifying maintenance. Please read this manual carefully to ensure proper use, maintenance, and optimal performance of your robot vacuum mop.
2. Safety Information
Before operating the Mova S70 Roller, please observe the following safety precautions:
- Read all instructions before use.
- Keep the robot and its accessories away from children and pets.
- Do not use the robot in wet environments or near water sources.
- Ensure the charging station is placed on a flat, stable surface and connected to a suitable power outlet.
- Do not use unauthorized chargers or batteries.
- Avoid using the robot on high-pile carpets or uneven surfaces that may cause it to get stuck.
- Clear any loose cables, small objects, or fragile items from the cleaning path to prevent damage or entanglement.
- Do not sit or stand on the robot.
- Turn off the robot and unplug the charging station before performing any maintenance or cleaning.
3. Package Contents
Carefully unpack the box and ensure all items are present and in good condition. If any items are missing or damaged, please contact Mova customer support.

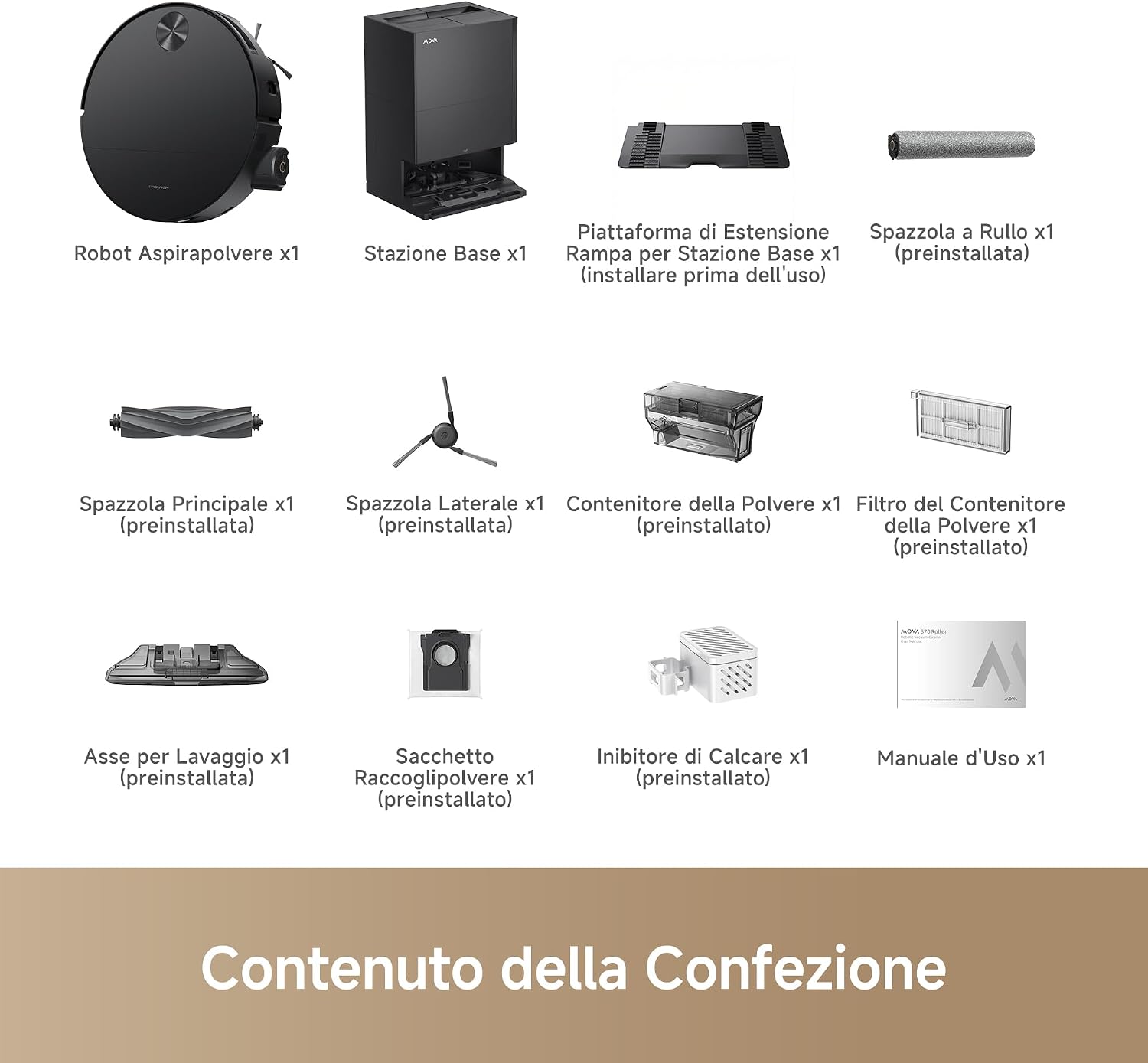

Image: All components included in the Mova S70 Roller package.
- Robot Vacuum Mop (x1)
- Base Station (x1)
- Extension Ramp for Base Station (x1, install before use)
- Roller Brush (x1, pre-installed)
- Main Brush (x1, pre-installed)
- Side Brush (x1, pre-installed)
- Dust Bin (x1, pre-installed)
- Dust Bin Filter (x1, pre-installed)
- Mopping Plate (x1, pre-installed)
- Dust Collection Bag (x1, pre-installed)
- Scale Inhibitor (x1, pre-installed)
- User Manual (x1)
4. Product Overview
4.1. Key Features
- HydroForce Washing System: Utilizes dynamic water flow and 4700 Pa downward pressure to keep the roller clean and effectively remove stains.
- Powerful 28,000 Pa Suction: High-speed motor provides strong yet quiet suction, enhanced by TroboWave DuoBrush for efficient debris collection.
- MaxiReach Technology: Extendable side brush and roller ensure thorough edge-to-edge cleaning.
- 90mm Ultra-Thin Body: Integrated dToF sensor allows the robot to navigate and clean under low furniture.
- High-Capacity Water Tank: Cleans up to 1200 m² on a single fill, offering extended autonomy.
- 80°C Hot Water Self-Cleaning: The base station heats water to 80°C (176°F) to sanitize the roller brush, removing stubborn stains and bacteria. Additional temperature options (ambient, 45°C, 60°C) are available.
- Automatic Hot Air Drying: The base station dries the roller brush at 70°C to prevent odors and mildew.
- Automatic Dust Emptying: The base station automatically empties the robot's dust bin into a 3.2L dust collection bag, providing up to 100 days of hands-free maintenance.
- CovertSense Navigation: Precise dToF laser mapping for efficient navigation and obstacle avoidance.
4.2. Components
The Mova S70 Roller consists of the robot unit and the all-in-one base station.
Image: Mova S70 Roller Robot Vacuum Mop and its all-in-one base station.
The robot unit features a main roller brush, a side brush, a dToF laser sensor for navigation, and a 150ml internal water tank. The base station houses the clean water tank (5L), dirty water tank, dust collection bag, and mechanisms for roller self-cleaning, drying, and automatic dust emptying.
5. Setup
5.1. Base Station Placement
Place the base station on a hard, level surface against a wall, ensuring there is at least 0.5 meters of clear space on both sides and 1.5 meters in front. Avoid placing it near stairs or in areas with direct sunlight. Connect the power cord to the base station and plug it into a wall outlet.
5.2. Initial Charging
Place the robot onto the charging contacts of the base station. Ensure the robot is properly docked. The robot will begin charging automatically. For first-time use, fully charge the robot before operation.
5.3. Filling Water Tanks
Open the lid of the base station and remove the clean water tank. Fill it with clean tap water up to the MAX line. Reinsert the tank securely. The dirty water tank should be empty before starting a cleaning cycle.
Image: High capacity water tanks for extended cleaning.
5.4. App Installation and Connection
Download the Mova app from your smartphone's app store. Follow the in-app instructions to connect your Mova S70 Roller to your home Wi-Fi network. The app allows for advanced control, scheduling, and monitoring of cleaning tasks.
Image: Immersive app animations for real-time mapping and control.
6. Operating Instructions
6.1. Starting a Cleaning Cycle
Press the power button on the robot or use the Mova app to start a cleaning cycle. The robot will automatically leave the base station, map your home using its dToF laser, and begin cleaning.
Image: Complete mapping and precise navigation using dToF laser.
6.2. Cleaning Modes
The Mova S70 Roller offers various cleaning modes accessible via the app:
- Vacuum Only: For dry debris collection.
- Mop Only: For wet cleaning with the HydroForce system.
- Vacuum & Mop: Simultaneous vacuuming and mopping.
- Zone Cleaning: Select specific areas on the map to clean.
- Spot Cleaning: Focuses on a small, concentrated area.
6.3. Stopping/Pausing a Cycle
Press the power button or use the app to pause or stop a cleaning cycle. The robot will return to the base station if paused or stopped.
6.4. Voice Control
The Mova S70 Roller supports voice control through compatible smart home assistants. Refer to the app for instructions on integrating with your preferred voice assistant.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Mova S70 Roller.
7.1. Base Station Self-Maintenance
The all-in-one base station automates several maintenance tasks:
- Automatic Roller Brush Cleaning: The base station washes the roller brush with 80°C hot water after each cleaning cycle.
- Automatic Hot Air Drying: The roller brush is dried with 70°C hot air to prevent bacterial growth and odors.
- Automatic Dust Emptying: The robot's dust bin is automatically emptied into the base station's 3.2L dust collection bag. Replace the bag when full (approximately every 100 days).
Image: Auto-maintenance features of the base station, including hot air drying, water refill, and dust emptying.
7.2. Manual Cleaning of Components
- Dirty Water Tank: Empty and rinse the dirty water tank after each cleaning cycle.
- Roller Brush: Periodically remove the roller brush and clean any tangled hair or debris. The optional CleanChop 3.0 brush can cut tangled hair.
- Side Brush: Remove and clean the side brush if it becomes tangled or dirty.
- HEPA Filter: Tap out dust from the HEPA filter regularly. Replace the filter every 3-6 months, or as needed.
- Sensors: Wipe the robot's sensors (dToF laser, cliff sensors) with a dry cloth to ensure accurate navigation.
Image: Dual anti-tangle mechanisms to prevent hair entanglement on brushes.
8. Troubleshooting
If you encounter issues with your Mova S70 Roller, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Robot does not start or respond. | Low battery; Power switch off; Robot stuck. | Charge the robot; Turn on the power switch; Clear obstructions. |
| Poor suction performance. | Dust bin full; Filter clogged; Main/side brush tangled. | Empty dust bin; Clean/replace filter; Clean brushes. |
| Mopping is ineffective or leaves streaks. | Clean water tank empty; Dirty water tank full; Roller brush dirty. | Refill clean water tank; Empty dirty water tank; Allow base station to self-clean roller or manually clean. |
| Robot gets stuck frequently. | Obstacles in path; Low clearance under furniture; Dirty sensors. | Clear area; Ensure sufficient clearance (90mm); Clean sensors. |
| App connection issues. | Incorrect Wi-Fi password; Robot out of Wi-Fi range; Router issues. | Verify Wi-Fi credentials; Move robot closer to router; Restart router and robot. |
For more complex issues, please consult the Mova app's help section or contact customer support.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | Mova |
| Model Name | RLZ12SE |
| Suction Power | 28,000 Pa |
| Mopping Pressure | 4,700 Pa (HydroForce) |
| Robot Height | 90 mm |
| Clean Water Tank Capacity | 5 Liters (Base Station) |
| Dust Collection Bag Capacity | 3.2 Liters (Base Station) |
| Roller Self-Cleaning Temperature | 80°C (176°F) |
| Roller Drying Temperature | 70°C |
| Battery Type | Lithium-ion |
| Control Method | App, Voice |
| Filter Type | HEPA |
| Noise Level | 58 Decibels |
| Dimensions (L x W x H) | 34L x 49.6W x 45.6H cm |
| Recommended Surfaces | Multi-Surface |
10. Warranty and Support
The Mova S70 Roller Robot Vacuum Mop comes with a 3-year warranty, ensuring reliable quality. For detailed warranty information, please visit the official Mova website.
Image: 3 Years Warranty for reliable quality.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Mova customer service through the Mova app or visit the official Mova website. Keep your purchase receipt and product model number (RLZ12SE) handy when contacting support.
