Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Feelfunn 9000BTU Mini Split AC/Heating System. Please read this manual thoroughly before using the product and retain it for future reference.
Safety Information
Important Safety Instructions:
- Installation of this air conditioning system must be performed by a certified HVAC technician to ensure proper function and safety.
- Do not attempt to repair or modify the unit yourself. Contact qualified service personnel for all repairs.
- Ensure the power supply matches the unit's specifications (115V).
- Keep the area around the outdoor unit clear of obstructions to ensure adequate airflow.
- This product complies with U.S. FCC/IC safety standards.
Image: Safety and Warranty details, highlighting self-clean, FCC certification, and 1-year support.
Product Overview
The Feelfunn 9000BTU Mini Split AC/Heating System provides efficient cooling and heating for spaces up to 550 sq. ft. It features a 22 SEER2 rating for energy efficiency and operates quietly. The system includes both an indoor and outdoor unit, along with an installation kit, remote control, and supports smart control via Wi-Fi, Alexa, and Google Assistant.
Key Features:
- Fast Cooling & Heating: 9100 BTU cooling and 9500 BTU heating capacity.
- Wide Temperature Range: Operates between 60°F to 90°F (16°C to 32°C).
- Smart Control: Compatible with Alexa and Google Assistant for voice control, and remote control via a dedicated app.
- Self-Cleaning Function: High-temperature self-cleaning and washable filters maintain air quality.

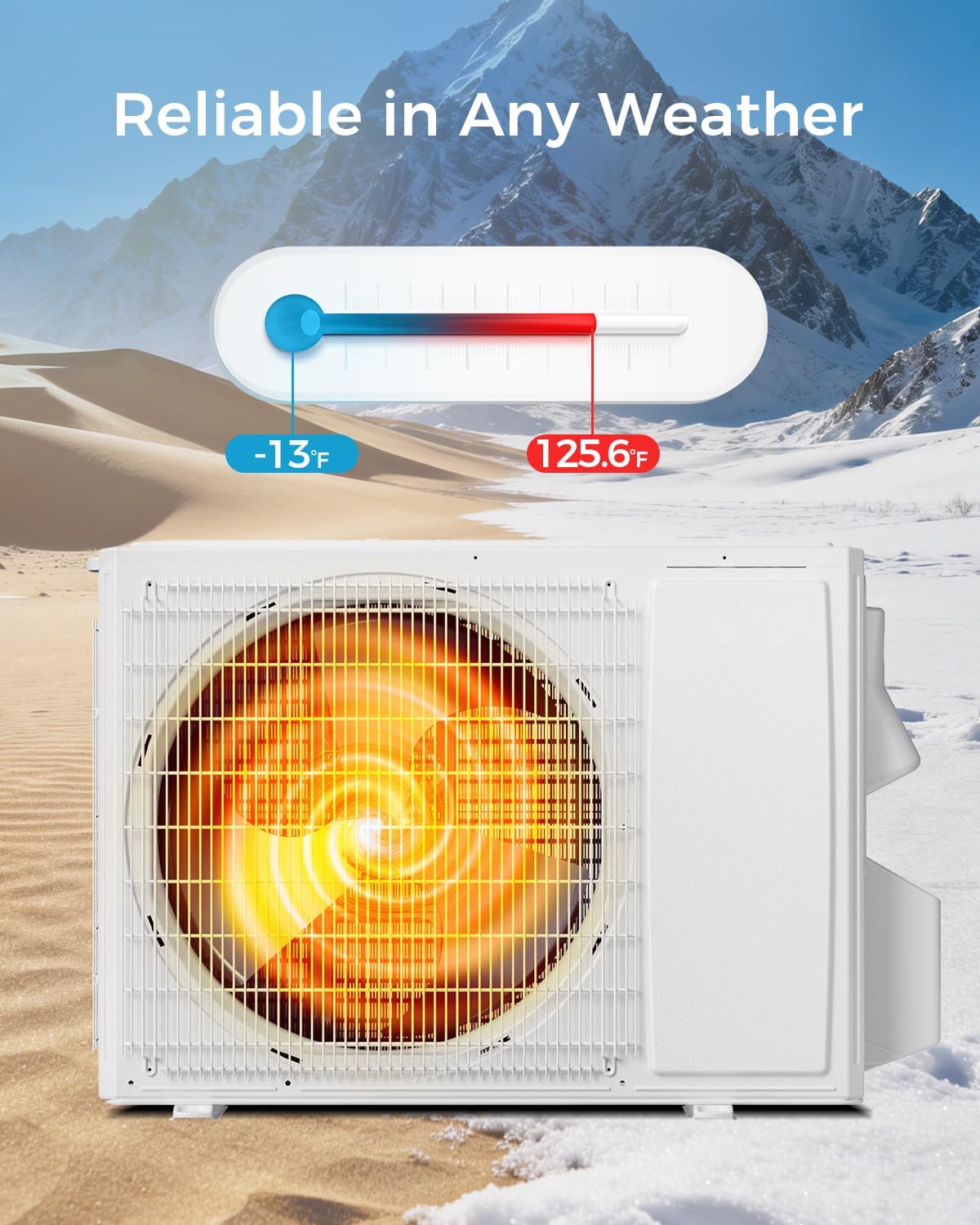

- All-Weather Operation: Outdoor unit functions effectively in temperatures from -13°F to 125.6°F.
- Energy Efficient: 22 SEER2 cooling efficiency and 9 HSPF2 heating performance. Utilizes R32 refrigerant for reduced environmental impact.
- Quiet Operation: Operates at less than 23dB in night mode for minimal disturbance.
- 24-Hour Timer: Allows for scheduled operation.
Image: The indoor unit installed in a living room, illustrating fast cooling and heating capabilities for up to 550 sq. ft.
Image: Diagram showing the energy efficiency of Feelfunn units (19-22 SEER2) compared to others, highlighting R32 refrigerant benefits.
Setup and Installation
The Feelfunn Mini Split AC/Heating System requires professional installation by a certified HVAC technician. This ensures correct setup, optimal performance, and adherence to safety standards. The unit ships in two separate packages, which may arrive at different times.
What's in the Box (9K BTU Model):
- Indoor Unit
- Outdoor Unit
- Remote Control (x1)
- AAA Batteries (x2)
- Drain Hose (6.89 ft)
- Communication Cable (14.76 ft)
- Mounting Bracket
- Copper Pipes (x2, 13.12 ft each)
- Power Cord (8.20 ft)
- Putty (x1)
- Tape (x1)
- Wall Cap (x1)
Refer to the detailed installation dimension diagram provided in the packaging for specific measurements and requirements.

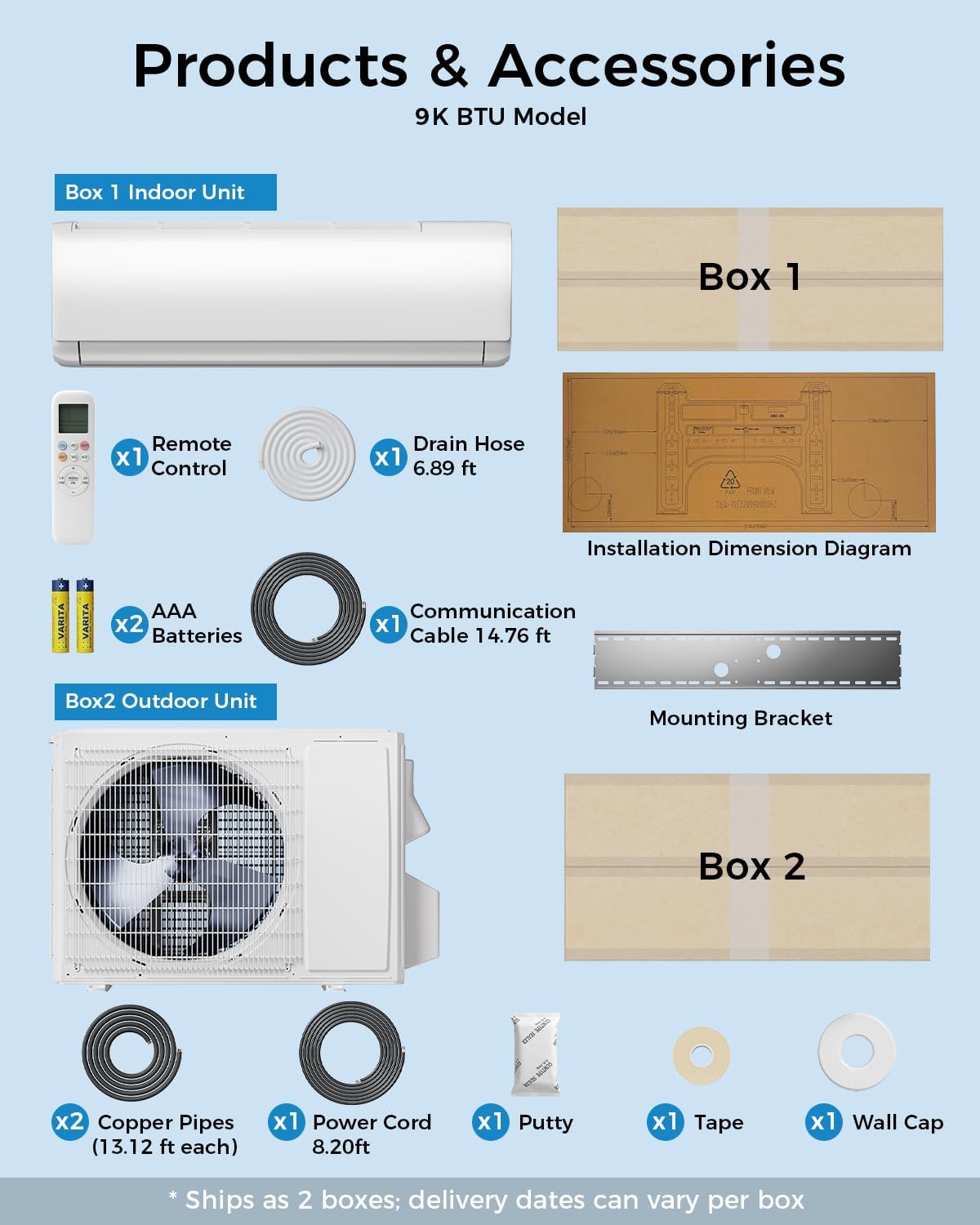

Image: Components included in the 9K BTU model package, showing both indoor and outdoor units, remote, and various installation accessories.
Operating Instructions
Your Feelfunn Mini Split AC/Heating System offers multiple operating modes and control options for optimal comfort.
Control Methods:
- Remote Control: Use the included remote for direct control of all functions.
- Wi-Fi App Control: Connect the unit to your home Wi-Fi network to control it remotely via a smartphone app.
- Voice Control: Integrate with Amazon Alexa or Google Assistant for convenient voice commands.
Image: Illustrates various control methods including voice control (Alexa, Google Assistant), remote control, and smartphone app control.
Operating Modes:
- Auto Mode: Automatically selects cooling or heating based on the ambient temperature.
- Cool Mode: Provides cooling to maintain your desired temperature.
- Heat Mode: Provides heating to maintain your desired temperature.
- Dry Mode: Dehumidifies the air.
- Fan Mode: Circulates air without cooling or heating.
- Sleep Mode: Adjusts temperature and fan speed for quiet, comfortable sleep, operating at less than 23dB.
- ECO Mode: Optimizes energy consumption for efficient operation.
Additional Functions:
- Flexible Fan Speeds: Choose from Auto, Low, Medium, High, or Turbo settings.
- 4D Auto Swing: Ensures even distribution of air throughout the room.
- I-FEEL: Senses the temperature at the remote control's location for precise comfort.
- Child Lock: Prevents unintended changes to settings.
- 24-Hour Timer: Program the unit to turn on or off at specific times.
Image: A user holding the remote control, displaying the various operating modes and key features like I-FEEL, Self-Clean, 24H Timer, 4D Auto Swing, Child Lock, and Quiet Sleep.
Image: A person sleeping peacefully with the indoor unit operating in silent night mode, indicating a low noise level of 23dB.
Maintenance
Regular maintenance ensures the longevity and efficiency of your Feelfunn Mini Split AC/Heating System.
Self-Cleaning (iClean) Function:
The unit features a high-temperature self-cleaning function to prevent mold growth and maintain fresh, clean air. Activate this function periodically as recommended in the full user guide.
Filter Maintenance:
The air filters are washable and designed for easy removal and cleaning. Regularly clean the filters to ensure optimal airflow and air quality. No special tools are required for filter removal.
Image: Demonstrates the easy removal and washing of the air filter, emphasizing simple maintenance without tools.
Troubleshooting
If you encounter issues with your Feelfunn Mini Split AC/Heating System, refer to the following general troubleshooting tips. For complex problems, contact a certified HVAC technician or customer support.
- Unit not turning on: Check power connection, circuit breaker, and ensure batteries in the remote control are functional.
- Insufficient cooling/heating: Verify correct mode selection, desired temperature setting, and ensure air filters are clean. Check for any obstructions around the indoor or outdoor units.
- Unusual noises: Minor operational noises are normal. If loud or unusual noises occur, contact a technician.
- Remote control not working: Check battery levels and ensure no obstructions between the remote and the indoor unit.
- Wi-Fi connectivity issues: Ensure your Wi-Fi network is active and the unit is within range. Follow the app's instructions for re-pairing if necessary.
Specifications
| Brand | Feelfunn |
| Model Name | SAC001-9K |
| Cooling Power | 9000 British Thermal Units |
| Heating Power | 9500 British Thermal Units |
| Capacity | 0.75 Tons |
| SEER2 Efficiency | 22 |
| HSPF2 Performance | 9 |
| Power Source | Corded Electric, 115V |
| Product Dimensions (Indoor Unit) | 11.61"D x 29.96"W x 7.87"H |
| Room Coverage | Up to 550 Sq.Ft. |
| Noise Level | Less than 23dB (Night Mode) |
| Operating Temperature Range | -13°F to 125.6°F |
| Refrigerant Type | R32 |
| Control Method | Remote, Voice (Alexa, Google Assistant), WiFi App |
| Installation Type | Split System |
Warranty and Support
Feelfunn provides an industry-leading 2-year warranty for this Mini Split AC/Heating System, ensuring peace of mind. For any questions, technical assistance, or warranty claims, please contact Feelfunn customer service. Dedicated support is available to assist you.
