OLIXIS Armless Vanity Chair (Model KOL2776GY)

Introduction

Thank you for choosing the OLIXIS Armless Vanity Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions carefully before assembly and retain them for future reference.

Safety Information

• Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or damaged.
• Assemble the chair on a soft, clean surface to prevent scratches.
• Do not overtighten screws during assembly to avoid stripping threads.
• Keep children and pets away during assembly.
• Maximum weight capacity: 250 lbs (113 kg). Do not exceed this limit.
• Regularly check all bolts and connections to ensure they remain tight.
• Avoid standing on the chair or using it as a step stool.

Package Contents

Please verify that all components listed below are included in your package:

Video: Assembly instructions for the OLIXIS Armless Vanity Chair, showing all components and steps. This video is provided by the seller.

Assembly Instructions

Follow these steps to assemble your OLIXIS Armless Vanity Chair. A wrench (11) is included for tightening bolts.

1. Step 1: Assemble the Base Legs
   Turn the Five-Star Base (6) upside down. Insert each of the five Base Legs (7) one by one into the slots of the Five-Star Base. Secure them by screwing ten Bolts (8) into the pre-drilled holes using the provided Wrench (11). Ensure all bolts are tightened securely.
2. Step 2: Install Casters and Gas Lift
   Press the five Casters (5) firmly into the holes at the end of each Base Leg until they click into place. Then, insert the Gas Lift (4) into the central hole of the assembled base.
3. Step 3: Attach the Mechanism to the Seat Cushion
   Place the Seat Cushion (2) upside down. Align the Mechanism (3) over the pre-drilled holes on the underside of the seat cushion, ensuring the front of the mechanism (the side with the lever) faces the front of the seat cushion. Attach the Mechanism to the Seat Cushion using four Bolts (9) and tighten them with the Wrench (11).
4. Step 4: Attach the Back Cushion to the Seat Cushion
   Turn the Back Cushion (1) upright. Align the mounting plate of the Back Cushion with the corresponding holes on the rear underside of the Seat Cushion (where the mechanism is already attached). Secure the Back Cushion to the Seat Cushion using four Bolts (10) and tighten them with the Wrench (11).
5. Step 5: Final Assembly
   Carefully align the central hole at the bottom of the assembled seat and back cushions with the top of the Gas Lift (4). Gently lower the chair body onto the Gas Lift until it is securely seated.

Image: Front view of the fully assembled OLIXIS Armless Vanity Chair in Classic Gray.

Operating Instructions

Your OLIXIS Armless Vanity Chair is designed for ease of use and comfort.

Height Adjustment

To adjust the seat height:

• To raise the seat: While standing, pull the lever located under the right side of the seat upwards. The seat will rise automatically. Release the lever at the desired height.
• To lower the seat: While seated, pull the lever located under the right side of the seat upwards. The seat will lower. Release the lever at the desired height.

Image: Detail of the adjustable lift gas cylinder and lever for seat height control.

Swivel Function

The chair features a 360-degree swivel function, allowing for easy rotation without moving the base. Simply rotate the seat to your desired direction.

Image: The OLIXIS chair demonstrating its 360-degree swivel and rotatable wheels, highlighting its sturdy metal base.

Maintenance

Proper maintenance will extend the life and appearance of your chair.

Cleaning

• For general cleaning, wipe the chair with a soft, damp cloth.
• For fabric upholstery, use a mild fabric cleaner or a solution of mild soap and water. Test on an inconspicuous area first.
• Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish and fabric.
• Wipe up spills immediately to prevent staining.

Inspection

• Periodically check all bolts and screws to ensure they are tight. Retighten if necessary.
• Inspect casters for any debris (hair, lint) that might hinder smooth rolling. Clean as needed.
• Check the gas lift for proper function. If the chair does not adjust height smoothly, contact customer support.

Troubleshooting

If you encounter any issues with your chair, refer to the following common problems and solutions:

Specifications

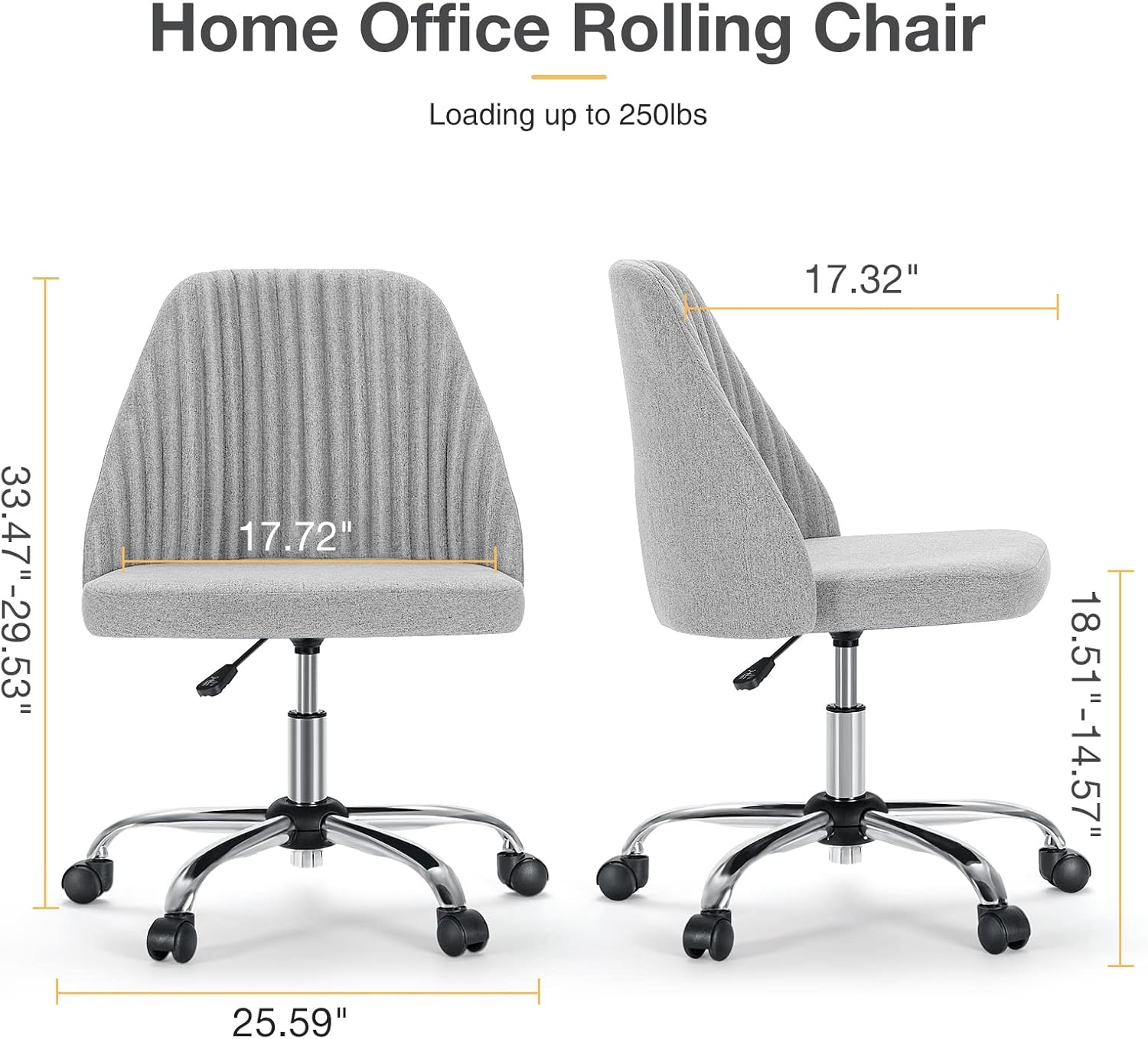

Image: Detailed dimensions of the OLIXIS Armless Vanity Chair, including seat width, depth, and adjustable height range.

Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official OLIXIS website. Keep your purchase receipt for warranty claims.
