1. Introduction
Thank you for choosing the DEWINNER Single Bed Frame 80x190. This manual provides essential information for the safe assembly, proper use, and maintenance of your new bed frame. Please read these instructions carefully before assembly and retain them for future reference.
2. Safety Information
- Do not exceed the maximum recommended weight to prevent damage to the bed frame. For the 80x190 model, the maximum load capacity is 150 kg.
- Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
- Keep small parts away from children during assembly to avoid choking hazards.
- Assemble the bed frame on a soft, clean surface to prevent scratches.
- Do not stand or jump on the bed frame.
3. Package Contents
Before beginning assembly, verify that all components listed below are present in your package:
- Metal frame components
- Wooden slats (14 rows)
- Legs (6 pieces)
- Assembly instructions (this manual)
- Necessary tools (e.g., Allen key, wrench)
If any parts are missing or damaged, please contact DEWINNER customer support.
4. Setup (Assembly Instructions)
The DEWINNER Single Bed Frame is designed for intuitive and fast assembly. While assembly can be completed in less than 30 minutes, we recommend having a second person assist for easier handling of components.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent damage.
- Assemble the Metal Frame: Connect the main metal frame components using the provided bolts and tools. Ensure all connections are finger-tightened initially.
- Attach the Legs: Securely attach the 6 legs to the designated points on the metal frame.
- Insert Wooden Slats: Place the wooden slats into the designated slots on the metal frame. Ensure they are evenly spaced and fully seated.
- Final Tightening: Once all components are in place, go back and securely tighten all bolts and screws using the provided tools. Do not overtighten.
Refer to the detailed diagrams included in your package for visual guidance during each step.
Image: Assembly process showing the bed frame components before and after assembly.
Image: Unassembled bed frame components in a room, ready for setup.
5. Operating (Usage)
The DEWINNER Single Bed Frame provides a stable and comfortable foundation for your mattress.
- Mattress Placement: Place your 80x190 cm mattress directly onto the wooden slats. The robust metal frame and solid wood slats ensure stable and uniform support, preventing sagging and ensuring long-term durability.
- Silent Operation: The wooden slats are designed to minimize friction noise, contributing to a restful sleep environment without annoying creaks.
- Under-Bed Storage: With a height of 32 cm (12.6 inches) from the floor to the bottom of the frame, this bed frame offers valuable under-bed storage space. Utilize this area for storing suitcases, blankets, pillows, or storage containers, making it ideal for smaller rooms.
Image: Bed frame with mattress and under-bed storage in use.
Image: Illustration of the 32 cm under-bed storage height.
6. Maintenance
To ensure the longevity and optimal performance of your DEWINNER bed frame, follow these simple maintenance guidelines:
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish.
- Check Connections: Periodically (e.g., every 3-6 months) inspect all bolts and screws to ensure they remain tight. Re-tighten if any looseness is detected.
- Slat Inspection: Check the wooden slats for any signs of damage or wear. Replace any broken slats immediately to maintain proper mattress support.
- Avoid Excessive Moisture: Keep the bed frame in a dry environment to prevent rust or damage to the wood.
7. Troubleshooting
If you encounter any issues with your bed frame, refer to the following common problems and solutions:
- Problem: The bed frame makes creaking noises.
Solution: Check that all wooden slats are properly seated in their holders and that all frame connections (bolts and screws) are securely tightened. Loose connections are a common cause of creaking. - Problem: The bed frame feels unstable or wobbly.
Solution: Ensure all legs are firmly attached and all frame connections are fully tightened. Verify that the bed frame is placed on a level surface. - Problem: Difficulty during assembly.
Solution: Review the assembly instructions carefully, paying close attention to diagrams. Ensure you have all necessary tools and consider having a second person assist. Do not force parts together; if they don't fit, re-check the orientation. - Problem: Mattress sags in certain areas.
Solution: Inspect the wooden slats for any damage or displacement. Ensure all slats are evenly distributed and properly supporting the mattress.
If the problem persists after attempting these solutions, please contact DEWINNER customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | DEWINNER |
| Model | 80x190 |
| Size | 80 x 190 cm |
| Product Dimensions (L x W x H) | 190 x 80 x 35 cm |
| Compatible Mattress Size | 80 x 190 cm |
| Material | Birch Wood (slats), Metal (frame) |
| Color | Black |
| Style | Minimalist |
| Special Features | Slatted, Ergonomic, Silent |
| Assembly Required | Yes |
| Under-Bed Storage Height | 32 cm |
| Maximum Load Capacity | 150 kg |

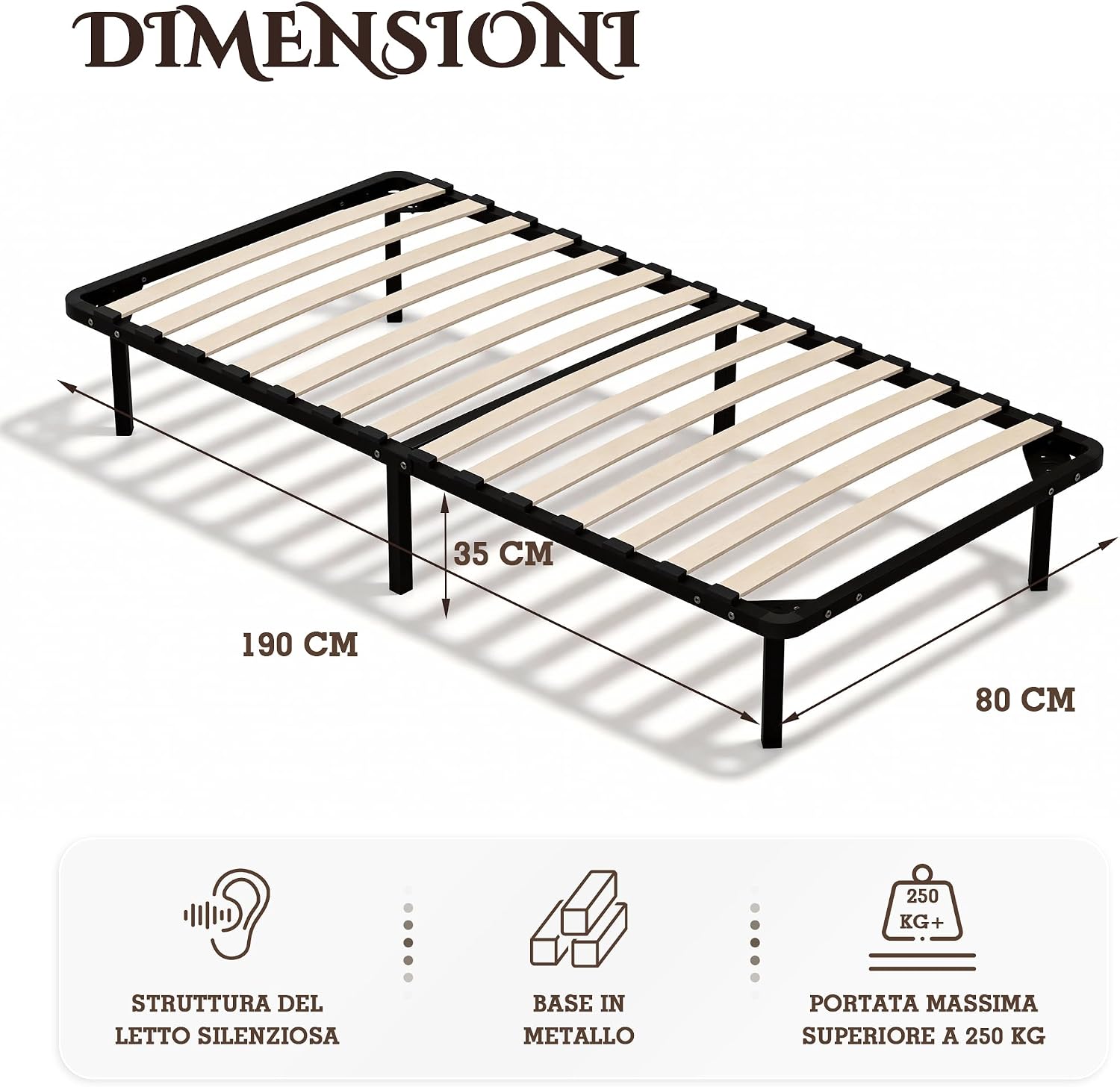

Image: Product dimensions and features overview.
Image: Table of product dimensions and maximum load capacities for various sizes.
9. Warranty and Support
DEWINNER products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official DEWINNER website.
If you require technical assistance, have questions about assembly, or need to report missing/damaged parts, please contact DEWINNER customer support through the retailer where you purchased the product or via the contact information provided on the DEWINNER website.
Online Support: Visit the DEWINNER Store on Amazon
