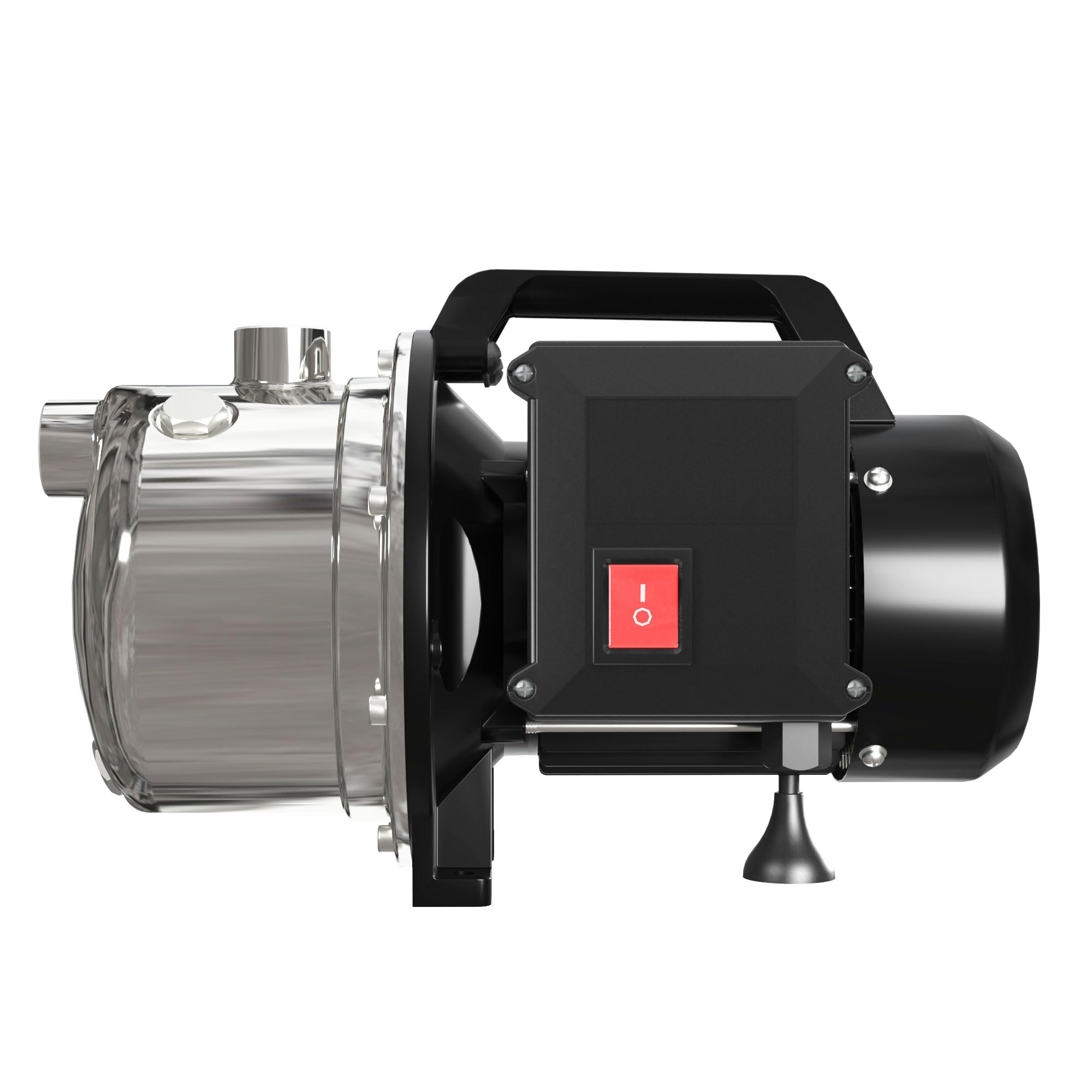

LANCHEZ 1HP Shallow Well Pump LZ-JGP110037UINOX-BY2 User Manual

1. Introduction

Thank you for choosing the LANCHEZ 1HP Shallow Well Pump, Model LZ-JGP110037UINOX-BY2. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your pump. Please read this manual thoroughly before installation and use, and retain it for future reference.

This pump is designed for domestic water supply from shallow wells, cisterns, or for boosting water pressure in residential applications. It is suitable for pumping clean water only.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in electric shock, fire, serious injury, or death.

• Always disconnect power before servicing the pump.
• Ensure the pump is properly grounded according to local electrical codes.
• Do not operate the pump with damaged cords or plugs.
• Do not pump flammable or corrosive liquids.
• Protect the pump from freezing temperatures.
• Keep children and unauthorized persons away from the pump during operation.
• Install the pump in a dry, well-ventilated area.

3. Package Contents

Verify that all items are present and undamaged upon opening the package. If any items are missing or damaged, contact LANCHEZ customer support.

• LANCHEZ 1HP Shallow Well Pump (LZ-JGP110037UINOX-BY2)
• User Manual

4. Setup and Installation

Proper installation is crucial for the pump's performance and longevity. If you are unsure about any step, consult a qualified professional.

4.1 Location Selection

Choose a location that is:

• Close to the water source.
• Protected from direct sunlight, rain, and freezing temperatures.
• Well-ventilated and dry.
• On a firm, level surface to minimize vibration.

4.2 Plumbing Connections

1. Connect the suction pipe to the pump's inlet. Ensure all connections are airtight to prevent air leaks, which can cause the pump to lose prime.
2. Install a foot valve with a strainer at the end of the suction pipe in the water source to prevent debris from entering the pump and to maintain prime.
3. Connect the discharge pipe to the pump's outlet. Install a check valve on the discharge side to prevent backflow.
4. Use appropriate thread sealant on all threaded connections.

Image: A typical installation diagram for the LANCHEZ Shallow Well Pump, illustrating the connection points for suction and discharge lines, including the foot valve and check valve.

4.3 Electrical Connection

Ensure the power supply matches the pump's voltage requirements (refer to the pump's label or specifications section). The pump must be connected to a grounded outlet with a dedicated circuit breaker.

• Consult a qualified electrician for electrical connections if you are not experienced.
• Use waterproof electrical connections for outdoor installations.

4.4 Priming the Pump

Before initial operation, the pump must be primed. This involves filling the pump casing and suction line with water.

1. Remove the priming plug located on top of the pump casing.
2. Slowly fill the pump casing and suction line with clean water until it overflows from the priming hole.
3. Replace and tighten the priming plug.
4. Ensure all valves on the discharge side are open.

5. Operating Instructions

5.1 Initial Start-up

1. After priming, ensure all connections are secure and there are no leaks.
2. Turn on the power supply to the pump.
3. The pump should start and begin to draw water. It may take a few minutes for the pump to build full pressure.
4. If the pump does not draw water within 5 minutes, turn it off, re-prime, and check for air leaks in the suction line.

5.2 Normal Operation

The pump is designed for intermittent or continuous duty, depending on the application. Avoid running the pump dry, as this can cause severe damage.

• Monitor the pump for unusual noises or vibrations.
• Ensure adequate water supply to prevent cavitation.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your pump.

6.1 Routine Checks

• Check for Leaks: Periodically inspect all plumbing connections for leaks.
• Clean Strainer: If a foot valve with a strainer is used, periodically check and clean the strainer to prevent clogging.
• Inspect Electrical Connections: Ensure all electrical connections are tight and free from corrosion.

6.2 Winterization

If the pump is installed in an area subject to freezing temperatures, it must be drained and protected during winter months to prevent damage.

1. Disconnect power to the pump.
2. Open the drain plug(s) on the pump casing and plumbing lines to completely drain all water.
3. Store the pump in a warm, dry place if possible, or ensure it is thoroughly drained and insulated if left in place.
4. Replace drain plugs after draining.

7. Troubleshooting

This section provides solutions to common problems. For issues not listed here, contact customer support.

8. Specifications

Note: Specific performance metrics such as Voltage, Max. Suction Lift, Max. Flow Rate, and Max. Head should be verified on the product label or official product page.

9. Warranty and Support

LANCHEZ products are manufactured to high-quality standards. This product comes with a limited warranty against defects in materials and workmanship from the date of purchase. Please refer to the warranty card included with your product for specific terms and conditions.

For technical assistance, parts, or warranty claims, please contact LANCHEZ customer support:

• Website: Visit the LANCHEZ Store on Amazon

When contacting support, please have your model number (LZ-JGP110037UINOX-BY2) and purchase date available.
