Introduction
Thank you for choosing the BalimoPet WG-CWF-001 Corded Stainless Steel Cat Water Fountain. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your new pet water fountain. Please read this manual thoroughly before using the product and retain it for future reference.
Important Safety Instructions
- Read all instructions before operating the appliance.
- Do not immerse the power adapter or plug in water or other liquids.
- This appliance is for indoor use only.
- Supervise children when they are near the fountain.
- Do not operate the fountain if the cord or plug is damaged, or if the fountain malfunctions or has been dropped or damaged.
- Always unplug the fountain before cleaning or performing maintenance.
- Use only original BalimoPet replacement parts and accessories.
- Ensure the fountain is placed on a level surface to prevent spills.
- Keep the power cord away from heated surfaces.
Package Contents
Please check the package to ensure all components are present and undamaged:
- Stainless Steel Water Bowl
- Water Pump with Power Cord
- Filter Tray
- Filter (1x)
- Instruction Manual
Product Overview
Familiarize yourself with the components of your BalimoPet water fountain.

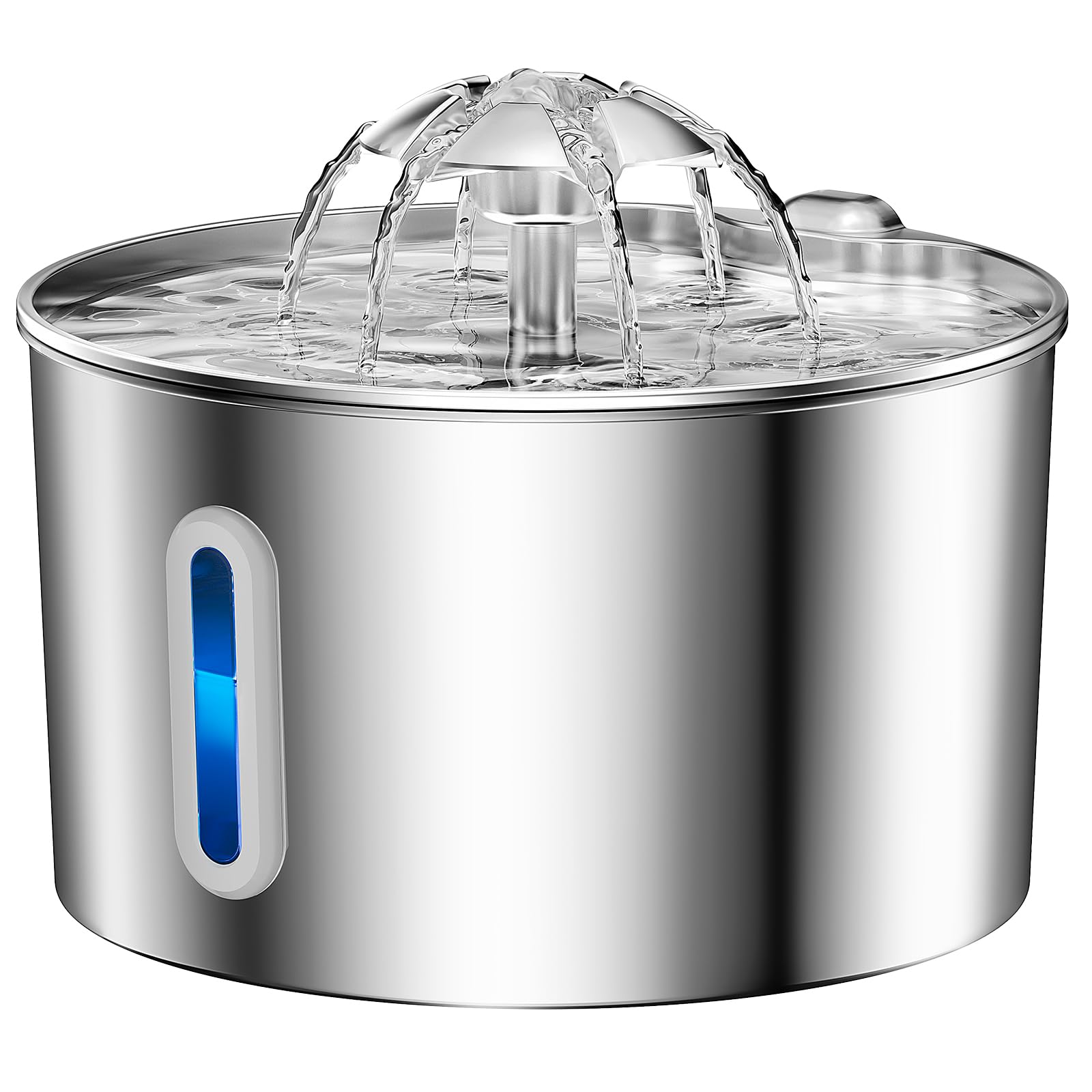

Figure 1: BalimoPet WG-CWF-001 Corded Stainless Steel Cat Water Fountain. This image shows the assembled fountain, highlighting its sleek stainless steel design and compact form factor suitable for indoor use.
Key Components:
- Stainless Steel Bowl: Main water reservoir.
- Pump: Circulates water through the filter and up to the spout.
- Filter Tray: Holds the filter in place.
- Filter: Removes impurities and odors from the water.
- Power Cord: Connects the pump to the power adapter.
Setup Instructions
Follow these steps to set up your BalimoPet water fountain:
- Unpack Components: Carefully remove all parts from the packaging.
- Rinse Components: Rinse the stainless steel bowl, filter tray, and pump thoroughly with water before first use. Do not use soap on the pump.
- Install Pump: Place the water pump at the bottom of the stainless steel bowl. Ensure the suction cups firmly attach to the base.
- Insert Filter: Place the filter into the filter tray. Ensure the filter is properly seated.
- Assemble Filter Tray: Position the filter tray over the pump, ensuring the pump's nozzle aligns with the opening in the tray.
- Fill with Water: Fill the stainless steel bowl with clean water up to the MAX fill line. Do not overfill. The fountain has a capacity of 2.5 liters.
- Connect Power: Plug the power cord into a standard electrical outlet. Ensure the cord is routed safely to prevent tripping hazards.
- Operation Check: The fountain should begin circulating water immediately. If not, refer to the Troubleshooting section.
Operating Instructions
The BalimoPet water fountain is designed for continuous operation to provide fresh, filtered water for your pet.
- Continuous Operation: Once plugged in, the fountain will operate continuously. There is no on/off switch on the unit itself.
- Water Level: Regularly check the water level. Refill the fountain when the water level is low to prevent the pump from running dry, which can shorten its lifespan.
- Placement: Place the fountain on a stable, level surface indoors, away from direct sunlight or heat sources.
Maintenance
Regular cleaning and maintenance are crucial for the longevity and hygiene of your pet's water fountain.
Daily Maintenance:
- Check water level and refill as needed.
- Remove any debris (pet hair, food particles) from the water.
Weekly Cleaning:
- Unplug: Disconnect the power adapter from the outlet.
- Disassemble: Remove the filter tray, filter, and pump from the stainless steel bowl.
- Clean Bowl & Tray: Wash the stainless steel bowl and filter tray with warm soapy water. Rinse thoroughly to remove all soap residue.
- Clean Pump: Disassemble the pump by removing the impeller cover and impeller. Clean all pump parts with a small brush (not included) to remove any mineral deposits or debris. Rinse thoroughly. Reassemble the pump.
- Replace Filter: Replace the filter every 2-4 weeks, or more frequently if multiple pets use the fountain or if the water appears dirty. (Replacement filters sold separately).
- Reassemble: Reassemble all components and refill with fresh water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fountain not running | No power; Pump clogged; Water level too low. | Check power connection; Clean the pump thoroughly; Refill water to MAX line. |
| Weak water flow | Pump clogged; Filter dirty; Water level too low. | Clean the pump; Replace the filter; Refill water. |
| Excessive noise from pump | Water level too low; Pump dirty or obstructed. | Refill water; Clean the pump and impeller. |
| Water tastes or smells bad | Filter needs replacement; Fountain needs cleaning. | Replace the filter; Perform a thorough cleaning of all components. |
Specifications
- Model: WG-CWF-001
- Brand: BalimoPet
- Material: Stainless Steel
- Capacity: 2.5 Liters
- Usage: Indoor
- Power: Corded Electric
- Included Components: Cat Water Fountain (Stainless Steel Bowl, Pump, Filter Tray, Filter)
Warranty and Customer Support
BalimoPet products are manufactured to the highest quality standards. For detailed warranty information, please refer to the warranty card included with your product or visit the official BalimoPet store.
If you encounter any issues or have questions regarding your BalimoPet WG-CWF-001 water fountain, please contact our customer support team:
- Official Store: BalimoPet on Amazon
Please have your model number (WG-CWF-001) and purchase date ready when contacting support for efficient assistance.
