Introduction
Thank you for choosing the Severin S-Power Olymp HV 7175 Cordless Vacuum Cleaner. This powerful and versatile appliance is designed to provide efficient cleaning for various surfaces in your home. With its 19,000 Pa suction power, 2-in-1 functionality, and convenient features like LED lighting and vertical parking, it offers a comprehensive cleaning solution. Please read this manual carefully before first use to ensure proper operation, maintenance, and safety.
Image: The Severin S-Power Olymp HV 7175 cordless vacuum cleaner, fully assembled with the floor nozzle, shown in its upright position.
Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.
- This appliance is intended for household use only. Do not use outdoors or on wet surfaces.
- Do not allow children to operate the vacuum cleaner. Close supervision is necessary when used near children.
- Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use without the dust cup and filter in place.
- Turn off the appliance before connecting or disconnecting the battery pack, or before performing any maintenance.
- Use only the charger supplied by the manufacturer to recharge.
- Store the appliance indoors in a dry place.
Package Contents
Please check the package contents upon unpacking. If any parts are missing or damaged, contact customer support immediately.
- Severin S-Power Olymp HV 7175 Main Unit (Motor and Dustbin)
- Extension Tube
- Motorized Floor Nozzle with LED Lights
- Wall Mount Docking Station
- Charging Adapter
- Crevice Tool
- Upholstery Brush
- User Manual
Setup and Initial Charging
Assembly
- Insert the extension tube into the main unit until it clicks securely into place.
- Attach the motorized floor nozzle to the other end of the extension tube, ensuring it clicks firmly.
- For handheld use, attach desired accessories (crevice tool, upholstery brush) directly to the main unit.
Charging the Battery
Before first use, fully charge the vacuum cleaner. The battery indicator on the main unit will show the charging status.
- Mount the wall dock in a convenient location near a power outlet.
- Connect the charging adapter to the wall dock and plug it into a power outlet.
- Place the vacuum cleaner onto the wall dock. Ensure the charging contacts align.
- The LED display will indicate charging progress. A full charge takes approximately 4-5 hours.
Image: The Severin S-Power Olymp HV 7175 vacuum cleaner mounted on its wall charging dock, connected to a power outlet.
Operating Instructions
Power On/Off and Suction Modes
- To turn on the vacuum cleaner, press the POWER button on the control panel.
- The vacuum will start in Eco mode (Min suction).
- To switch to Max suction mode, press the MAX button. Press MIN to return to Eco mode.
- To turn off the vacuum cleaner, press the POWER button again.

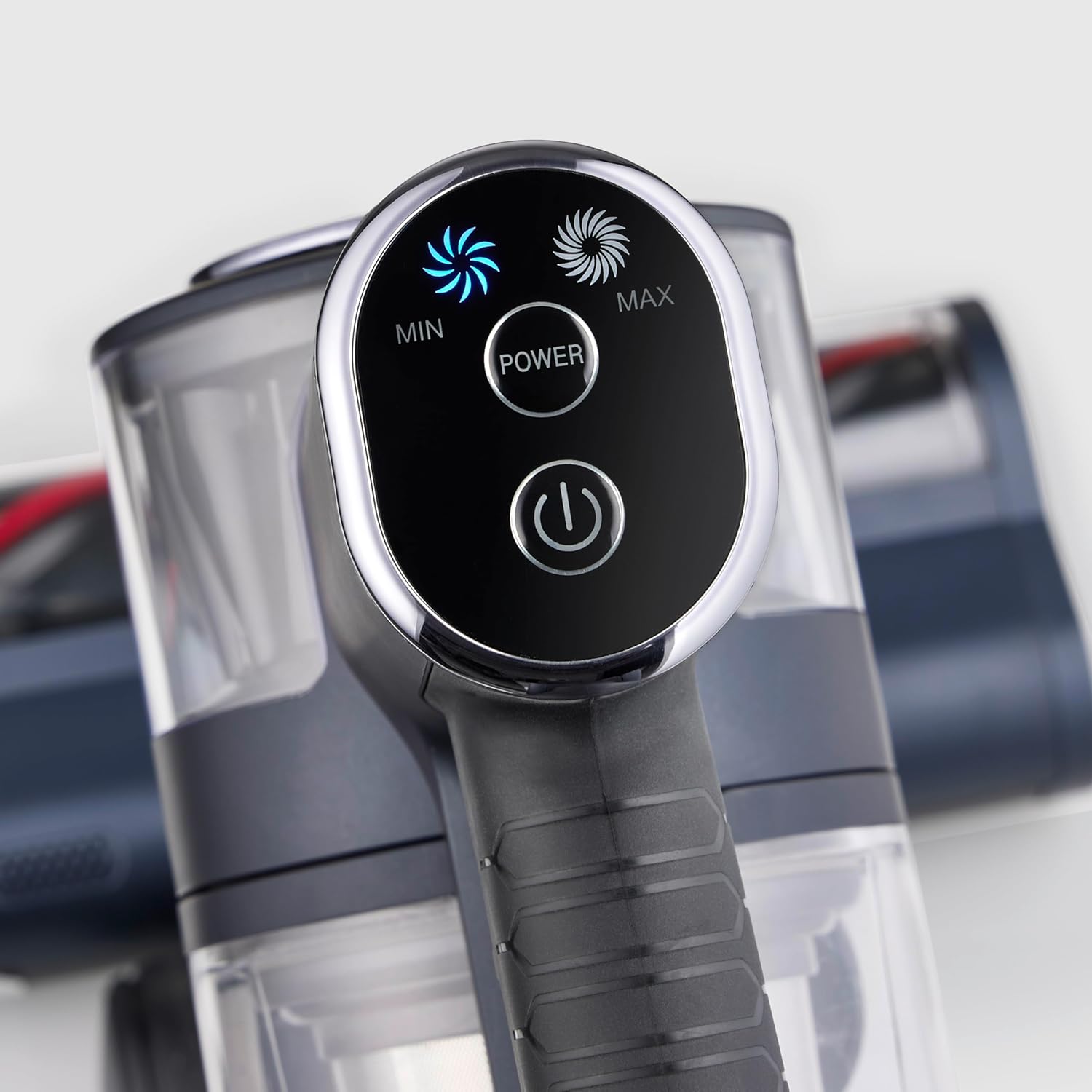

Image: A close-up view of the vacuum cleaner's control panel, featuring illuminated buttons for Min, Max, and Power settings.
2-in-1 Functionality (Handheld Mode)
The S-Power Olymp can be easily converted into a handheld vacuum for versatile cleaning.
- Press the release button on the extension tube to detach it from the main unit.
- Attach the desired accessory (crevice tool or upholstery brush) directly to the main unit's suction opening.
- Use the handheld unit for cleaning car interiors, upholstery, stairs, or hard-to-reach areas.
Image: The Severin S-Power Olymp HV 7175 in handheld configuration, equipped with a crevice tool, being used to clean the interior of a car seat.
Ergonomic Features
- Adjustable Suction Tube: The height of the suction tube can be adjusted for comfortable use by users of different heights.
- LED Lighting: The motorized floor nozzle features integrated LED lights to illuminate dark areas, ensuring no dust or debris is missed.
- Vertical Parking Function: The vacuum cleaner can stand upright independently when the handheld unit is removed, allowing for convenient temporary storage during cleaning breaks.
Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
Emptying the Dustbin
Empty the dustbin regularly, ideally after each use, to maintain strong suction.
- Ensure the vacuum cleaner is turned off.
- Press the dustbin release button to detach the dustbin from the main unit.
- Hold the dustbin over a waste bin and press the bottom release latch to open the dustbin flap and empty its contents.
- Close the flap and reattach the dustbin to the main unit until it clicks.
Image: A detailed view of the Severin S-Power Olymp HV 7175's transparent dustbin and internal filter components, ready for emptying or cleaning.
Cleaning the Filters
The HEPA filter and pre-filter should be cleaned periodically to prevent clogging and maintain suction power.
- Remove the dustbin as described above.
- Twist and pull out the filter assembly from the dustbin.
- Separate the HEPA filter and the metal mesh pre-filter.
- Tap the filters gently over a waste bin to remove loose dust. For a more thorough clean, rinse them under cold running water.
- Allow all filter components to air dry completely for at least 24 hours before reassembling and placing them back into the vacuum cleaner. Do not use the vacuum with wet filters.
Cleaning the Brush Roll
Hair and debris can get tangled in the brush roll. Clean it regularly for effective cleaning.
- Turn off the vacuum cleaner and detach the floor nozzle.
- Locate the brush roll access cover on the bottom of the nozzle. Open it using a coin or screwdriver if necessary.
- Remove the brush roll.
- Use scissors to cut away any tangled hair or threads.
- Clean any debris from the brush roll housing.
- Reinsert the brush roll and close the access cover securely.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Battery is discharged Power button not pressed correctly | Charge the battery fully Press the POWER button firmly |
| Reduced suction power | Dustbin is full Filters are clogged Nozzle or tube is blocked Brush roll is tangled | Empty the dustbin Clean or replace filters Check and clear any blockages Clean the brush roll |
| Battery not charging | Charger not properly connected Faulty charger or battery | Ensure charger is securely plugged in Contact customer support |
| Brush roll not spinning | Brush roll is tangled Obstruction in nozzle | Clean the brush roll Remove any obstructions |
Specifications
- Model: HV 7175
- Brand: Severin
- Suction Power: 19,000 Pa
- Power: 200 Watts
- Voltage: 220 Volts
- Battery Type: Lithium-ion
- Runtime (Eco Mode): Up to 35 minutes
- Charging Time: 4-5 hours
- Filter Type: HEPA Filter
- Noise Level: 80 Decibels
- Weight: 2 Kilograms
- Dimensions (L x W x H): 105L x 12l x 15H cm
- Recommended Surfaces: All floor types
- Special Features: Cordless, High Power, Lightweight, Front Light, Spot Cleaning, 2-in-1 Handheld Function, Vertical Parking
Warranty and Support
Severin products are manufactured to high-quality standards and come with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details.
For technical support, spare parts, or warranty claims, please contact Severin customer service. You can find contact information on the official Severin website or on your warranty documentation.
When contacting support, please have your model number (HV 7175) and proof of purchase readily available.
