Introduction
This manual provides instructions for the safe operation, assembly, maintenance, and troubleshooting of your RYOBI ONE+ HP 18V Compact Brushless 1/2" Drill Kit. This kit includes a compact brushless drill/driver, a 4.0 Ah High Performance Lithium-Ion battery, and an 18V charger. Please read and understand all instructions before using the tool.
Image: The RYOBI ONE+ HP 18V Compact Brushless 1/2" Drill, showcasing its compact design and branding.
General Safety Information
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away while operating a power tool. Wear appropriate personal protective equipment, including eye protection, hearing protection, and gloves.
- Electrical Safety: Avoid body contact with grounded surfaces. Do not expose power tools to rain or wet conditions.
- Personal Safety: Stay alert, watch what you are doing, and use common sense. Do not use the tool while tired or under the influence of drugs, alcohol, or medication.
- Tool Use and Care: Do not force the power tool. Use the correct tool for your application. Disconnect the battery pack from the tool before making any adjustments, changing accessories, or storing power tools.
- Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs.
Package Contents
Verify that all items listed below are included in your package. If any parts are missing or damaged, contact customer service.
- RYOBI ONE+ HP 18V Compact Brushless 1/2" Drill/Driver
- RYOBI ONE+ 4.0 Ah High Performance Lithium-Ion Battery
- RYOBI 18V Battery Charger
- Operator's Manual
Image: The complete kit including the drill, 4.0 Ah battery, and 18V charger.
Setup
1. Charging the Battery
Before first use, fully charge the 4.0 Ah Lithium-Ion battery. Connect the charger to a standard power outlet. Slide the battery pack onto the charger. The indicator lights on the charger will show the charging status. Ensure the battery is fully seated for proper charging.

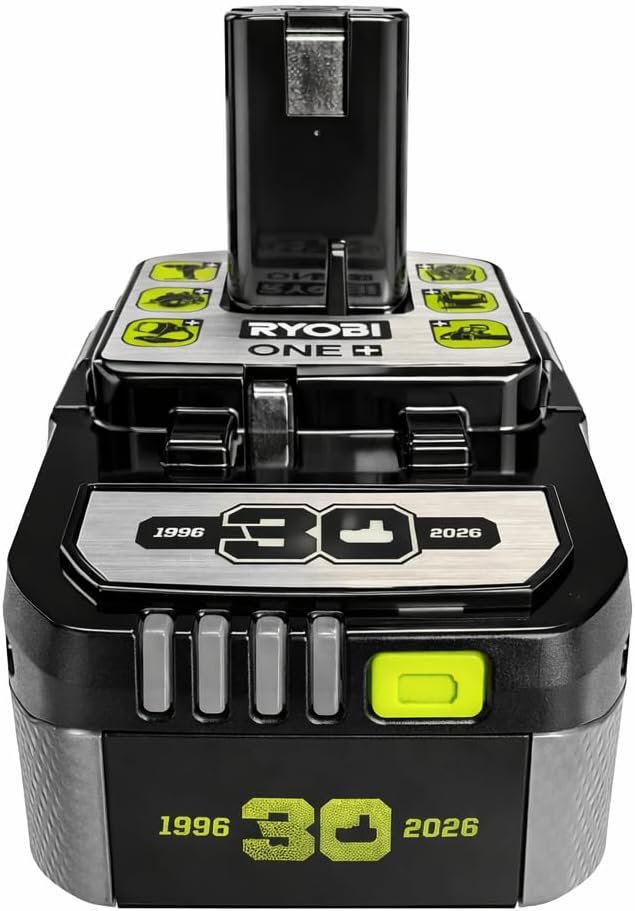

Image: Close-up view of the RYOBI ONE+ 4.0 Ah High Performance Lithium-Ion Battery, highlighting its 30th Anniversary branding and fuel gauge.
2. Installing/Removing the Battery Pack
- To Install: Align the ribs on the battery pack with the grooves in the drill's handle. Slide the battery pack into the handle until it latches securely.
- To Remove: Press the release latches on the sides of the battery pack and pull the battery pack out of the handle.
3. Installing/Removing Drill Bits
- To Install: Rotate the chuck counter-clockwise to open the jaws. Insert the drill bit into the chuck. Rotate the chuck clockwise to tighten the jaws securely around the bit.
- To Remove: Rotate the chuck counter-clockwise to loosen the jaws and remove the bit.
Caution: Always ensure the battery pack is removed from the drill before installing or removing bits to prevent accidental startup.
Operating Instructions
1. Powering On/Off and Direction Control
- On/Off Trigger: Squeeze the trigger switch to turn the drill on. Release to turn it off. The speed is variable based on trigger pressure.
- Forward/Reverse Selector: Push the selector to the left for forward rotation (drilling/driving screws). Push to the right for reverse rotation (removing screws). Center position locks the trigger for safety.
2. Speed Settings
The drill features a 2-speed gearbox. Slide the speed selector switch located on top of the drill to choose between:
- Speed 1 (Low): 0–450 RPM, for high torque applications like driving large fasteners or drilling large holes.
- Speed 2 (High): 0–1,700 RPM, for faster drilling and driving smaller fasteners.
3. Clutch Settings
The 24-position clutch ring allows you to adjust the torque output. Rotate the clutch ring to the desired setting. Lower numbers are for driving small screws or into soft materials, preventing overtightening. Higher numbers are for driving larger screws or into harder materials. The drill icon setting is for drilling applications, providing maximum torque without clutch slippage.
4. LED Work Light
The built-in LED work light illuminates the work area when the trigger is pressed, improving visibility in low-light conditions.
Image: The RYOBI ONE+ HP 18V Compact Brushless 1/2" Drill with the 4.0 Ah battery installed, ready for operation.
Maintenance
1. Cleaning
Keep the tool's air vents clear and free of debris to prevent overheating. Use a clean, dry cloth to wipe down the exterior. Do not use solvents or harsh chemicals. Periodically blow compressed air through the motor housing to clear dust.
2. Storage
Store the drill, battery, and charger in a cool, dry place, away from direct sunlight and moisture. Ensure the battery is removed from the drill before storage. For long-term storage, charge the battery to approximately 50% capacity.
3. Battery Care
Avoid fully discharging the battery. Recharge the battery when its performance decreases. Do not store batteries in extreme temperatures. Dispose of old batteries responsibly according to local regulations.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drill does not start. | Battery not charged or not properly installed. Forward/reverse selector in center (locked) position. | Ensure battery is fully charged and securely installed. Move forward/reverse selector to forward or reverse position. |
| Reduced power or short runtime. | Battery charge is low. Battery is old or damaged. | Recharge the battery. If problem persists, consider replacing the battery. |
| Chuck not holding bit securely. | Chuck not tightened sufficiently. Debris in chuck jaws. | Tighten chuck firmly. Clean chuck jaws of any debris. |
| Overheating during use. | Blocked air vents. Excessive load on the tool. | Clear air vents. Reduce pressure on the tool or use a lower speed setting for heavy-duty tasks. Allow tool to cool. |
Specifications
| Model Number | PSBDD02KSB30 |
| Power Source | 18V Battery Powered |
| Motor Type | Brushless |
| Chuck Size | 1/2 inch (12.7 mm) Keyless |
| No-Load Speed (Speed 1) | 0-450 RPM |
| No-Load Speed (Speed 2) | 0-1,700 RPM |
| Maximum Torque | 450 in-lbs (50.8 Nm) |
| Clutch Settings | 24 Positions + Drill Mode |
| Tool Length (Tool-Only) | 6.1 inches (15.5 cm) |
| Tool Weight (Tool-Only) | 2.1 lbs (0.95 kg) |
| Battery Capacity | 4.0 Ah Lithium-Ion |
| Drilling Capacity (Wood) | 0.5 inches (12.7 mm) |
| Drilling Capacity (Metal) | 0.5 inches (12.7 mm) |
