Redodo 12V 320Ah LiFePO4 Battery with Bluetooth User Manual

1. Introduction

Thank you for choosing the Redodo 12V 320Ah LiFePO4 Battery with Bluetooth. This high-capacity lithium iron phosphate battery is designed for various applications, including caravans, boats, off-grid systems, and home emergency power. Its compact design allows for installation in tight spaces, such as under seats. This manual provides essential information for the safe and efficient use of your battery.

Image: The Redodo 12V 320Ah LiFePO4 Battery, showcasing its compact design and terminal connections.

2. Safety Instructions

Please read and understand all safety instructions before installing or operating the battery. Failure to follow these instructions may result in serious injury, property damage, or voiding the warranty.

• Wear Protective Gear: Always wear insulated gloves, eye protection, and appropriate clothing when handling batteries.
• Avoid Short Circuits: Do not short-circuit the battery terminals. Ensure all connections are secure and insulated.
• Proper Ventilation: Install the battery in a well-ventilated area.
• Temperature Limits: Do not charge or discharge the battery outside its specified temperature ranges. Refer to the specifications section.
• No Disassembly: Do not attempt to open, disassemble, or modify the battery. There are no user-serviceable parts inside.
• Water and Moisture: Protect the battery from water and excessive moisture. While resistant to splashes, it is not submersible.
• Children and Pets: Keep the battery out of reach of children and pets.
• Disposal: Dispose of the battery according to local regulations. Do not dispose of it in household waste.
• Not for Engine Starting: This battery is not suitable for engine starting applications, golf carts, or high-power devices like water pumps or lawnmowers.

3. What's in the Box

Upon unpacking, please verify that all items listed below are included and in good condition:

• 1 x Redodo 12.8V 320Ah W190 Battery
• 1 x User Manual (this document)
• 2 x Insulating Caps
• 2 x M8 Terminal Bolts
• 2 x Gaskets

Image: The Redodo 12V 320Ah battery along with its included accessories: user manual, insulating caps, M8 terminal bolts, and gaskets.

4. Product Features

• Compact Under-Seat Design: With dimensions of 368x189x255 mm and a width of 189 mm, this battery is specifically designed to fit under seats, optimizing space in vehicles like caravans.
• Extended Autonomy: Offers a substantial 4096Wh capacity, providing over 4 days of off-grid operation, ideal for long trips or extended power needs.
• Smart Bluetooth Monitoring: Integrated Bluetooth allows real-time monitoring of charge level, voltage, current, and temperature directly from a mobile app, without external accessories.
• Winter Temperature Resilience: Features intelligent low-temperature protection, stopping charging below 0°C and resuming above 5°C, and cutting discharge below -20°C to ensure stable power in cold climates.
• Comprehensive BMS Protection: Equipped with a 200A Battery Management System (BMS) that protects against overcharge, over-discharge, short circuits, and low temperatures, with automatic reset. It also resists humidity and marine splashes (IP65 rated).
• AGM Battery Replacement: This single LiFePO4 battery can replace six 12V 100Ah lead-acid (AGM) batteries, reducing weight by 84% and volume by 74%.
• Long Lifespan: Designed for durability with over 4,000 cycles and a 10-year service life, backed by a 5-year warranty.

Image: The Redodo battery shown fitting perfectly under a seat, highlighting its compact 189mm width and 25.93 kg weight.

Image: A split image showing the battery's under-seat fit and the Bluetooth app interface for monitoring battery status.

Image: A caravan scene illustrating the 4096Wh capacity, designed for 4+ day trips, providing ample power for various appliances.

Image: A hand holding a smartphone displaying the Redodo app, showing real-time battery data like discharge, power, current, voltage, and capacity.

Image: The Redodo battery in a snowy environment, illustrating its reliability in winter with temperature thresholds for charging and discharging.

Image: A comparison showing one Redodo LiFePO4 battery next to six traditional AGM batteries, emphasizing its lighter weight and smaller volume.

Image: Various application scenarios for the Redodo battery, including caravans, camping, boats, off-grid cabins, and home backup power.

5. Setup and Installation

Proper installation is crucial for the performance and longevity of your Redodo LiFePO4 battery. Always ensure safety precautions are followed.

5.1 Pre-Installation Checklist

• Verify battery voltage and capacity match your system requirements.
• Ensure all components listed in "What's in the Box" are present.
• Have appropriate tools: insulated wrenches, wire cutters, crimpers, multimeter.
• Confirm your charging system (charger, solar controller, alternator) is compatible with LiFePO4 batteries and their voltage requirements (typically 14.2V - 14.6V for charging).

5.2 Installation Steps

1. Choose Location: Select a dry, well-ventilated location that can support the battery's weight (25.93 kg). The compact design is ideal for under-seat installation in vehicles like Fiat Ducato, Citroën Jumper, and Peugeot Boxer.
2. Secure Battery: Ensure the battery is securely fastened to prevent movement during operation, especially in mobile applications.
3. Connect Terminals:
   • Connect the positive (+) terminal of the battery to the positive terminal of your system.
   • Connect the negative (-) terminal of the battery to the negative terminal of your system.
   • Use the provided M8 terminal bolts and gaskets for secure connections.
   • Ensure all connections are tight to prevent resistance and overheating.
   • Cover terminals with insulating caps after connection.
4. Verify Polarity: Double-check all connections for correct polarity before applying power. Incorrect polarity can cause severe damage.
5. Initial Charge: It is recommended to fully charge the battery before its first use.

Image: Three EU vans (Ducato, Jumper, Boxer) illustrating the precise fit and optimization of the Redodo battery for these vehicle types.

Image: A diagram showing the Redodo battery being installed under a vehicle seat, emphasizing its narrow 189mm width for optimal space utilization.

6. Operating Instructions

6.1 Bluetooth Monitoring

The Redodo battery features integrated Bluetooth for convenient monitoring via a dedicated mobile application. This allows you to view critical battery parameters in real-time.

1. Download App: Search for the "Redodo" app on your smartphone's app store (iOS or Android).
2. Enable Bluetooth: Ensure Bluetooth is enabled on your mobile device.
3. Connect to Battery: Open the Redodo app. It should automatically detect and display your battery. Select your battery from the list to connect.
4. Monitor Data: The app will display real-time information such as:
   • State of Charge (SOC)
   • Voltage
   • Current (charge/discharge)
   • Temperature
   • Remaining capacity and estimated runtime
   • BMS status and cell balancing information

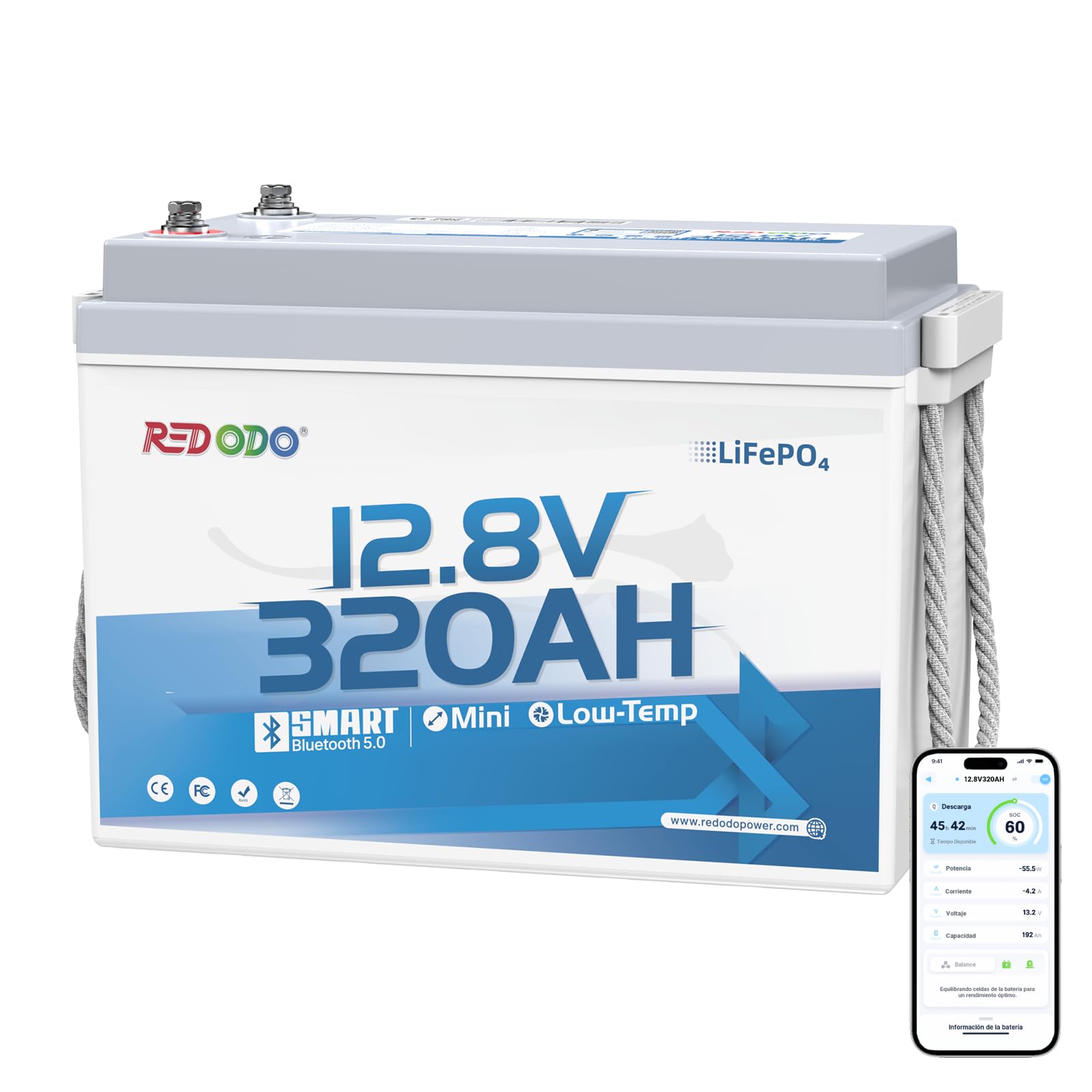

Image: A split image showing the Redodo battery and a smartphone displaying the intuitive Bluetooth app interface for real-time monitoring.

6.2 Charging and Discharging

• Charging Voltage: Use a LiFePO4 compatible charger with a recommended charging voltage of 14.2V - 14.6V.
• Charging Temperature: The BMS will stop charging if the battery temperature drops below 0°C and resume when it rises above 5°C.
• Discharging Temperature: The BMS will cut off discharge if the battery temperature falls below -20°C.
• Recommended Charging Sources:
  • 12V (14.6V) 40A LiFePO4 Charger (approx. 8 hours for full charge)
  • Solar Panels (≥1300W) with MPPT Controller (approx. 1 sunny day for full charge)
  • DC-DC Alternator Charger (40A, approx. 8 hours for full charge)
  • AC-DC Generator Charger (40A, approx. 8 hours for full charge)

Image: Illustrations of various charging methods for the Redodo battery, including a dedicated LiFePO4 charger, solar panels with MPPT controller, alternator charger, and generator charger, with estimated charging times.

7. Maintenance

The Redodo LiFePO4 battery requires minimal maintenance, but following these guidelines will ensure optimal performance and extend its lifespan.

• Regular Inspection: Periodically check the battery for any physical damage, loose connections, or corrosion on the terminals. Clean terminals if necessary.
• Keep Clean and Dry: Ensure the battery surface is clean and dry. Avoid exposure to excessive dust or moisture.
• Storage: If storing the battery for an extended period, ensure it is charged to approximately 50-70% State of Charge (SOC) and stored in a cool, dry place. Avoid storing in direct sunlight or extreme temperatures.
• Avoid Deep Discharge: While LiFePO4 batteries tolerate deep discharge well, consistently discharging to 0% SOC can reduce overall cycle life. The BMS will protect against over-discharge.
• Software Updates: Check the Redodo app periodically for any firmware updates for the battery's BMS, if available.

8. Troubleshooting

This section addresses common issues you might encounter with your Redodo LiFePO4 battery. For problems not listed here, please contact customer support.

9. Specifications

10. Warranty and Support

10.1 Warranty Information

The Redodo 12V 320Ah LiFePO4 Battery is covered by a 5-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

The expected service life of the battery is 10 years or 4,000+ cycles, whichever comes first, under recommended operating conditions.

Image: An illustration highlighting the battery's 5-year warranty, 10-year service life, and over 4,000 cycles, along with BMS protections and robust structure.

10.2 Customer Support

For technical assistance, warranty claims, or any questions regarding your Redodo battery, please contact Redodo customer support. Refer to the contact information provided with your purchase or visit the official Redodo website.
