1. Introduction
Thank you for choosing the Patiowell 8x4 FT Outdoor Storage Shed. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage shed. Please read these instructions thoroughly before beginning assembly and retain them for future reference. Proper assembly and care will ensure the longevity and optimal performance of your shed.

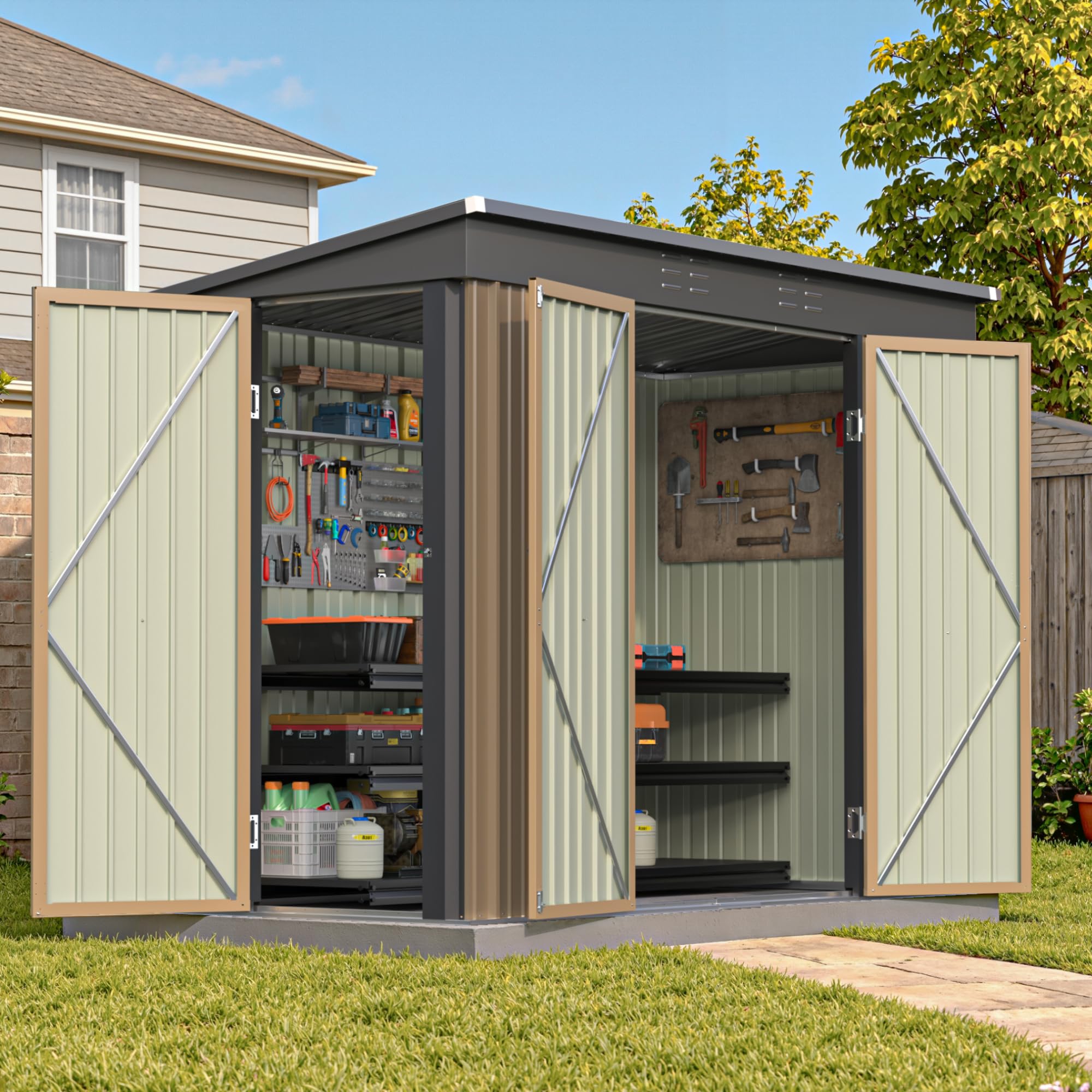

Image 1.1: The Patiowell 8x4 FT Outdoor Storage Shed, designed for backyard storage.
2. Safety Information
Always prioritize safety during assembly and use. Failure to follow these safety guidelines may result in injury or damage to the product.
- Wear Protective Gear: Always wear work gloves to protect your hands from sharp edges during assembly. Safety glasses are also recommended.
- Two-Person Assembly: Assembly requires at least two adults for safety and ease of installation.
- Level Surface: Ensure the shed is assembled on a firm, level surface to prevent structural instability.
- Secure Foundation: For areas prone to strong winds, consider anchoring the shed to a concrete slab or a robust wooden foundation.
- Children and Pets: Keep children and pets away from the assembly area.
- Electrical Safety: Do not install the shed near overhead power lines or underground cables.
- Ventilation: Ensure proper ventilation when storing items that may emit fumes.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. Refer to the detailed parts list included in your separate Installation and Usage Manual.
- Metal Outdoor Storage Shed Components
- Tool Kit (for assembly)
- Installation and Usage Manual (separate detailed guide)
4. Setup and Assembly
The Patiowell 8x4 FT Outdoor Storage Shed features an upgraded full-frame metal structure designed for straightforward assembly. Follow the step-by-step instructions provided in the dedicated Installation and Usage Manual for best results.
4.1 Site Preparation
- Choose a flat, level area for installation. Uneven ground can lead to alignment issues and structural stress.
- Clear the area of any debris, rocks, or vegetation.
- Consider a concrete slab or a treated wood foundation for enhanced stability and moisture protection.
4.2 Assembly Steps Overview
While a detailed guide is separate, here is a general overview:
- Unpack and Organize: Lay out all parts and identify them using the provided labels.
- Base Assembly: Construct the base frame first, ensuring it is square and level. This is crucial for overall alignment.
- Wall Panel Installation: Attach the wall panels to the base frame. The shed features sturdy corner protectors for added durability.
- Roof Assembly: Install the sloped roof structure. The design facilitates rapid drainage.
- Door Installation: Mount the three lockable doors.
- Final Touches: Install vents, screw protection caps, and ensure all fasteners are tightened securely.
Image 4.1: Dimensional diagram of the Patiowell 8x4 FT storage shed, illustrating its length, width, and height.
Image 4.2: Key features for assembly and security, including the lockable metal latch, screw protection caps, and corner protection caps.
5. Operating Instructions
Your Patiowell storage shed is designed for convenient and secure storage.
5.1 Door Operation
The shed features a practical triple-door setup for enhanced access. The wide openings allow for easy storage and retrieval of bulky items like lawnmowers or large tools. For smaller items, opening a single door helps minimize dust intrusion and maintain internal conditions.
- To open, unlock the metal latch and pull the door handle.
- To close, push the door firmly until it aligns with the frame, then secure the lockable latch.
Image 5.1: Interior view of the shed with doors open, demonstrating the spacious design and accessibility for various items.
Image 5.2: An organized interior of the shed, showcasing its capacity to store tools, equipment, and other household items efficiently.
5.2 Ventilation
The shed is equipped with 4 vents to promote air circulation, helping to keep the interior dry and prevent moisture buildup. Ensure these vents are not obstructed.
Image 5.3: The sloped roof design effectively channels rainwater away, protecting the shed's contents.
Image 5.4: The shed's robust construction provides reliable protection for stored items in both sunny and rainy weather conditions.
6. Maintenance
Regular maintenance will extend the life of your Patiowell storage shed.
- Cleaning: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals.
- Check Fasteners: Annually inspect all screws and bolts to ensure they remain tight. Re-tighten as necessary.
- Drainage: Keep the area around the shed clear of debris to ensure proper water runoff from the sloped roof.
- Ventilation: Ensure the vents are free from obstructions to maintain adequate air circulation.
7. Troubleshooting
If you encounter issues with your shed, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not close properly or are misaligned. | Uneven foundation; loose fasteners; bent panels. | Ensure the shed is on a level surface. Check and tighten all assembly fasteners. Gently realign any bent panels if possible. |
| Water leakage inside the shed. | Improperly sealed joints; damaged roof/panels; obstructed drainage. | Inspect all seams and joints for proper sealing. Check roof and wall panels for damage. Clear any debris from the roof and surrounding drainage areas. |
| Shed feels unstable or wobbly. | Incomplete or incorrect assembly; lack of anchoring; uneven ground. | Review the assembly manual to ensure all steps were followed correctly. Verify all fasteners are tight. Ensure the shed is on a level foundation and consider anchoring it. |
8. Specifications
- Brand: Patiowell
- Model Number: PS25-1023-BN
- Product Dimensions (L x W x H): 91.7"D x 44.4"W x 72.8"H (8x4 FT nominal)
- Material: Metal (Steel)
- Color: Brown
- Floor Area: Approximately 4067 Square Inches
- Door Style: Triple Hinged Doors (2 wide, 1 narrow)
- Water Resistance Level: Water Resistant
- Assembly Required: Yes
- Ventilation: 4 Air Vents
- Security: Lockable Door
9. Warranty and Support
Patiowell is committed to customer satisfaction. If you have any questions regarding the assembly, operation, or maintenance of your storage shed, or if you require assistance with missing or damaged parts, please contact our dedicated customer support team. Refer to the contact information provided in your purchase documentation or on the Patiowell official website for assistance.
Please retain your proof of purchase for any warranty claims.
