MOVA N1 Window Cleaning Robot User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your MOVA N1 Window Cleaning Robot. Please read this manual thoroughly before using the device and retain it for future reference.

Official product video demonstrating the MOVA N1 Window Cleaning Robot in operation.

2. Safety Information

Always adhere to the following safety guidelines to prevent injury or damage to the device.

• Ensure the safety rope is securely attached before operation.
• Do not use the robot on cracked or damaged glass surfaces.
• Keep the device away from children and pets.
• Use only the provided power adapter and cleaning solution.
• Do not operate the robot in rainy or extremely humid conditions.
• The device incorporates 12 layers of protection, including electronic, mechanical, and physical safeguards.

Image: The MOVA N1 robot is designed with 12 layers of comprehensive protection, integrating electronic, mechanical, and physical safety features.

Electronic Safety

The robot maintains secure attachment with 8000 Pa suction, featuring 0.02-second pressure compensation for optimal performance. It includes real-time alerts, voice prompts, and 30-minute suction retention during power outages.

Image: Internal view highlighting the electronic safety mechanisms and powerful 8000 Pa suction for secure operation.

Mechanical Safety

Equipped with triple sensor detection (collision, current, optocoupler) for stability, a wheeled climbing system for secure upward movement, anti-slip traction on wet or dusty surfaces, and a floating leak-proof chassis with a custom cloth to prevent air leaks.

Image: Detailed view of the MOVA N1's mechanical safety components, including sensors and the chassis designed for secure movement.

Physical Safety

A high-strength safety rope prevents falls, while the lightweight design reduces the risk of detachment.

Image: The safety rope securely fastened, illustrating the physical safety measure to prevent accidental falls.

3. Package Contents

Verify that all items are present in the package:

• Window Cleaning Robot (with safety rope) x 1
• AC Power Cable x 1
• Power Adapter x 1
• Remote Control (with battery) x 1
• Water Bottle (with cleaning solution and nozzle) x 1
• Quick Start Guide x 1
• Cleaning Cloth x 2 (1 pre-installed, 1 separate)
• User Manual x 1

Image: A visual representation of all items included in the MOVA N1 Window Cleaning Robot package.

4. Setup

1. Charge the Battery: Before first use, fully charge the robot's internal battery.
2. Attach Safety Rope: Securely attach the safety rope to a sturdy object indoors, such as a furniture leg, to prevent accidental falls.
3. Install Cleaning Cloth: Attach a clean microfiber cleaning cloth to the bottom of the robot. Ensure it is properly aligned.
4. Fill Water Tank: Fill the provided water bottle with the cleaning solution and attach the nozzle. Spray the cleaning solution onto the window surface or directly into the robot's dual spray nozzles if applicable.
5. Power On: Connect the power adapter to the robot and plug it into an electrical outlet.
6. Place on Window: Place the robot on the window surface. Ensure it adheres firmly before releasing your hand.

Image: The MOVA N1 robot positioned on a window, demonstrating its compact form factor (215x215mm) and slim 59mm profile, suitable for various window sizes.

5. Operating Instructions

One-Touch Start

With a single touch, the device attaches to the window and begins its cleaning cycle. No complex configurations are required. You can choose between two control methods: the device button or a wireless remote control.

Image: Activating the MOVA N1 with a simple press of the power button for immediate cleaning.

Intelligent Path Planning

Equipped with multiple high-precision sensors, the robot intelligently detects glass edges and adjusts its position accordingly. Dynamic data processing proactively adjusts the cleaning trajectory in "Z" or "N" patterns to achieve efficient and complete coverage without missing any spots.

Image: The MOVA N1 robot executing an intelligent Z-pattern cleaning path on a window for thorough coverage.

Dual-Outlet Nebulization Cleaning System

The dual-outlet nebulization cleaning system emits a high-pressure micrometric spray that gently dissolves dirt without leaving drips or marks. Combined with a high-retention microfiber cloth, it ensures uniform cleaning over time. The 120ml water tank allows cleaning of up to 32m² in one go.

Image: The MOVA N1's dual-outlet nebulization system in action, spraying a fine mist for effective cleaning.

Multiple Cleaning Modes

You can freely choose from multiple cleaning modes adapted to different levels of dirt. Whether it's for light dirt or stubborn stains, there's a mode for every window cleaning need.

• Deep Cleaning: For heavily soiled surfaces.
• Quick Cleaning: For light dirt and maintenance.
• Exhaustive Cleaning: Comprehensive cleaning cycle.
• Edge Cleaning: Focuses on cleaning window edges.
• Localized Cleaning: Targets specific dirty areas.
• Remote Mode: Manual control via remote.

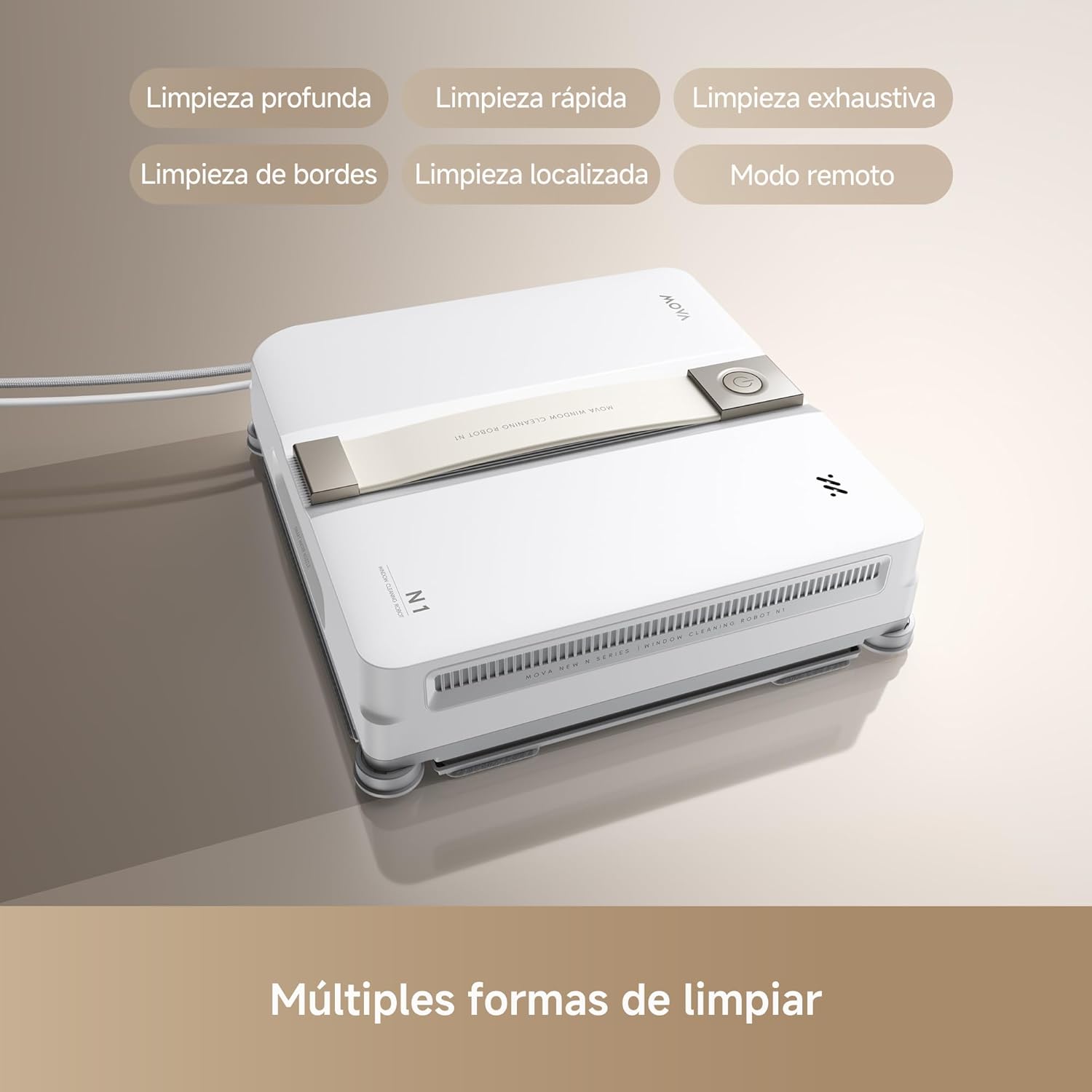

Image: The MOVA N1 offers various cleaning modes, including Deep, Quick, Exhaustive, Edge, Localized, and Remote, for versatile cleaning.

Multi-Surface Cleaning

The MOVA N1 can clean various surfaces with ease, including smooth marble, matte or glazed tiles, shower screens, glass cabinet doors, and various inclined planes.

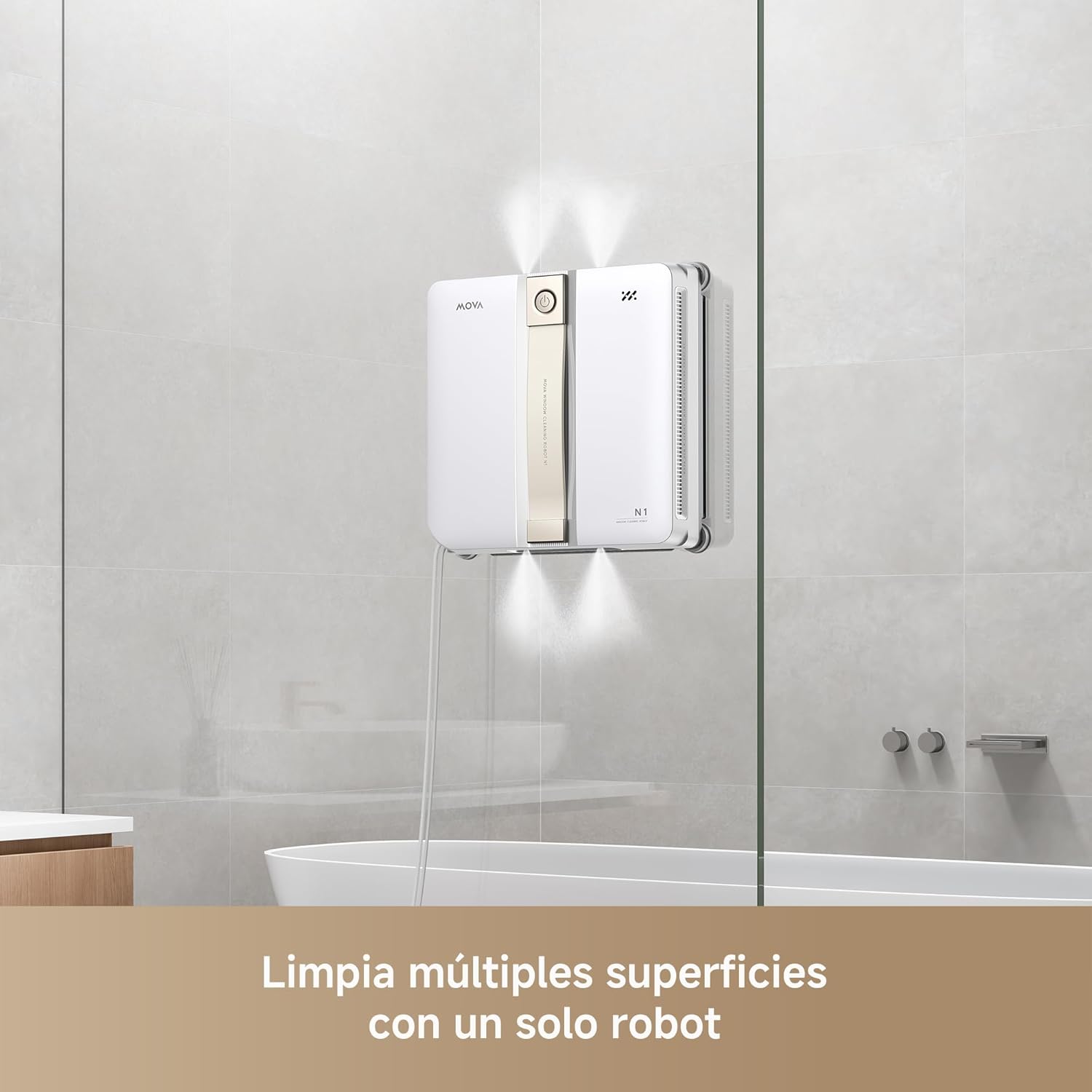

Image: The MOVA N1 robot cleaning a shower screen, showcasing its versatility across different surfaces.

6. Maintenance

1. Clean Cleaning Cloths: After each use, remove and wash the microfiber cleaning cloths. They are reusable.
2. Inspect Nozzles: Periodically check the spray nozzles for any blockages and clean them if necessary.
3. Wipe Down Robot: Use a dry cloth to wipe the exterior of the robot to remove any dust or residue.
4. Store Properly: Store the robot in a well-ventilated, dry, and cool place when not in use.

7. Troubleshooting

8. Specifications

• Model Number: GNDJ2580
• Dimensions: 21.5 x 21.5 x 5.9 cm
• Weight: 1.3 kg
• Power Source: AC
• Battery Type: Lithium Ion (1 AAA battery needed for remote, included)
• Suction Power: 8000 Pa
• Noise Level: Below 72 dB(A) (internal lab data, actual performance may vary)

9. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the official Mova website or contact customer service through your retailer. Keep your purchase receipt for warranty claims.

Online Support: Visit the Mova Store on Amazon for additional product information and support resources.
