Patiowell PS-289-BN

Patiowell 10x12 FT Metal Storage Shed Instruction Manual

Model: PS-289-BN

Brand: Patiowell

1. Introduction and Overview

This manual provides essential instructions for the assembly, operation, and maintenance of your Patiowell 10x12 FT Metal Storage Shed. This outdoor storage solution is designed for durability and practicality, featuring a sturdy steel frame, rust and UV resistance, a sloping roof, a lockable door, and breathable vents to protect your stored items.

Please read this manual thoroughly before beginning assembly or use to ensure safe and correct installation and to maximize the lifespan of your shed.

2. Safety Information

  • Assembly: Assembly is required. Always follow the provided installation instructions carefully. Use caution when handling all components, especially metal panels, which may have sharp edges. Wear appropriate personal protective equipment, such as gloves and eye protection.
  • Site Preparation: Choose a level and stable site for your shed. Ensure adequate clearance around the shed for assembly and future access.
  • Foundation: The shed does not include a base. A solid, level foundation (e.g., concrete slab, treated timber frame) is recommended to ensure stability and prevent moisture intrusion. If you choose to build a base, ensure it is properly constructed and level.
  • Anchoring: Securely anchor the shed to the ground or its foundation to prevent damage from strong winds. Anchoring hardware may not be included and should be purchased separately based on your foundation type and local weather conditions.
  • Local Regulations: Before construction, verify with your local Homeowners Association (HOA) or municipal authorities regarding any permits, setbacks, or specific requirements for outdoor structures.
  • Ventilation: The integrated vents ensure continuous airflow. Do not block these vents, as they are crucial for optimal airflow and reducing moisture buildup inside the shed.
  • Weight Capacity: Be aware of the roof's weight capacity (750 lbs) and avoid placing excessive loads on the roof. Clear snow accumulation promptly.

3. Setup and Assembly

The Patiowell 10x12 FT Metal Storage Shed is designed for straightforward assembly. All necessary tools and clear installation instructions are included with your purchase. It is recommended to have at least two people for assembly.

3.1 Pre-Assembly Checklist

  • Verify all parts are present against the packing list.
  • Ensure you have the recommended tools (e.g., screwdriver, wrench, ladder, level, measuring tape).
  • Prepare a level and clear assembly area.
  • Review local regulations regarding shed placement and construction.

3.2 Assembly Steps Overview

  1. Site Preparation and Foundation: Select a suitable location. If a base is desired, construct it according to your needs and local building codes. Ensure the foundation is perfectly level and square.
  2. Frame Assembly: Assemble the base frame and wall frames according to the detailed diagrams in the included instruction manual.
  3. Panel Installation: Attach the metal wall panels to the frame, ensuring they are correctly aligned and secured with the provided fasteners. Utilize screw protection caps for enhanced durability and safety.
  4. Roof Assembly: Construct the roof frame and attach the sloping roof panels. Ensure proper overlap and sealing to prevent water infiltration.
  5. Door Installation: Install the lockable single hinged door, ensuring it opens and closes smoothly and the latch mechanism functions correctly.
  6. Final Checks: Inspect all fasteners for tightness. Ensure vents are clear. Anchor the shed to the ground or foundation.
Diagram showing the dimensions of the Patiowell 10x12 FT Metal Storage Shed, including width, depth, and height, along with storage capacity and roof weight capacity.
Figure 1: Shed Dimensions. This diagram illustrates the overall dimensions of the 10x12 FT metal storage shed, including its width (112.6 inches), depth (140.9 inches), and height (75.6 inches), along with its 579 cubic feet storage capacity and 750 lbs roof weight capacity.
Close-up images of shed features including top and bottom latches, screw protection caps, corner safety covers, and free rubber gloves.
Figure 2: Key Assembly Components. This image highlights important features for assembly and security, such as the top and bottom latches for the door, screw protection caps for panel fasteners, and corner safety covers. It also shows the included rubber gloves for handling.

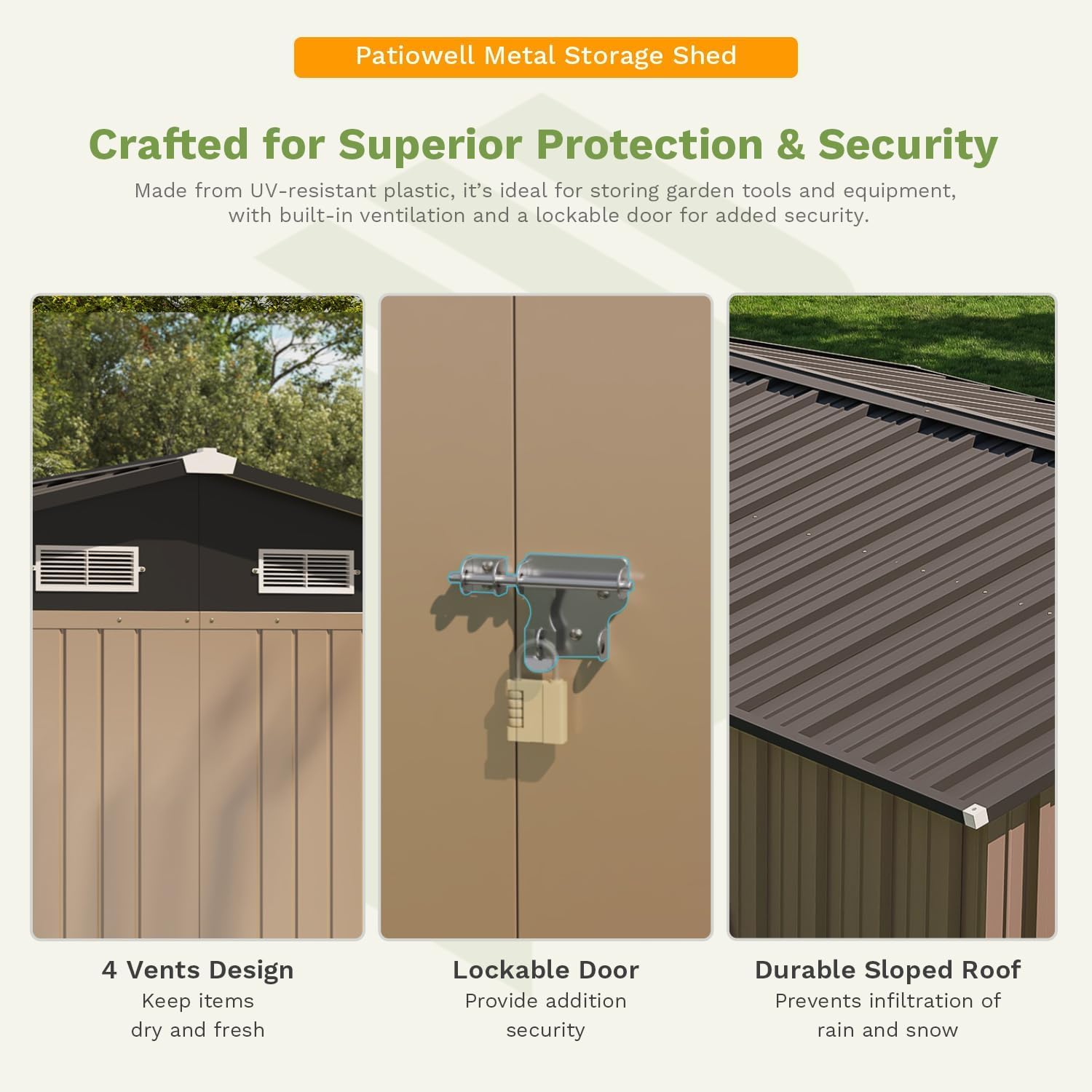

Images showing the shed's 4 vents design, lockable door mechanism, and durable sloped roof.
Figure 3: Design Features. This image details the shed's functional design elements: the four vents for air circulation, the robust lockable door for security, and the durable sloped roof designed to prevent water accumulation.

4. Operating Instructions

  • Door Operation: To open the door, unlock the padlock (if installed) and disengage the top and bottom latches. Pull the door open. To close, ensure the door is fully shut, engage the latches, and secure with a padlock.
  • Ventilation: The integrated vents ensure continuous airflow. Do not obstruct these vents to maintain optimal air circulation and prevent moisture buildup, which can protect your stored items from dampness and mildew.
  • Storage Capacity: The shed offers ample interior space. Organize items efficiently to maximize storage. Avoid overloading shelves or hanging heavy items directly from the shed walls without proper reinforcement.

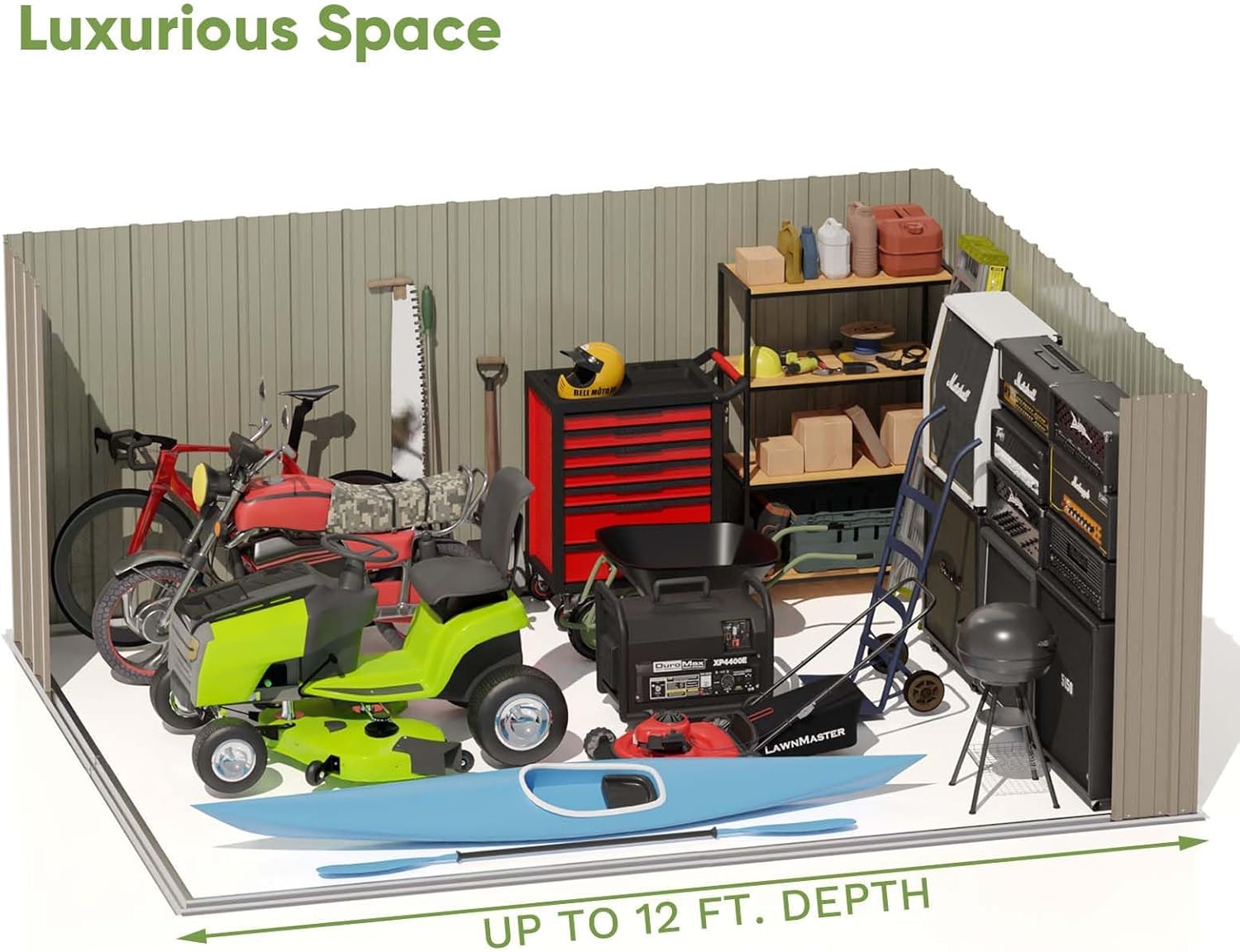

Interior view of the Patiowell storage shed showing various garden tools, lawn equipment, and other items stored neatly, illustrating its spacious capacity.
Figure 4: Interior Storage Space. This image demonstrates the generous interior capacity of the shed, capable of accommodating a variety of items such as lawnmowers, bicycles, tools, and outdoor equipment, highlighting its versatile utility.

5. Maintenance

  • Cleaning: Periodically clean the exterior of the shed with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the metal finish. Rinse thoroughly.
  • Rust Prevention: Although the shed is rust-resistant, inspect for any signs of rust, especially in areas where the finish might be scratched or damaged. Touch up any affected areas with rust-inhibiting paint.
  • Ventilation Check: Ensure the breathable vents remain clear of debris (leaves, dirt, insect nests) to maintain proper airflow and prevent moisture buildup.
  • Fastener Inspection: Annually check all screws, bolts, and fasteners for tightness. Tighten any loose connections to maintain structural integrity.
  • Door and Latch Maintenance: Lubricate door hinges and latch mechanisms periodically with a silicone-based lubricant to ensure smooth operation.
  • Snow Removal: In areas with heavy snowfall, promptly remove snow from the roof to prevent excessive weight accumulation, which could damage the structure.
Exterior view of the Patiowell metal storage shed in a backyard setting, highlighting its all-weather durability and versatile storage capabilities for various outdoor items.
Figure 5: All-Weather Durability. This image showcases the shed's robust construction, engineered to withstand various weather conditions, making it suitable for storing a wide range of items from garden tools to sports equipment.

6. Troubleshooting

Problem Possible Cause Solution
Water accumulation inside shed Improper foundation leveling; damaged roof/seals; blocked vents. Ensure foundation is level. Inspect roof panels and seals for damage and repair as needed. Clear any obstructions from vents.
Door does not close or lock properly Door misalignment; bent hinges or latches; obstruction in door path. Check door alignment and adjust hinges if necessary. Straighten any bent latches. Remove any debris obstructing the door's movement. Lubricate hinges and latches.
Shed feels unstable or wobbly Inadequate anchoring; loose fasteners; uneven foundation. Ensure the shed is securely anchored to the ground or foundation. Tighten all assembly fasteners. Verify the foundation is level and stable.
Condensation inside shed Insufficient ventilation; high humidity. Ensure vents are clear and unobstructed. Consider adding a dehumidifier if humidity is consistently high.

7. Specifications

  • Brand: Patiowell
  • Model Number: PS-289-BN
  • Product Dimensions (D x W x H): 143.7" x 112.6" x 75.6"
  • Material: Metal, Alloy Steel
  • Color: Brown
  • Style: Modern
  • Door Style: Single Hinged, Lockable
  • Water Resistance Level: Water Resistant
  • Required Assembly: Yes
  • Storage Capacity: Approximately 579 cu. Ft
  • Roof Weight Capacity: 750 lbs

8. Warranty Information

Specific warranty details for the Patiowell 10x12 FT Metal Storage Shed are typically provided with the product packaging or on the manufacturer's official website. Please refer to these official sources for comprehensive information regarding warranty coverage, terms, and conditions.

9. Support and Contact

For further assistance, missing parts, or technical support, please refer to the contact information provided in your product's original documentation. You may also visit the official Patiowell website for customer service options.
