1. Product Overview
The AECOJOY 13x10FT Retractable Patio Awning provides versatile sun and shade protection for outdoor spaces. Constructed with durable materials, it features a manual crank for easy retraction and extension, making it suitable for various applications.

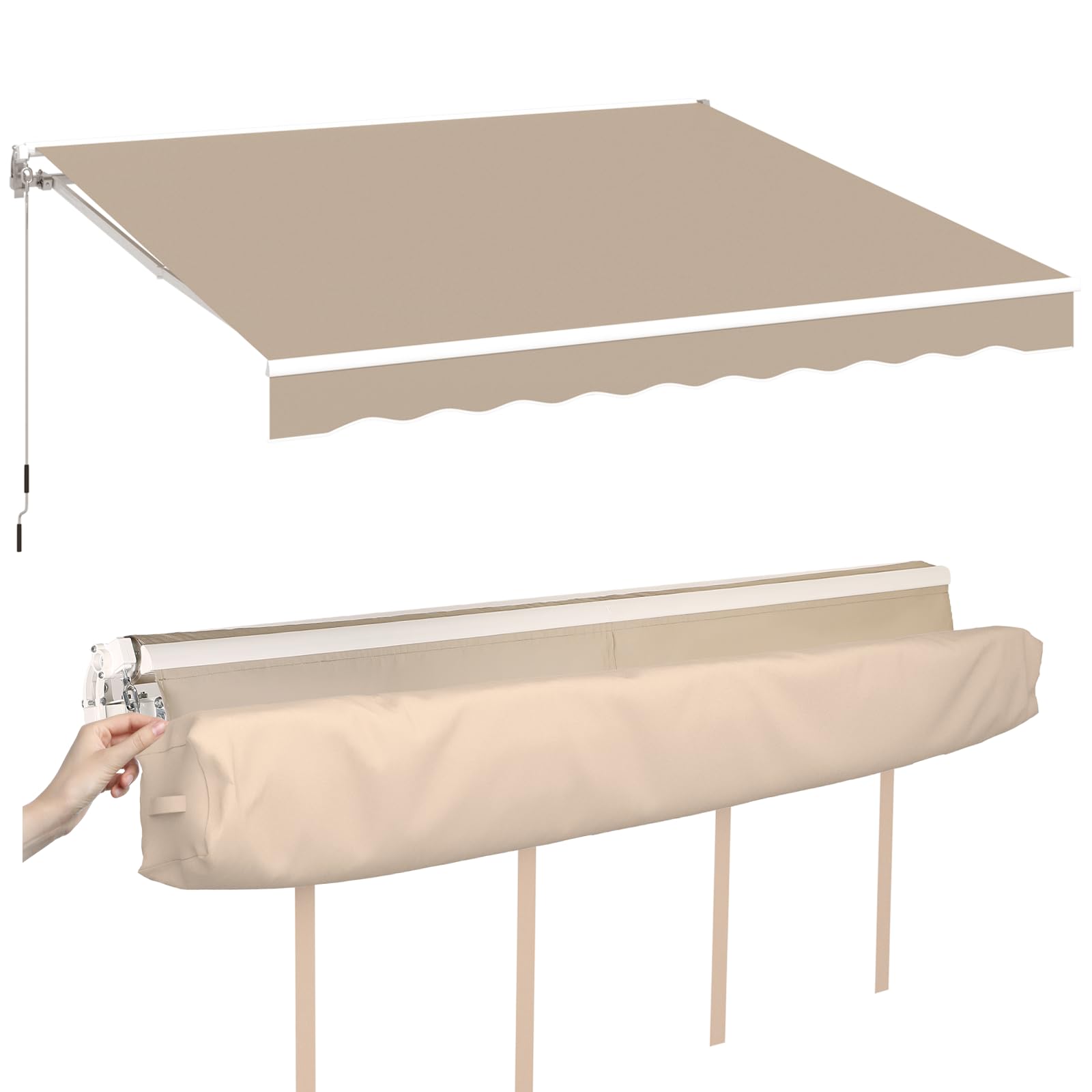

Figure 1: AECOJOY 13x10FT Retractable Patio Awning. This image shows the awning fully extended, providing shade over a patio area.
Key Features:
- High-Quality Fabric: Made from 280g/m³ polyester fabric, offering anti-UV (50 UV+ solar protection), windproof (up to 30mph), rain protection, and fade resistance.
- Stable Construction: Features an aluminum alloy and steel frame for enhanced stability and strength.
- Adjustable Manual Crank: Includes a 59-inch long crank handle for easy manual retraction and extension, allowing you to adjust the shade as needed.
- Versatile Application: Ideal for installation above windows or doors, suitable for both residential and commercial outdoor spaces.
2. Safety Information
- Always ensure the awning is securely mounted to a stable structure. Consult a professional if unsure about installation.
- Retract the awning during strong winds, heavy rain, or snow to prevent damage to the awning and property.
- Keep children and pets away from the awning during operation to avoid injury.
- Do not hang objects from the awning frame or fabric.
- Regularly inspect all mounting hardware and moving parts for wear or damage.
3. Setup & Installation
This awning requires assembly and proper installation. It is recommended that two people are involved in the installation process, especially for mounting the unit to the wall.
3.1 Pre-Installation Checklist:
- Verify all parts are present according to the packing list.
- Ensure the mounting surface is suitable and strong enough to support the awning's weight and operational forces.
- Gather necessary tools: drill, level, measuring tape, wrenches, safety glasses, and ladders.
3.2 Assembly Steps:
- Assemble the Frame: Connect the main frame components, ensuring all bolts and screws are tightened securely. Pay close attention to the arm-bar links and mounting bars.
- Attach the Fabric: Carefully slide the awning fabric into the designated channels on the main roller tube and front bar.
- Install the Crank Mechanism: Secure the manual crank handle mechanism to the frame.
3.3 Wall Mounting:
- Determine Mounting Location: Choose a location above a window or door, ensuring sufficient clearance for operation. The recommended installation height is between 8FT and 13FT.
- Mark Drill Holes: Using the mounting brackets as a template, mark the precise locations for drilling on the wall. Use a level to ensure accuracy.
- Drill Holes and Install Anchors: Drill holes appropriate for your wall type (e.g., concrete, wood studs) and insert suitable anchors if required.
- Secure Mounting Brackets: Attach the mounting brackets firmly to the wall using appropriate fasteners.
- Lift and Secure Awning: With assistance, carefully lift the assembled awning and secure it to the wall mounting brackets. Ensure all safety bolts are properly inserted and tightened.
Figure 2: Awning Dimensions and Recommended Installation Height. This diagram illustrates the overall dimensions of the awning and suggests an optimal installation height range.
Figure 3: Adjustable Awning Angle. The image highlights the awning's capability to adjust its angle between 40 and 90 degrees.
Video 1: Awning Installation and Operation Overview. This video provides a visual guide to the installation process and demonstrates the manual operation of the awning.
4. Operation
The AECOJOY Retractable Patio Awning is operated manually using the provided crank handle.
4.1 Extending the Awning:
- Insert the hook of the crank handle into the loop on the awning's gearbox.
- Turn the crank handle clockwise to extend the awning.
- Extend the awning to your desired projection. Do not force the awning beyond its maximum extension.
4.2 Retracting the Awning:
- Insert the hook of the crank handle into the loop on the awning's gearbox.
- Turn the crank handle counter-clockwise to retract the awning.
- Retract the awning completely when not in use or during adverse weather conditions.
5. Maintenance
Proper maintenance will extend the life and appearance of your AECOJOY awning.
- Fabric Cleaning: Clean the polyester fabric periodically with mild soap and water. Rinse thoroughly and allow to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
- Frame Cleaning: Wipe down the aluminum alloy and steel frame with a damp cloth to remove dirt and debris.
- Lubrication: Periodically lubricate moving parts, such as the arm joints and crank mechanism, with a silicone-based spray to ensure smooth operation.
- Seasonal Storage: While the fabric is rain and wind resistant, it is recommended to retract the awning during prolonged periods of severe weather (e.g., heavy snow, strong storms) or when not in use for extended periods to protect it.
- Protective Cover: If your model includes a waterproof protective cover, use it when the awning is retracted to provide additional protection against elements.
Figure 4: Fabric Features. This image highlights the 280g/m³ polyester fabric's rain protection, anti-UV (UPF 50), and windproof properties.
6. Troubleshooting
Refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Awning does not extend or retract smoothly. | Moving parts require lubrication; obstruction in the mechanism. | Lubricate arm joints and crank mechanism. Check for and remove any obstructions. |
| Awning sags or is uneven when extended. | Mounting brackets are not level; arms are not properly adjusted or damaged. | Verify mounting brackets are level. Inspect arms for damage or loose connections and adjust as necessary. |
| Crank handle is difficult to turn. | Gearbox issue; mechanism is stiff. | Apply lubricant to the gearbox. If the issue persists, contact customer support. |
| Fabric appears loose or wrinkled. | Fabric tension needs adjustment. | Refer to the assembly instructions for fabric tension adjustment. Ensure the fabric is properly seated in its channels. |
| Parts are missing or damaged upon arrival. | Shipping damage or packaging error. | Contact AECOJOY customer support immediately with details and photos of the issue. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | AECOJOY |
| Model | 13x10FT |
| Color | Beige w/Waterproof Cover |
| Product Dimensions (D x W x H) | 120"D x 156"W x 59"H |
| Fabric Type | 280g/m³ polyester fabric |
| UV Protection | 50 UV+ solar protection |
| Wind Resistance | Up to 30mph (retract in stronger winds) |
| Assembly Required | Yes |
| Crank Handle Length | 59 inches |
8. Warranty & Support
AECOJOY is committed to providing quality products and customer satisfaction.
8.1 Customer Support:
If you have any questions regarding assembly, product quality, missing parts, or require assistance with your AECOJOY awning, please contact our customer support team. Refer to your purchase documentation for specific contact details or visit the AECOJOY official website.
8.2 Warranty Information:
Specific warranty terms and conditions may vary. Please refer to the warranty card included with your product or contact AECOJOY customer support for detailed warranty information.
