Anern FGI 12000W Hybrid Solar Inverter Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Anern FGI 12000W Hybrid Solar Inverter. This advanced inverter, an evolution of the ECO series, offers superior power and intelligence for both grid-tied and off-grid solar energy systems. Please read this manual thoroughly before installation and use, and keep it for future reference.

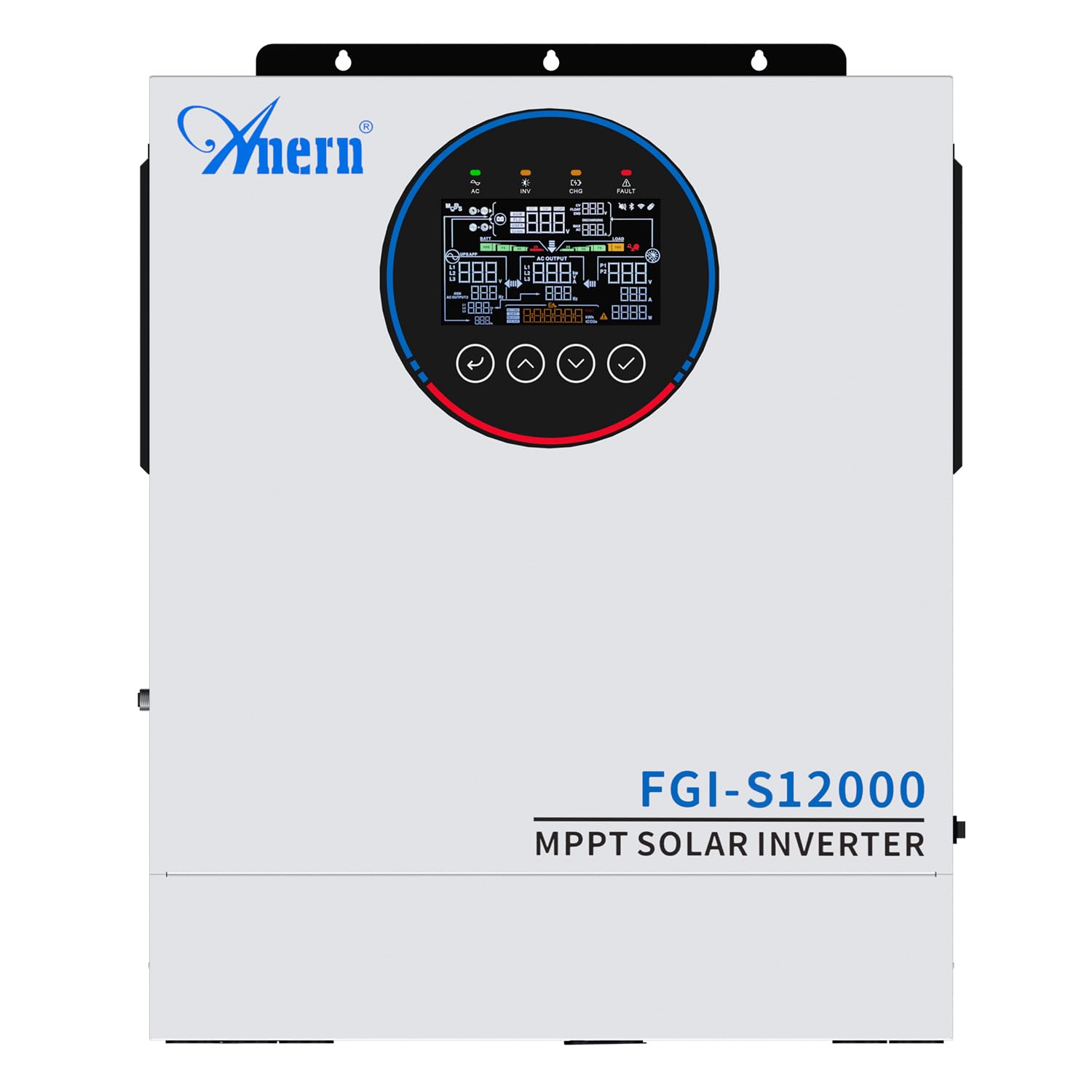

Figure 1: Anern FGI 12000W Hybrid Solar Inverter

2. Safety Information

Always observe the following safety precautions to reduce the risk of electric shock, fire, or injury:

• Installation must be performed by qualified personnel in accordance with all local electrical codes.
• Do not attempt to repair or disassemble the inverter. Contact qualified service personnel for assistance.
• Ensure proper grounding of the inverter.
• Keep the inverter away from flammable materials and ensure adequate ventilation to prevent overheating.
• Wear appropriate personal protective equipment (PPE) during installation and maintenance.
• Disconnect all power sources (PV, battery, grid) before performing any wiring or maintenance.

3. Product Overview

The Anern FGI 12000W Hybrid Solar Inverter is designed for high performance and reliability in solar energy systems. It features a compact, high-frequency design.

Key Features:

• Rated Power: 12KW/12KVA with a 160A MPPT charge controller.
• Dual MPPT Inputs: Maximizes solar production, even with partial shading.
• Dual AC Output: Intelligent load management for energy saving.
• Grid-Tie Functionality: Allows feeding excess energy back into the grid.
• Multiple Charge Modes: Solar Priority, Solar Only, and Mixed Solar/Grid.
• Advanced Communication: CAN/RS485 interfaces for lithium battery BMS integration.
• Remote Monitoring: Via dedicated app with optional WiFi module.
• Wide Battery Compatibility: Supports Lead-acid, AGM, GEL, Lithium, and LiFePO4 batteries.
• Battery-less Operation: Capable of functioning without a battery.

Figure 2: Key features and specifications of the 12000W Solar Inverter.

Figure 3: Inverter compatibility with various battery types.

4. Setup and Installation

Proper installation is crucial for the inverter's performance and safety. Follow these steps carefully.

Installation Sequence:

1. Connect the Battery: Ensure the battery bank is correctly wired and secured.
2. Power On the Inverter: Once the battery is connected, turn on the inverter.
3. Activate Switches: Activate the PV (photovoltaic), grid, and load switches in this order.

Shutdown Sequence: To power down the system, follow the reverse order of the installation sequence.

Important Note for Inductive Loads: For inductive loads such as motors, ensure that the starting power requirement is at least 3 times higher than the inverter's nominal power to prevent damage or malfunction.

WiFi Module Installation:

The WiFi module is optional and allows for remote monitoring. Refer to the separate WiFi module instruction manual for detailed installation steps.

5. Operating Instructions

The inverter offers flexible operating modes to optimize energy usage.

Hybrid Charging Modes:

You can select from three optimized charging modes:

• Solar Priority: Solar energy is used as the primary source to charge the battery. The utility grid will charge the battery only when solar energy is unavailable.
• Solar Only: Solar energy is the sole charging source, regardless of grid availability.
• Mixed Solar/Grid: Both solar and grid power can charge the battery simultaneously, ensuring continuous power.

Figure 4: Hybrid charging modes for energy efficiency.

Dual AC Output Function:

The intelligent dual AC output automatically manages loads. In situations where the battery is low and neither grid nor PV power is available, the inverter will deactivate the primary circuit to conserve energy. The secondary output will remain active to power essential loads.

Figure 5: Dual Input Dual Output Mode operation.

Remote Monitoring:

With the optional WiFi module, real-time remote monitoring is available via a dedicated mobile application. This allows you to check production, consumption, and system status from anywhere.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your inverter.

• Keep the inverter clean and free from dust. Use a dry cloth for cleaning.
• Ensure all electrical connections are tight and free from corrosion.
• Periodically check the ventilation openings for obstructions.
• Inspect cables for any signs of wear or damage.
• For any internal maintenance, contact qualified service personnel.

7. Troubleshooting

If you encounter issues with your inverter, refer to the following general troubleshooting tips. For specific error codes or persistent problems, consult the full product manual or contact support.

• No Power: Check all circuit breakers and ensure battery connections are secure and charged.
• Low Output: Verify PV panel connections and ensure they are clean and unobstructed. Check battery health.
• Overload Warning: Reduce the connected load. Ensure the total load does not exceed the inverter's rated output.
• Over-temperature Warning: Ensure adequate ventilation around the inverter. Clear any obstructions from cooling vents.

The inverter is equipped with multi-layered protection features:

Figure 6: Multi-layered protection features.

8. Technical Specifications

9. Warranty Information

The Anern FGI 12000W Hybrid Solar Inverter comes with a 2-year manufacturer warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or contact Anern customer support.

10. Support

For technical assistance, troubleshooting, or any questions regarding your Anern FGI 12000W Hybrid Solar Inverter, please contact Anern customer support. You can typically find contact information on the manufacturer's website or through the retailer where you purchased the product.

You may also visit the official Anern store on Amazon for additional resources and product information: Anern Store
