1. Product Overview
The YUYIU Wireless 2.4GHz Controller is designed for an enhanced gaming experience across multiple platforms. It features 7-color RGB lighting, dual vibration motors, programmable back buttons, and a 3.5mm audio jack. This manual provides instructions for setup, operation, and maintenance.
Package Contents:
- YUYIU Wireless 2.4GHz Controller
- 2.4GHz Wireless USB Adapter
- USB-C Charging Cable
- User Manual

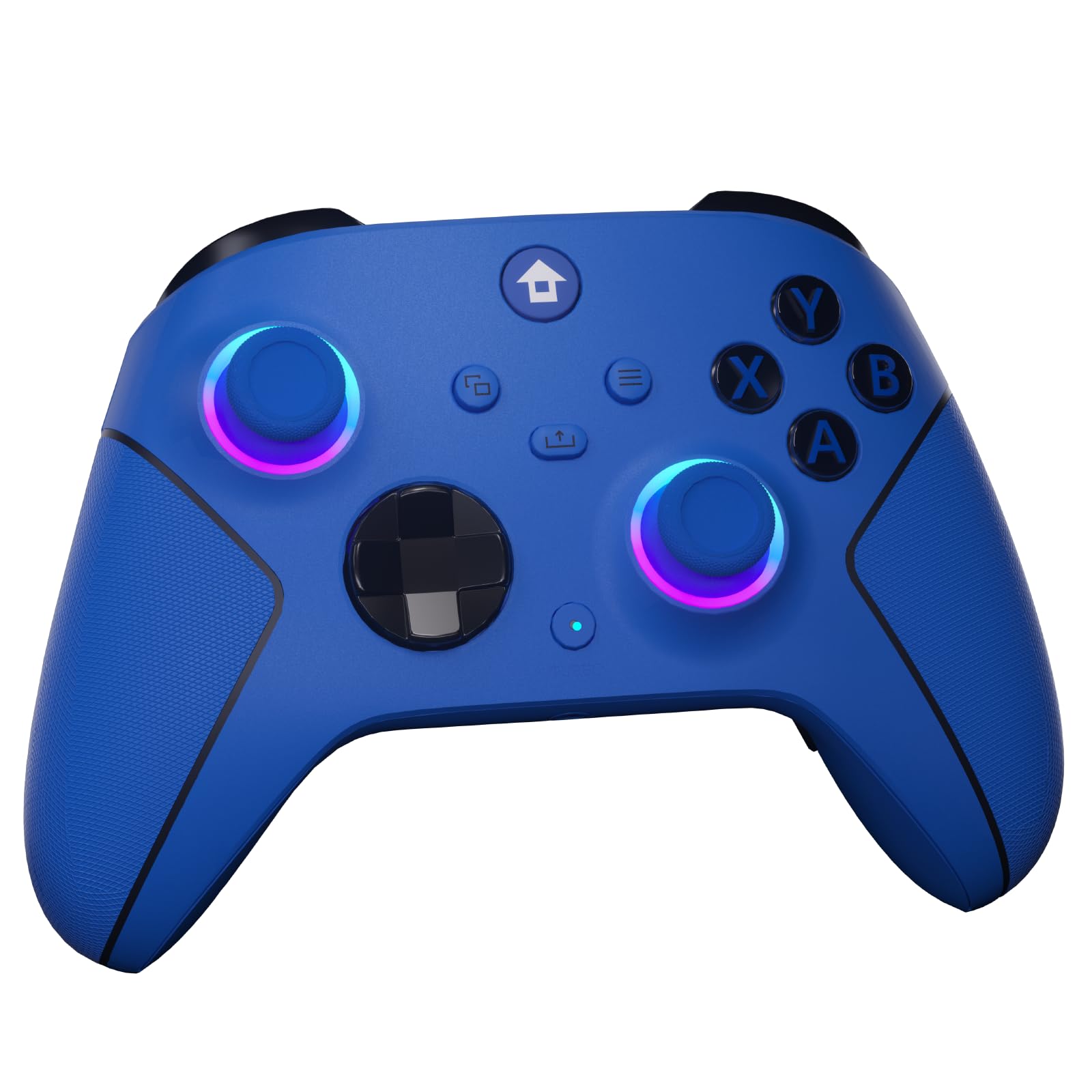

Image: YUYIU Wireless 2.4GHz Controller (Blue variant).
2. Setup and Connection
2.1 Important Note on Compatibility:
The controller requires pairing with a 2.4G receiver (included) to connect to host devices and computers running Windows 7 or above. It is not compatible with TVs or phones.
2.2 Wireless Connection (2.4GHz Adapter):
- Plug the 2.4GHz wireless USB adapter into an available USB port on your Xbox console (Xbox One/Xbox One S/Xbox One X/Xbox Series X/Xbox Series S) or PC (Windows 10 and above).
- The receiver's indicator light will blink slowly.
- Take out the controller and press the HOME button to power it on. The controller's lights will begin to flash rapidly.
- Hold the button on the receiver to make it flash rapidly.
- Wait for a few seconds. Once connected, the controller will vibrate once, and both the controller and receiver indicator lights will stay solidly lit, indicating a successful connection.
Video: Tutorial on connecting the YUYIU Wireless Controller to a device using the 2.4GHz receiver.
2.3 Wired Connection:
To use the controller in wired mode, simply insert the USB-C cable into the controller and the other end into a USB port on your computer or host device. The indicator light on the controller will flash slowly while charging, then remain on once fully charged and connected, indicating it is ready for use.
2.4 Charging the Controller:
Connect the controller to a power source (e.g., computer USB port, USB wall adapter) using the provided Type-C charging cable. The indicator light will flash slowly during charging. When fully charged, the indicator light will remain on. The built-in 1000mAh lithium battery requires 2-3 hours for a full charge and provides 10-14 hours of play time.
Image: The YUYIU Wireless Controller showing its USB-C charging port and highlighting the 1000mAh battery, 10-12 hours play time, and 2-3 hours fast charge.
3. Operating Instructions
3.1 Power On/Off:
- To power on, press the HOME button.
- To power off, press and hold the HOME button for a few seconds.
3.2 RGB Lighting Modes:
The controller features 7-color RGB lighting around the joysticks with multiple modes.
- Turn Lights On/Off: Press and hold the Light Setting Key (located on the back of the controller) to toggle the lights on or off.
- Cycle Colors (Solid/Breathing Modes): While in Solid or Breathing mode, press the Light Setting Key to cycle through the available colors (Blue, Ice Blue, Green, Orange, Yellow, Red, Pink).
- Solid Light Mode: Press the Light Setting Key + A button simultaneously.
- Breathing Mode: Press the Light Setting Key + B button simultaneously.
- Rainbow Marquee Mode: Press the Light Setting Key + Y button simultaneously to activate a circular running marquee changing mode.
Image: The YUYIU Wireless Controller illustrating its four lighting modes, 3.5mm audio jack, and dual vibration feature.
Video: Tutorial on controlling the RGB lighting modes (Solid, Breathing, Rainbow) and cycling through colors on the YUYIU Wireless Controller.
Video: Another tutorial demonstrating the RGB light control features of the YUYIU Wireless Controller.
3.3 Turbo Function:
The Turbo function allows for rapid, repeated input of a button press. There are three states: Normal, Hold Turbo, and Auto Turbo.
- Set Turbo Function: In any mode, press the desired action button (A/B/X/Y/L1/L2/R1/R2) and the Turbo key (first press) to activate the Turbo function. The Turbo light will flash.
- Set Auto Turbo Function: Press the action button and the Turbo key again (second press) to activate the Auto Turbo function. The Turbo light will flash. In Auto Turbo mode, pressing and holding the button stops rapid shots; letting go kicks it back into action.
- Clear Turbo Function: Press the action button and the Turbo key again (third press) to clear the Turbo function for that specific button.
- Adjust Turbo Speed: Hold the Turbo key and press the D-pad Up/Down to adjust the speed (2 preset rates).
Image: Illustration of the Turbo and Auto Turbo functions, including how to set and clear them, and adjust speed settings.
Video: Tutorial demonstrating the Combo Attack and Macro Programming features, including Turbo settings, on the YUYIU Wireless Controller.
3.4 Programmable Back Buttons (Macro Configuration):
The "ML" and "MR" buttons on the back of the controller can be programmed to map basic function keys (A/B/X/Y/LB/RB/L3/R3/D-PAD), allowing for 1-16 combination function keys.
- Enter Programming Mode: Press and hold the Programming Key (small button between ML/MR) for 3 seconds. The controller will vibrate once, indicating successful entry into programming mode.
- Record Sequence: Press the button sequence you want to record.
- Confirm Assignment: Then press either the ML or MR back button to confirm the assignment. The controller will vibrate once to confirm.
- Execute Combo: Press the assigned ML or MR button once to execute your recorded combo.
Image: The back of the YUYIU Wireless Controller highlighting the programmable ML and MR buttons and the programming key.
Video: Tutorial demonstrating the Combo Attack and Macro Programming features, including programmable back buttons, on the YUYIU Wireless Controller.
3.5 3.5mm Stereo Jack:
The controller includes a 3.5mm stereo jack, allowing you to connect headphones and microphones for simultaneous audio reception and transmission during gameplay.
Image: The YUYIU Wireless Controller highlighting the 3.5mm audio jack.
3.6 Dual Vibration Motors:
The built-in dual vibration motors provide precise feedback, enhancing the realism of in-game actions such as weapons, impacts, and vibrations.
Image: The YUYIU Wireless Controller illustrating the dual vibration motors and their effect in gameplay.
4. Key Features
- Wide Compatibility: Compatible with Xbox One, Xbox One S, Xbox One X, Xbox Series X, Xbox Series S Consoles, and Steam PC Windows 10 and above.
- 2.4GHz Wireless Transmission: Enjoy delay-free gaming within a range of 33 feet.
- Built-in 1000mAh Battery: Provides 10-14 hours of use on a 2-3 hour charge via Type-C port.
- Dual Vibration Motors: Offers realistic feedback for immersive gaming.
- 360° Joystick: Omnidirectional joystick with rapid rebound and high accuracy.
- Programmable Keys: "ML" and "MR" back buttons can map 1-16 combination function keys.
- Turbo & Auto Turbo Functions: Allows for rapid-fire and automatic rapid-fire button presses.
- 7 Colors RGB Light: Customizable lighting modes (Solid, Breathing, Rainbow) for joysticks.
- 3.5mm Stereo Jack: For connecting headphones and microphones.
Image: The YUYIU Wireless Controller showcasing its various features including wireless connectivity, vibration, turbo, and programmable buttons.
Image: The YUYIU Wireless Controller demonstrating its compatibility with major platforms like PC, Steam, and Xbox consoles.
5. Maintenance
- Cleaning: Use a soft, dry cloth to clean the controller. Avoid using harsh chemicals or abrasive materials.
- Storage: Store the controller in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: To prolong battery life, avoid fully discharging the controller frequently. Charge it regularly, even if not in use for extended periods.
- Avoid Drops: Protect the controller from drops and impacts, which can damage internal components.
6. Troubleshooting
| Problem | Possible Solution |
|---|---|
| Controller does not connect wirelessly. |
|
| Controller is not charging. |
|
| Buttons or joysticks are unresponsive. |
|
| RGB lights are not working or stuck. |
|
7. Specifications
| Feature | Detail |
|---|---|
| Brand | YUYIU |
| Model | B0GHMC1BW4 |
| Connectivity | 2.4GHz Wireless, Wired (USB-C) |
| Compatible Devices | Xbox One, Xbox Series S, Xbox Series X, Steam PC (Windows 7/10/above) |
| Battery Capacity | 1000mAh Lithium Battery |
| Charging Time | 2-3 hours |
| Play Time | 10-14 hours |
| Audio Jack | 3.5mm Stereo Jack |
| Vibration | Dual Vibration Motors |
| Programmable Buttons | ML/MR Back Buttons |
| RGB Lighting | 7 Colors, Multiple Modes |
| Item Dimensions | 3.94 x 3.15 x 1.97 inches |
| UPC | 705794310327 |
8. Warranty and Support
YUYIU is committed to providing high-quality products and a good gaming experience. If you encounter any problems during use, please contact our customer service team via email. We will endeavor to resolve your issue as soon as possible.
For further assistance or warranty claims, please refer to the contact information provided with your product packaging or visit the official YUYIU support website.
