1. Introduction
Thank you for choosing the MZROT 301E Vacuum Sealer Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions thoroughly before first use and retain them for future reference.

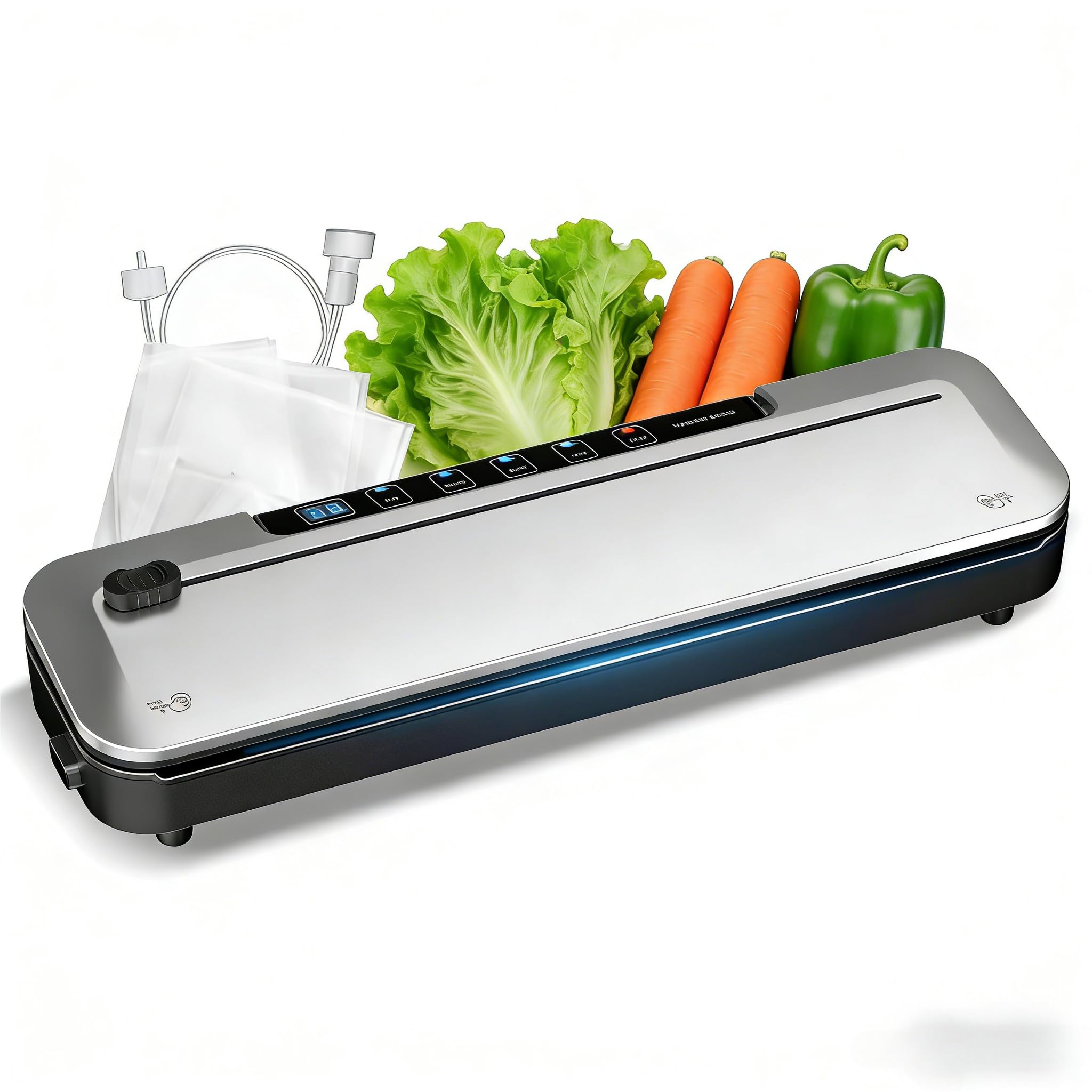

The MZROT 301E Vacuum Sealer Machine in a kitchen setting, ready for use.
The MZROT 301E Vacuum Sealer is designed to extend the freshness of your food by removing air from specially designed bags and containers, thereby reducing spoilage caused by oxidation and microbial growth. This process helps preserve flavor, nutrients, and texture, making it an invaluable tool for meal preparation and food storage.
2. Safety Instructions
To ensure safe operation and prevent injury or damage, please observe the following safety precautions:
- Always connect the appliance to a grounded power outlet.
- Do not immerse the appliance, power cord, or plug in water or other liquids.
- Keep the appliance out of reach of children. Close supervision is necessary when used near children.
- Do not operate the appliance with a damaged cord or plug, or if it malfunctions or has been damaged in any manner.
- Avoid touching hot surfaces, especially the sealing strip, immediately after use.
- Use only MZROT-approved vacuum sealer bags and accessories.
- Unplug the appliance from the outlet when not in use and before cleaning.
- Do not use the appliance outdoors or for purposes other than its intended use.
3. Product Overview and Components
Familiarize yourself with the main parts and functions of your MZROT 301E Vacuum Sealer Machine.
An image showcasing the vacuum sealer's multiple functions, including dry and moist food sealing, external vacuum, and a built-in cutter.
A visual representation of the accessories included with the vacuum sealer: a sealing foam gasket, a vacuum hose, and two sizes of pre-cut vacuum bags.
The MZROT 301E features intuitive controls for various sealing modes, a built-in cutter for custom bag sizes, and an external vacuum port for use with compatible canisters. Key components include the sealing strip, vacuum chamber, lid latches, and control panel buttons for Dry, Moist, Seal, Vac, and Stop functions.
4. Setup
Before using your vacuum sealer for the first time, follow these steps:
- Unpacking: Carefully remove the vacuum sealer and all accessories from the packaging. Retain packaging for storage or future transport.
- Initial Cleaning: Wipe down the exterior of the appliance with a damp cloth. Ensure the sealing strip and vacuum chamber are clean and dry.
- Placement: Place the vacuum sealer on a flat, stable, and dry surface. Ensure there is enough space around the unit for proper ventilation and operation.
- Power Connection: Plug the power cord into a standard electrical outlet. The indicator lights may illuminate, indicating the unit is ready.
5. Operating Instructions
5.1. Vacuum Sealing with Bags
Follow these steps for effective vacuum sealing of food items in bags:
A three-step visual guide showing how to place a bag in the vacuum chamber, close the lid, and select the sealing mode.
- Prepare the Bag: Place the food item into a vacuum sealer bag, ensuring at least 2-3 inches of empty space at the top of the bag. Ensure the open end of the bag is clean and dry.
- Position the Bag: Open the lid of the vacuum sealer. Place the open end of the bag flat into the vacuum chamber, ensuring it lies smoothly over the sealing strip.
- Close the Lid: Press down firmly on both ends of the lid until you hear two distinct "pops," indicating that the lid is securely latched.
- Select Mode: Choose the appropriate mode for your food: Dry for solid foods or Moist for foods with some liquid content.
- Start Sealing: Press the Vac & Seal button. The machine will automatically remove air and then seal the bag.
- Release: Once the process is complete, the indicator light will turn off. Press the release buttons (if applicable) or lift the lid to retrieve your sealed bag.
5.2. Sealing Only
To create a seal without vacuuming, for example, to make a custom-sized bag from a roll:
- Place the open end of the bag over the sealing strip.
- Close the lid firmly until it latches.
- Press the Seal button. The machine will create a seal.
- Open the lid and remove the sealed bag.
5.3. Using the External Vacuum Function
For vacuum sealing with compatible canisters or bottle stoppers:
- Connect one end of the vacuum hose to the external vacuum port on the machine.
- Connect the other end of the hose to the port on your canister or bottle stopper.
- Press the External Vac button. The machine will begin to remove air.
- Once vacuuming is complete, the machine will stop automatically. Remove the hose.
A table comparing the freshness duration of different food types (meat, seafood, vegetables, fruits, bread) at room temperature versus when vacuum sealed and stored in a freezer/fridge.
6. Maintenance
6.1. Cleaning
Regular cleaning ensures optimal performance and longevity of your vacuum sealer:
- Always unplug the appliance before cleaning.
- Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Clean the vacuum chamber and sealing strip with a damp cloth and mild soap if necessary. Ensure these areas are completely dry before closing the lid or using the machine again.
- If liquids are accidentally drawn into the vacuum chamber, clean it immediately to prevent damage to the pump.
6.2. Gasket Care
The foam gaskets are crucial for creating a proper vacuum seal. Inspect them regularly for wear or damage.
An image detailing the 12-inch heating strip for sealing multiple bags and the high-quality sealing foam gasket.
- Ensure the gaskets are clean and free of food debris.
- If the gaskets appear dry or cracked, they may need replacement. Refer to the included accessories for spare gaskets or contact customer support for replacements.
6.3. Storage
For long-term storage, ensure the lid is not fully latched to prevent compression of the foam gaskets, which can lead to deformation and poor sealing performance over time. Store the appliance in a dry, cool place.
The vacuum sealer being placed into a kitchen drawer, illustrating its compact size and ease of storage, along with its dimensions.
7. Troubleshooting
If you encounter issues with your MZROT 301E Vacuum Sealer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | No power supply. | Check if the power cord is securely plugged into a working outlet. |
| Machine vacuums but does not seal. | Sealing strip is dirty or wet; bag is not positioned correctly; sealing strip is worn. | Clean and dry the sealing strip. Ensure the bag is flat and centered. Replace the sealing strip if worn. |
| Machine seals but does not vacuum properly. | Lid not properly latched; gaskets are dirty, wet, or damaged; bag has wrinkles or holes. | Press down firmly on both sides of the lid until it clicks. Clean or replace gaskets. Ensure the bag is smooth and undamaged. |
| Air leaks into the bag after sealing. | Bag is punctured or has a poor seal; food items with sharp edges. | Inspect the bag for punctures. Re-seal the bag. For sharp items, use a paper towel to cushion the sharp edges. |
| Lid is difficult to close or open. | Lid latches are stiff or misaligned. | Apply gentle, even pressure when closing. Ensure no obstructions. Do not force the lid. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
- Brand: MZROT
- Model Number: 301E
- Color: White
- UPC: 780748271237
- ASIN: B0GHMBYJD4
- Heating Strip: 12 inches (approximate)
- Dimensions: Refer to product packaging for exact measurements.
9. Warranty Information
The MZROT 301E Vacuum Sealer Machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms, conditions, and duration. Keep your purchase receipt as proof of purchase for warranty claims.
10. Customer Support
For any questions, technical assistance, or service inquiries regarding your MZROT 301E Vacuum Sealer Machine, please contact MZROT customer support. Contact details can typically be found on the product packaging, the official MZROT website, or your purchase documentation.
